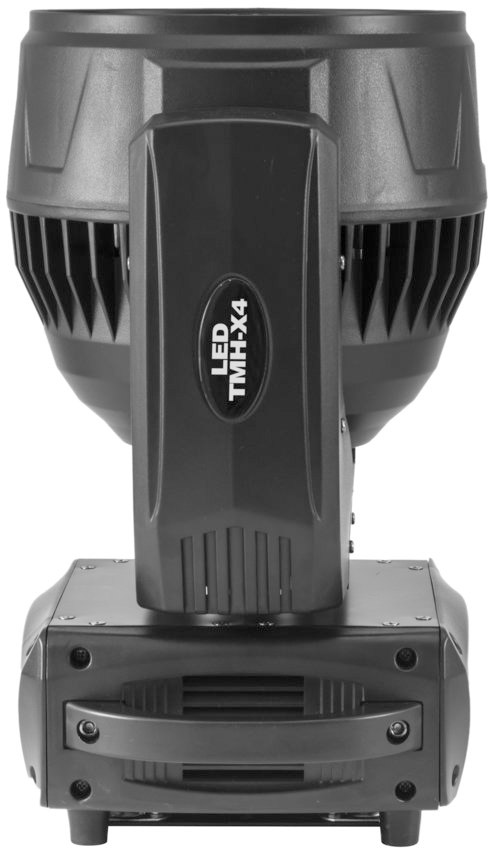

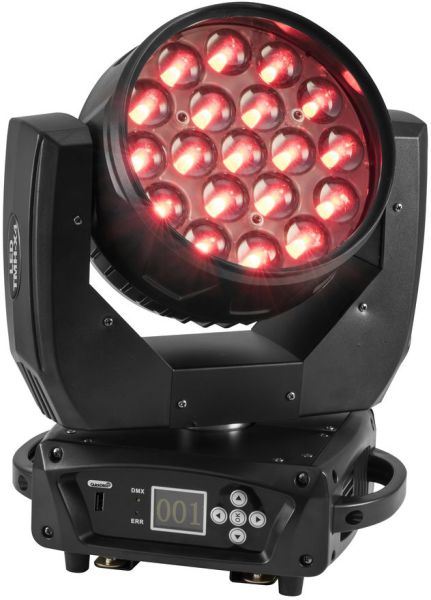

EUROLITE LED TMH-X4 Moving Head Wash Zoom
€529.00 *
Availability:
Low stock; Delivery time: 1-3 days
Delivery time: approx. 1-3 days
Item number: 120032305
EAN: 4026397664591
MPN: 51785915
Washlight with 19 intense 15 W LEDs (4in1) and motorized zoom 19 powerful LEDs 15 W COB... more
All information about the product:
"EUROLITE LED TMH-X4 Moving Head Wash Zoom"
Washlight with 19 intense 15 W LEDs (4in1) and motorized zoom
- 19 powerful LEDs 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
3 segments separate controlling - Positioning within 540° PAN and 270° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Zoom motor-driven
- Integrated show programs
- The device is cooled by temperature-controlled fan at the Head; cooling fan at the Base
- Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 1° - 40°
- Multicolor LCD display
- Color blend stepless; color change adjustable; Dimmer electronic
- Strobe effect
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
- Mains input and output for power linking up to 8 units
Package contents

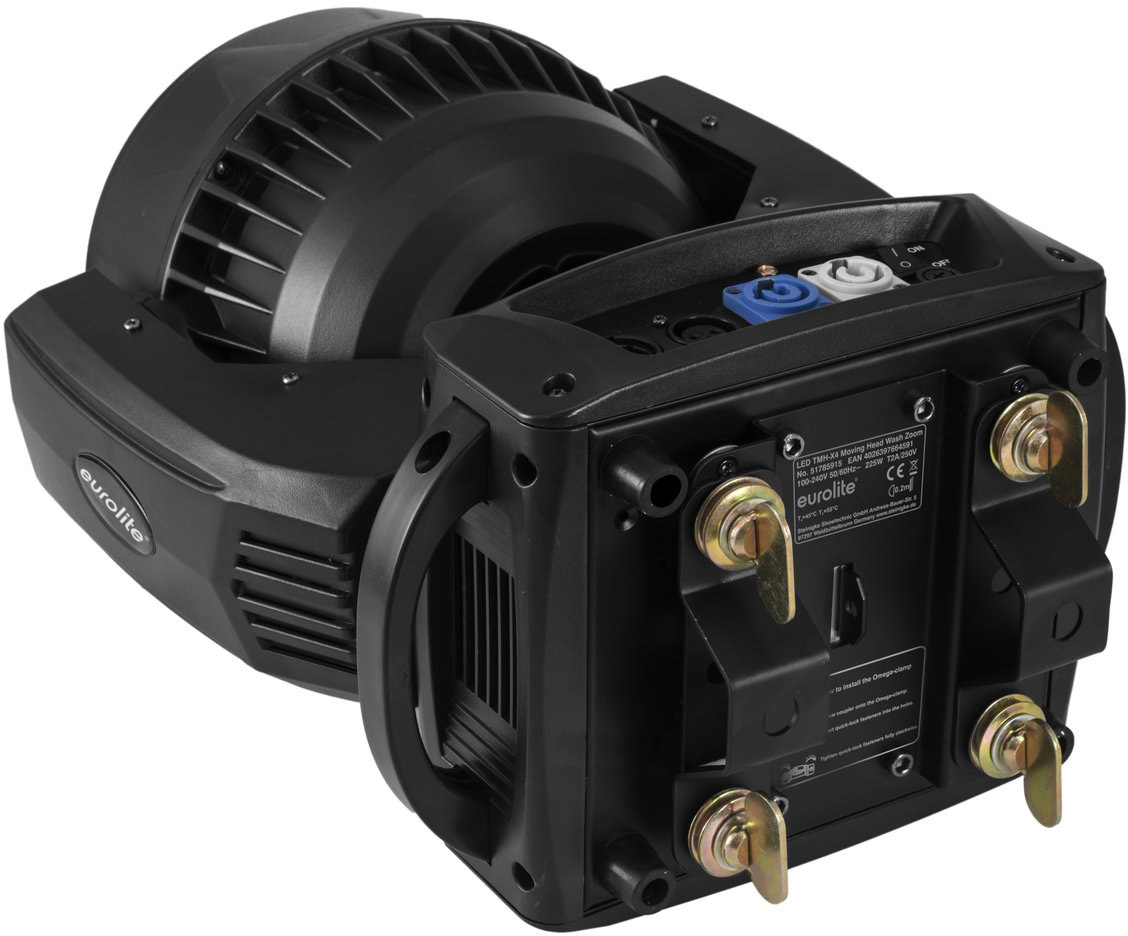

- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 225 W |
IP classification: | IP20 |
Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
Power output: | P-Con (gray), mounting version |
Fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | 19 x 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) |
Max. TILT movement: | 270° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Max. PAN movement: | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Equipment: | Zoom motor-driven |
DMX channels: | 16; 24 |

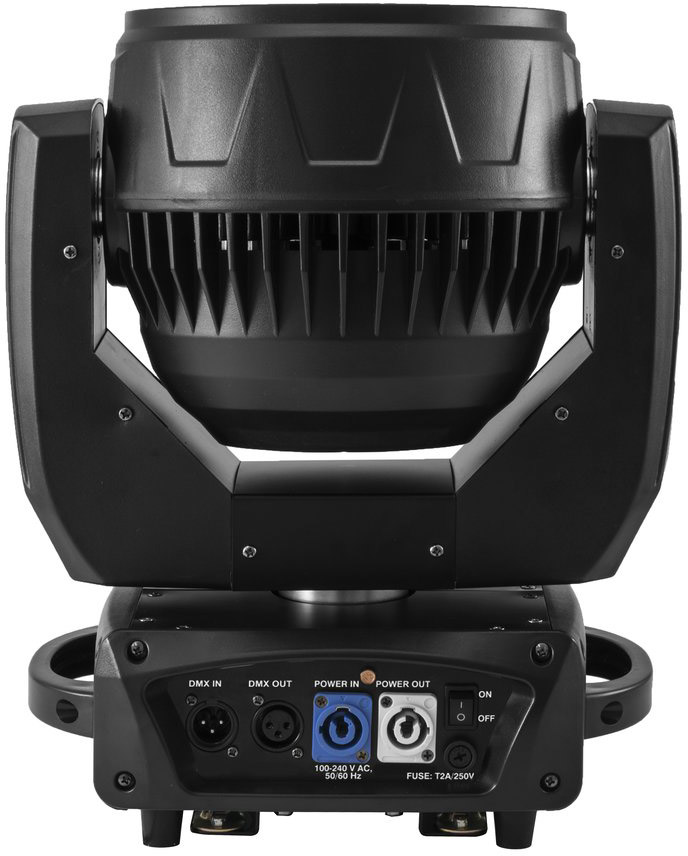

DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Temperature-controlled fan at the Head Cooling fan at the Base |
Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
Preprogrammed in: | Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain |
Beam angle: | 1° - 40° |
Beam angle (1/2 peak): | 1 - 25° |
Beam angle (1/10 peak): | 8 - 40° |
Illuminance in Lux (lx): | Narrow red (R) 3m: 2779 lx, 6m: 763 lx Narrow green (G) 3m: 7893 lx, 6m: 1841 lx Narrow blue (B) 3m: 1468 lx, 6m: 390 lx Narrow cold white (CW) 3m: 9558 lx, 6m: 2468 lx Narrow all 3m: 19553 lx, 6m: 5001 lx Wide red (R) 3m: 272 lx, 6m: 73 lx Wide green (G) 3m: 583 lx, 6m: 160 lx Wide blue (B) 3m: 117 lx, 6m: 34 lx Wide cold white (CW) 3m: 740 lx, 6m: 211 lx Wide all 3m: 1568 lx, 6m: 439 lx |
Housing color: | Black |
Display type: | Multicolor LCD display |
Dimensions: | Width: 30,5 cm Depth: 20,0 cm Height: 40,0 cm |
Weight: | 8,62 kg |
Noise classification: | Class 3 (clearly perceptible sounds) |
Photobiological safety: | Risk Group 0 |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
