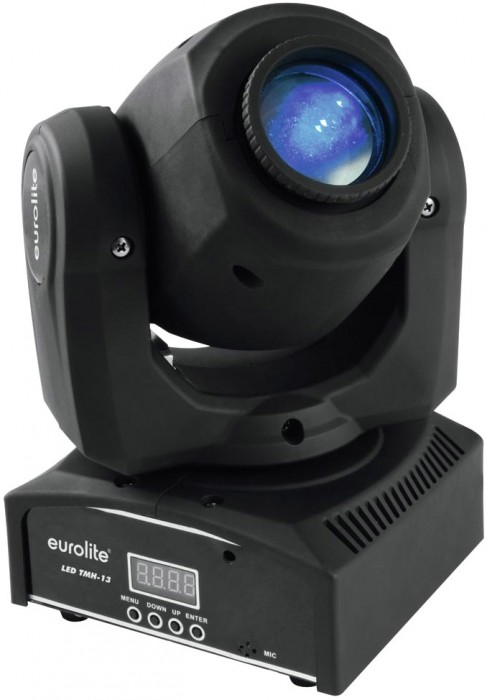

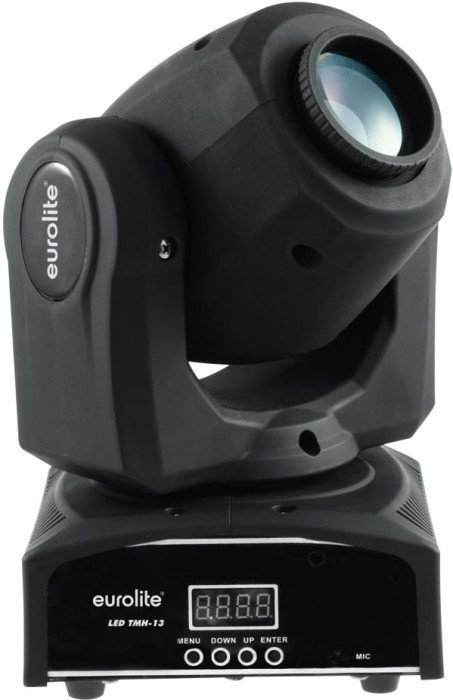

EUROLITE LED TMH-13 Moving Head Spot
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 120024815
EAN: 4026397693508
MPN: 51785972
Handy sized spotlight with 10 W LED, gobos and color wheel Compact lightweight 1 powerful LED... more
All information about the product:
"EUROLITE LED TMH-13 Moving Head Spot"
Handy sized spotlight with 10 W LED, gobos and color wheel
- Compact lightweight
- 1 powerful LED 10 W high-power
- Positioning within 540° PAN and 200° TILT
- Exact positioning (16 bit resolution)
- Gobo wheel with static gobos; Focus manual
- Gobo effect; beam effect; Strobe effect
- Color wheel with 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 7 gobos and open
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Sound to light via Microphone
- With a beam angle of 13°
- 4 digit 7-segment LED display
- Dimmer electronic
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet, 2 x screw
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 30 W |
IP classification: | IP20 |
Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Lamp type: | LED lamp |
LED: | 1 x 10 W high-power |
Max. TILT movement: | 200° Exact positioning (16 bit resolution) |
Max. PAN movement: | 540° Exact positioning (16 bit resolution) |
Equipment: | Gobo wheel with static gobos; Focus manual |
Color generation: | Color wheel with 7 dichroic filters plus open Rainbow effect with adjustable speed in both directions |
Gobos: | Gobo wheel with static gobos, 7 gobos and open |
DMX channels: | 9; 11 |

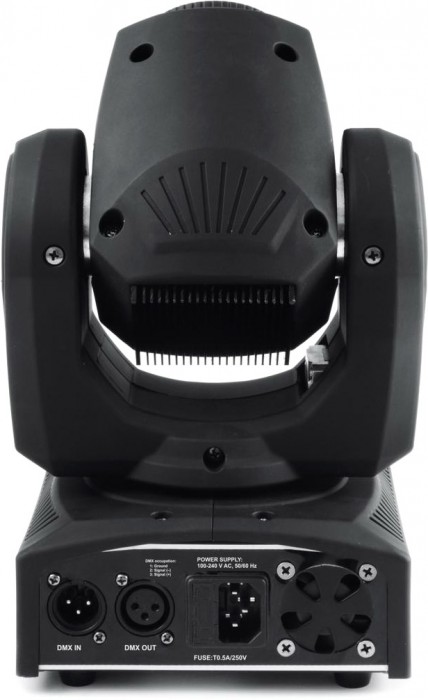

DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Cooling fan |
Control: | Stand-alone; DMX; Sound to light via Microphone |
Preprogrammed in: | Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3 |
Beam angle: | 13° |
Beam angle (1/2 peak): | 13° |
Illuminance in Lux (lx): | Cold white (CW) 3m: 342 lx, 6m: 86 lx |
Housing color: | Black |
Display type: | 4 digit 7-segment LED display |
Dimensions: | Width: 16 cm Depth: 15,8 cm Height: 28 cm |
Weight: | 2,61 kg |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
