Preview: EUROLITE LED TMH-S400 CMY Moving-Head Beam/Spot/Wash

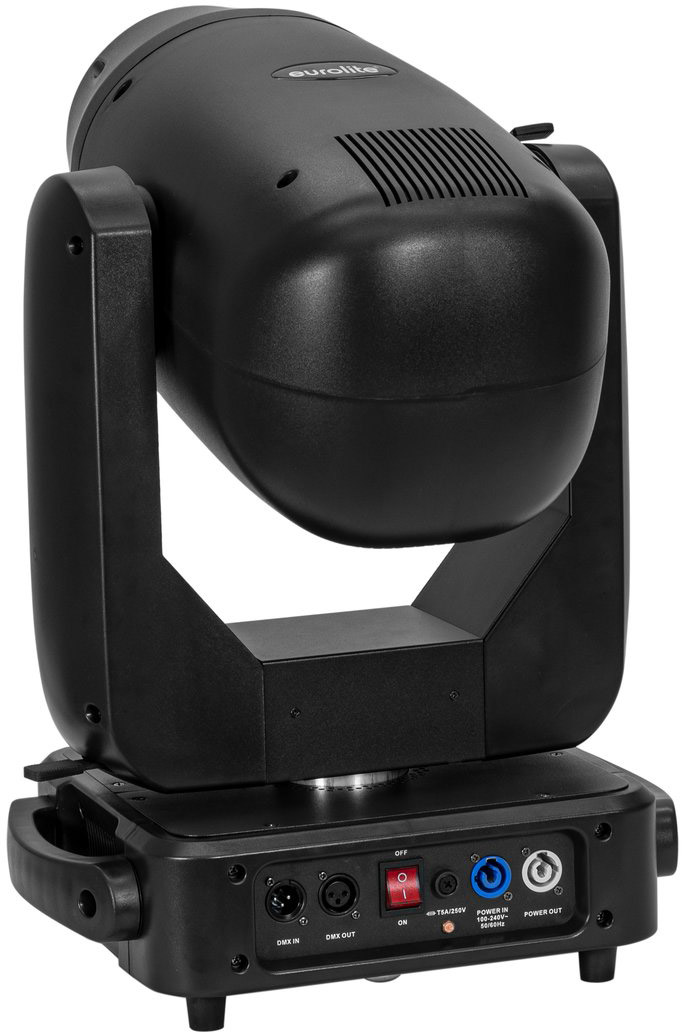

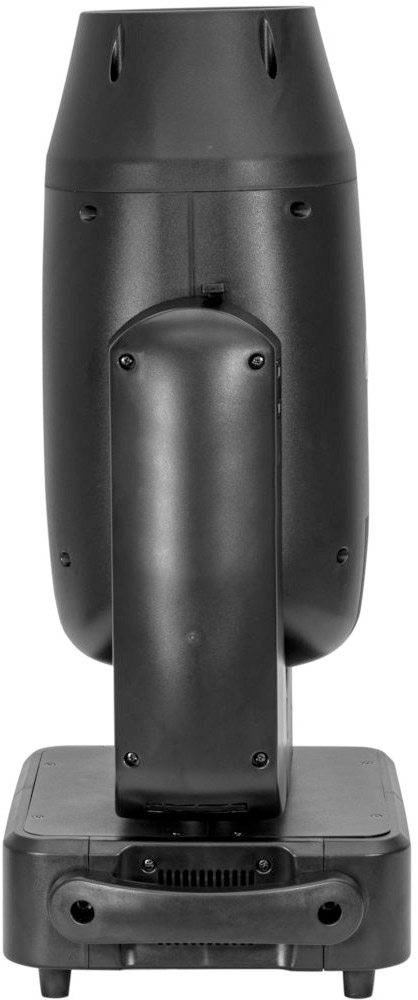

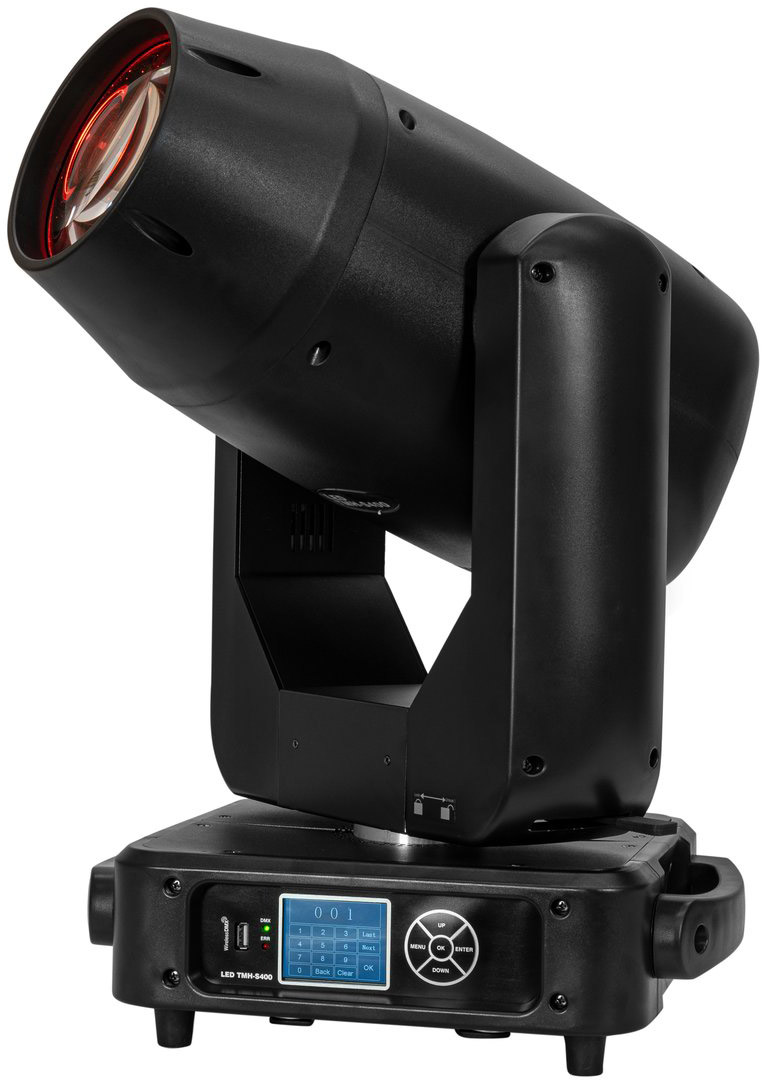

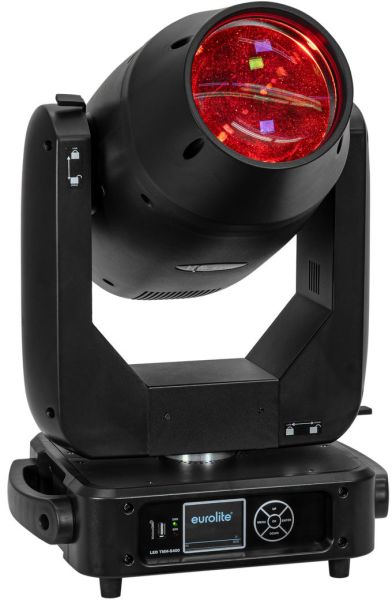

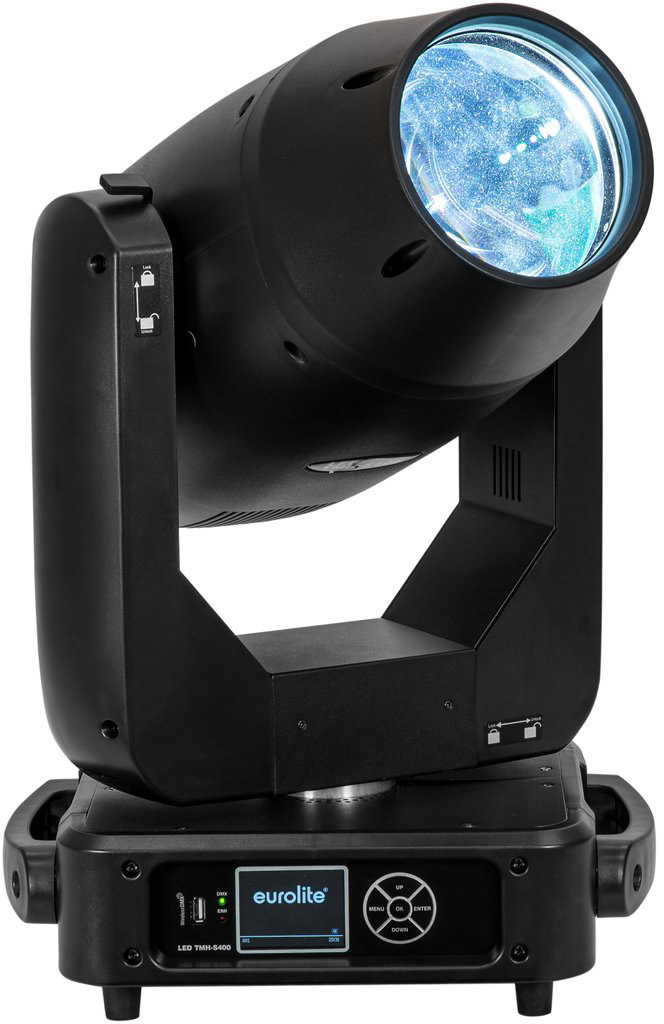

EUROLITE LED TMH-S400 CMY Moving-Head Beam/Spot/Wash

€1,499.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Currently not available.
Expected to be available again in 10 weeks.

Currently not available

Item number: 120037545

EAN: 4026397736519

MPN: 51786089

NEW

LED moving head hybrid with 400 W COB LED, color wheel, CMY color mixing, static and rotating... more

Back to the overview

All information about the product:

"EUROLITE LED TMH-S400 CMY Moving Head Beam/Spot/Wash"

LED moving head hybrid with 400 W COB LED, color wheel, CMY color mixing, static and rotating gobo wheel, prisms, focus, zoom and frost

1 powerful LED 400 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN, 220° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; frost filter; zoom motor driven; focus motor-driven; prism 6-fold rotating linear; prism 8-fold rotating
Dimmer curves adjustable; frost filter
Spot effect
CMY color mixing for indefinite color variations
Color wheel with 12 dichroic filters plus open
Gobo wheel with rotating gobos, 7 gobos and open
Slot-in gobo system for easy gobo replacement
Shake effect
Gobo indexable
Gobo wheel with static gobos, 12 gobos and open
shake effect
The device is cooled by cooling fan
Control via DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone; RDM; master/slave function
Flicker-free
DMX fail mode (hold; null)
With a beam angle of 6° - 32°
With omega bracket
Multicolor touchscreen display
2 Rugged carrying handles
4 rubber feet
Mains input and output for power linking up to 4 units
Preprogrammed in Light Captain
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line

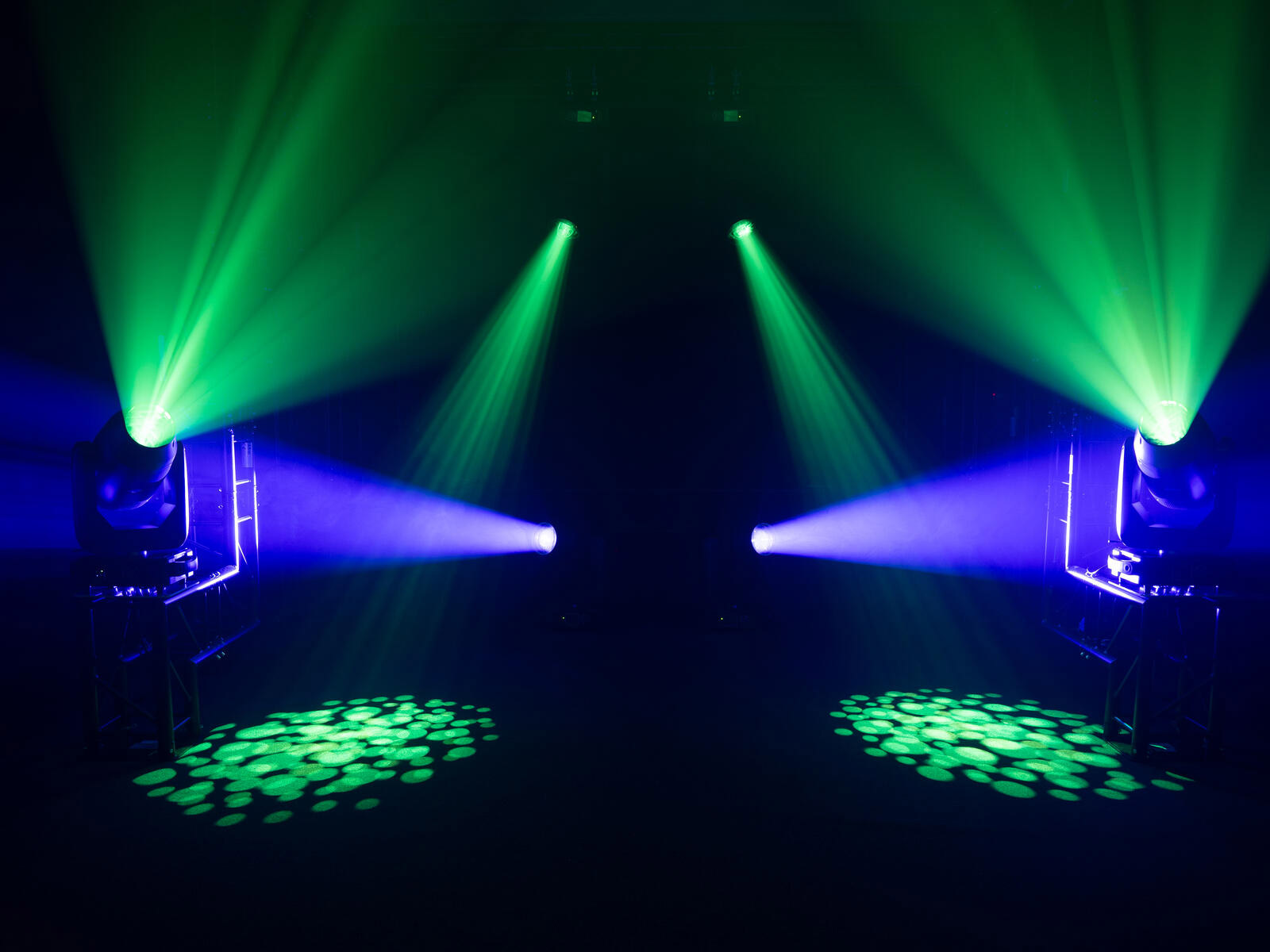

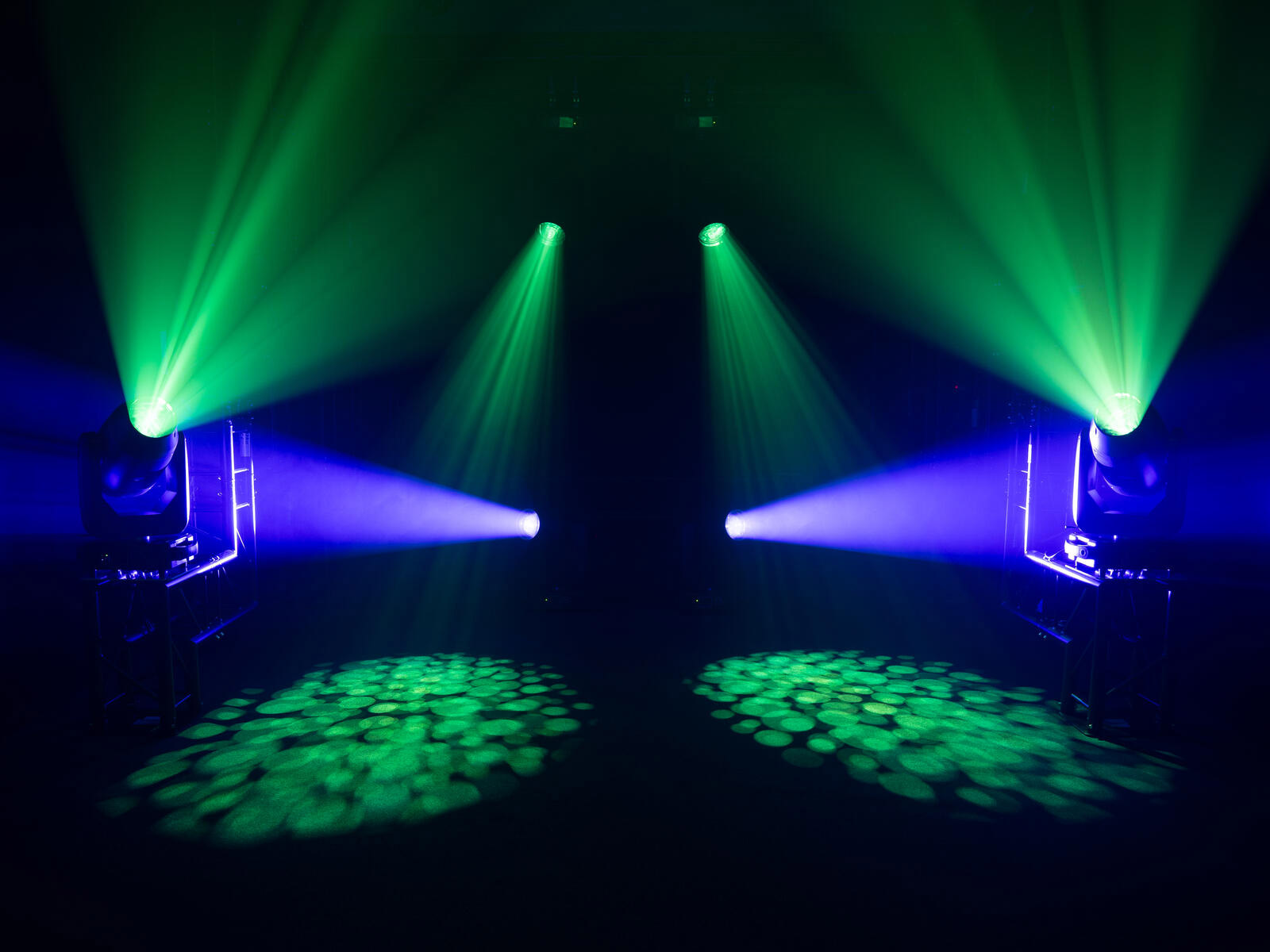

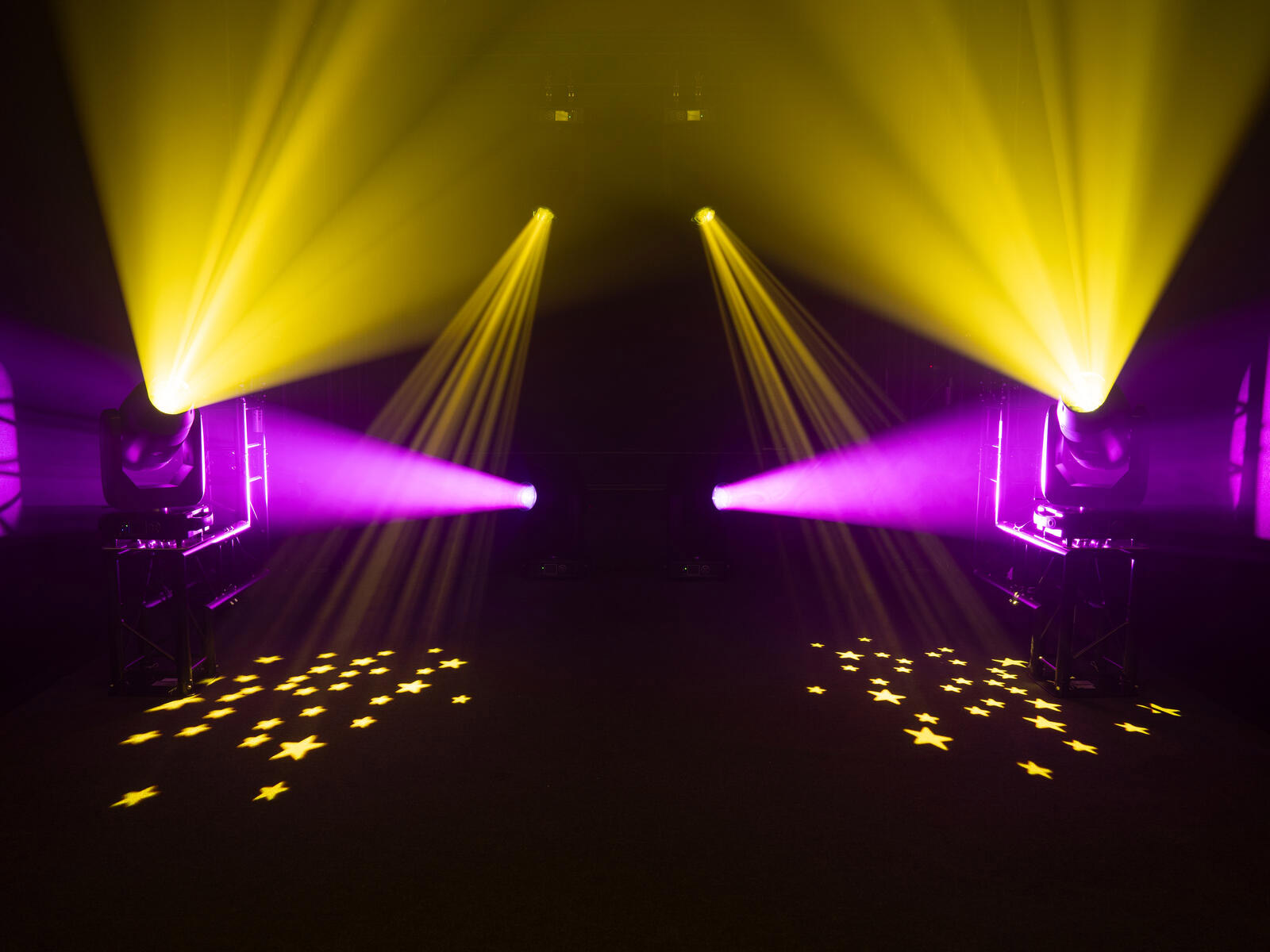

For application areas such as: Wedding/gala/events; mobile use; Stage; concerts/FoH's
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	460 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:	3 x 1,0 mm² H05VV-F
Cable length:	1 m
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 5 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 400 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	220° Exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540° Exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:	1 - 16 Hz
Equipment:	Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; frost filter; zoom motor driven; focus motor-driven; prism 6-fold rotating linear; prism 8-fold rotating
Color generation:	CMY color mixing for indefinite color variations
Color generation:	Color wheel with 12 dichroic filters plus open
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 22mm Image diameter 15mm Slot-in gobo system for easy gobo replacement Shake effect Gobo indexable Gobo wheel with static gobos, 12 gobos and open Shake effect
DMX channels:	22; 25

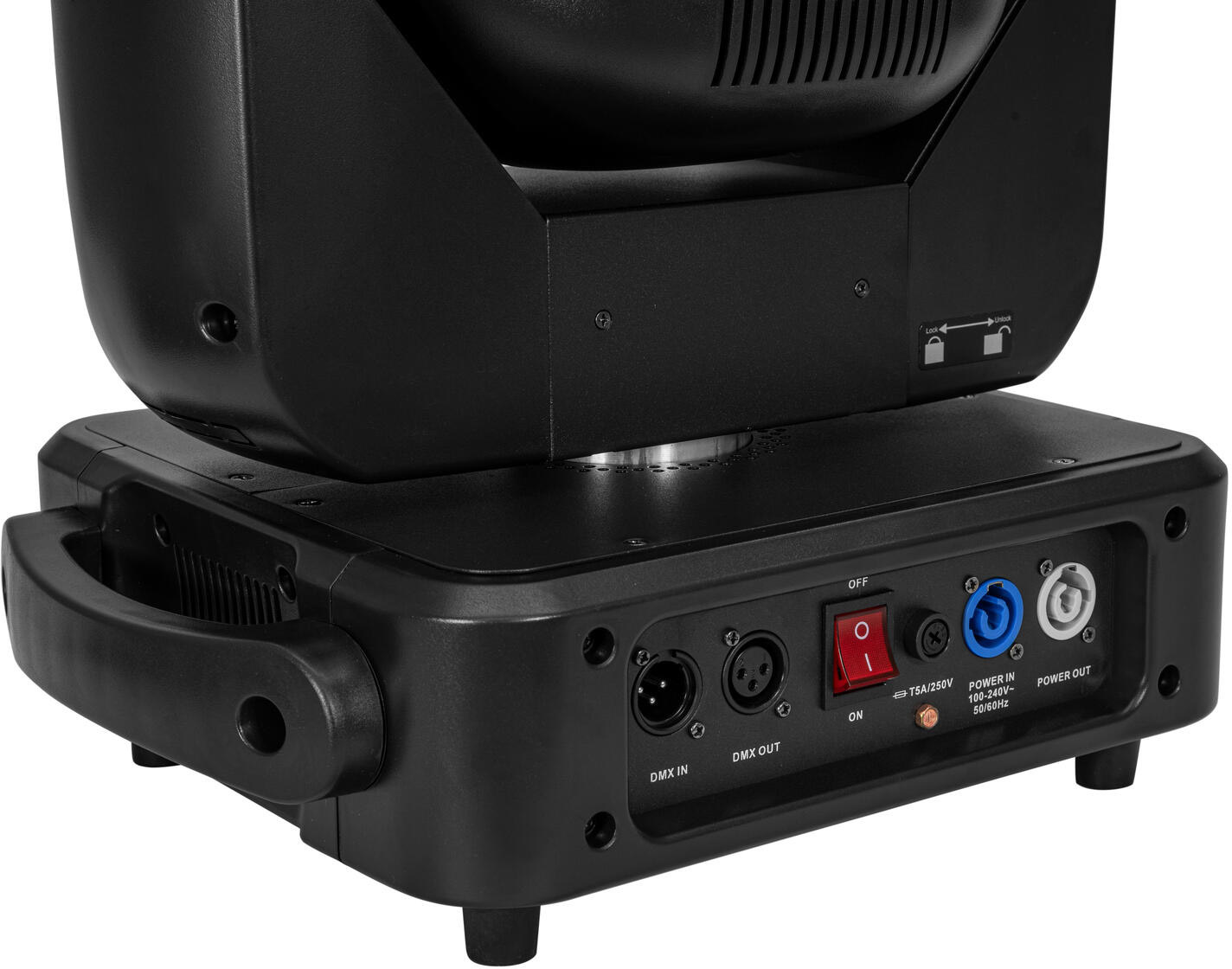

DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone; RDM; master/slave function
Preprogrammed in:	Light Captain
Projection:	Flicker-free
DMX fail mode:	Hold; null
DMX features:	DMX feed-through for up to 32 further DMX devices RDM For bidirectional communication over the DMX line
Beam angle:	6° - 32°
Beam angle (1/2 peak):	6 - 32°
Beam angle (1/10 peak):	6 - 32°
Illuminance in Lux (lx):	Wide cold white (CW) 1m: 71405 lx, 3m: 10342 lx, 6m: 2770 lx
Distance to wall:	500 mm
Housing color:	Black

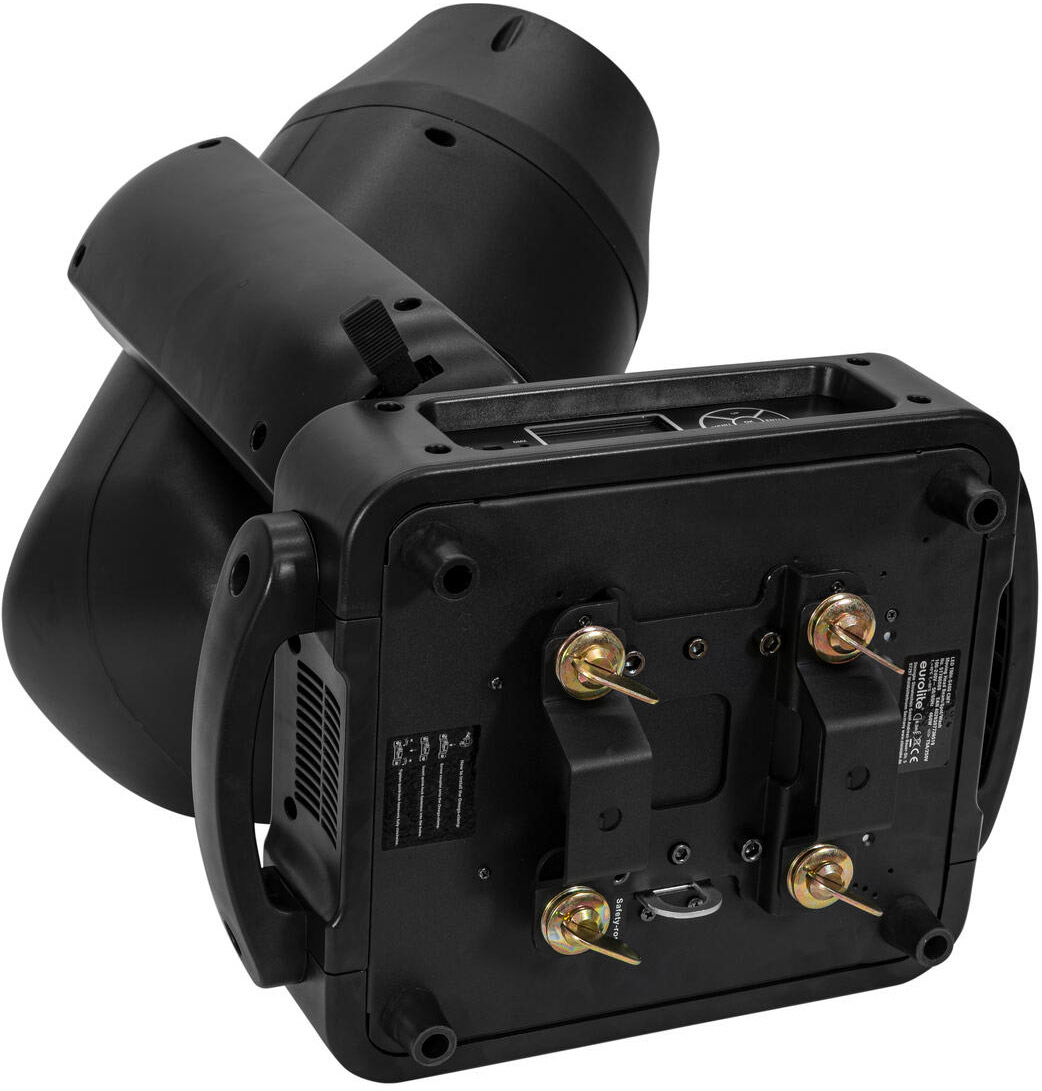

Attachment system:	2x omega bracket

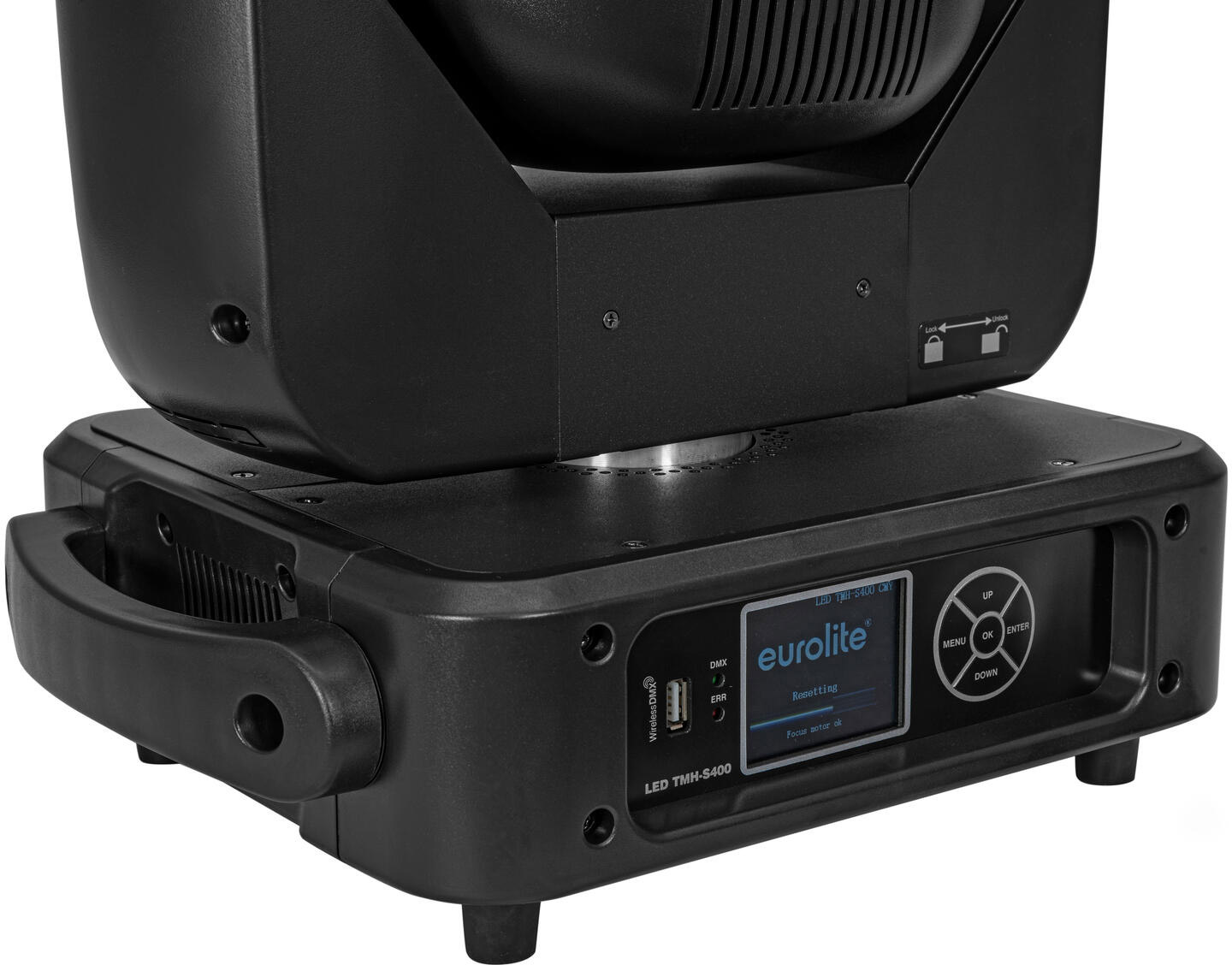

Display type:	Multicolor touchscreen display
Control elements:	Power switch
Status LED:	DMX, fault
USB port:	Typ A
Carrying handle:	2 pc/pcs
Transport aid:	4 x rubber feet
Material:	Metal
Dimensions:	Width: 38 cm Depth: 27 cm Height: 64,5 cm
Weight:	23,25 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
