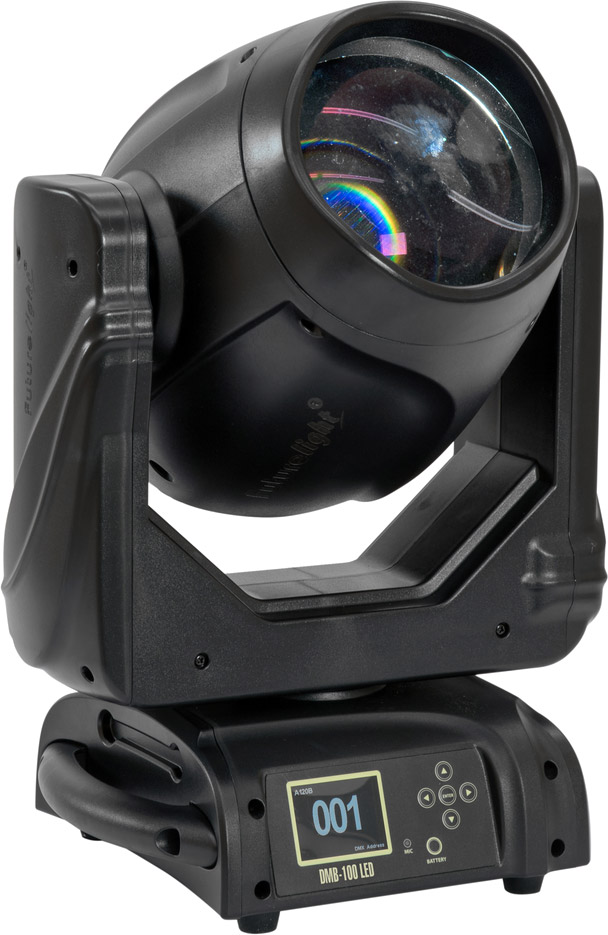

FUTURELIGHT DMB-100 LED Moving Head
€1,499.00 *
Availability:
Currently not available
Currently not available
Item number: 120402420
EAN: 4026397704693
MPN: 51841805
PRO beam moving-head with 100 W COB LED, 1° beam angle, gobo and color wheel, 2 prisms and... more
All information about the product:
"FUTURELIGHT DMB-100 LED Moving Head"
PRO beam moving-head with 100 W COB LED, 1° beam angle, gobo and color wheel, 2 prisms and QuickDMX port
- Bidirectional rotating 6-fold linear prism and 8-facet prism with variable speed, combinable for multi-facet effects
- 1 powerful LED 100 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN and 230° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Gobo wheel with static gobos; Prism 8-fold; Prism 6-fold Linear; frost filter; Focus motor-driven
- Color wheel with 14 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 17 gobos and open
shake effect - Integrated show programs
- The device is cooled by temperature-controlled fan

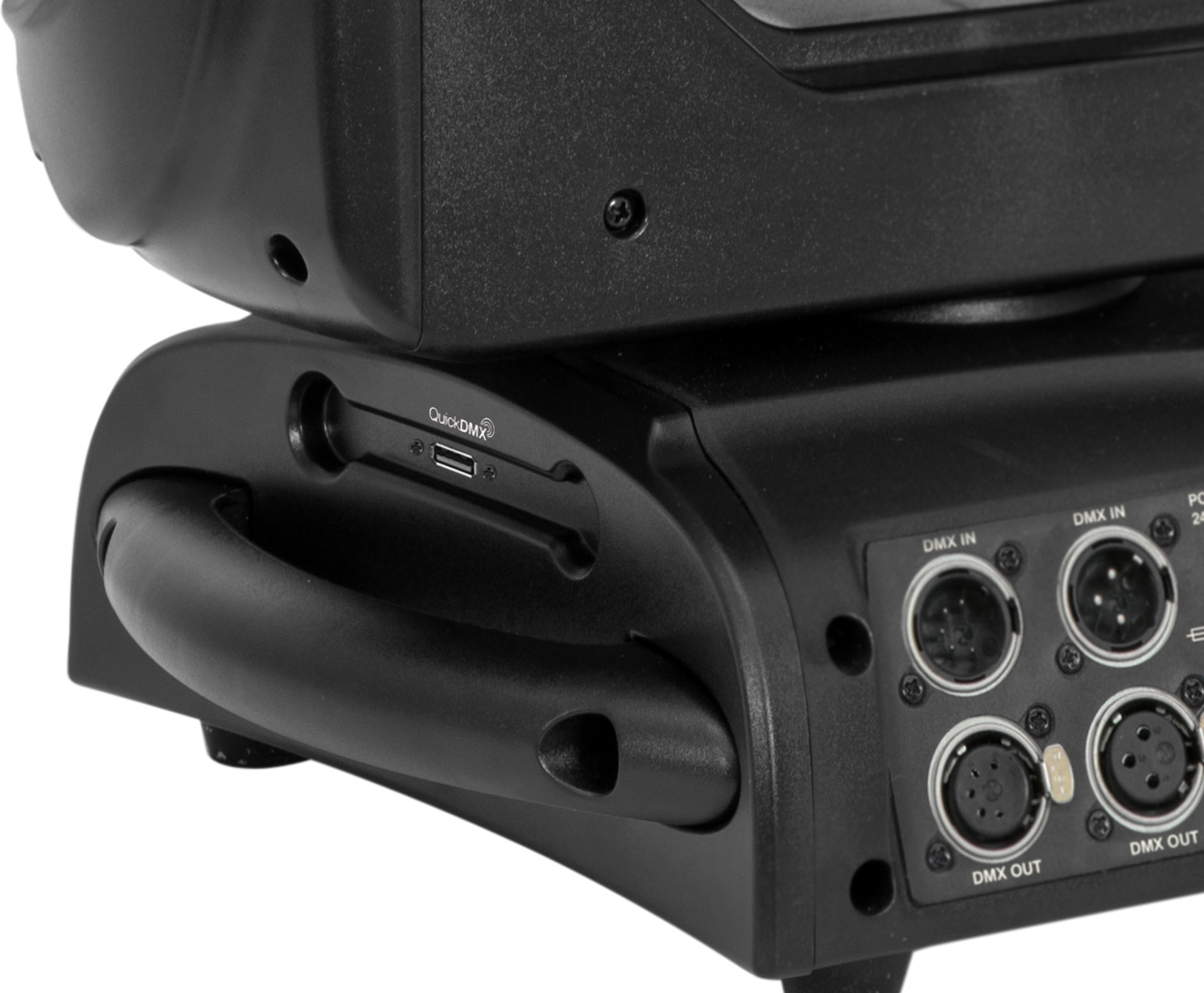

- Control via DMX; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM; Sound to light via Microphone
- Flicker-free
- With a beam angle of 1°
- With Omega bracket
- Multicolor LCD display,
with battery buffering for easy controlling upgradeable - Pulse-width modulation variable; dimmer curves with adjustable response; scenes user-definable; Dimmer speed (step response) adjustable
- Strobe effect
- Preprogrammed in Light Captain
- Rubber feet
- Mains input and output for power linking up to 8 units
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x xLR cable, 2 x omega bracket
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 150 W |
IP classification: | IP20 |
Protection class: | Protection class I |
Power connection: | Mains input via IP T-Con (M) power supply cord with safety plug (provided) |
Power output: | IP T-Con (F) |
Fuse: | 5 x 20 mm, T 3,15 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | 1 x 100 W COB (chip-on-board) cold white (CW) |
Max. TILT movement: | 230° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Max. PAN movement: | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Equipment: | Gobo wheel with static gobos; Prism 8-fold; Prism 6-fold Linear; frost filter; Focus motor-driven |
Color generation: | Color wheel with 14 dichroic filters plus open Rainbow effect with adjustable speed in both directions |
Gobos: | Gobo wheel with static gobos, 17 gobos and open Shake effect |
DMX channels: | 14; 16 |
DMX input: | 3-pin XLR (M) mounting version 5-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version 5-pin XLR (F) mounting version |
Cooling: | Temperature-controlled fan |
Control: | DMX; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM; Sound to light via Microphone |
Preprogrammed in: | Light Captain |
Beam angle: | 1° |
Beam angle (1/2 peak): | 1° |
Housing color: | Black |
Attachment system: | 2x Omega bracket |
Display type: | Multicolor LCD display battery buffering upgradeable |
Transport aid: | Rubber feet |
Dimensions: | Width: 33,0 cm Depth: 31,0 cm Height: 48,0 cm |
Weight: | 13,90 kg |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
