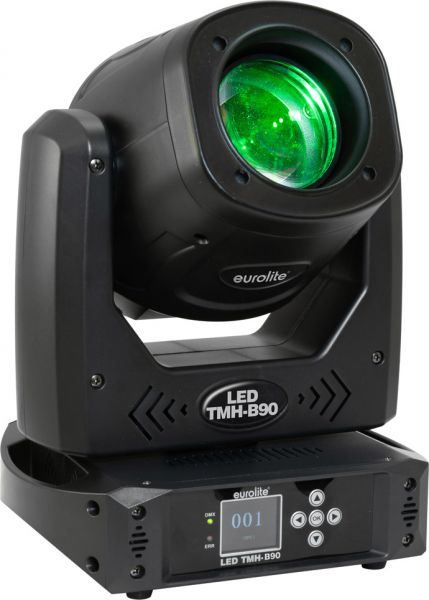

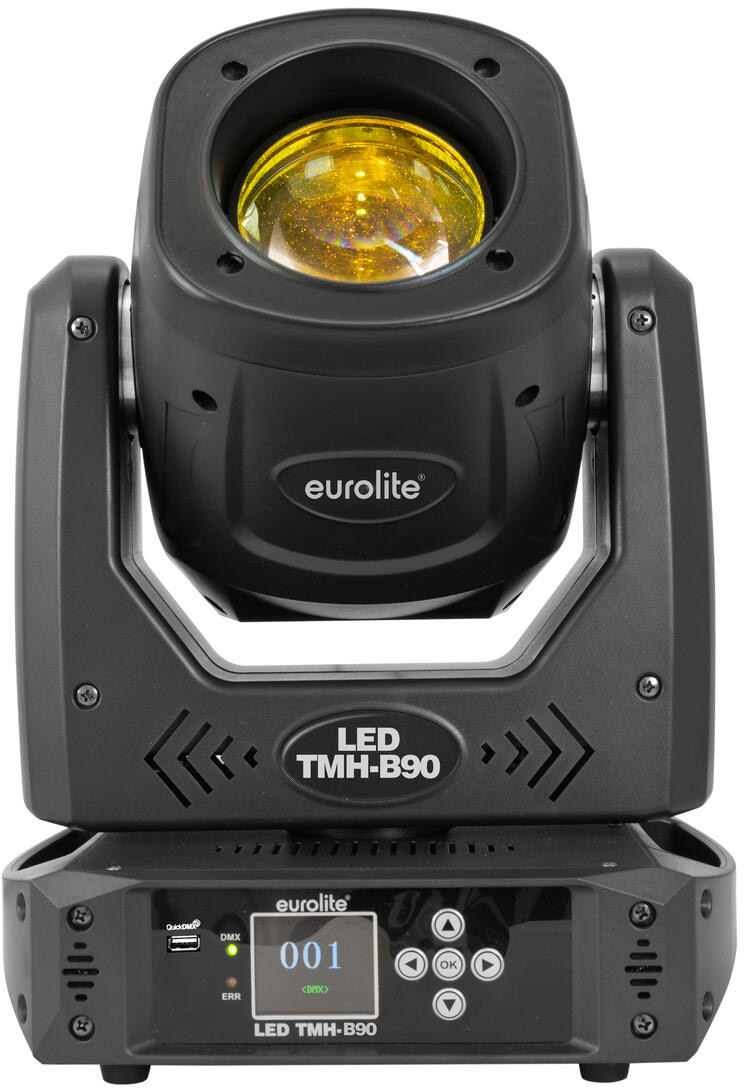

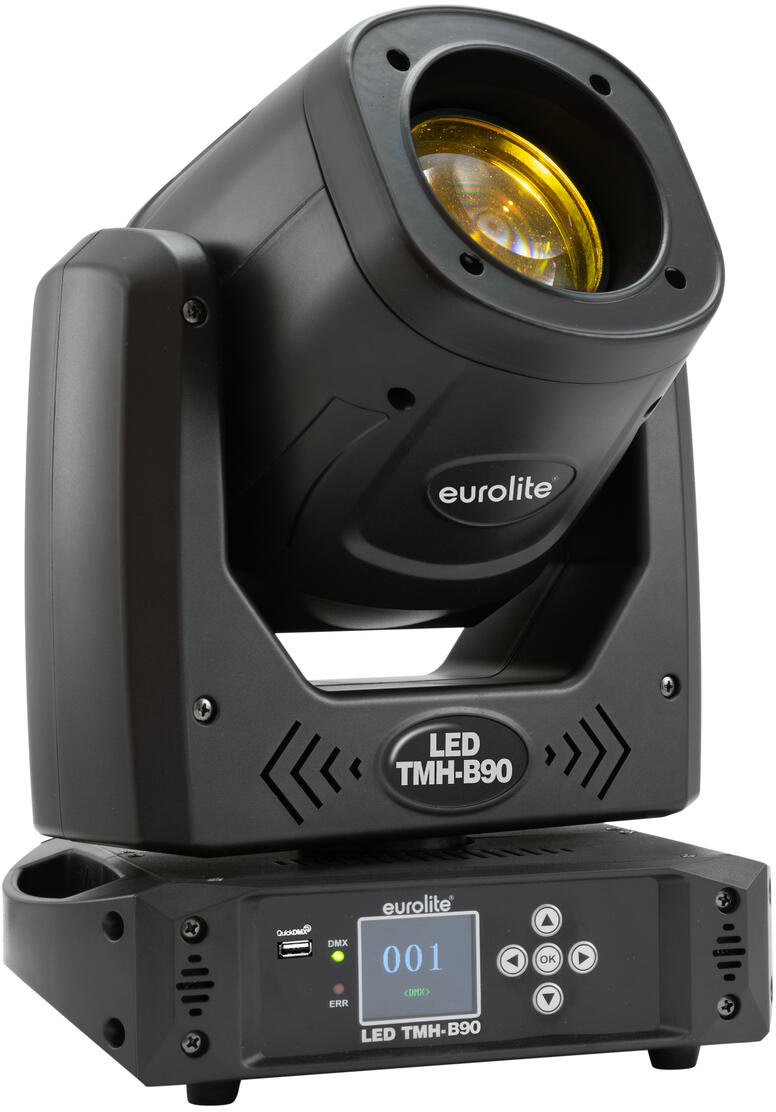

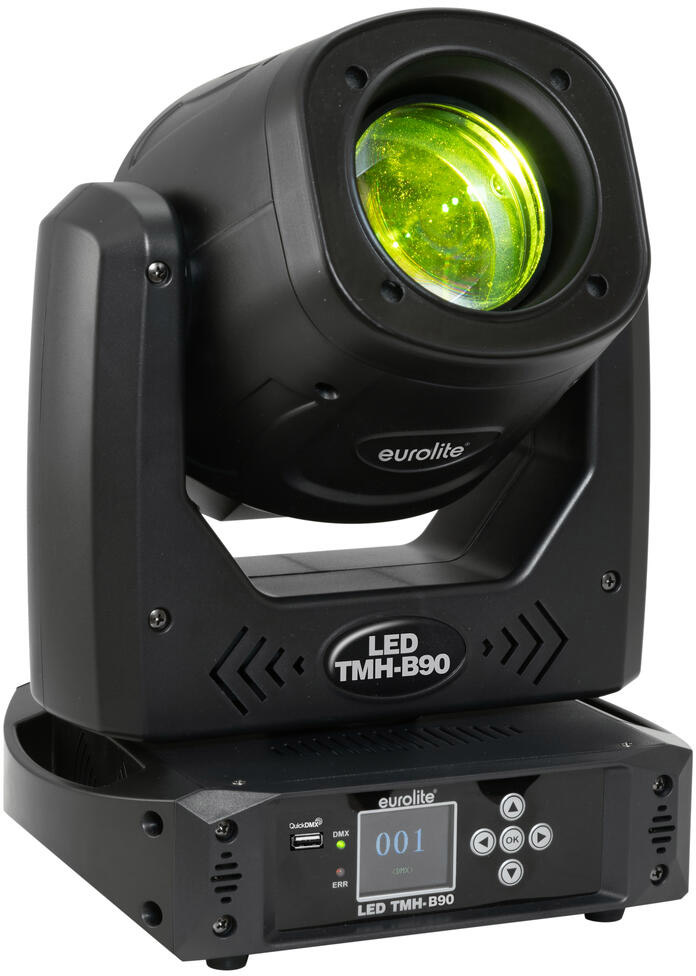

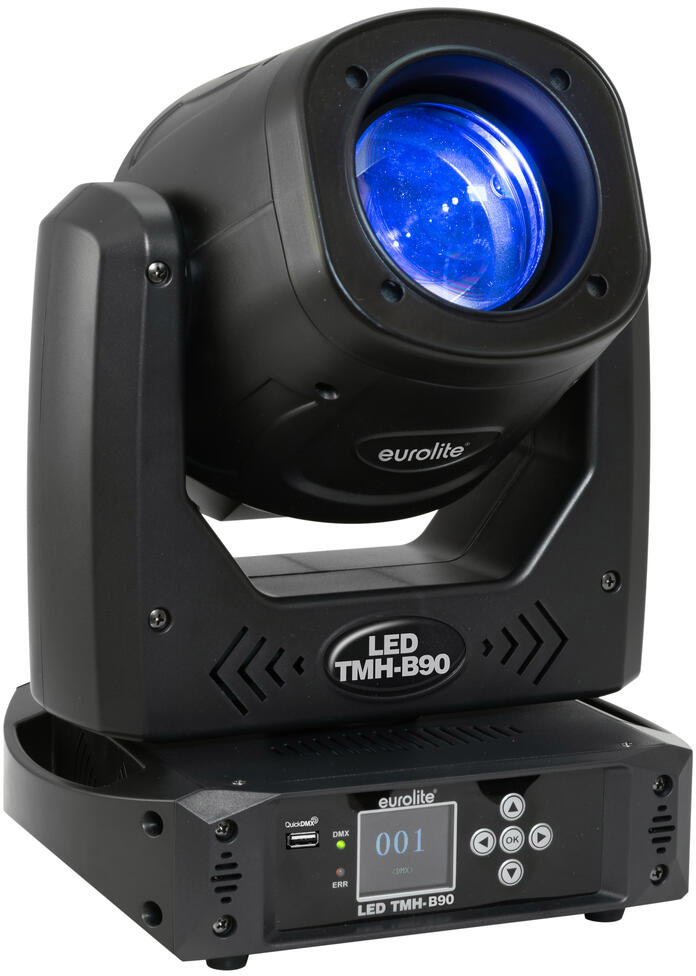

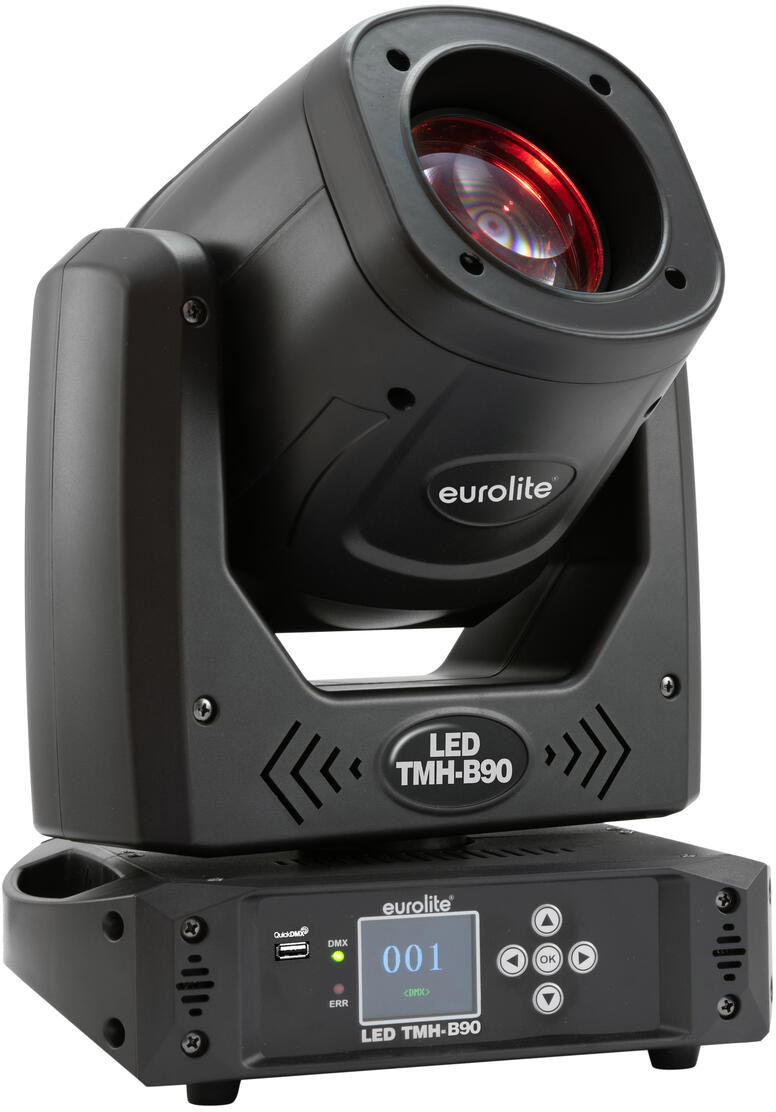

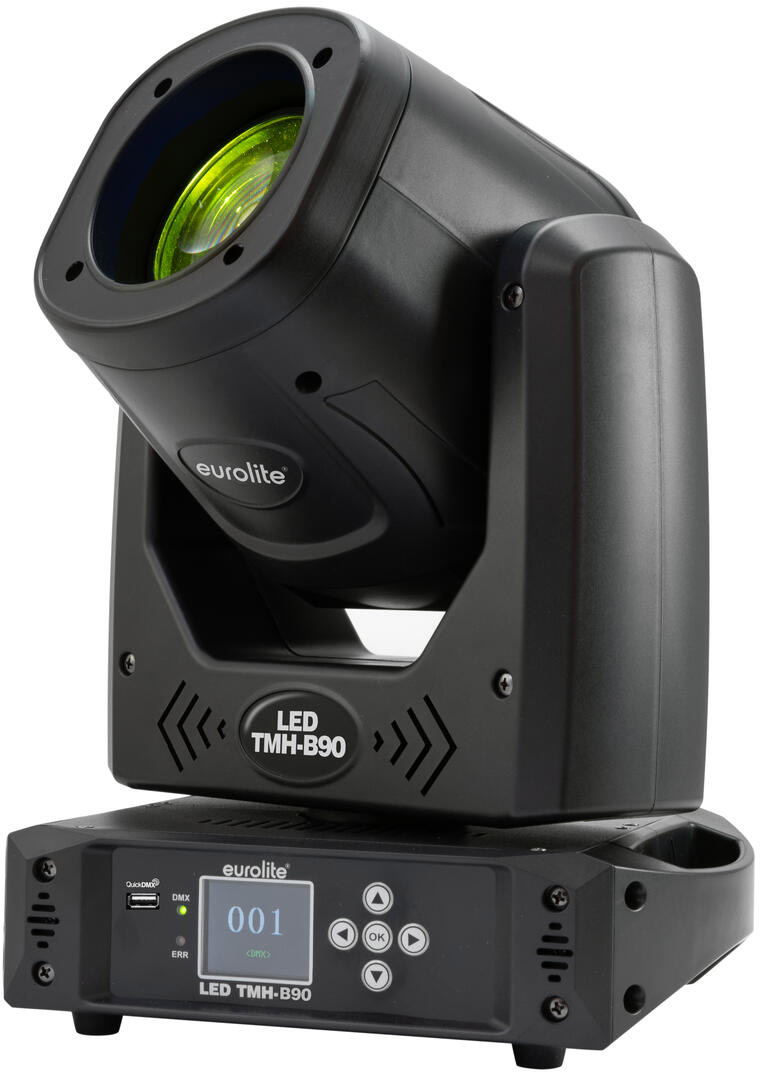

EUROLITE LED TMH-B90 Moving-Head Beam

Eurolite
Preview: EUROLITE LED TMH-B90 Moving-Head Beam Preview: EUROLITE LED TMH-B90 Moving-Head Beam Preview: EUROLITE LED TMH-B90 Moving-Head Beam Preview: EUROLITE LED TMH-B90 Moving-Head Beam Preview: EUROLITE LED TMH-B90 Moving-Head Beam
EUROLITE LED TMH-B90 Moving-Head Beam
EUROLITE LED TMH-B90 Moving-Head Beam
EUROLITE LED TMH-B90 Moving-Head Beam
EUROLITE LED TMH-B90 Moving-Head Beam
EUROLITE LED TMH-B90 Moving-Head Beam

€479.00 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120035100
EAN: 4026397692556
Description Videos 1 Downloads 1 Accessories 15 Spare parts 23
Description
LED moving head beam with color wheel, static gobo wheel, prism and focus 1 powerful LED 90 W... more
Back to the overview
All information about the product:
"EUROLITE LED TMH-B90 Moving-Head Beam"

LED moving head beam with color wheel, static gobo wheel, prism and focus

  • 1 powerful LED 90 W COB (chip-on-board) cold white (CW)
  • Positioning within 540° PAN and 200° TILT
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold rotating; frost filter
  • Beam effect
  • Color wheel with 7 dichroic filters plus open
    Rainbow effect with adjustable speed in both directions
  • Gobo wheel with static gobos, 13 gobos und open
    shake effect
  • Integrated show programs
  • The device is cooled by cooling fan
  • Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Flicker-free
  • With a beam angle of 3°
  • Good color rendering index (CRI)
  • LCD display
  • Dimmer electronic
  • Preprogrammed in Light Captain; EASY SHOW 3; Light´J
  • Mains input and output for power linking up to 8 units

Package contents

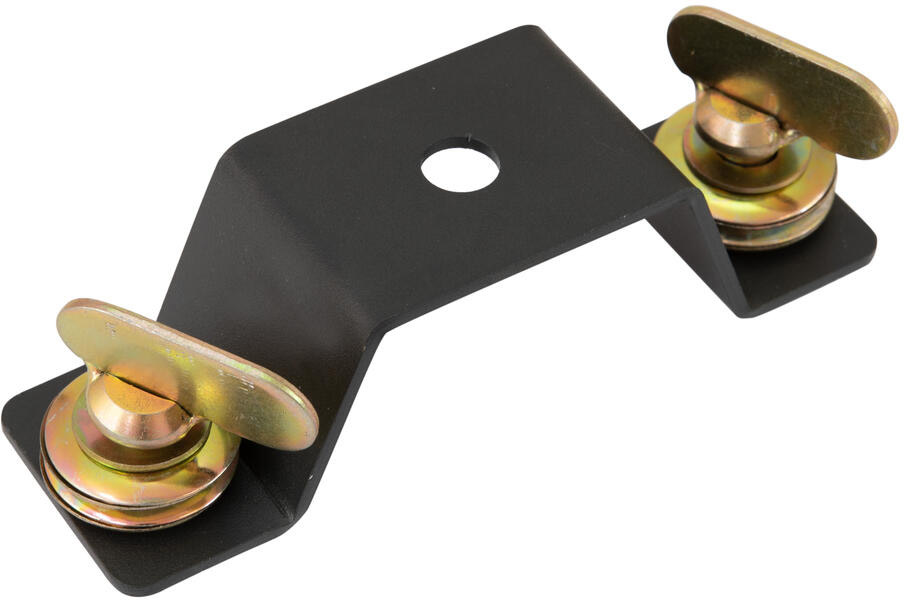

  • 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet
Power supply:100-240 V AC, 50/60 Hz
Power consumption:125 W
IP classification:IP20
Protection class:Protection class I

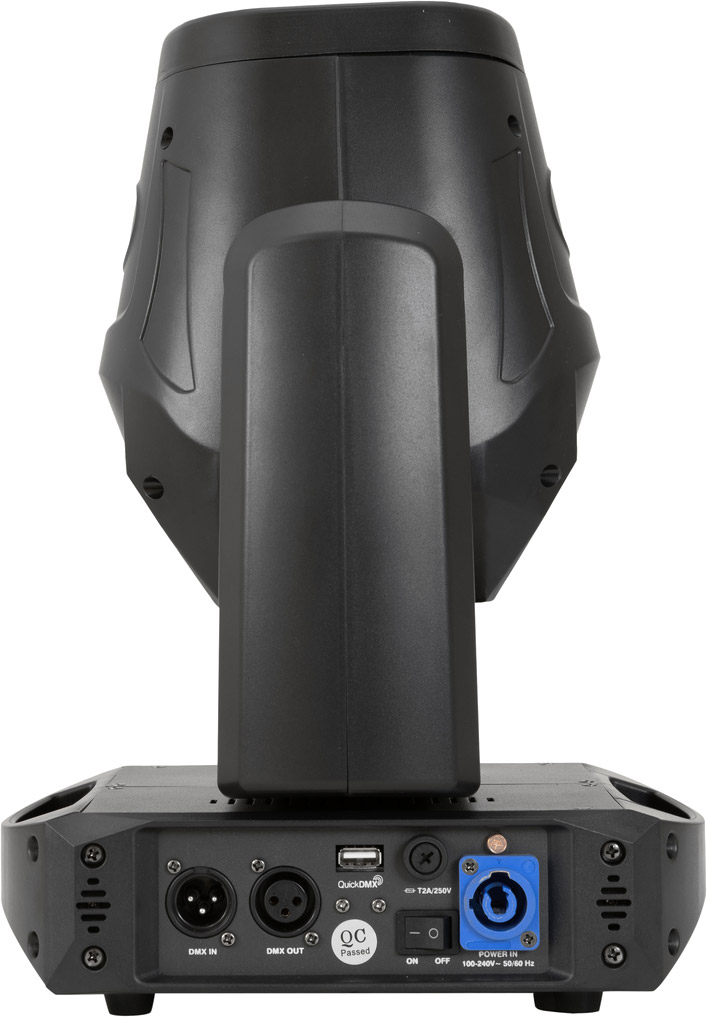

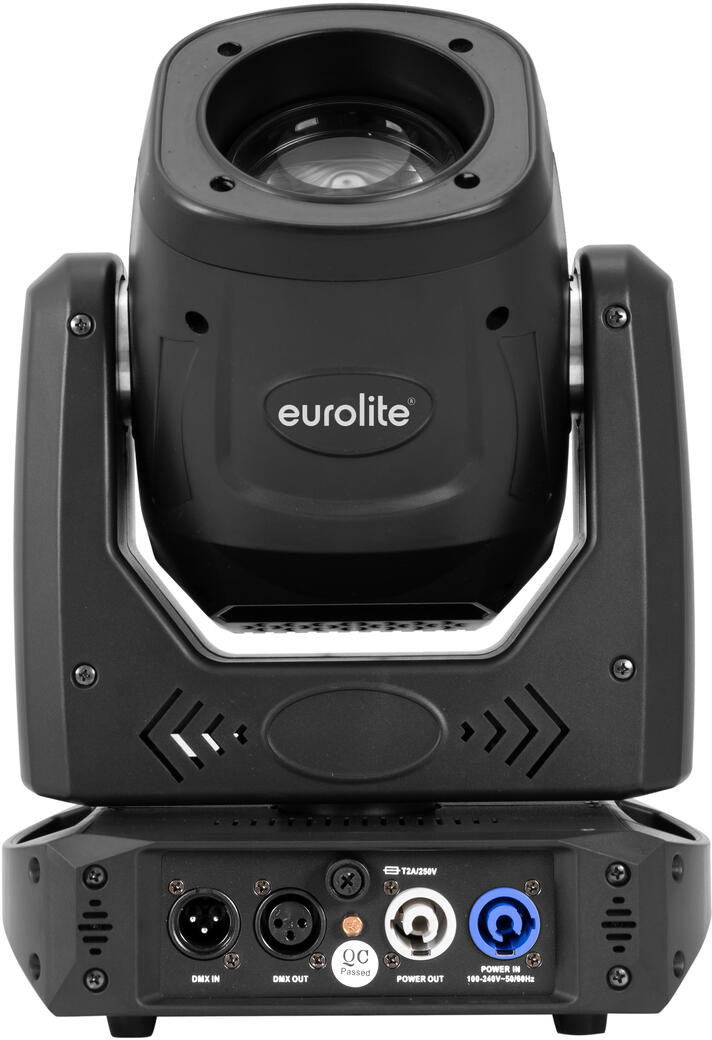

Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:P-Con (gray), mounting version
Device fuse:5 x 20 mm, T 2 A Fuse replaceable
Lamp type:LED lamp
LED:1 x 90 W COB (chip-on-board) cold white (CW)
Max. TILT movement:200° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:2 - 20 Hz
Equipment:Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold rotating; frost filter
Color generation:Color wheel with 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobos:Gobo wheel with static gobos, 13 gobos und open
Shake effect
DMX channels:14
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:Light Captain; EASY SHOW 3; Light´J
Beam angle:3°
Beam angle (1/2 peak):3°
Color rendering index (CRI):80 Ra
Illuminance in Lux (lx):Cold white (CW) 3m: 33839 lx, 6m: 10454 lx
Housing color:Black
Display type:LCD display
Dimensions:Width: 25,5 cm
Depth: 20,5 cm
Height: 33,0 cm
Weight:6,55 kg
Noise classification:Class 2 (slight noise)
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
