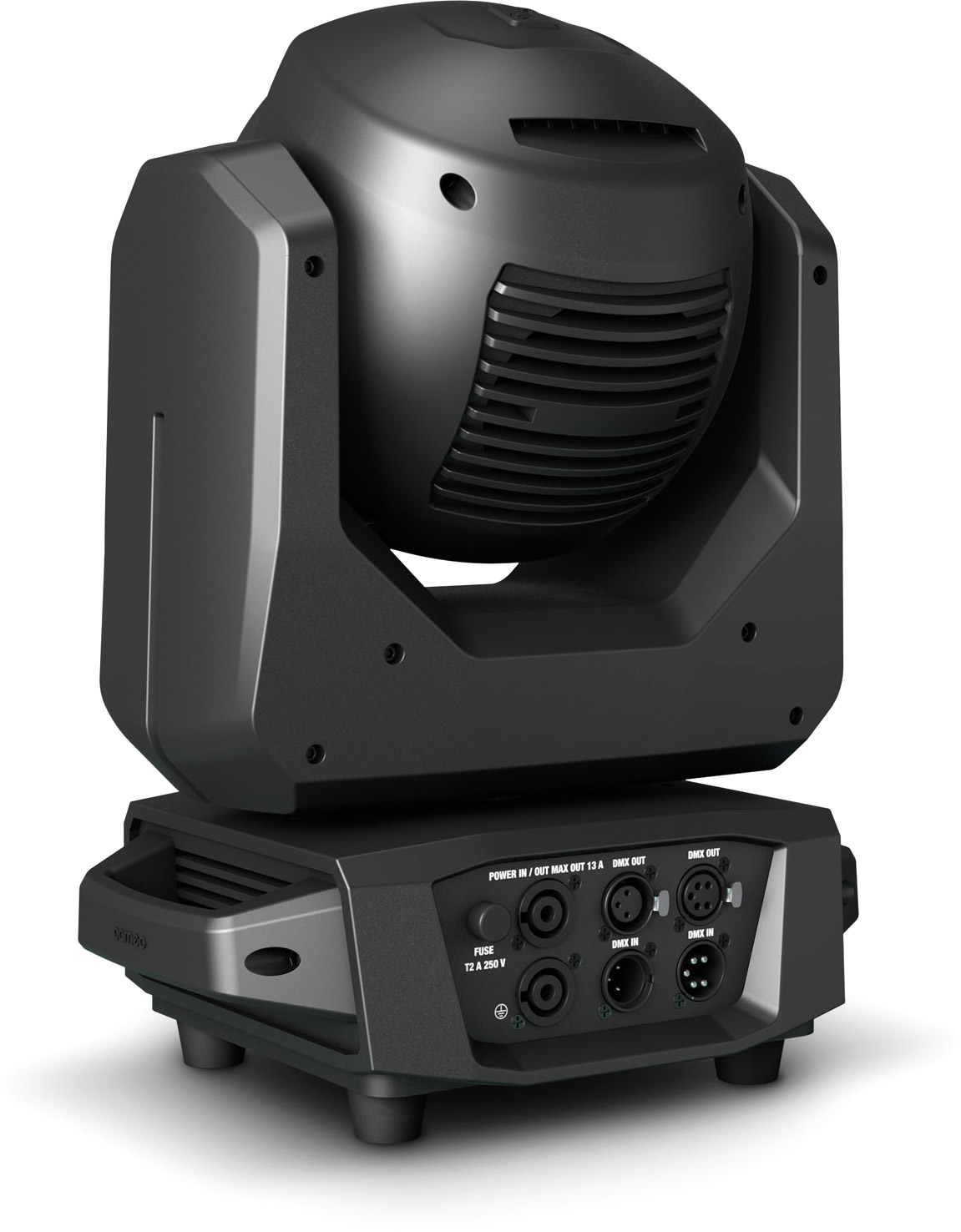

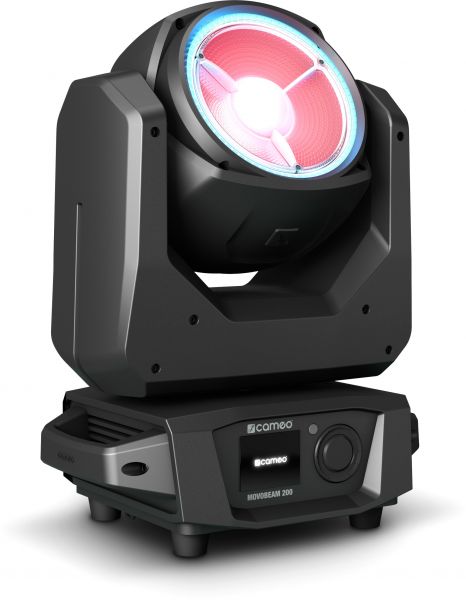

Cameo MOVO BEAM 200 - Endless Rotation Beam Moving Head with LED Ring
- Ultra-bright 60 W OSRAM RGBW LED with 1.200 lm
- Individually controllable 24-segment LED ring
- Two high-speed, high torque motors for ultra-fast endless pan and tilt
- Extremely narrow 2° beam angle
- Dramatic, automated operating modes
- 4 selectable dimming curves
- 7 DMX modes, standalone or master/slave operation
- Backlight LCD display and encoder wheel for quick and simple set-up
- Omega bracket for versatile mounting included
An intensely colorful light show will delight your audience regardless of whether or not you are a professional lighting designer. Tightly focused beams, powerful mid-air effects, and plenty of different pieces of eye-candy all combined in one device give you comprehensive possibilities for a highly creative lighting design.

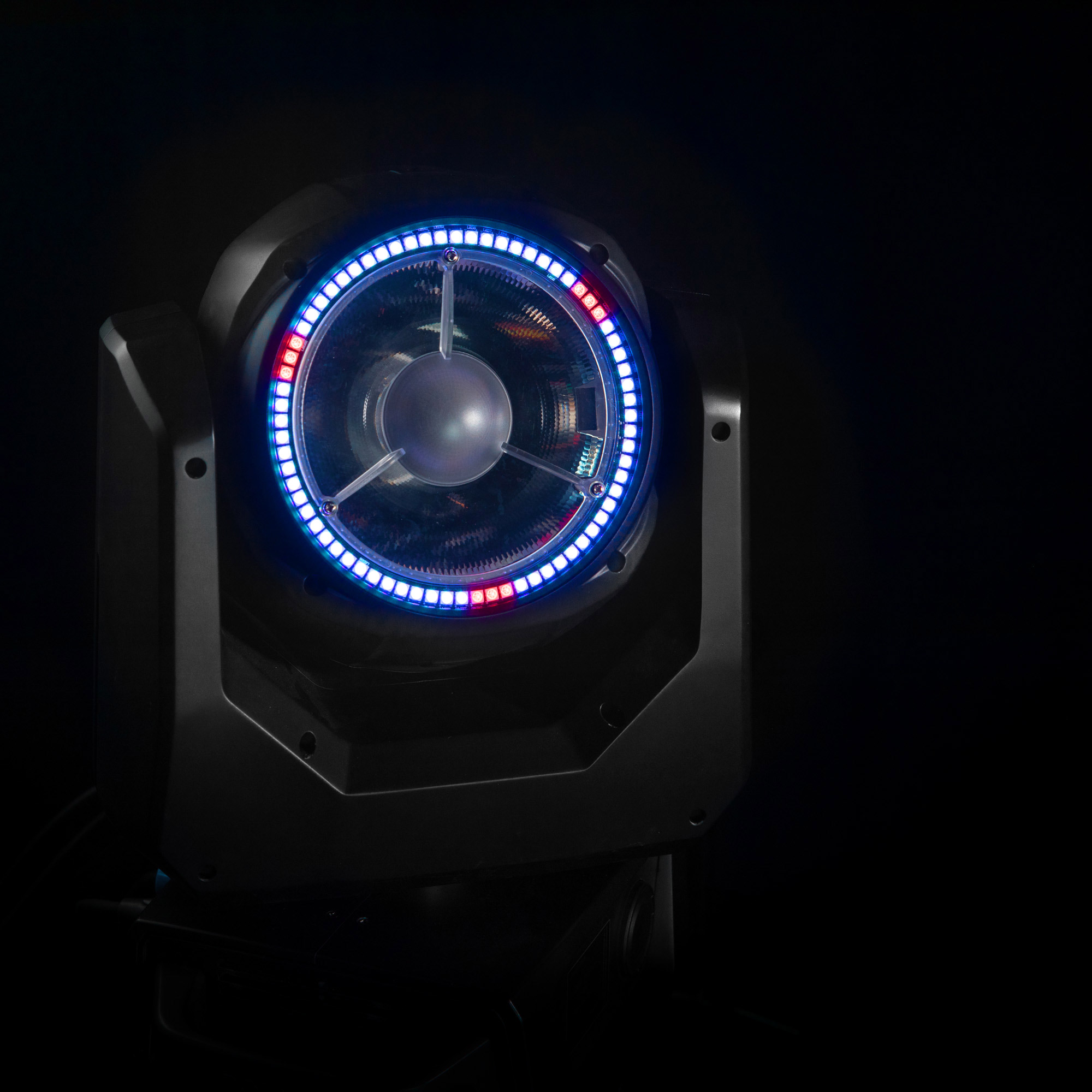

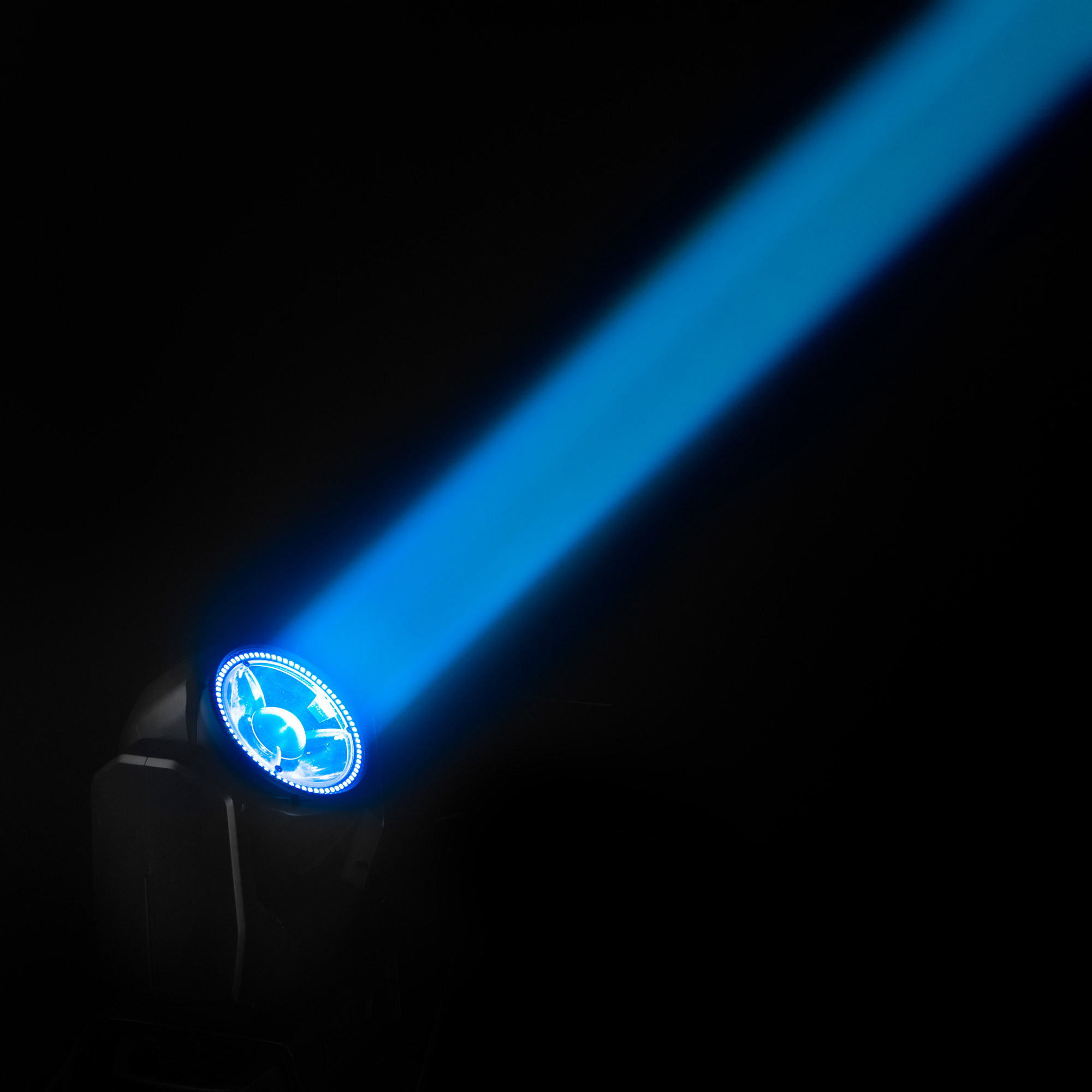

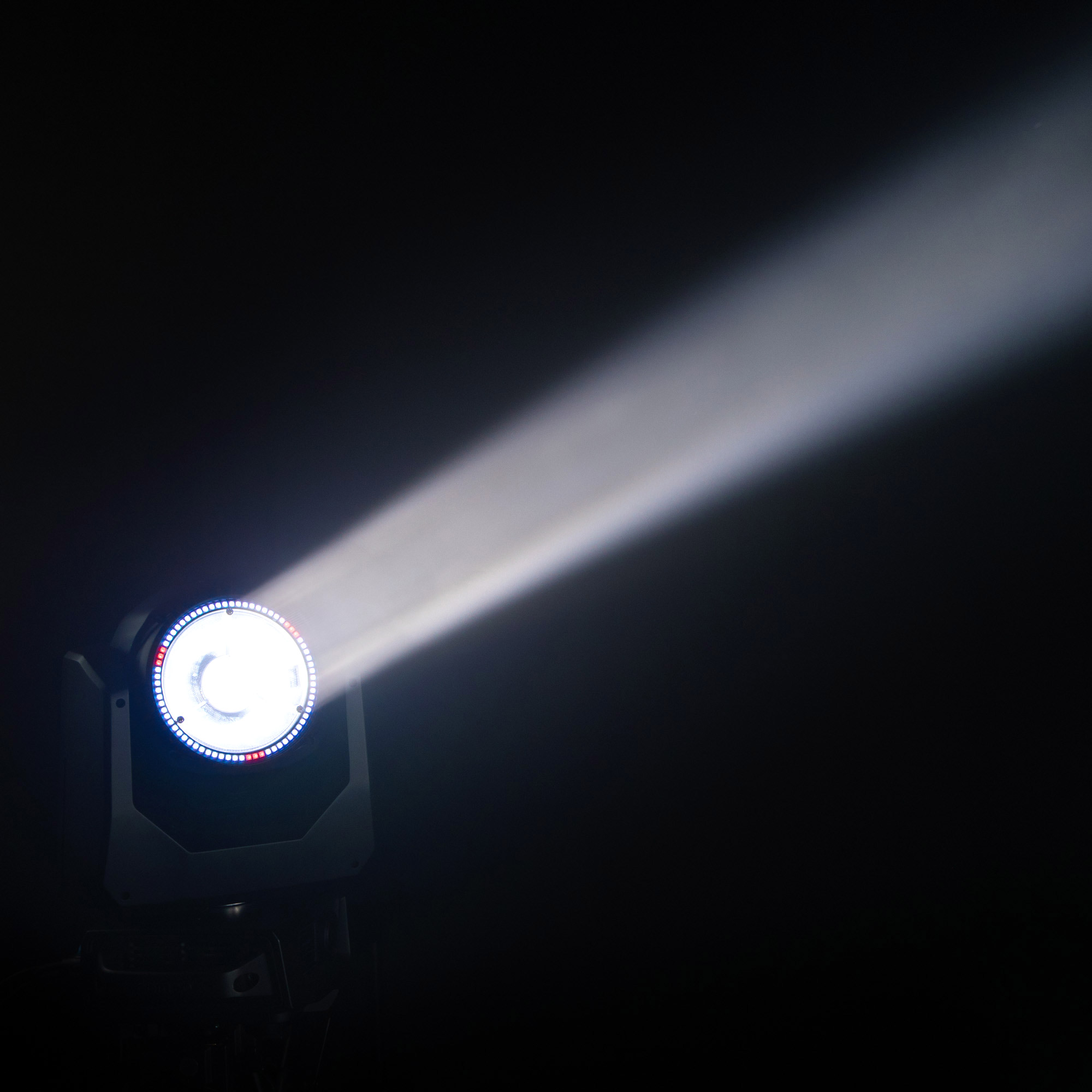

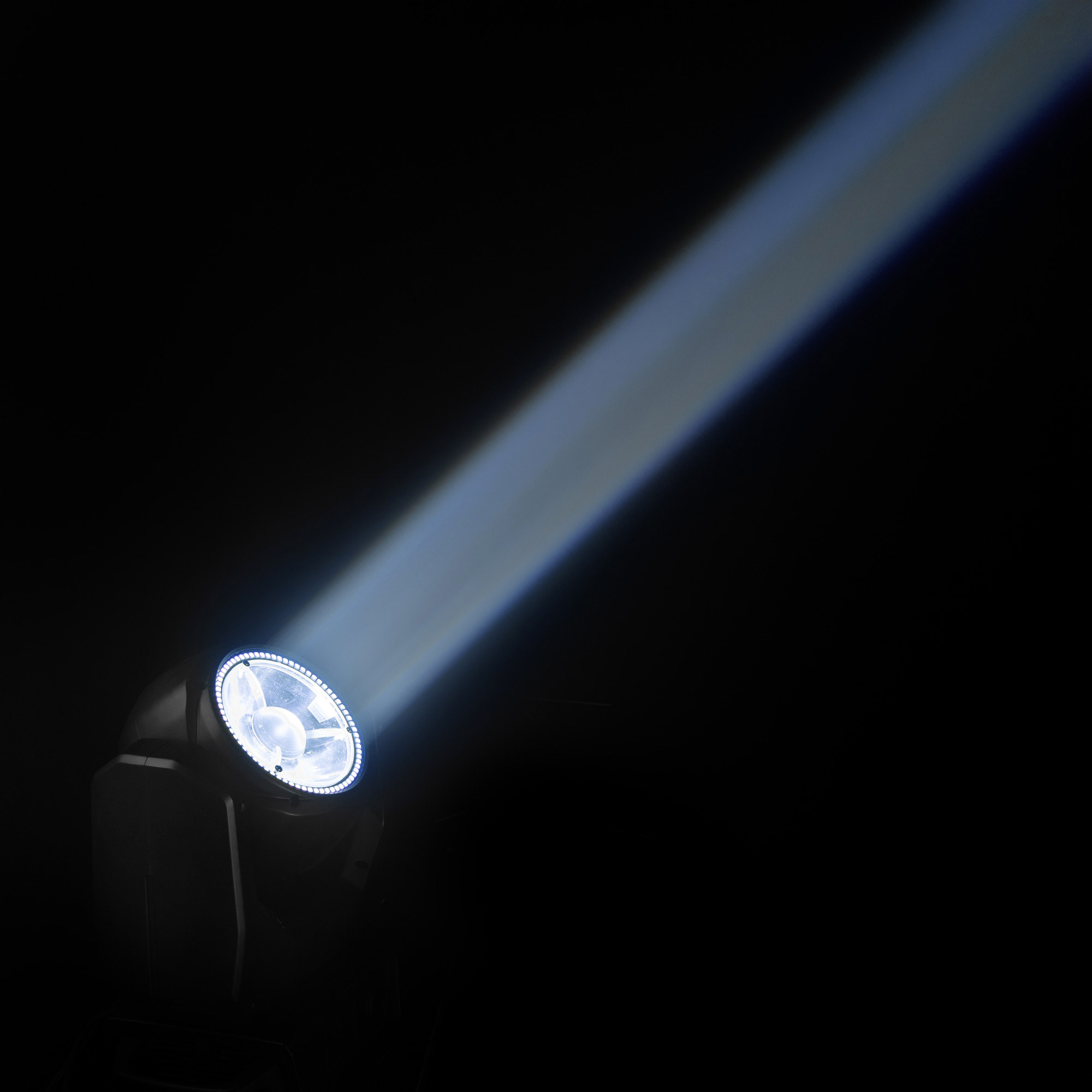

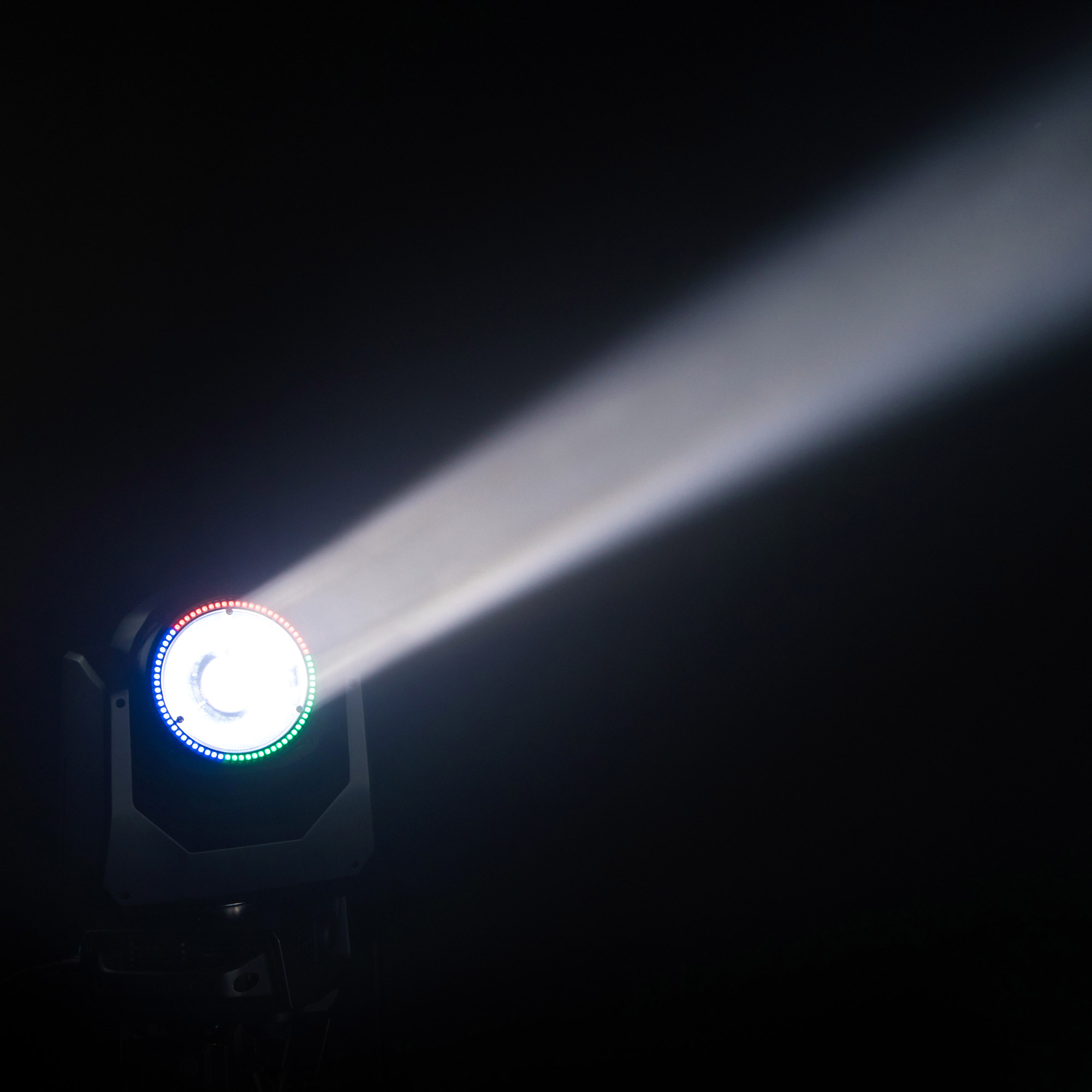

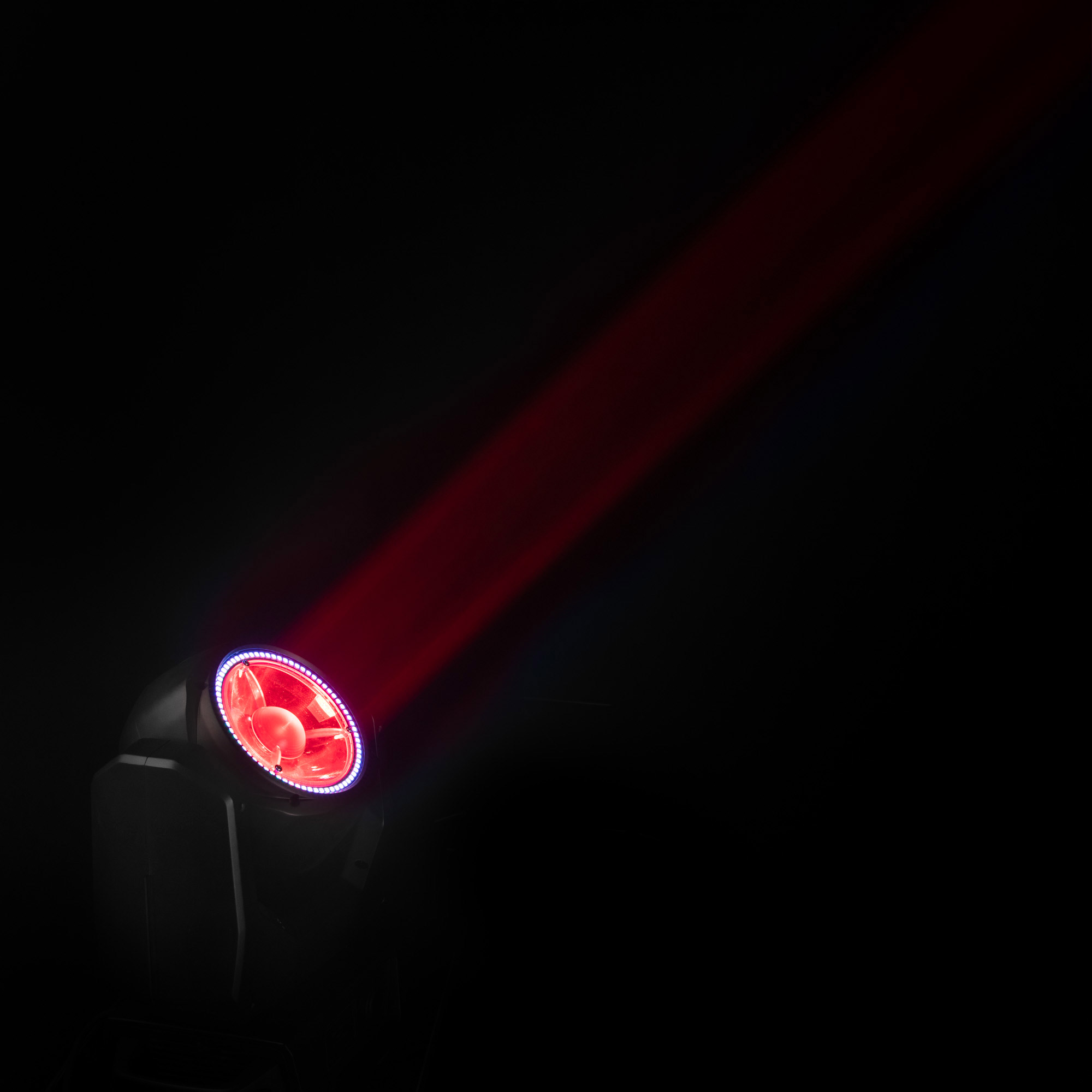

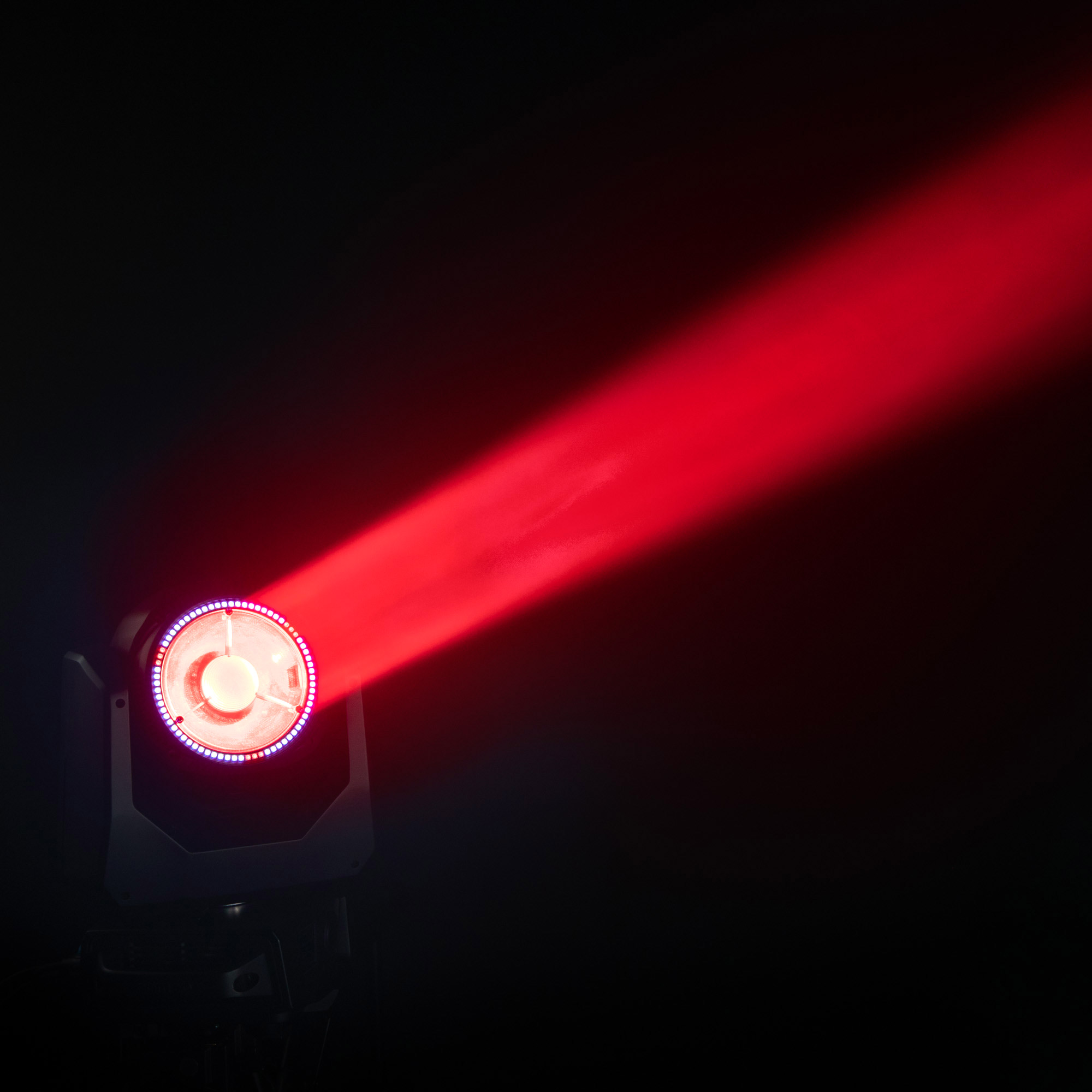

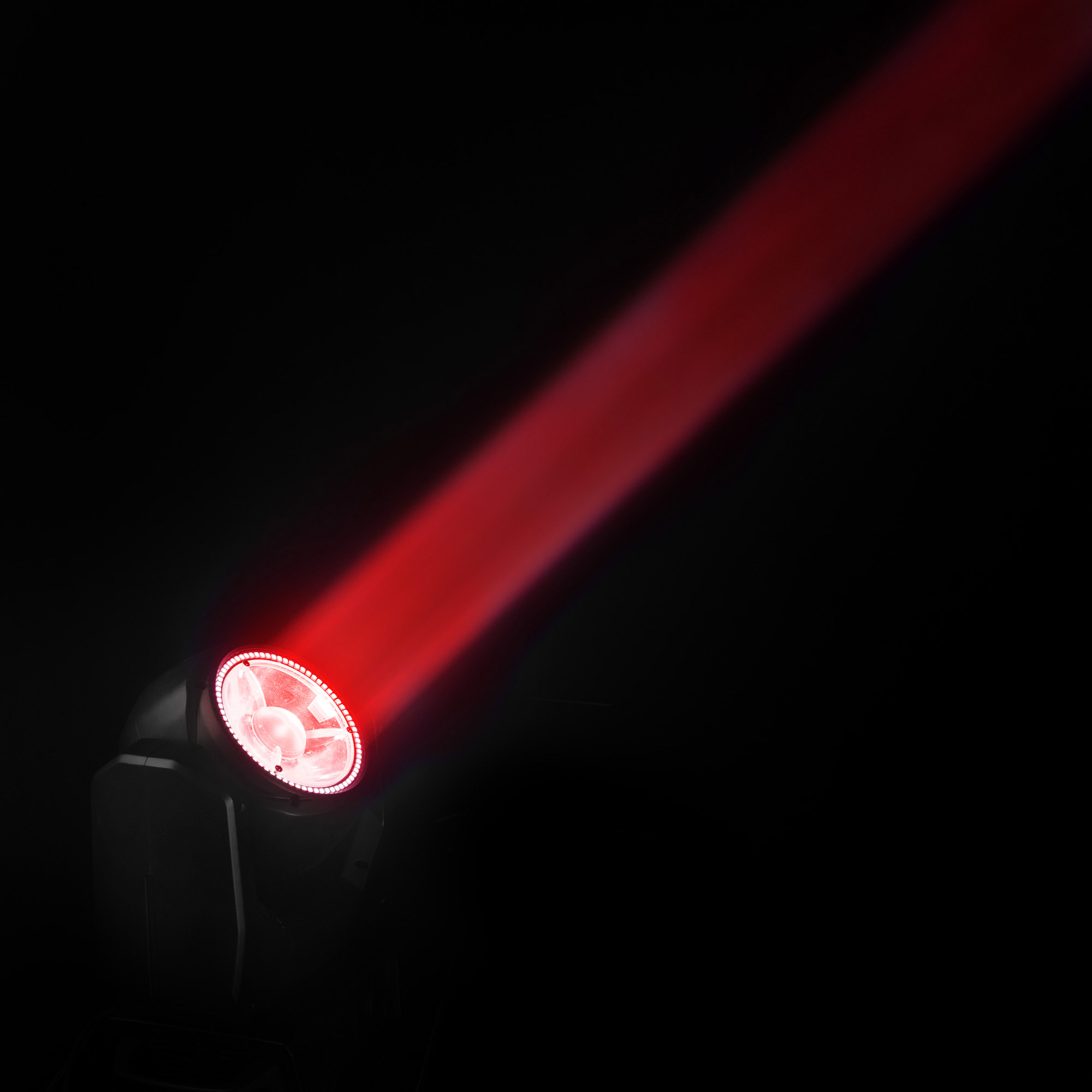

The moving head is equipped with an ultra-bright 60 W Osram RGBW LED with 1,200 lm output, delivering rich basic colors and differentiated pastel tones with natural white gradations. With a narrow beam angle of 2° and large optics, the MOVO® BEAM 200 generates a precise and tightly bundled beam of light. Some extra eye candy is also available to toss out to your audience, thanks to the SMD ring with up to 24 separately controllable segments. Your creativity in lighting design is supported by the four adjustable dimmer curves, not to mention a strobe for an eye-catching cherry to top it all off.

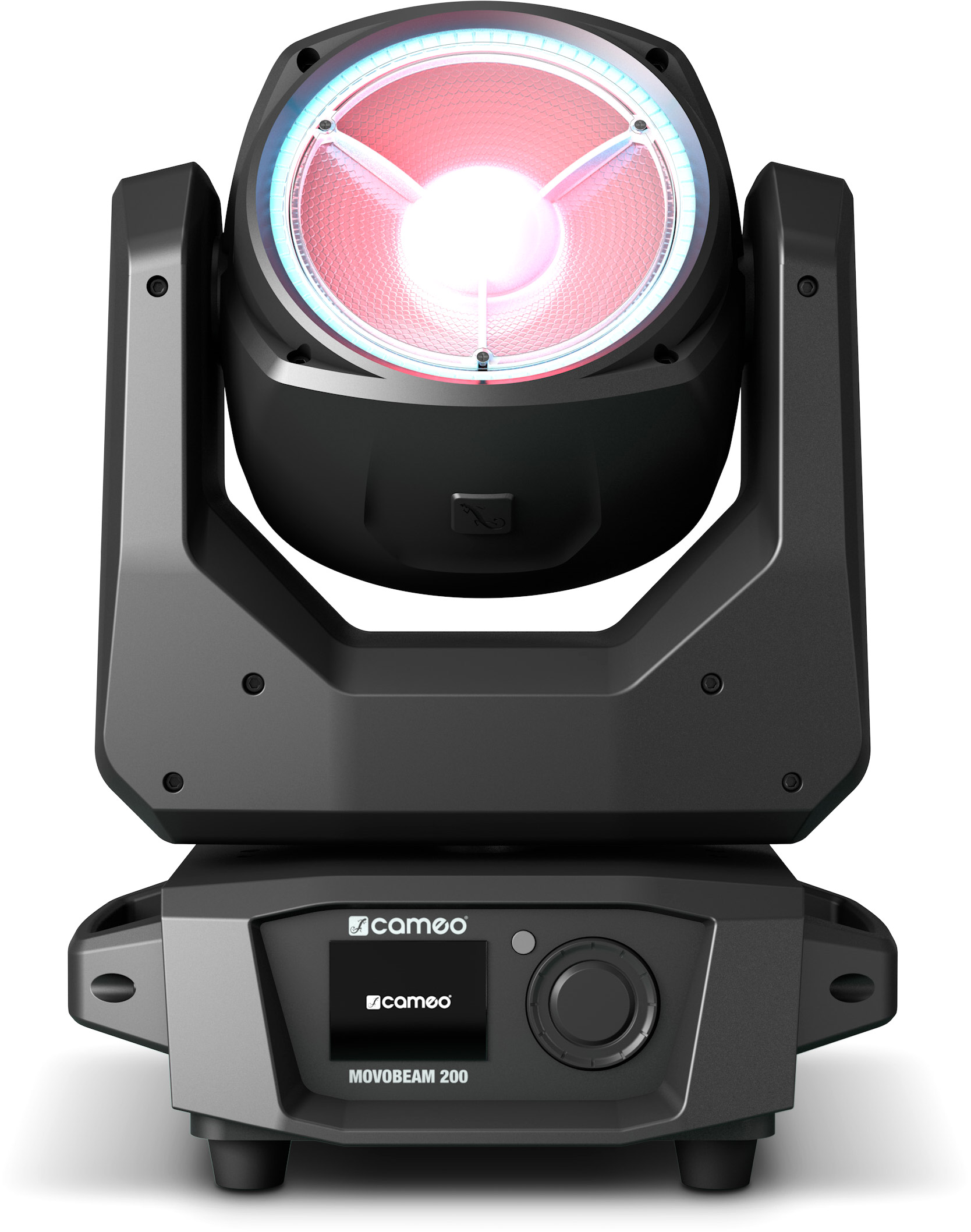

You can control your moving head in static mode or as a master/slave. The MOVO® BEAM 200 is equipped with a high-contrast LCD display, making it easy to read the parameters. Use the encoder wheel to make manual configurations and select parameters.
For DMX control, you have a total of seven DMX channel modes from 4 to 89 channels, which means you can integrate the moving head into your setup according to very specific requirements. You have access to all features, including pan/tilt with fine and continuous adjustment, dimmer curves and strobe parameters, segment control, color presets (LEE filters), and movement macros.

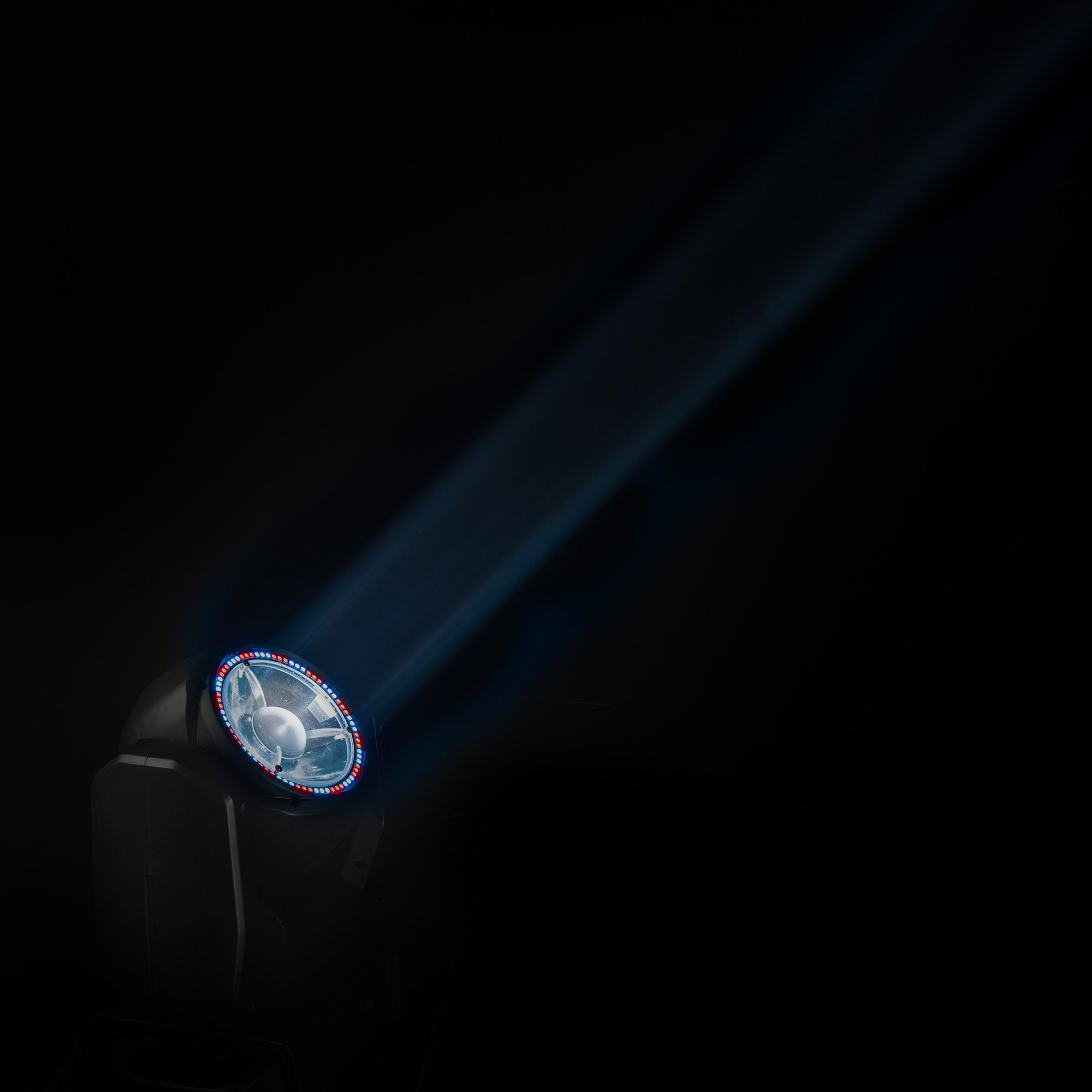

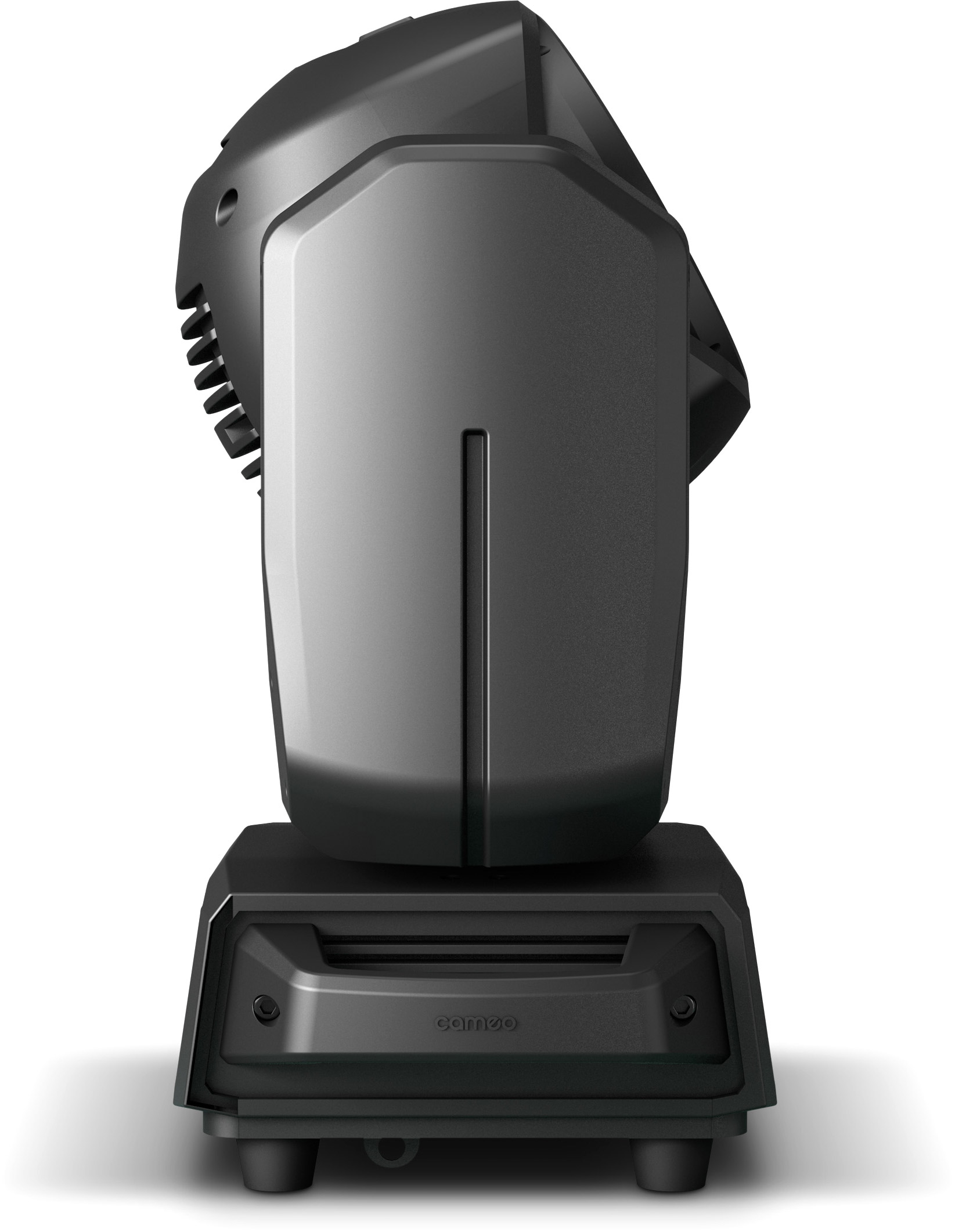

The two high-speed motors provide continuous and precise pan and tilt rotation for vibrant movement patterns. This gives you an illumination intensity of 8500 lux @ 3 m in any desired direction. The MOVO® BEAM 200 is installed in a compact composite housing weighing 8.4 kg.
With its brilliant performance, intense luminosity and flexibility, the MOVO® BEAM 200 is a widely variable effect light for staging a techno party, theatrical show, club ambience or private event. Thanks to its high PWM frequency, it also scores points as an ideal candidate for film and TV productions. It's a great narrow beam moving head for true Lumen Beings.
Technical data:Product type: | LED Moving Lights |
Type: | LED Moving Heads |
Colour spectrum: | RGBW |
Number of LEDs: | 1 + 24 |
LED type: | 1 x Osram LE RTDUW S2WP + 24 x 0.2 W RGB |
Refresh rate: | 1000 Hz |
Dispersion: | 2 - 120 ° |

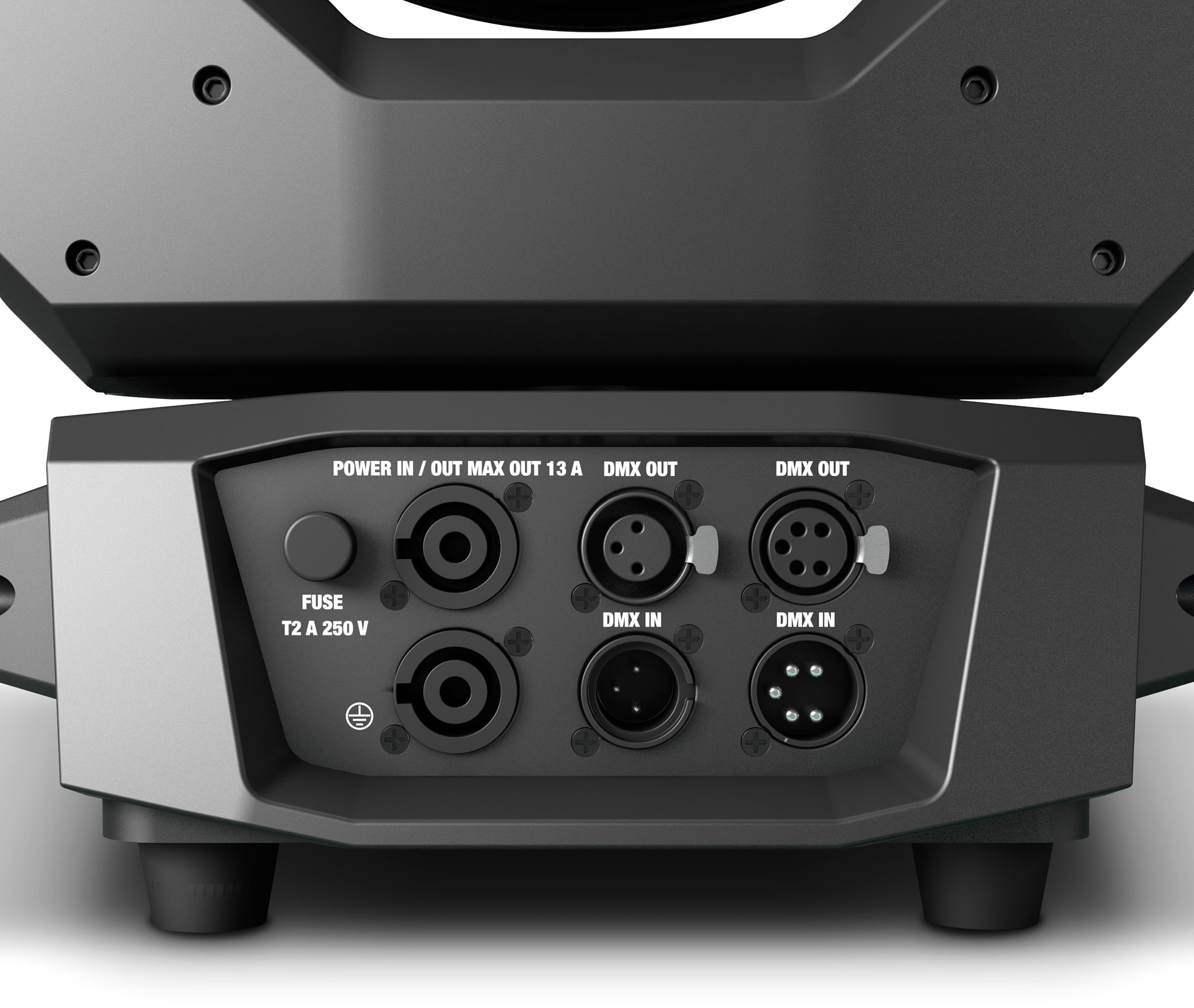

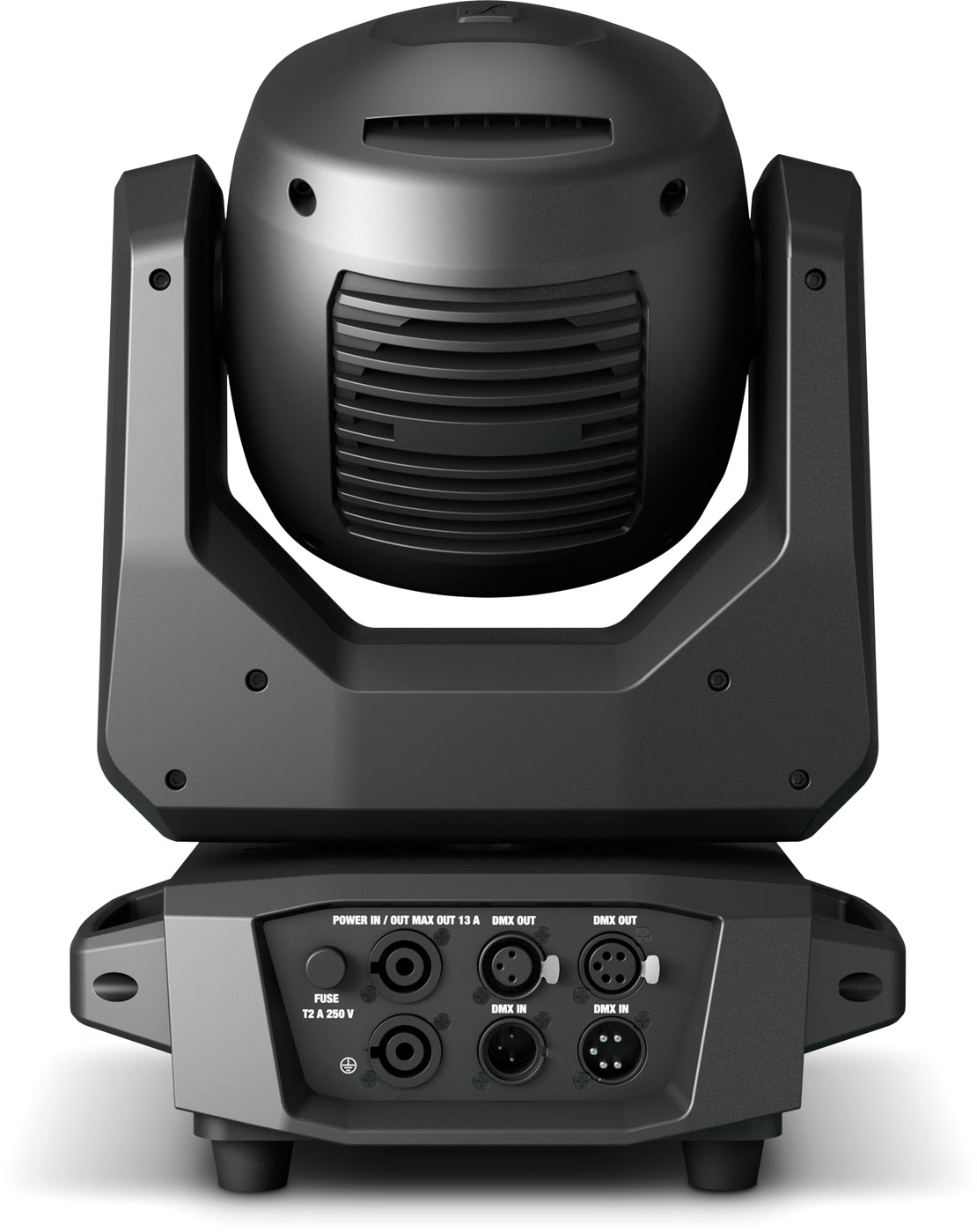

DMX input: | XLR 3-pin male |
DMX input: | XLR 5-pin male |
DMX output: | XLR 3-pin female |
DMX output: | XLR 5-pin female |
DMX mode: | 15-channel |
DMX mode: | 16-channel |
DMX mode: | 20-channel |
DMX mode: | 35-channel |
DMX mode: | 43-channel |
DMX mode: | 4-channel |
DMX mode: | 89-channel |
DMX Functions: | Colour presets |
DMX Functions: | Device Settings |
DMX Functions: | Dimmer |
DMX Functions: | Dimmer Fine |
DMX Functions: | Endless PAN / TILT |
DMX Functions: | Motion Macro |
DMX Functions: | Pan/Tilt |
DMX Functions: | Pan/Tilt fine |
DMX Functions: | Pixel Macros |
DMX Functions: | Segment Control |
DMX Functions: | Single Pixel Control |
DMX Functions: | strobe |
PAN movement: | 540 ° |
PAN movement: | unlimited |
TILT movement: | 270 ° |
TILT movement: | unlimited |
Standalone modes: | Auto programs |
Standalone modes: | Static |
Controls: | Encoder wheel |
Indicators: | LC display |
Operating voltage: | 100 V AC - 240 V AC, 50 - 60 Hz |
Power consumption: | 120 W |
Housing material: | ABS plastic |
Cabinet colour: | Black |
Illuminance: | 8500 lx @ 3 m |
Luminous flux: | 1192 lm |
Width: | 287 mm |
Height: | 410 mm |
Depth: | 206 mm |
Weight: | 8 kg |
