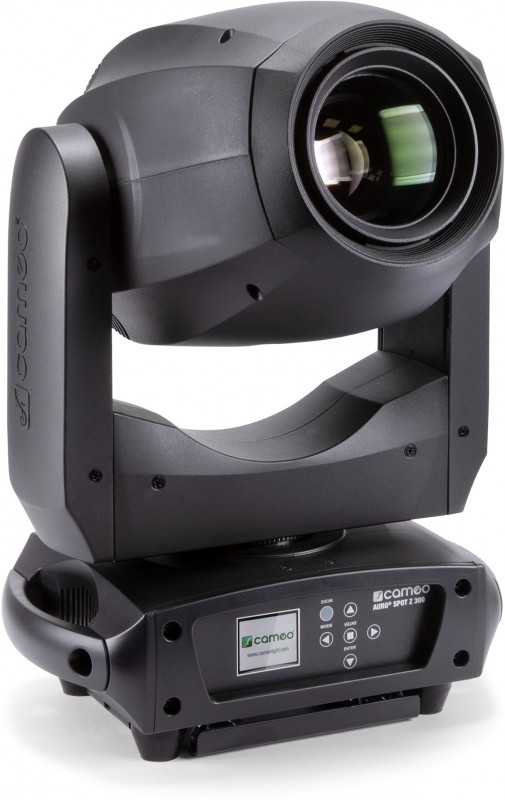

Cameo AURO® SPOT Z300 - LED Spot Moving Head
Expected to be available again in 4 weeks.
- Compact spot moving head with 7,500 lm luminous flux
- 10° to 25° zoom range
- Extremely even light dispersion free of hotspots
- Automatic position correction
- Motorised focus
- 2 gobo wheels, 6 rotating gobos (indexable and exchangeable) and 6 fixed gobos + open
- Continuously adjustable colour wheel with 8 intense colours + open
- Indexable and rotating 5-facet linear and 6-facet circular prisms
- 4 programmable macros for standalone and master-slave operation
- Soft frost filter for washlight effects
- Flicker-free for use in TV, film and photo studios

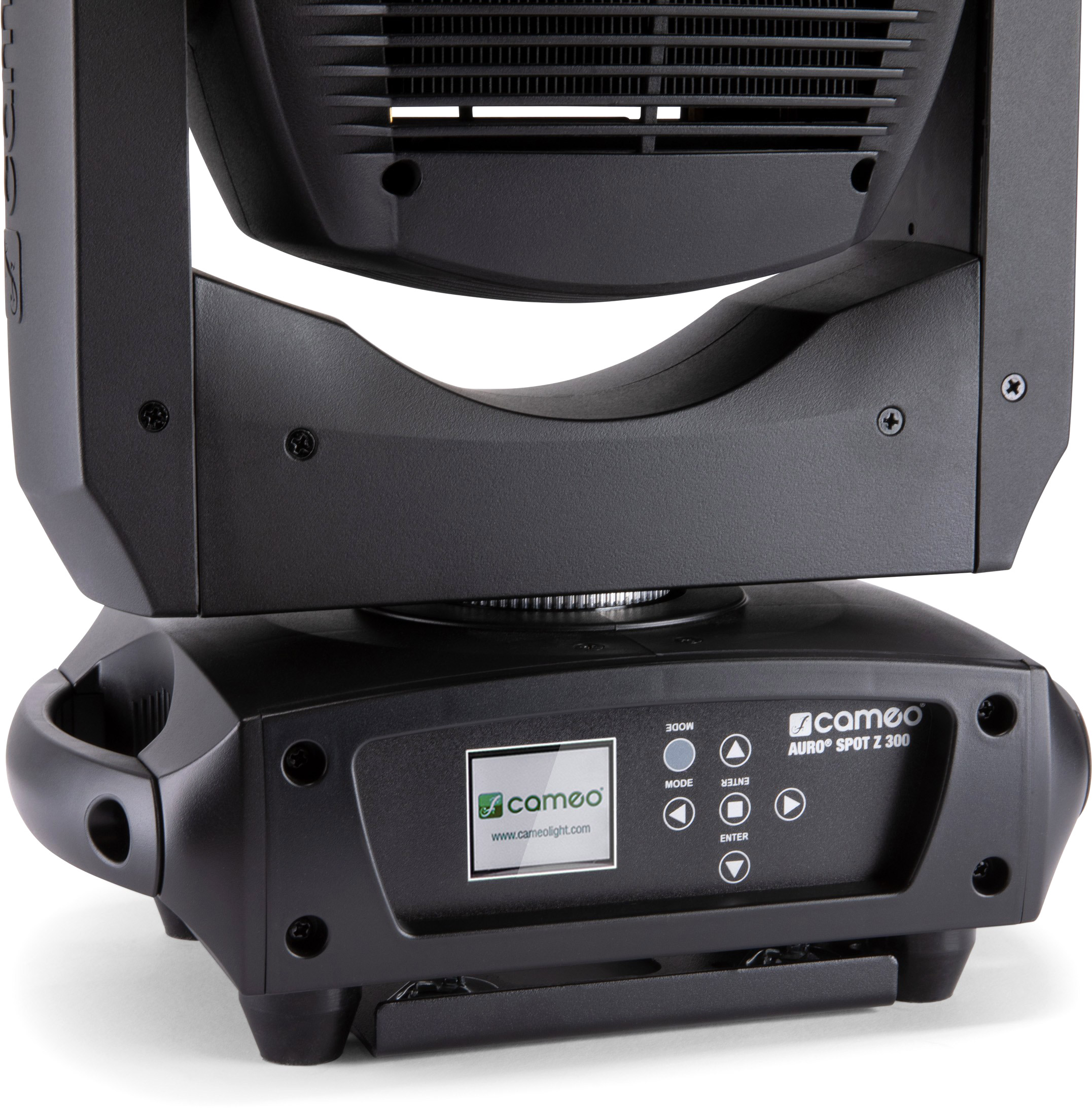

- Battery-powered 6-button display for offline configuration
With fantastic gobo projections, morphing and mid-air effects, the Cameo AURO® SPOT Z 300 is made for impressive lighting design. Compact yet fully featured, the RDM-enabled spot moving head offers both a 540° and 630° pan and a 270° tilt with 16-bit resolution and automated position correction. The 10° to 25° zoom range facilitates both short- and long-range projections, which remain pin sharp at all times thanks to the motorised focus.
The AURO® SPOT Z 300 is fitted with an extremely bright 200-watt cold-white LED. It is flicker-free and distinguishes itself with incredibly even light dispersion without any hotspots. A continuously adjustable colour wheel with eight brilliant colours, two prisms, two gobo wheels, six indexable and rotating exchangeable gobos and six fixed gobos means that the moving head is ideally equipped for exciting, professional performances.

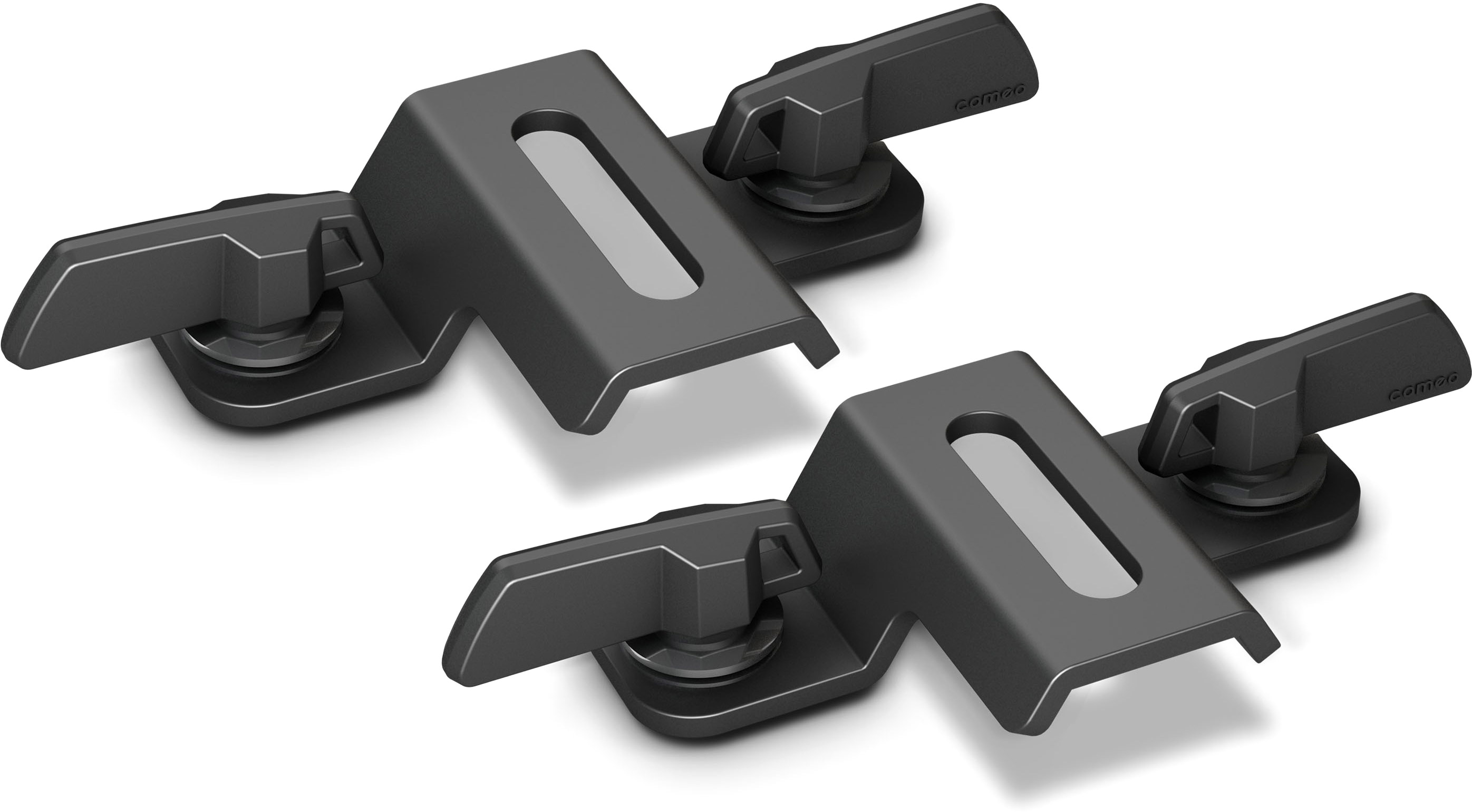

The AURO® SPOT Z 300 can be controlled via DMX or be automated. Featuring freely programmable macros, it can be used as a standalone or operated in master/slave mode. DMMX functions include rapid strobe, gobo shake and smooth dimming. Cooling and silent operation are provided by a temperature-controlled fan in robust housing made with ABS and metal. 3- and 5-pin DMX connections and powerCON-compatible power sockets permit convenient daisy chaining, while the battery-powered 6-button display allows power-independent configuration. The AURO® SPOT Z 300 comes with a power cable and two Omega brackets.
Technical data:| Product type: | LED Moving Lights |
| Type: | Moving Head |
| Colour spectrum: | cold white |
| Number of LEDs: | 1 |
| LED type: | 200 W |
| Refresh rate: | 1200 Hz |
| Refresh rate: | 12000 Hz |
| Refresh rate: | 2000 Hz |
| Refresh rate: | 25000 Hz |
| Refresh rate: | 3600 Hz |
| Refresh rate: | 800 Hz |
| Dispersion: | 10 - 25 ° |
| Number of colours: | Infinitely rotatable colour wheel with 8 colours + white |
| DMX input: | XLR 3-pin male |
| DMX input: | XLR 5-pin male |
| DMX output: | XLR 3-pin female |
| DMX output: | XLR 5-pin female |
| DMX mode: | 17-channel |
| DMX mode: | 20-channel |
| DMX Functions: | 2 x Prism |
| DMX Functions: | Auto programs |
| DMX Functions: | Colour wheel |
| DMX Functions: | Device Settings |
| DMX Functions: | Dimmer |
| DMX Functions: | Focus |
| DMX Functions: | Frost |
| DMX Functions: | Gobo Rotation |
| DMX Functions: | Gobo Shake |
| DMX Functions: | Gobo wheel |
| DMX Functions: | Motion Macro |
| DMX Functions: | Pan/Tilt |
| DMX Functions: | Pan/Tilt fine |
| DMX Functions: | Rotation Gobo Wheel |
| DMX Functions: | strobe |
| PAN movement: | 540° / 630° |
| TILT movement: | 270° |
| Standalone modes: | Auto programs |
| Standalone modes: | Master / Slave mode |
| Standalone modes: | User macros |
| Control: | DMX512 |
| Control: | RDM enabled |
| Controls: | 4 x Arrow keys |
| Controls: | Enter |
| Controls: | Mode |
| Indicators: | Backlit colour LCD display |
| Indicators: | Battery supply for mains-independent system settings (automatically rechargeable battery) |
| Operating voltage: | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption: | 320 W |
| Fuse: | T4AL250V (5 x 20 mm) |
| Operating Temperature: | 0 - 40 °C |
| Relative Humidity: | |
| Power connector: | Neutrik powerCON IN / OUT |
| Housing material: | ABS plastic |
| Housing material: | Metal |
| Cabinet colour: | Black |
| Illuminance: | 162000 lx @ 1 m |
| Luminous flux: | 7500 lm |
| Width: | 282 mm |
| Height: | 469 mm |
| Depth: | 186 mm |
| Weight: | 11,2 kg |
| Accessories (included): | 1 m power cable with Neutrik powerCON connector included |
| Accessories (included): | 2 x omega mounting |
