LEDVANCE PANEL PROTECT 625 DALI 36W 830 DALIVR

€174.08 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101414250
EAN: 4099854083402
Square recessed panel luminaires with IP54 protection, DALI-2 IoT technology, 625 x 625 mm.... more
All information about the product:
"LEDVANCE PANEL PROTECT 625 DALI 36W 830 DALIVR"

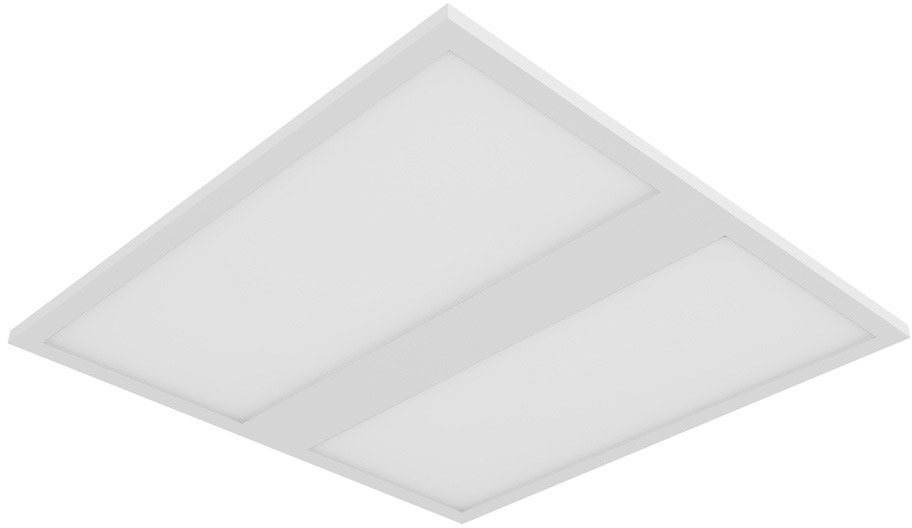

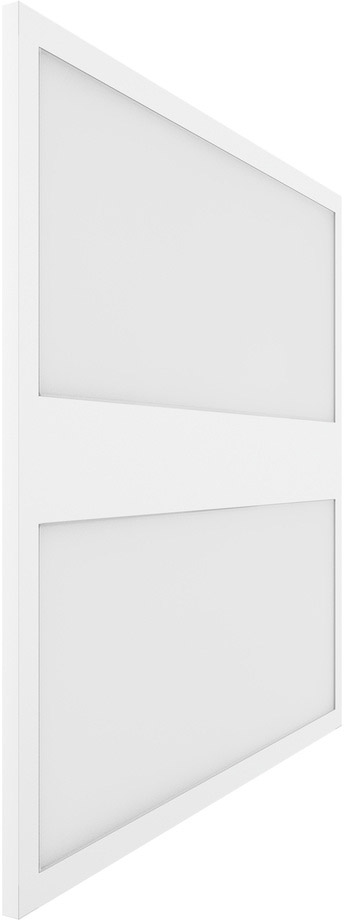

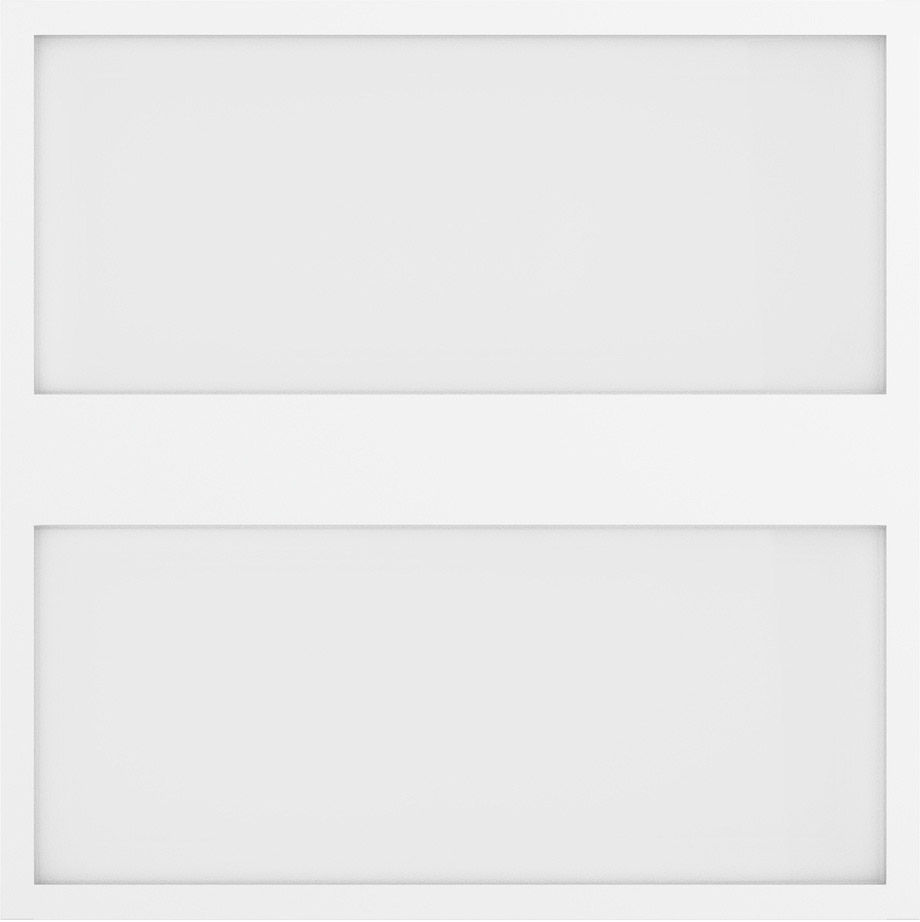

Square recessed panel luminaires with IP54 protection, DALI-2 IoT technology, 625 x 625 mm. Product features:
  • Type of protection: IP54 (frontside), IP20 (backside)
  • Steel housing with notch in the backside for the driver to allow maximum height of 34 mm
  • PMMA diffuser
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L90/B10): 50,000 h (at 25° C)
  • Panel can be customized with optical sensors on individual request
Product benefits:
  • Suitable for use in applications where a higher IP protection is needed
  • Highly versatile due to selectable power steps (Power Select - PS) on the driver and up to 5040 lm
  • Tool-free electrical connection due to push button connector
  • Through-wiring possible with included connector box
  • Energy savings thanks to high system efficacy: up to 140 lm/W
  • High color consistency with SDCM 3
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • External driver for extended flexibility and easy installation
  • Easy cleanable frontside thanks to the smooth PMMA surface of the diffuser
  • Suitable for battery emergency installations acc
  • to EN 60598-2-22
  • Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
  • 5 years guarantee

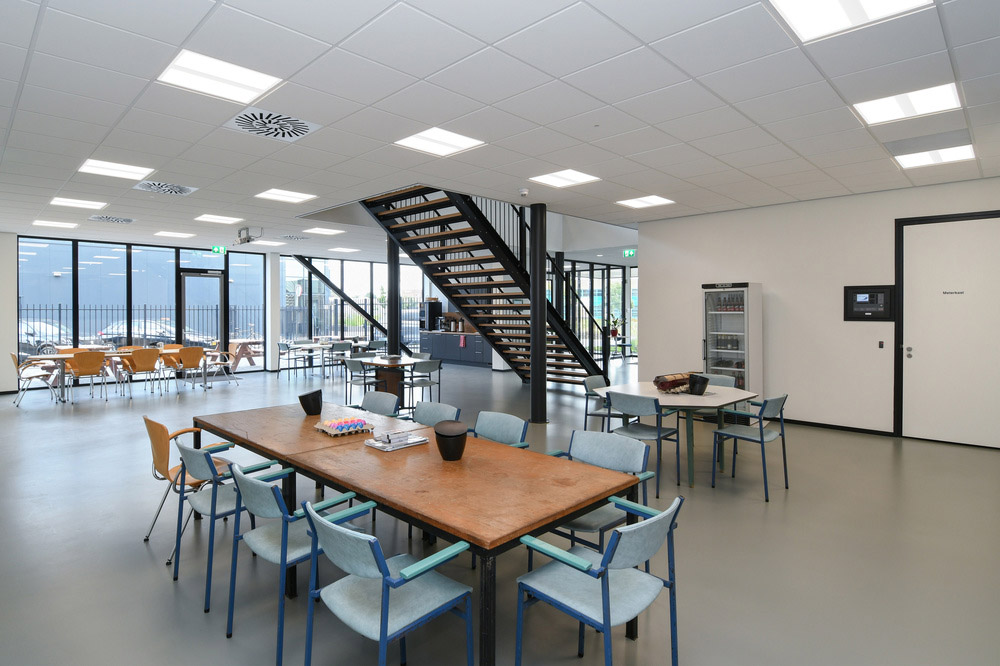

Areas of application:
  • Direct replacement for luminaires with fluorescent lamps
  • Suitable for recessed ceiling systems with grid size of 625 x 625 mm
  • Hospitals
  • Laboratories
  • Kitchens, canteens, workspaces
  • Equipment / Accessories: Accessories for several mounting options available
  • Connector box with 5-pole terminal pre-installed
  • Security brackets preinstalled
  • External control gear included
  • Suitable for use with seperate Emergency Conversion Box
  • Special mounting frame with an overall height of only 50 mm available separately
Technical data:
Length:620 mm
Width:620 mm
Height:34 mm
Net weight:2230 g
Nominal voltage:240 V
Rated power:36 W
Energy consumption:36 kWh/1000
Colour temperature:3000 K
Light colour:Warm White
Beam angle:120°
Luminous flux:5040 lm
Luminous efficacy:140 lm/W
Colour rendering:80 CRI
Lifetime:100000 h
Switching cycles:100000
Dimmable: Yes
Material:Steel
Colour:White
EAN:4099854083402
