PHILIPS Ledinaire surface-mounted SM065C, 34 W, 4100 lm, 4000 K
NEW
€41.69 *
incl. tax,
plus shipping costs
Availability:
Near-term available
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Item number: 100428105
EAN: 8720169736856
MPN: 911401892185
NEW
PHILIPS Ledinaire surface-mounted SM065C, 34 W, 4100 lm, 4000 K Steel, White, Signal white... more
All information about the product:
"PHILIPS Ledinaire surface-mounted SM065C, 34 W, 4100 lm, 4000 K"
PHILIPS Ledinaire surface-mounted SM065C, 34 W, 4100 lm, 4000 K
Steel, White, Signal white (RAL9003), Power supply unit external (On/Off), 4100 lm, 34 W, 120 lm/W, 4000 K, (0.38, 0.38) SDCM =5, Beam angle 120°, Opal, Acrylate, IP20/40 | Finger-protected;Wire-protected, IK02 | 0.2 J standard, Safety class II, 2×0.75mm², Flying leads/wires

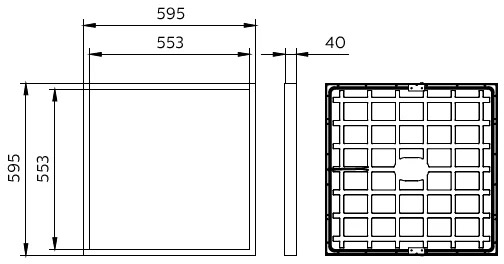

Technical data:| Length: | 595 mm |
| Width: | 595 mm |
| Height: | 40 mm |
| Nominal voltage: | 220-240 V |
| Nominal power: | 34 W |
| Nominal current: | 155 mA |
| Energy consumption: | 34 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | White |
| Beam angle: | Open beam/diffuse |
| Luminous flux: | 4100 lm |
| Luminous efficacy: | 120 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 75000 h |
| Protection class: | IP20 |
| Light source type: | LED not exchangeable |
| Material: | Steel |
| Colour: | White |
| Incl. illuminant: | Yes |
| Suitable for wall mounting: | no |
| Operation by Bluetooth: | no |
| Compatible with Casambi: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): | no |
| Surface protection housing: | Powder coating |
| Material cover: | Plastic, opal |
| Type of grid: | None |
| Voltage type: | AC |
| Suitable for suspended mounting: | no |
| Type of control gear: | LED operating device current-controlled |
| With control gear: | yes |
| Exchangeable control gear: | no |
| Suitable for ceiling mounting: | no |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Suitable for built-in mounting: | no |
| Light distributor: | Diffuser lens/optic/panel |
| Light distribution: | Symmetric |
| Colour consistency (McAdam ellipse): | SDCM5 |
| Light outlet: | Direct |
| Suitable for surface mounting: | yes |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): | 80% |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): | 70% |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): | 7.5% |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 20 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 35 |
| Impact strength: | IK02 |
| Suitable for light line configuration: | no |
| Protection class according to IEC 61140: | II |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | 25°C |
| Suitable for emergency lighting: | no |
| Emergency power supply integrated: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Covering of the luminaire with thermally insulating material possible: | no |
| With air slots: | no |
| Filament test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for workplace according to EN 12464-1: | no |
| Flickering value Pst LM: | 1 |
| Power factor: | 0.9 |
| Stroboscope effect value SVM: | 0.4 |
| Constant light output (CLO): | no |
| Built-in length: | 595 mm |
| Built-in width: | 595 mm |
| Type of wiring: | Ending |
| Number of poles: | 2 |
| Conductor cross section: | 0.75mm² |
| Connection type: | Cable |
| Total harmonic distortion: | 20 |
| Photobiological safety according to EN 62471: | RG0 |
| Unified Glare Ratio (UGR): | 22 |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | No |
| Beam angle adjustable: | No |
