LEDVANCE PANEL PERFORMANCE 600 UGR < 19 TPA 36 W 4000 K WT

Preview: LEDVANCE PANEL LEISTUNG 600 UGR < 19 TPA 36 W 4000 K WT

LEDVANCE PANEL LEISTUNG 600 UGR < 19 TPA 36 W 4000 K WT

€49.83 *

incl. tax, plus shipping costs

Availability:

Not in stock
Delivery time: approx. 2 weeks

Delivery time: approx. 2 weeks

Item number: 101415285

EAN: 4058075384309

MPN: 4058075384309

LEDVANCE PANEL PERFORMANCE 600 UGR < 19 TPA 36 W 4000 K WT Square recessed panel luminaires... more

Back to the overview

All information about the product:

"LEDVANCE PANEL PERFORMANCE 600 UGR < 19 TPA 36 W 4000 K WT"

LEDVANCE PANEL PERFORMANCE 600 UGR < 19 TPA 36 W 4000 K WT

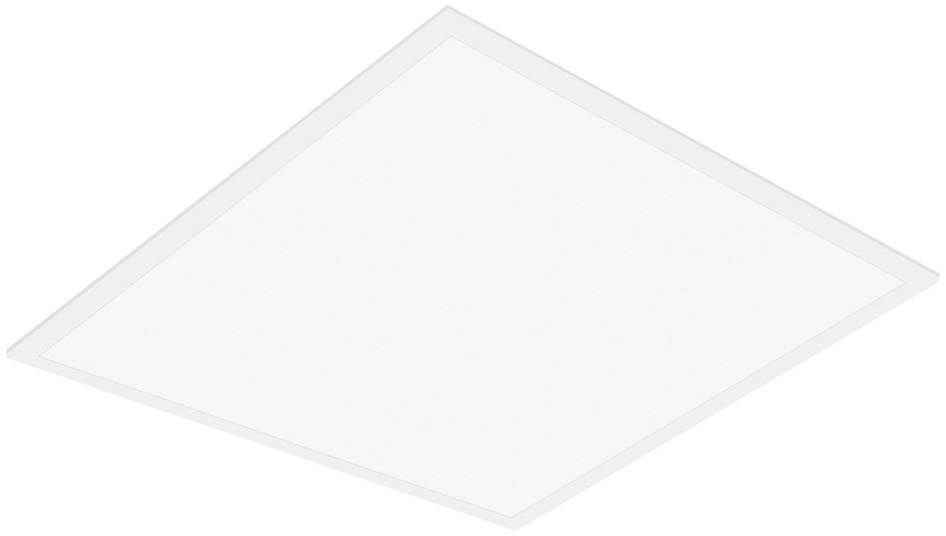

Square recessed panel luminaires with TP(A) rated diffuser, low glare, 600 x 600 mm. Product features: Extruded aluminum frame. Polycarbonate diffuser (TP(A) rated). Lifetime (L80/B10): up to 50,000 h (at 25 °C). Product benefits: Energy savings thanks to system efficacy of up to 110 lm/W. Flexible application thanks to TP(A) rated diffusor for the UK market. Good glare reduction (UGR Technical data:

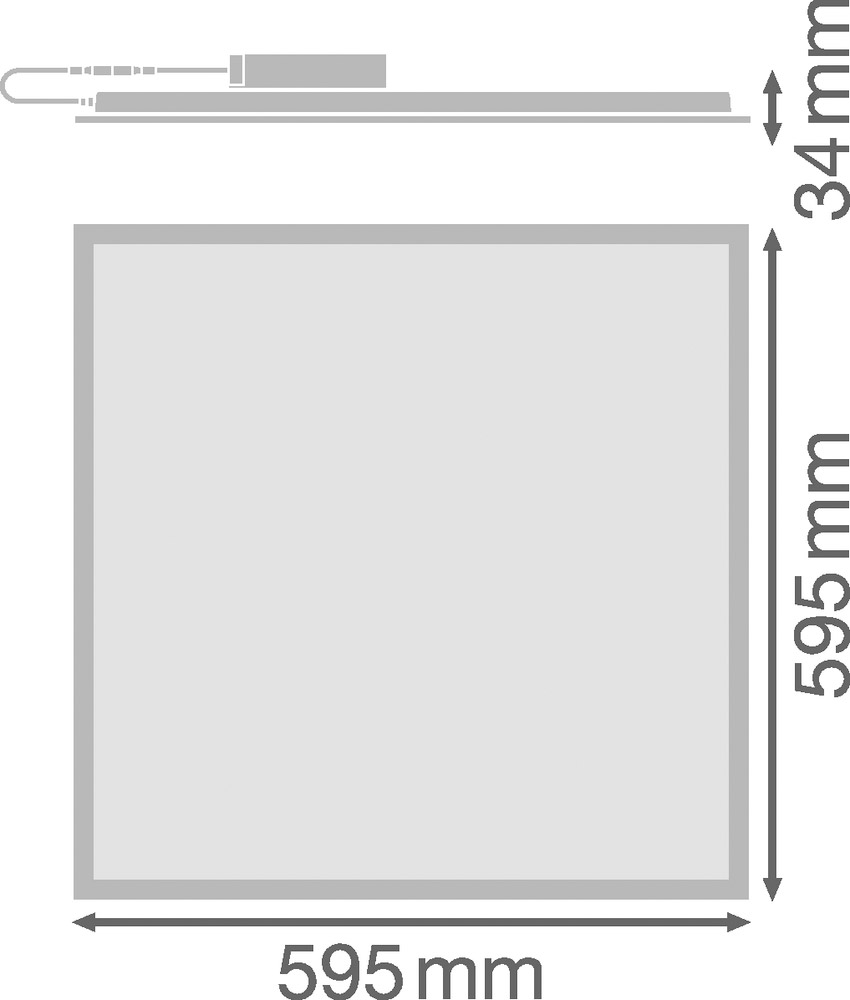

Length:	595 mm
Width:	595 mm
Height:	34 mm
Weight:	1800 g
Nominal voltage:	220-240 V
Nominal power:	36 W
Nominal current:	170 mA
Energy consumption:	36 kWh/1000
Colour temperature:	4000 K
Light colour:	White
Luminous flux:	3960 lm
Luminous efficacy:	110 lm/W
Colour rendering:	80-89 CRI
Dimmable:	No
Lifetime:	50000 h
Protection class:	IP40
Light source type:	LED not exchangeable
Material:	Aluminium
Colour:	White
Incl. illuminant:	Yes
Suitable for wall mounting:	yes
Suitable for suspended mounting:	yes
Suitable for ceiling mounting:	yes
Suitable for built-in mounting:	yes
Suitable for surface mounting:	yes
Suitable for light line configuration:	no
Suitable for workplace according to EN 12464-1:	yes
Surface protection housing:	Powder coating
Material cover:	Plastic, opal
Type of grid:	High-gloss
Voltage type:	AC
Type of control gear:	Electronic ballast
With control gear:	yes
Exchangeable control gear:	yes
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Light distributor:	Diffuser lens/optic/panel
Colour consistency (McAdam ellipse):	SDCM5
Light outlet:	Direct
Max. number of luminaires per miniature circuit breaker B16 (MCB):	19
Max. number of luminaires per miniature circuit breaker C16 (MCB):	30
Impact strength:	IK02
Protection class according to IEC 61140:	II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:	no
Rated ambient temperature according to IEC 62722-2-1:	+45°C
Suitable for emergency lighting:	yes
Emergency power supply integrated:	no
With movement sensor:	no
With light sensor:	no
Covering of the luminaire with thermally insulating material possible:	no
With air slots:	no
Filament test according to IEC 60695-2-11:	650 °C - 30 s
Power factor:	0.95
Built-in length:	580 mm
Built-in width:	580 mm
Built-in height/depth:	50,00 mm
Type of wiring:	Ending
Number of poles:	2
Connection type:	Push-in clamp
Photobiological safety according to EN 62471:	RG0
Colour of light adjustable:	No
Luminous flux adjustable:	No
Beam angle adjustable:	No
Operation by Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	yes
