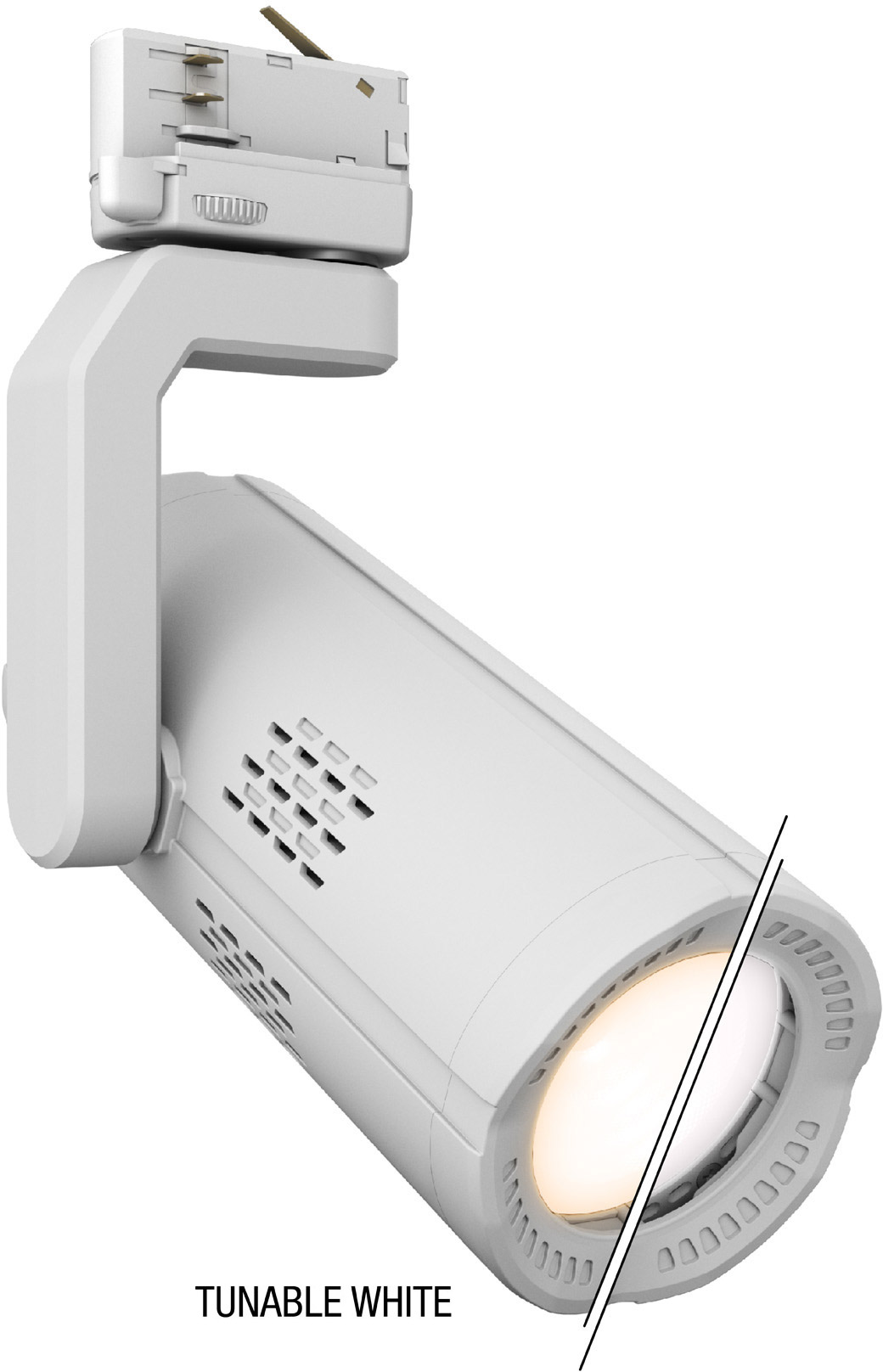

Cameo G4 TW - Tracklight with Tunable White LED
- Tracklight with 40 W Tunable White COB LED
- Color temperature: 2,700 K - 6,500 K
- 560 lumen
- Can be used with standard busbar systems
- Applications: museums, retail, gastronomy and much more
- Beam angle can be flexibly adjusted using magnetic filters
- Optional magnetic filters (CTO, CTB, Honeycomb)
- FC & TW models compatible with DMX, W-DMX & RDM
- Selectable pulse width modulation (up to 25 kHz) for flicker-free operation
- Passive cooling for virtually silent operation
Whether in a museum, retail store or restaurant, the basic requirements for the illumination of commercial areas are almost identical: professional quality light for the natural illumination of rooms, objects and people, high flexibility of application and maximum cost efficiency in long-term use. With the G-Series track lights, Cameo offers lighting and interior designers, designers and installation service providers versatile track lights for use in standard power track systems. The discreet and versatile LED lights are available in four different versions: neutral white, tungsten, tunable white and full color.
The G4 TW tracklight is equipped with a 40-watt Tunable White COB LED that produces a luminous flux of 560 lumens. The color temperature of the G4 TW can be variably adjusted in the range from 2,700 K to 6,500 K. Magnetic filters allow flexible adjustment of the 5° beam angle without the use of tools. Numerous optional interchangeable lenses are available for narrower and wider beam angles, as well as CTO, CTB and honeycomb filters. In addition, the G4 TW enables variable adjustment of the PWM frequency up to 25 kHz for flicker-free operation.
The Cameo G series tracklights were developed for use with standard power track systems and enable the transmission of power via the rail adapter, depending on the manufacturer's system used. This makes the luminaires highly adaptable to changing room designs – from temporary exhibitions in a museum hall to changing store concepts in the retail sector and variable table configurations in the catering industry.
The FC & TW models of the Cameo G series also feature integrated protocols such as DMX512, W-DMX for wireless control and RDM for convenient configuration and monitoring of the tracklights. Thanks to passive convection cooling, the G4 TW is virtually silent and is also suitable for particularly noise-sensitive environments.
All Cameo G-series track lights are available with black or white housings.
Technical data:Product type: | LED headlights |
Type: | installation spotlights |
color spectrum | tunable white |
Color temperature: | 2700 - 6500 K |
Number of LEDs: | 1 |
Average lifespan of LED: | 30000 hours |
LED type: | 2-in-1 chip |
LED PWM frequency: | 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable |
Beam angle: | 5 ° |
DMX input: | RJ45 |
DMX output: | RJ45 |
DMX functions: | Cool White |
DMX functions: | dimmer |
DMX functions: | Dimmer Fine |
DMX functions: | color temperature |
DMX functions: | device settings |
DMX functions: | strobe |
DMX functions: | Warm White |
Control: | DMX512 |
Control: | RDM |
Control: | W-DMX |
Standalone functions: | Static |
Controls: | External remote control |
Controls: | W-DMX button |
RDP (material group A): | 0.20 @ 2700 K |
RDP (material group A): | 0.50 @ 6500 K |
RDP (material group B): | 0.61 @ 2700 K |
RDP (material group B): | 0.65 @ 6500 K |
Operating voltage: | 100 V AC - 240 V AC / 50 - 60 Hz |
Power consumption: | 40 W |
Luminous flux: | 560 meters |
Color rendering index (Ra): | >97 |
Power supply connection: | Busbar adapter (selectable phase) |
Compatible rails: | Global Track |
Ambient temperature: | 0 - 40 °C |
Relative humidity: | |
Housing color: | white |
Housing material: | metal |
Case cooling: | convection |
width: | 80 mm |
Length: | 195 mm |
Weight: | 1.3 kg |
Optional accessories: | CTB filters |
Optional accessories: | CTO filters |
Optional accessories: | honeycomb |
Optional accessories: | interchangeable lenses |
