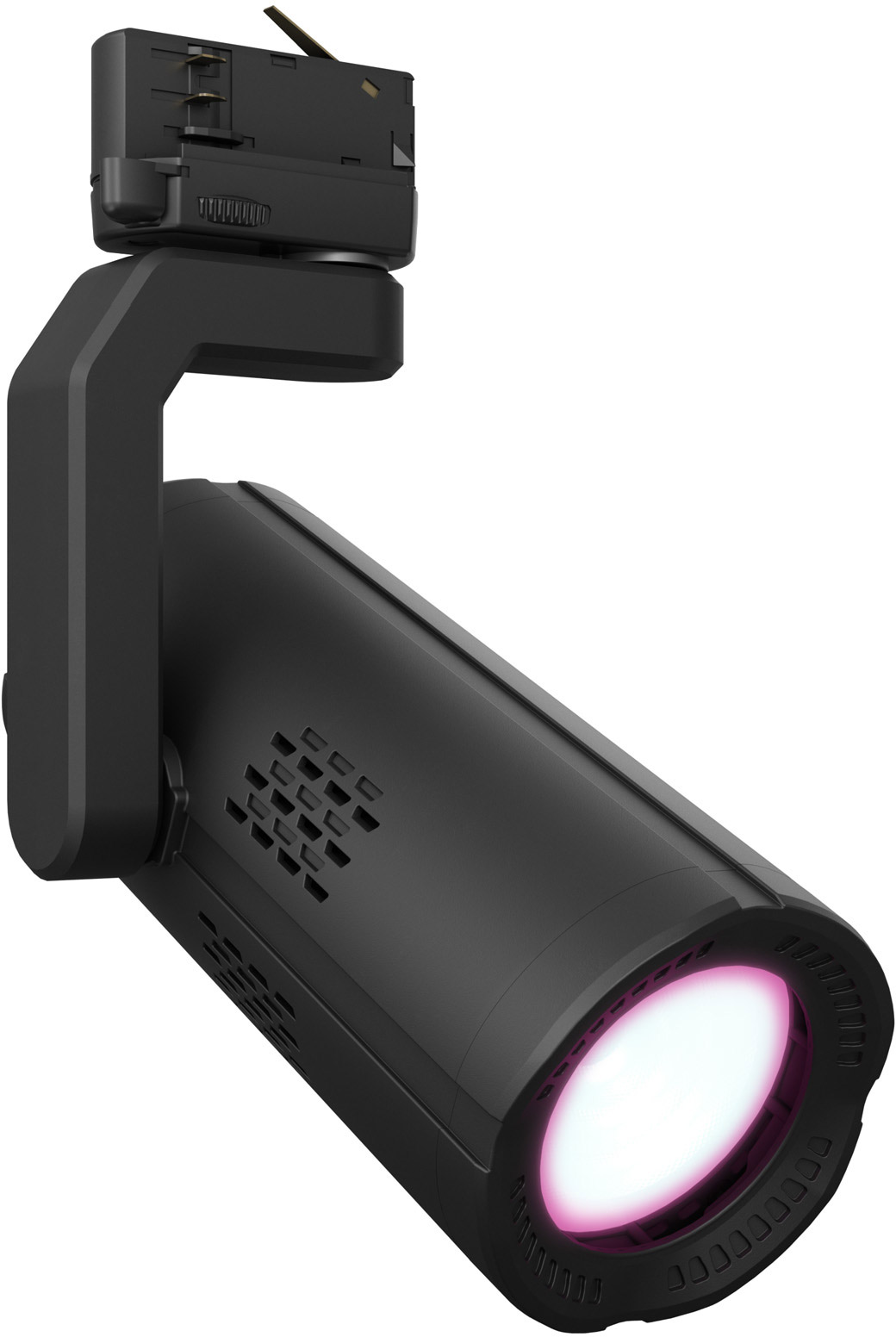

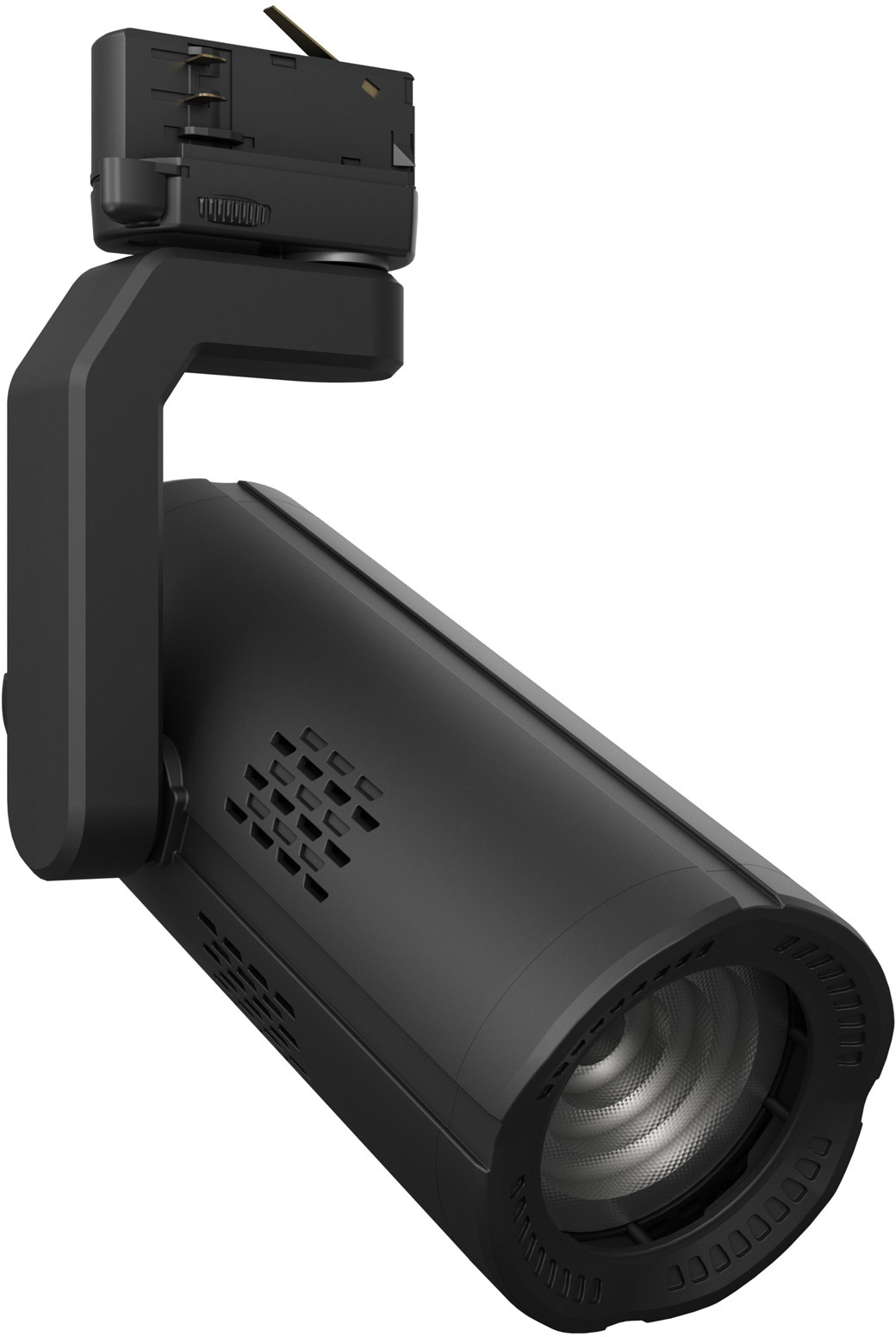

Cameo G4 FC - Tracklight with RGBL LED
Expected to be available again in 2 days.
- Track lights with 40 W RGBL LED
- 410 lm luminous flux
- Can be used with standard busbar systems
- Applications: museums, retail, gastronomy and much more
- Beam angle can be flexibly adjusted using magnetic filters
- Consistent and accurate color temperatures thanks to factory-calibrated LEDs
- Optional magnetic filters (CTO, CTB, Honeycomb)
- FC & TW models compatible with DMX, W-DMX & RDM
- Selectable pulse width modulation (up to 25 kHz) for flicker-free operation
- Passive cooling for silent operation
Whether in a museum, retail store or restaurant, the basic requirements for the illumination of various surfaces are almost identical: professional quality light for the natural illumination of rooms, objects and people, high flexibility of application and maximum cost efficiency in long-term use. With the G-Series track lights, Cameo offers lighting and interior designers, designers and installation service providers versatile track lights for use in standard power track systems. The discreet and versatile LED lights are available in four different versions: neutral white, tungsten, tunable white and full color.

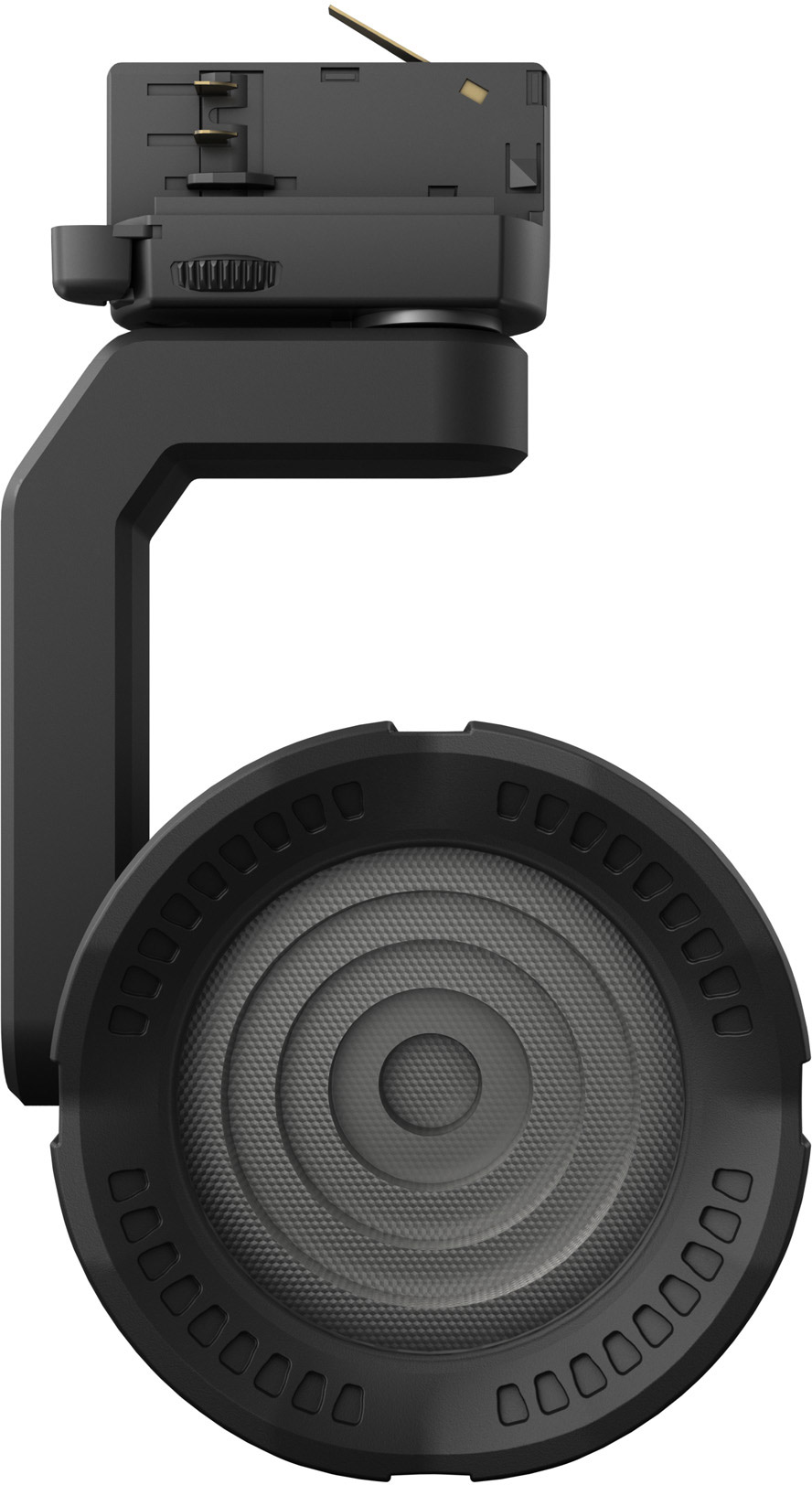

The G4 FC track light is equipped with a 40-watt RGBL COB LED that produces a luminous flux of 410 lumens. Magnetic filters allow the 5° beam angle to be flexibly adjusted without the use of tools. Numerous optional interchangeable lenses are available for narrower and wider beam angles, as well as CTO, CTB and honeycomb filters. In addition, the G4 FC enables variable adjustment of the PWM frequency up to 25 kHz for flicker-free operation.

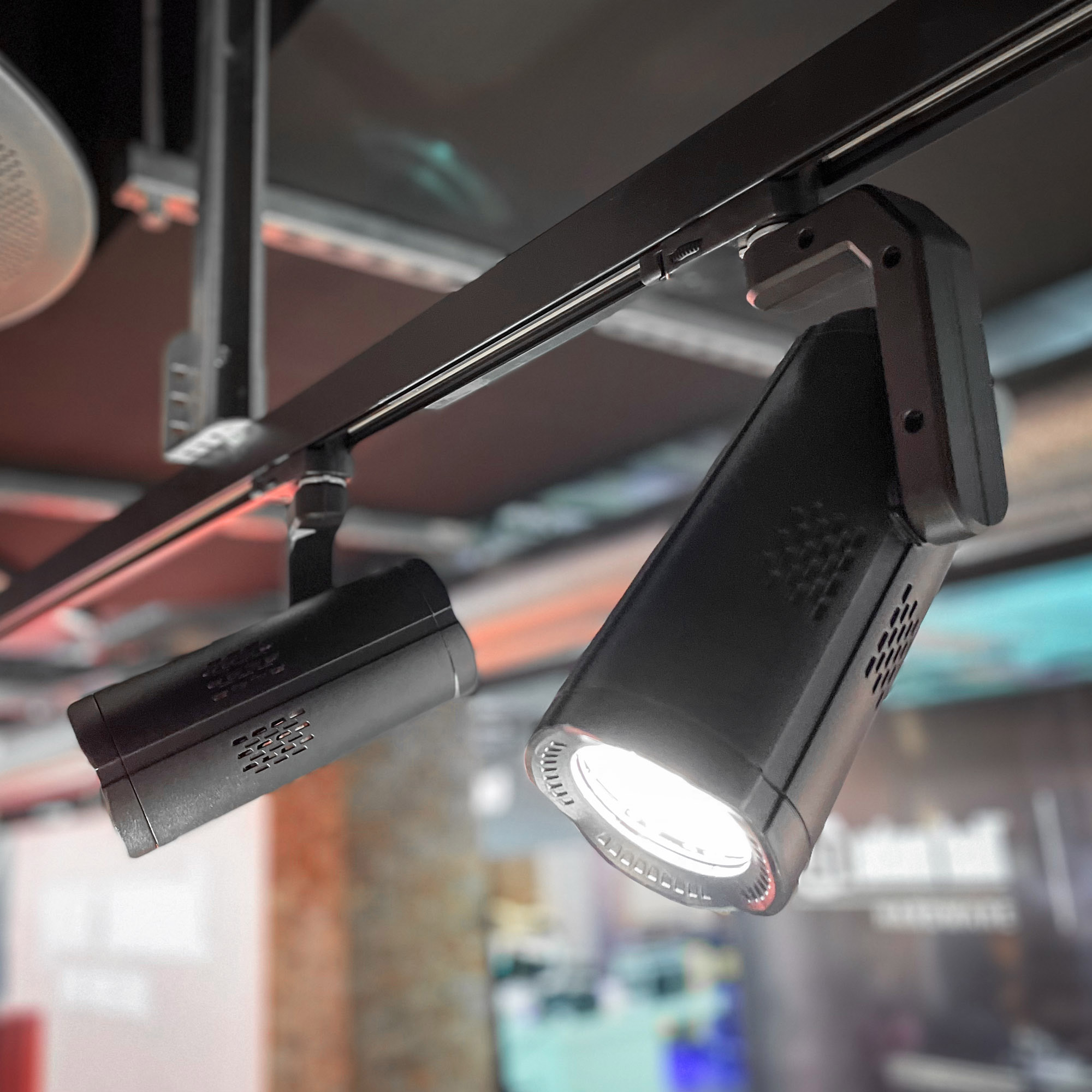

The Cameo G series tracklights were developed for use with standard power track systems and enable the transmission of power via the rail adapter, depending on the manufacturer's system used. This makes the luminaires highly adaptable to changing room designs – from temporary exhibitions in a museum hall to changing store concepts in the retail sector and variable table configurations in the catering industry.
The FC & TW models of the Cameo G series also feature integrated protocols such as DMX512, W-DMX for wireless control and RDM for convenient configuration and monitoring of the tracklights. Thanks to passive convection cooling, the G4 FC is virtually silent and is therefore suitable for particularly noise-sensitive environments.
All Cameo G-series track lights are available with black or white housings.
Technical data:Product type: | LED headlights |
Type: | installation spotlights |
color spectrum | RGBL |
Number of LEDs: | 1 |
Average lifespan of LED: | 30000 hours |
LED type: | 4in1 chip |
LED PWM frequency: | 800 Hz - 25000 Hz |
Beam angle: | 5 ° |

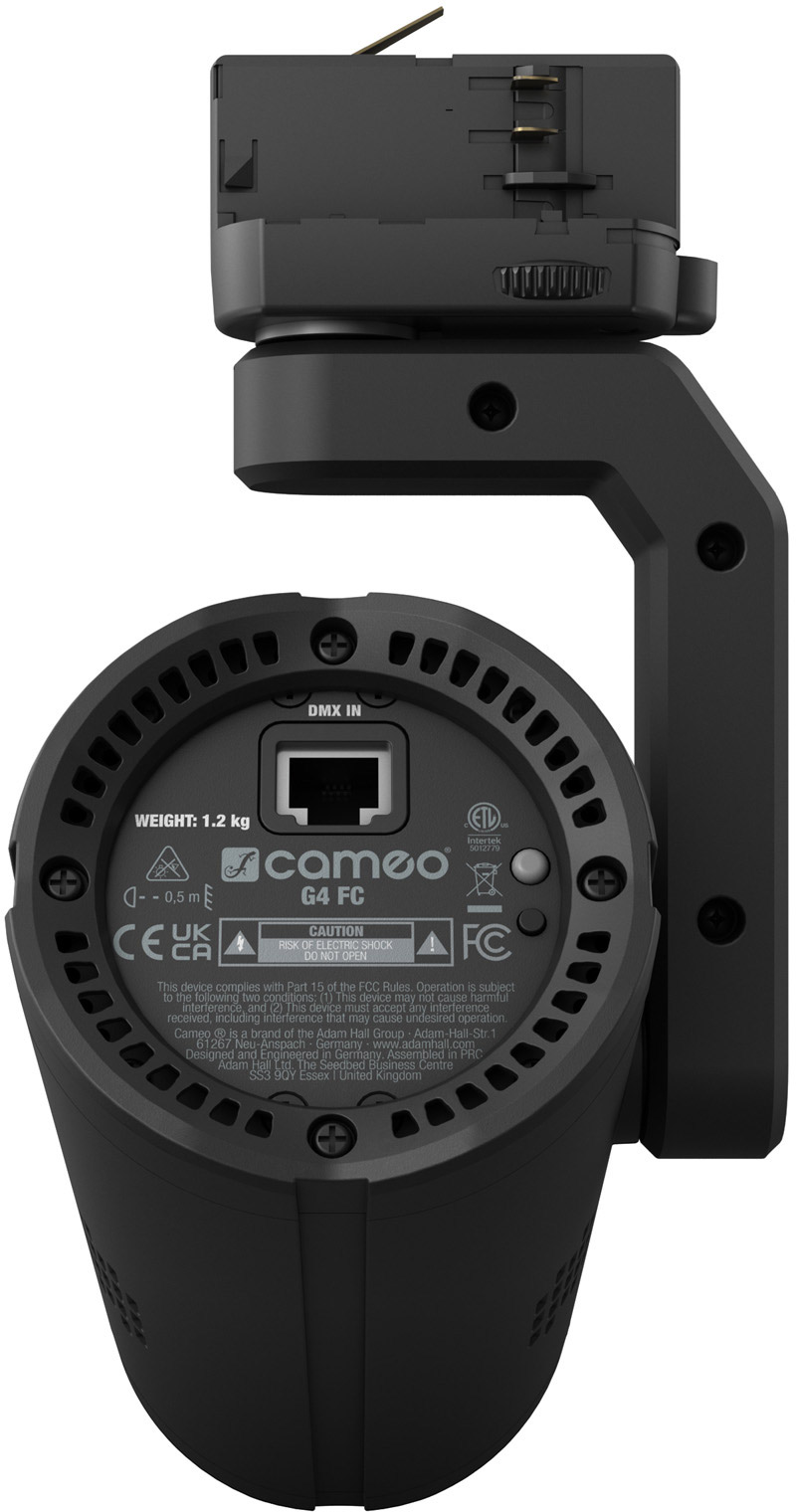

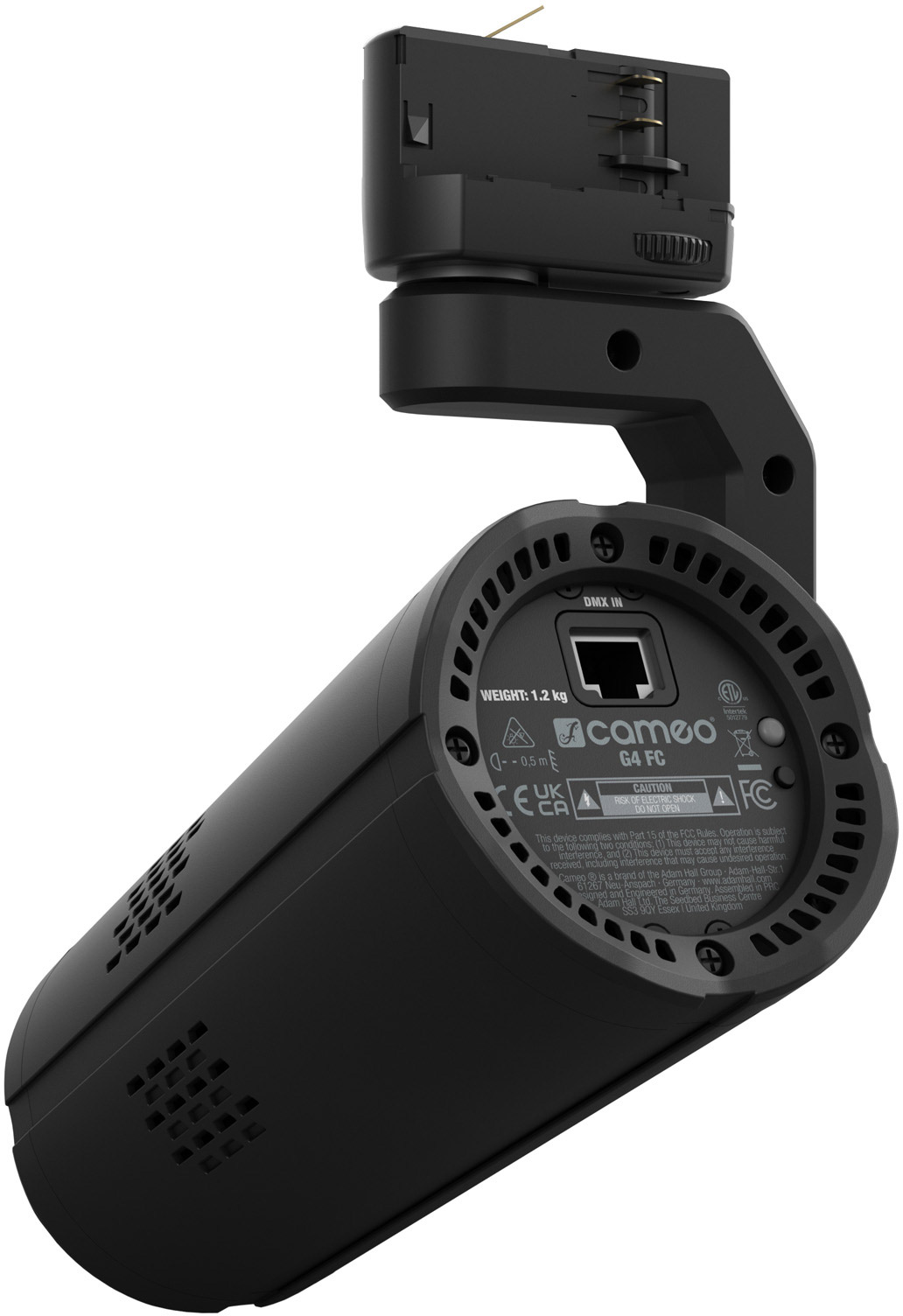

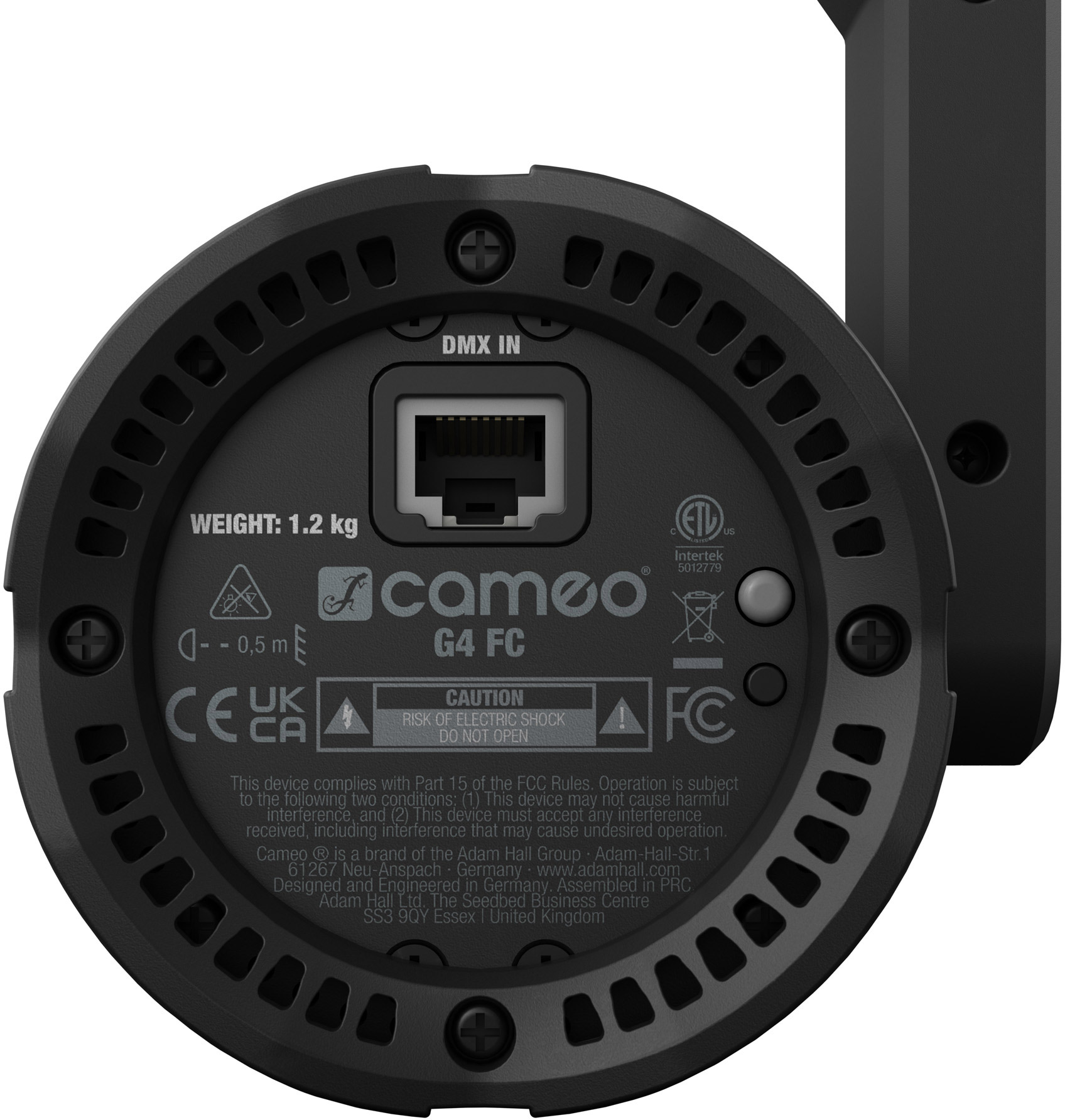

DMX input: | RJ45 |
DMX output: | RJ45 |
DMX functions: | color fade |
DMX functions: | color presets |
DMX functions: | dimmer |
DMX functions: | Dimmer Fine |
DMX functions: | color temperature |
DMX functions: | color |
DMX functions: | color tone saturation |
DMX functions: | device settings |
DMX functions: | Record User Color |
DMX functions: | RGBL |
DMX functions: | strobe |
DMX functions: | color |
Control: | DMX512 |
Control: | RDM |
Control: | W-DMX |
Standalone functions: | Static |
Controls: | External remote control |
Controls: | W-DMX button |
RDP (material group A): | 0.25 @ 2700 K |
RDP (material group A): | 0.44 @ 6500 K |
RDP (material group B): | 0.58 @ 2700 K |
RDP (material group B): | 0.60 @ 6500 K |
Operating voltage: | 100 V AC - 240 V AC / 50 - 60 Hz |
Power consumption: | 40 W |
Luminous flux: | 410 meters |
Color rendering index (Ra): | >77 Ra @ 6500K |
Power supply connection: | Busbar adapter (selectable phase) |
Compatible rails: | Global Track |
Ambient temperature: | 0 - 40 °C |
Relative humidity: | |
Housing color: | black |
Housing material: | metal |

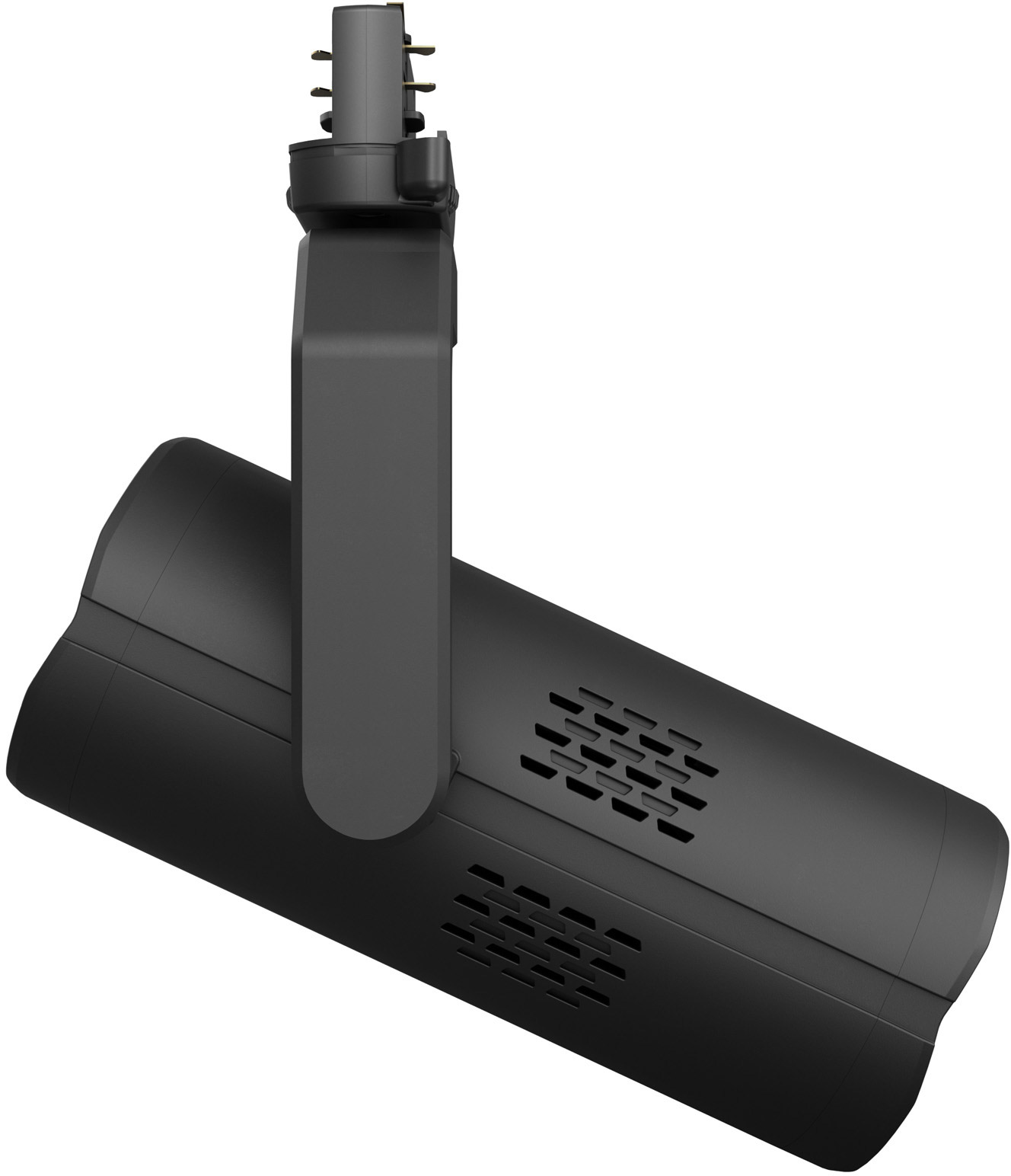

Case cooling: | convection |
width: | 80 mm |
Length: | 195 mm |
Weight: | 1.3 kg |
Optional accessories: | CTB filters |
Optional accessories: | CTO filters |
Optional accessories: | honeycomb |
Optional accessories: | interchangeable lenses |
