EUROLITE LED D-30 Hybrid Beam Effect

The LED D-30 Beam Effect by Eurolite comes equipped with six 3-watt LEDs in the colors red, green, blue, amber and pink as well as 36 cold white SMD LEDs creating dynamic strobe and derby effects. The LED D-30 works with 3 preset programs. In the automatic mode, the preset light programs are played fully automatically without any further adjustments on your part. Alternatively, you can choose the sound-controlled mode via the built-in microphone with adjustable sensitivity. In this mode, the multi-color beams change direction with each bass beat.You can also operate multiple devices in sync using the master/slave mode. Apart from the preset programs, the LED D-30 can also be controlled via 4 or 13 DMX channels. For the addressing and settings you can either use the 4-digit LED display and operating buttons on the rear of the device or the supplied IR remote control.

DMX lighting effect with RGBWAP derby, white strobe LEDs, and IR remote control

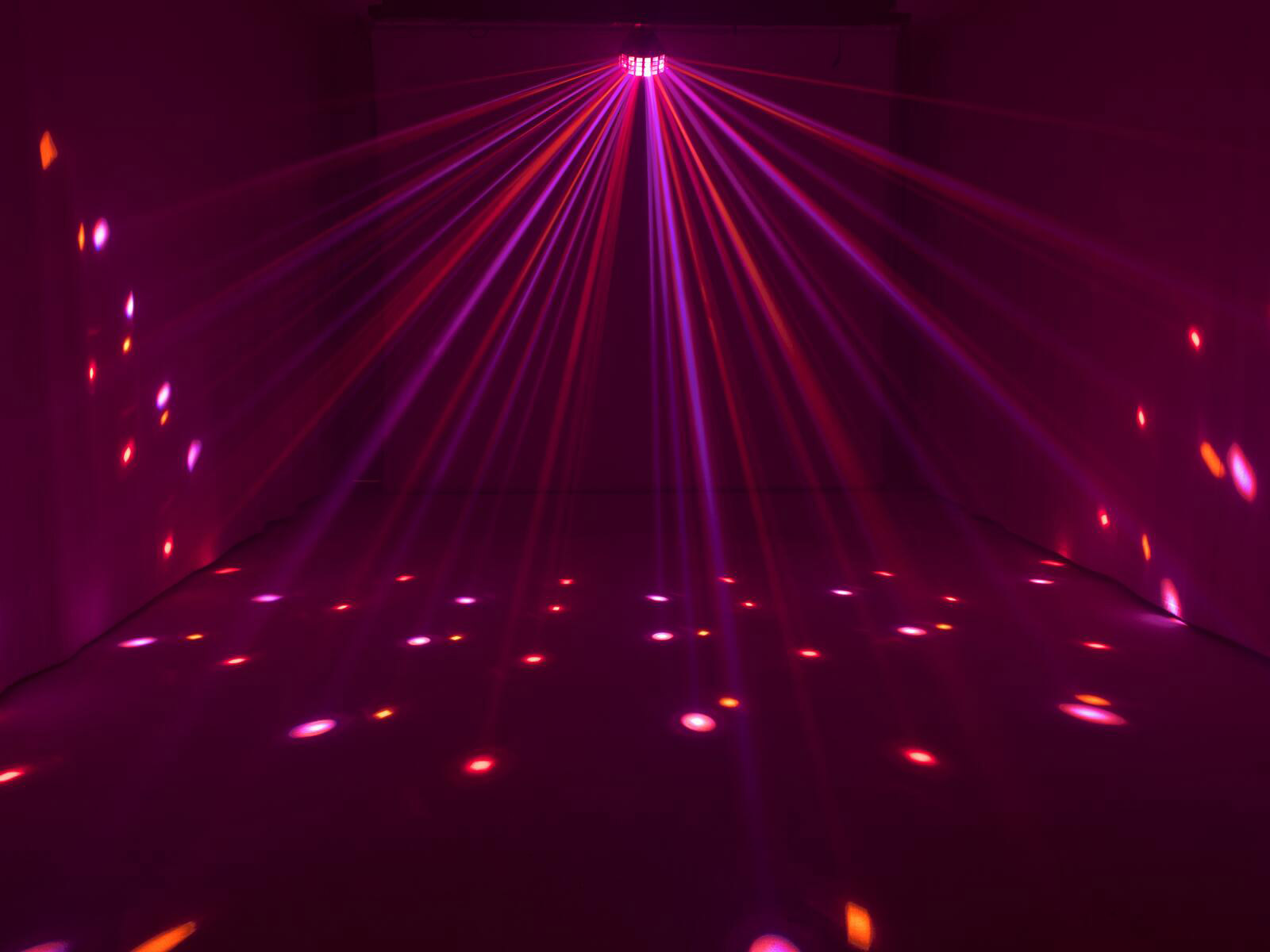

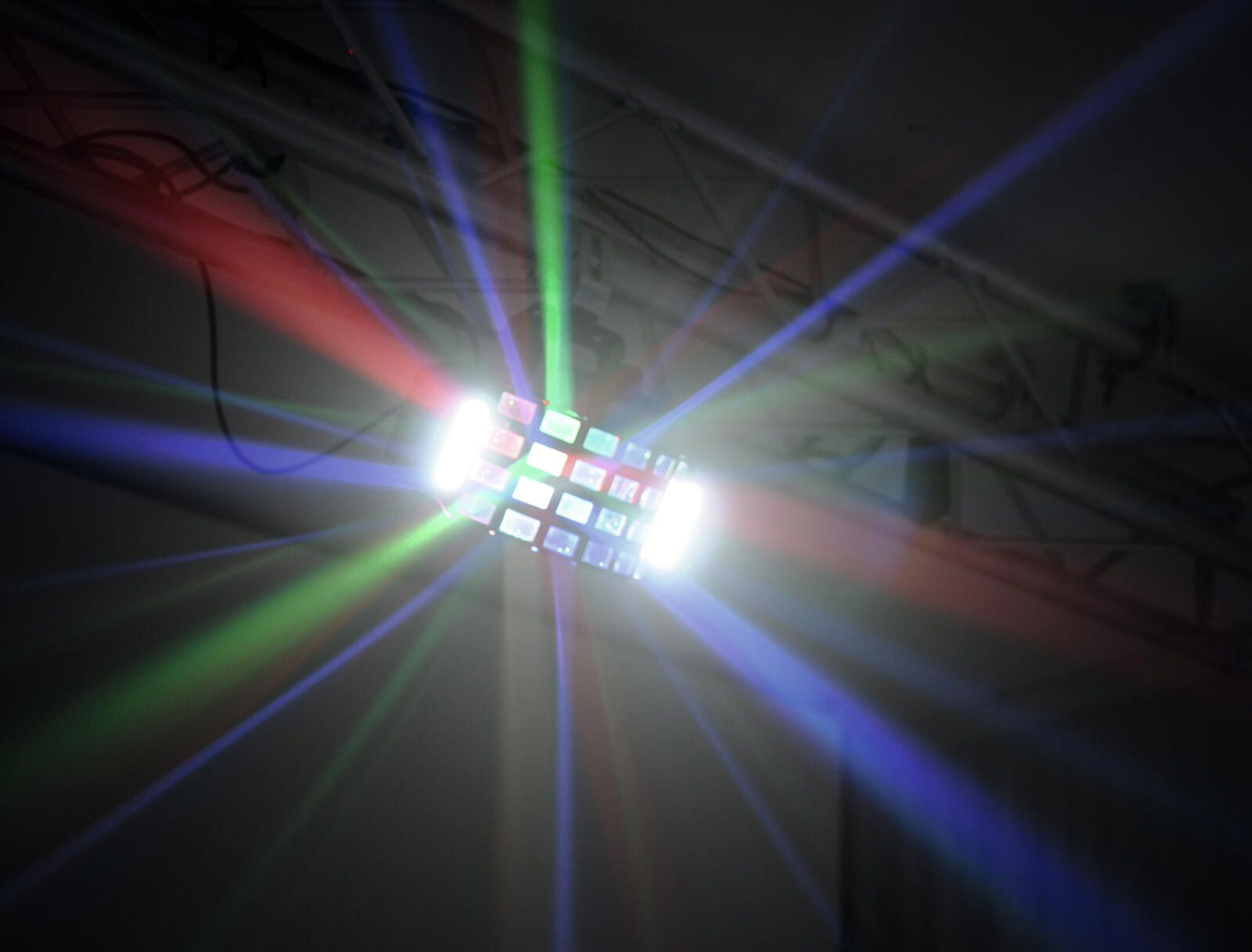

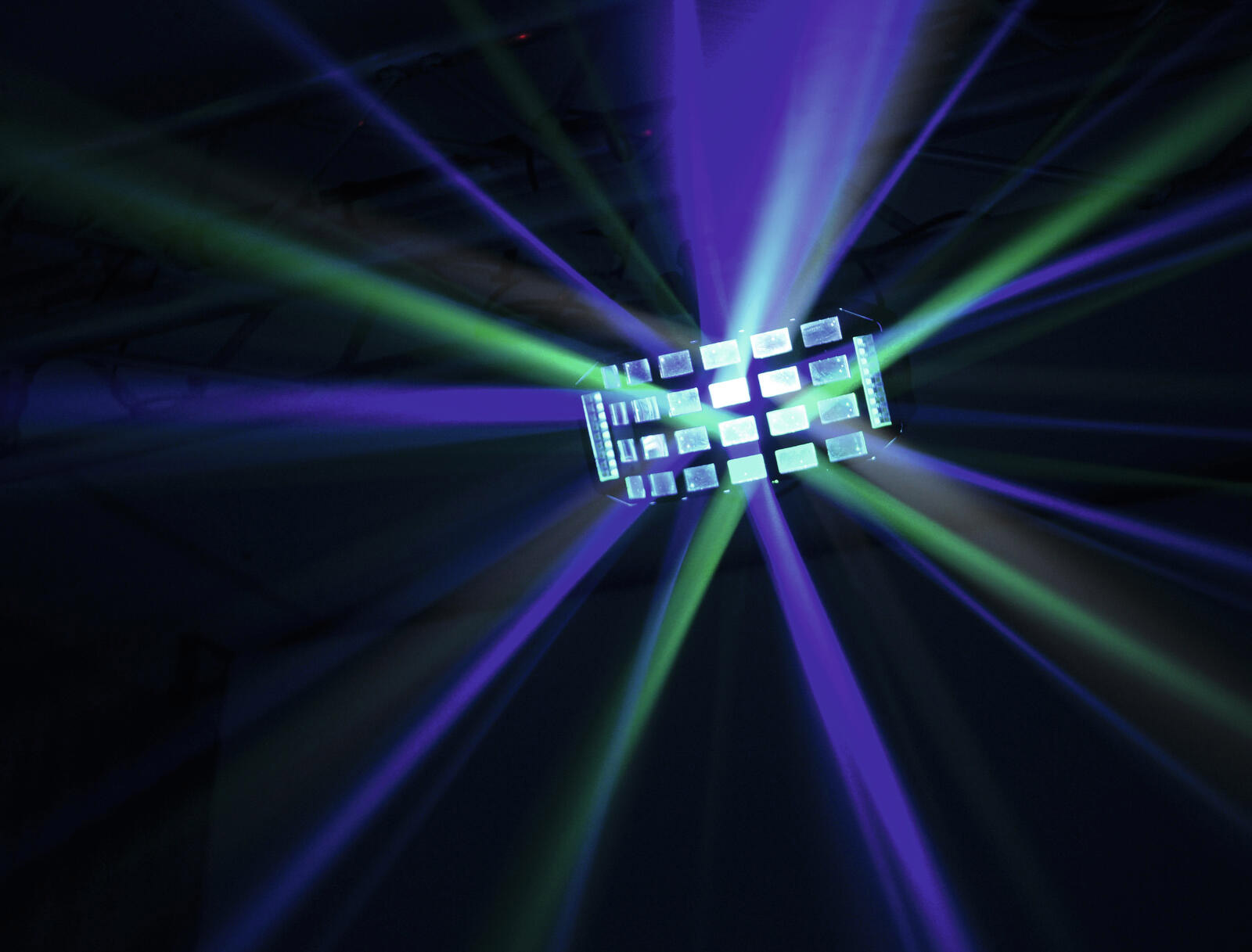

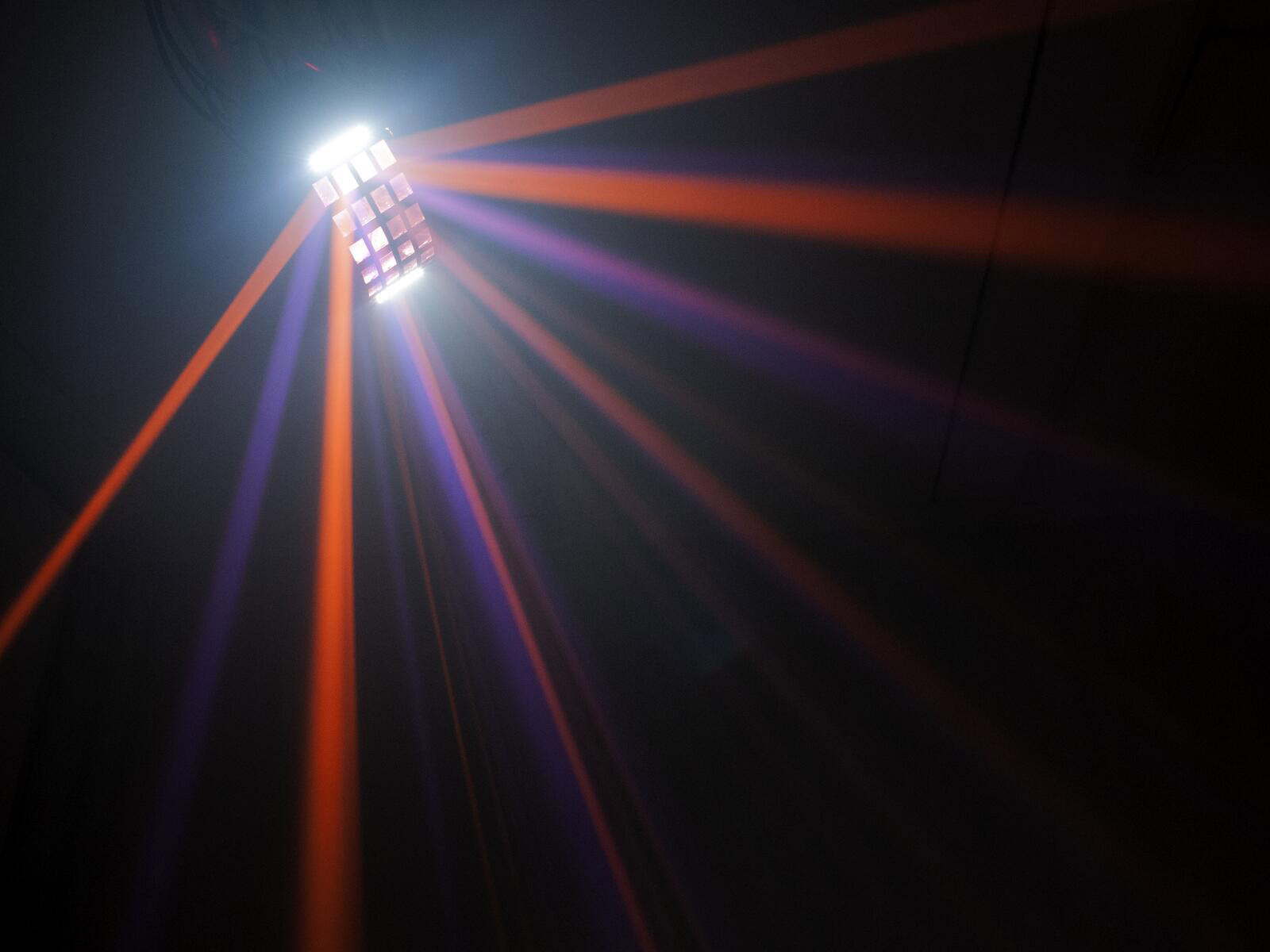

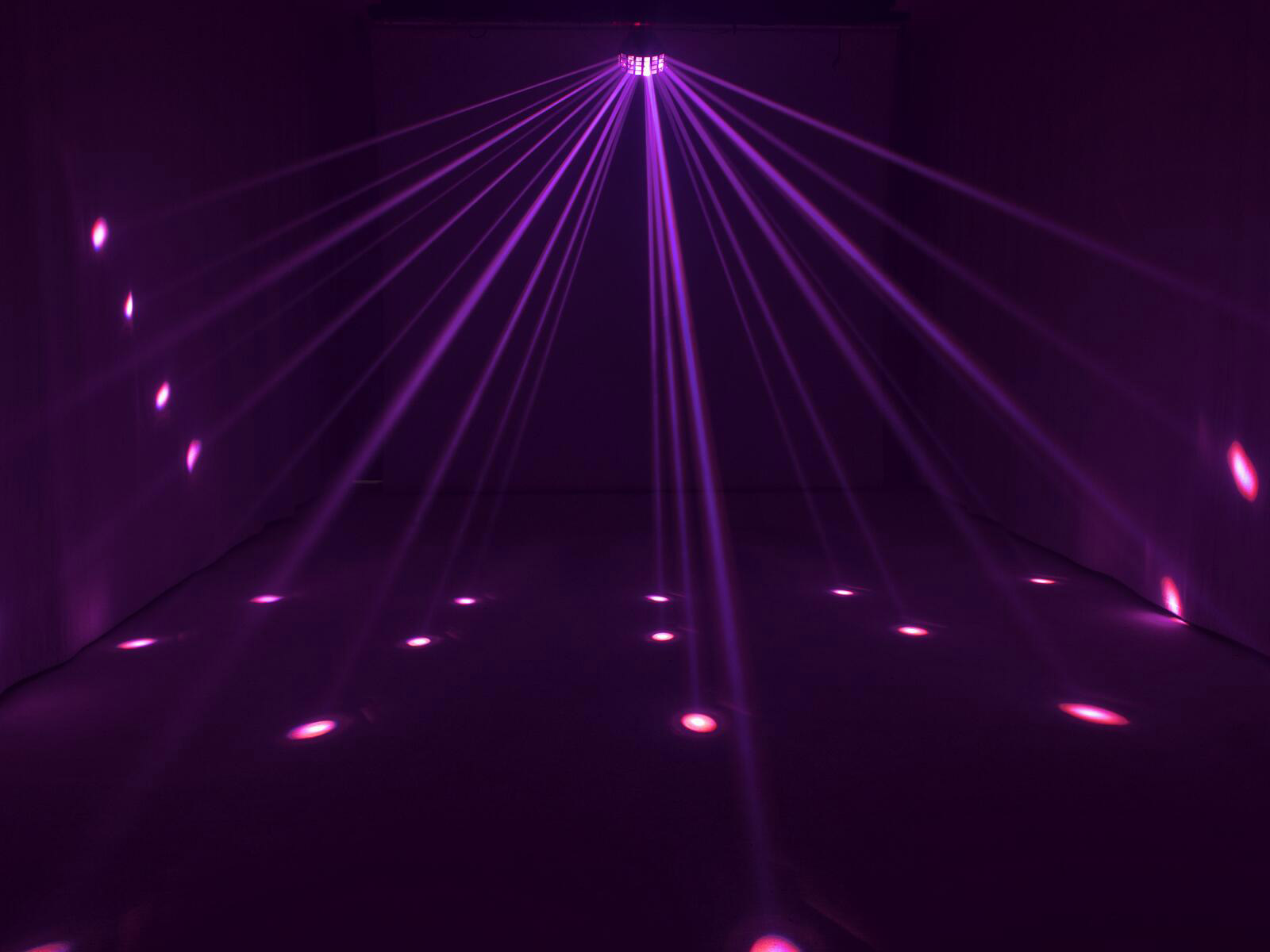

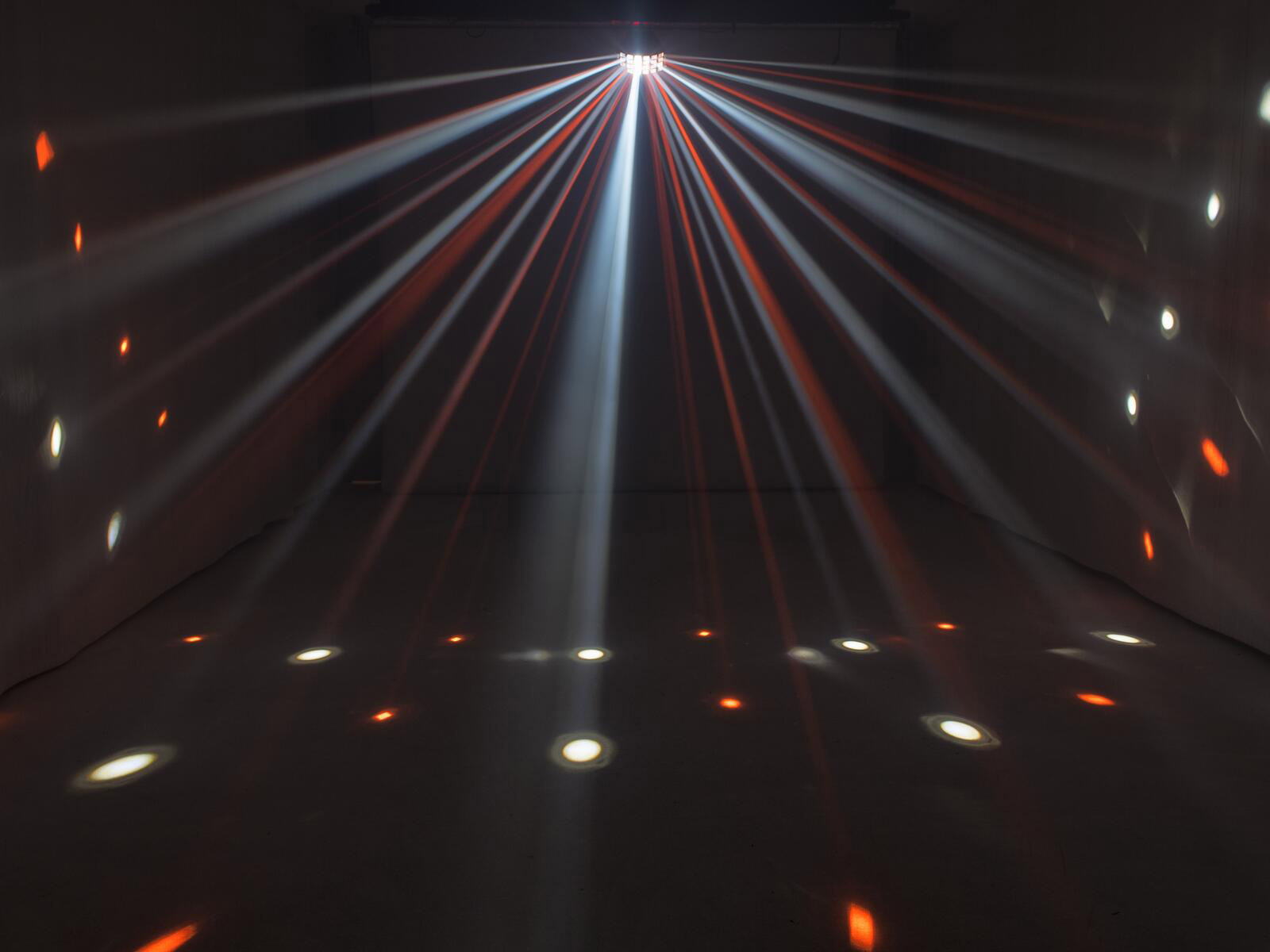

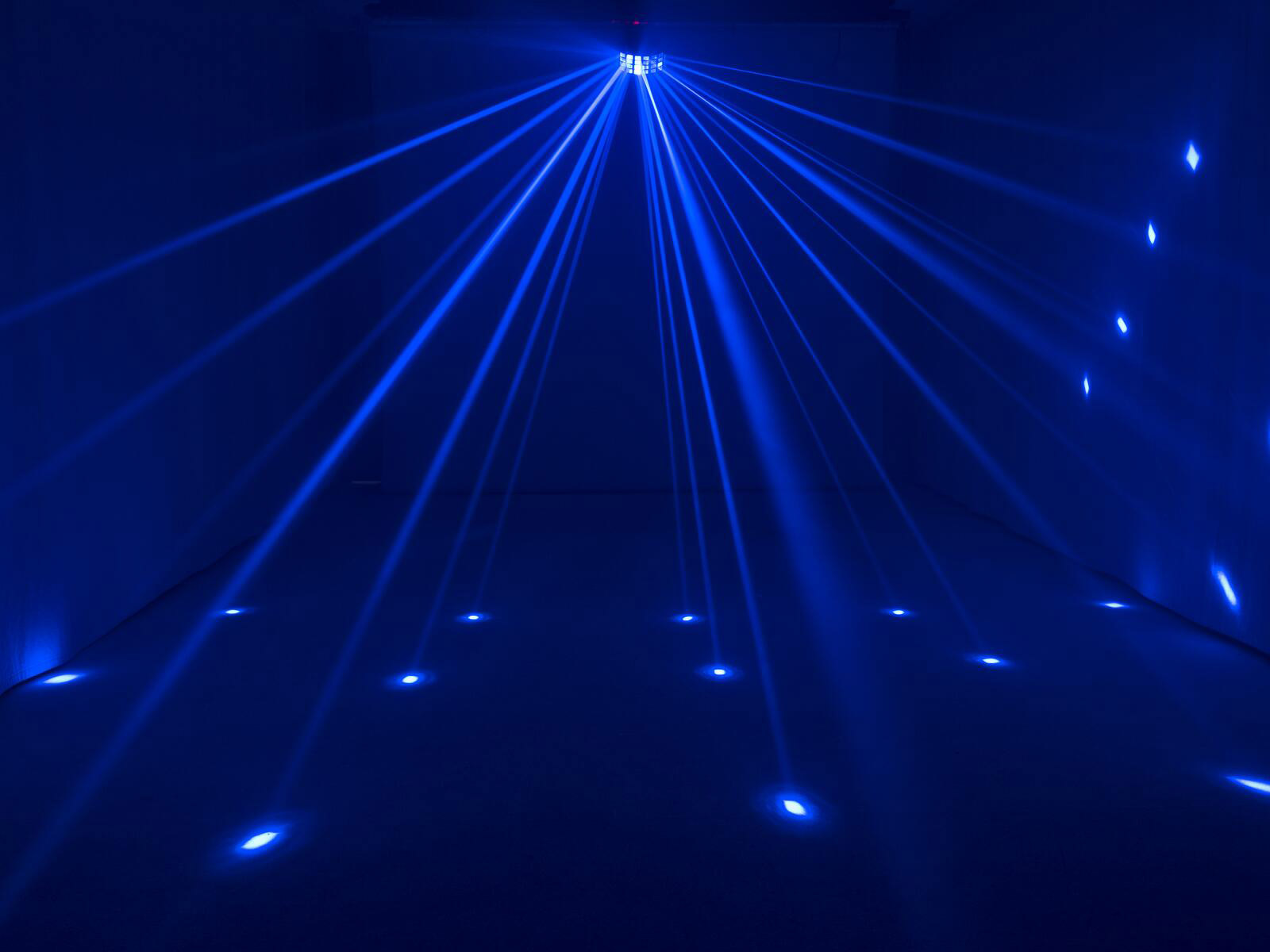

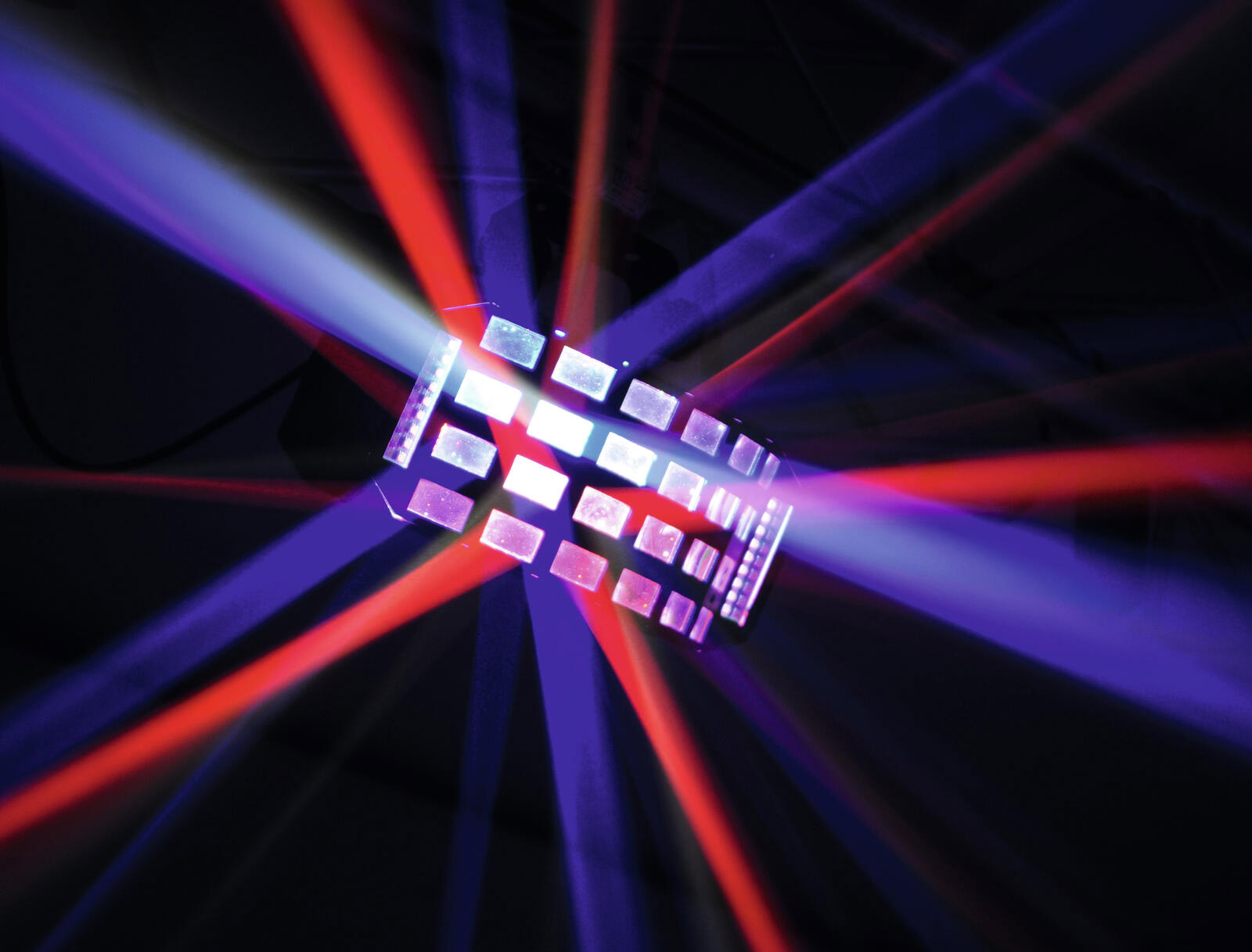

• Precision lenses fill the room with countless rotating beams
• 36 powerful LEDs SMD 5050 cold white (CW)
• 6 powerful LEDs 3 W high-power 6in1 HCL RGBWAP
• Multi beam effect; Strobe effect
• 3 integrated show programs
• Direct color selection for 15 preset colors
• The device is cooled by passive convection cooling
• Control via stand-alone; DMX; Sound to light via Microphone; IR remote control
• With a beam angle of 120°
• With Mounting bracket
• Monochrome 4 digit 7-segment LED display
• Dimmer electronic; Rotation speed stepless
• Preprogrammed in Light´J; LED PC-Control 512; Light Captain

Package contents

• 1 x light effect, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	36 W
IP classification:	IP20
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:	LED lamp
LED:	36 x SMD 5050 cold white (CW) 6 x 3 W high-power 6in1 HCL RGBWAP
DMX channels:	4; 13
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; Sound to light via Microphone; IR remote control
Preprogrammed in:	Light´J; LED PC-Control 512; Light Captain
Beam angle:	120°
Beam angle (1/2 peak):	120°
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	Monochrome 4 digit 7-segment LED display
Material:	Metal
Dimensions:	Width: 28,0 cm Depth: 29,0 cm Height: 19,0 cm
Weight:	2,40 kg
Power cord
Cable construction:	3 x 0,75 mm² H05VV-F
Cable length:	1,2 m
Color:	Black
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
