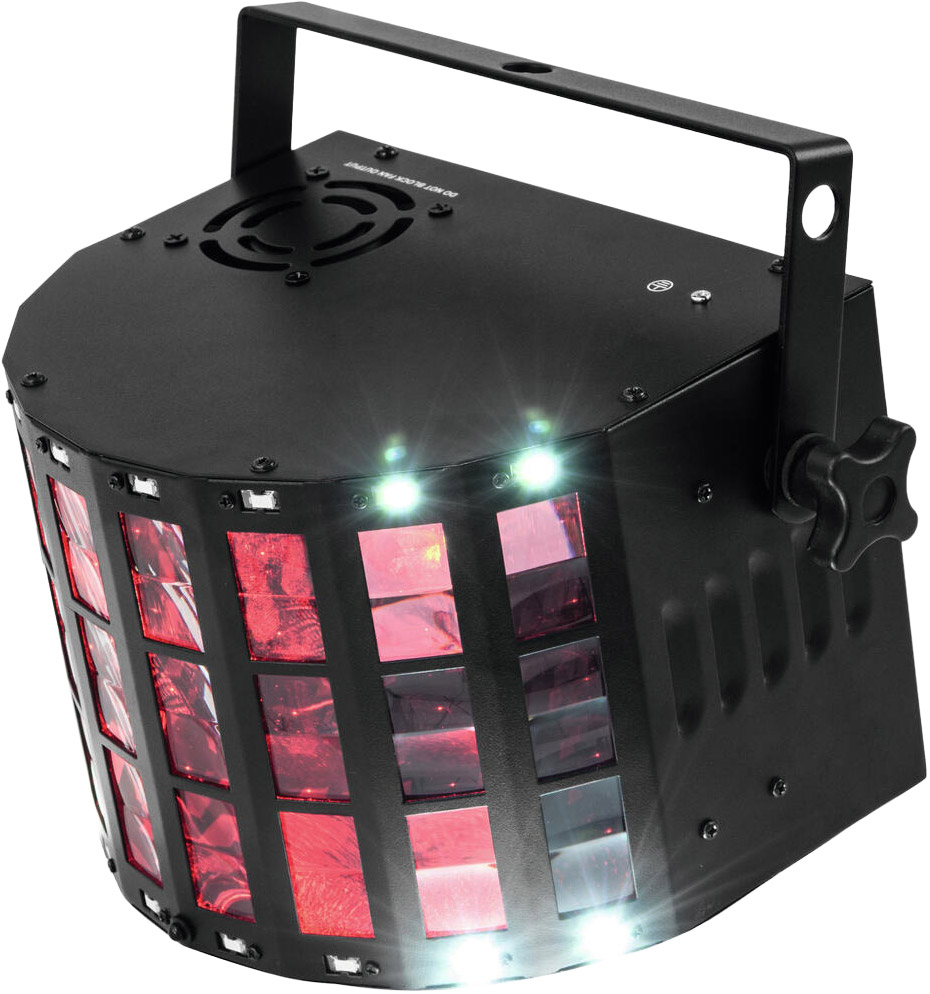

EUROLITE LED Mini D-20 Hybrid Beam Effect
€99.00 *
Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120024895
EAN: 4026397552324
This LED derby effect by Eurolite transforms small and medium-sized rooms into an ocean of colors... more
All information about the product:
"EUROLITE LED Mini D-20 Hybrid Beam Effect"
This LED derby effect by Eurolite transforms small and medium-sized rooms into an ocean of colors automatically adjusting to the rhythm of the music.The Mini D-20 can either be controlled via stand-alone mode or connected to a DMX controller. In either way, the high-performance RGBW LEDs even cut through smoky air which makes this derby effect perfectly suitable for light shows of any kind, be it a presentation at a trade fair, a party in a club or a private party. You can choose from multiple different programs such as static colors, sound-controlled lighting effects and rapid strobe effects and more!The low energy consumption, the long life of each diode and the low heat development are the main benefits of the LED technology. If you do not own a DMX controller, you can also use the supplied IR remote control to coordinate your show. Using the feed-through output to link up to eight fixtures to illuminate a wider area is also an option.
Bright LED derby and strobe hybrid in a handy size
- 2 strips with white LEDs provide fast, dynamic strobe sffects
- 16 powerful LEDs 0,5 W SMD 5730 cold white (CW)
- 4 powerful LEDs 3 W high-power 4in1 QCL RGBW
LEDs separate controlling - Rotation speed stepless
- Multi beam effect; Strobe effect
- Integrated show programs; 18 integrated show programs
- Direct color selection for 14 preset colors
- The device is cooled by cooling fan
- Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function
- With Mounting bracket
- 4 digit 7-segment LED display
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
- Very quiet working noise
- Mains input and output for power linking up to 8 units
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 16 x 0,5 W SMD 5730 cold white (CW) 4 x 3 W high-power 4in1 QCL RGBW |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 1; 4 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 1 x cooling fan |
| Control: | Stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function |
| Preprogrammed in: | Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Metal |
| Dimensions: | Width: 26 cm Depth: 18,7 cm Height: 18,7 cm |
| Weight: | 1,75 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitiveenvironments) |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 1,4 m |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø10mm |
| Material: | Metal, 2 mm |

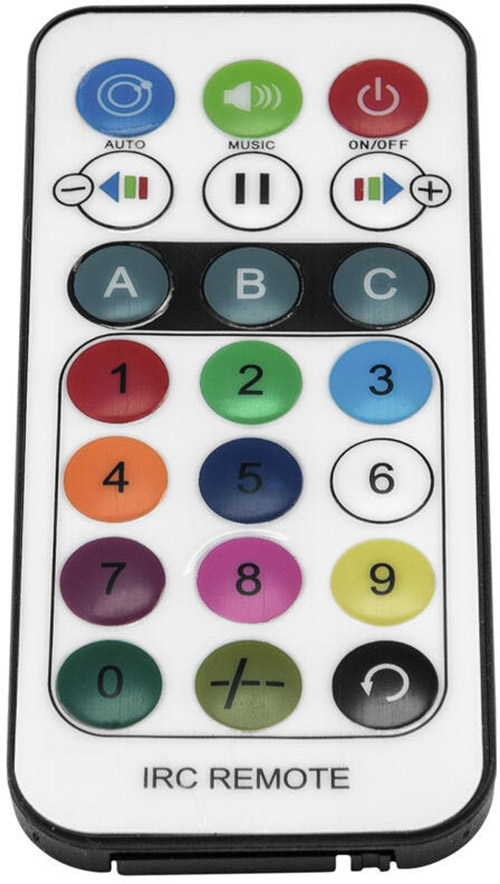

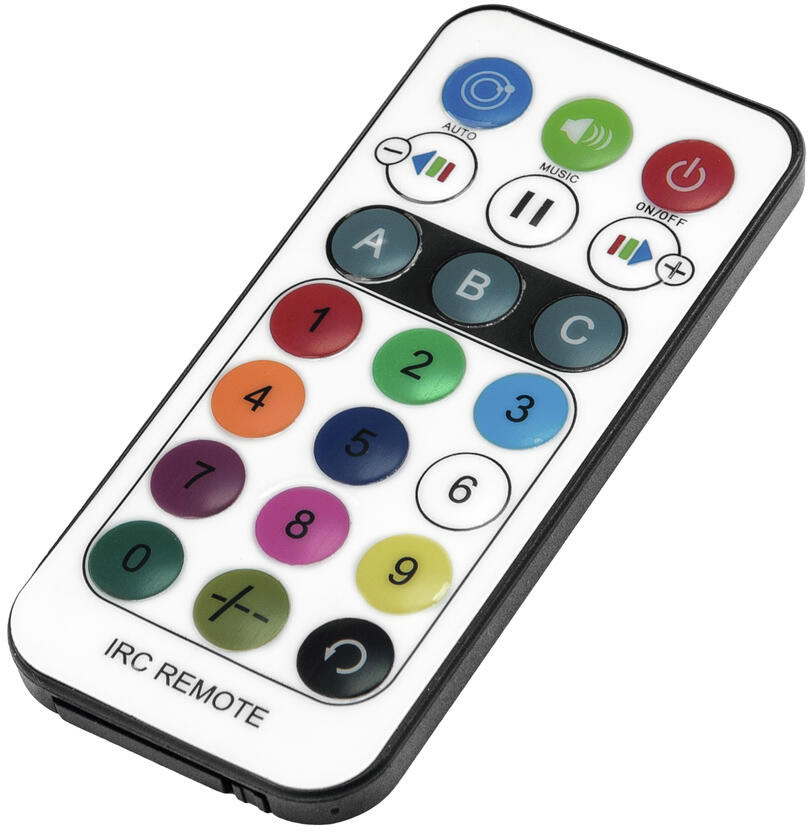

| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
