Chauvet DJ Mini Kinta ILS

Mini Kinta ILS

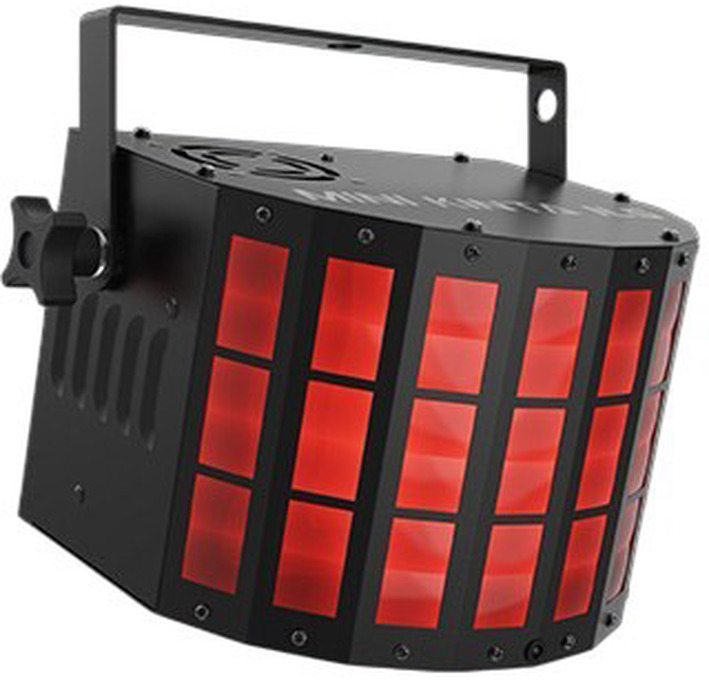

Small but impressive: the Mini Kinta ILS impresses with countless beams of multicolored light. With red, green, blue and white high-power LEDs, it fills the room with eye-catching effects as the light shines through 48 lenses. Mini Kinta ILS is also ILS compatible, so creating coordinated light shows across different fixture types is as easy as 1, 2, 3. Built-in automated and sound-activated programs can be triggered in master/slave or DMX mode, or you can opt for simple wireless, non-DMX control with an optional IRC6 remote. With the Mini Kinta ILS, you can control the motor speed in DMX mode to customize the mood of any event.

Highlights

• Compact LED effect light: projects countless beams of multicolored light.
• D-Fi USB compatibility: Enables wireless master/slave or DMX control (D-Fi™ USB sold separately).
• Wireless control: Operation is via an optional IRC6 remote control without DMX.
• Powerful LEDs: Projects bright, colored beams with red, green, blue and white LEDs.
• Built-in programs: Trigger automated and sound-controlled programs in master/slave or DMX mode.
• Long range: Fills the room with effects through 48 lenses.
• DMX motor control: Adjust the motor speed to the mood of the event.
• Power linking: Save time by connecting multiple devices with fewer cables and extension leads.

Specifications

• DMX channels: 4 or 8
• DMX connections: 3-pin XLR
• Light source: 4 LEDs (1 red, 1 green, 1 blue, 1 white), 3 W (980 mA), 50,000 hours life expectancy
• Cover angle: 135°
• Current connection: 33 units at 120 V; 54 units at 230 V
• Input voltage: 100 to 240 VAC, 50/60 Hz (with automatic switchover)
• Power and electricity:
  • 19 W, 0.3 A at 120 V, 60 Hz
  • 18 W, 0.2 A at 230 V, 50 Hz
• Weight: 3.6 lb (1.7 kg)
• Size: 7.5 x 10.1 x 7.2 inches (190 x 258 x 182 mm)
• Approvals: CE, RoHS, UKCA
• Optional control units: IRC6

What is included?

• Mini Kinta ILS
• Mains cable
• Quick guide
