Chauvet DJ SHOCKER PANEL 480

Shocker Panel 480

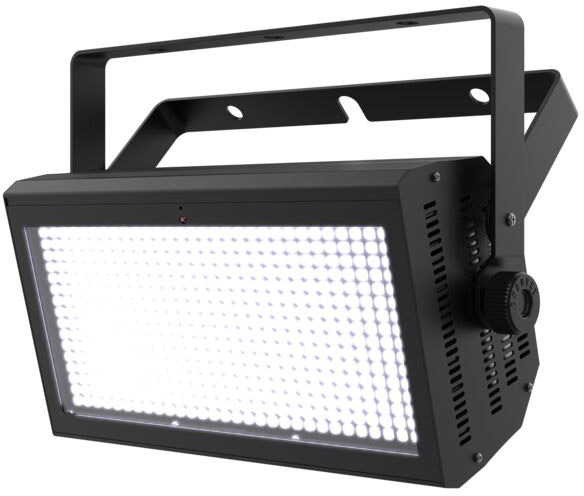

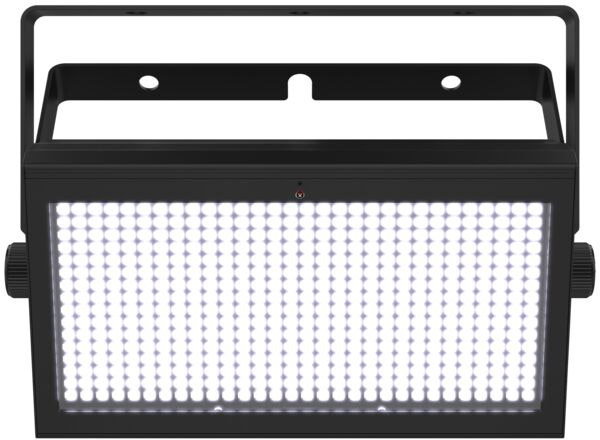

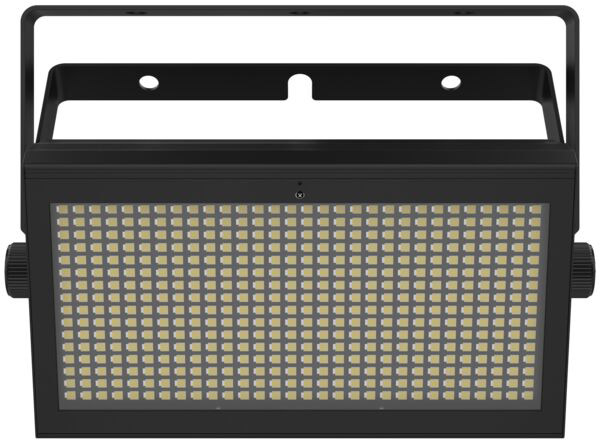

The Chauvet DJ Shocker Panel 480 is a powerful single-zone blinder with cool white SMD LEDs. As a blinder or strobe, eye-catching effects can be easily triggered via the built-in display, DMX or the optional IRC6 remote control. With its robust housing, the Shocker Panel 480 is ideal for mobile applications and has powerCON®-compatible input and output connections for a secure power connection.

Highlights

• Powerful single-zone blinder with cool white SMD LEDs
• The robust housing is ideal for mobile applications
• Trigger eye-catching strobe effects via the built-in display, DMX or with the optional IRC6 remote control

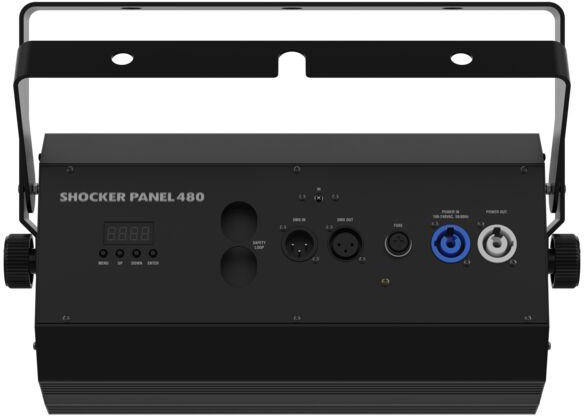

• powerCON®-compatible power input and output connections for power linking
• Save time when laying cables and extension cables by connecting several devices together
• Easy transportation in the optional CHS-25 VIP bag

Specifications

• DMX channels: 4
• DMX connections: 3-pin XLR
• Light source: 480 SMD LEDs (cool white) 0.7 W (236 mA), 50,000 hours life expectancy
• Strobe rate: 0 to 28 Hz
• PWM frequency: 4,000 Hz
• Beam angle: 111°
• Field angle: 155°
• Illuminance: 1,348 lux @ 2 m
• Lumens: 14,974
• Power linking: 5 units at 120 V; 9 units at 230 V
• Input voltage: 100 to 240 VAC, 50/60 Hz (automatic switching)
• Weight: 9.4 lb (4.3 kg)
• Size: 332 x 115 x 170 mm (13.1 x 4.5 x 6.7 inches)
• Power and current: 208 W, 2.7 A at 120 V, 60 Hz
• Power and current: 200 W, 1.5 A at 230 V, 50 Hz
• Mounting hole for the bracket: 13 mm
• Optional control units: IRC6
• Approvals: CE, UKCA

Included in the scope of delivery

• Shocker Panel 480
• Mains cable
• Manual
