EUROLITE LED BAR-3 HCL Bar
€99.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120028760
EAN: 4026397617177
MPN: 51930395

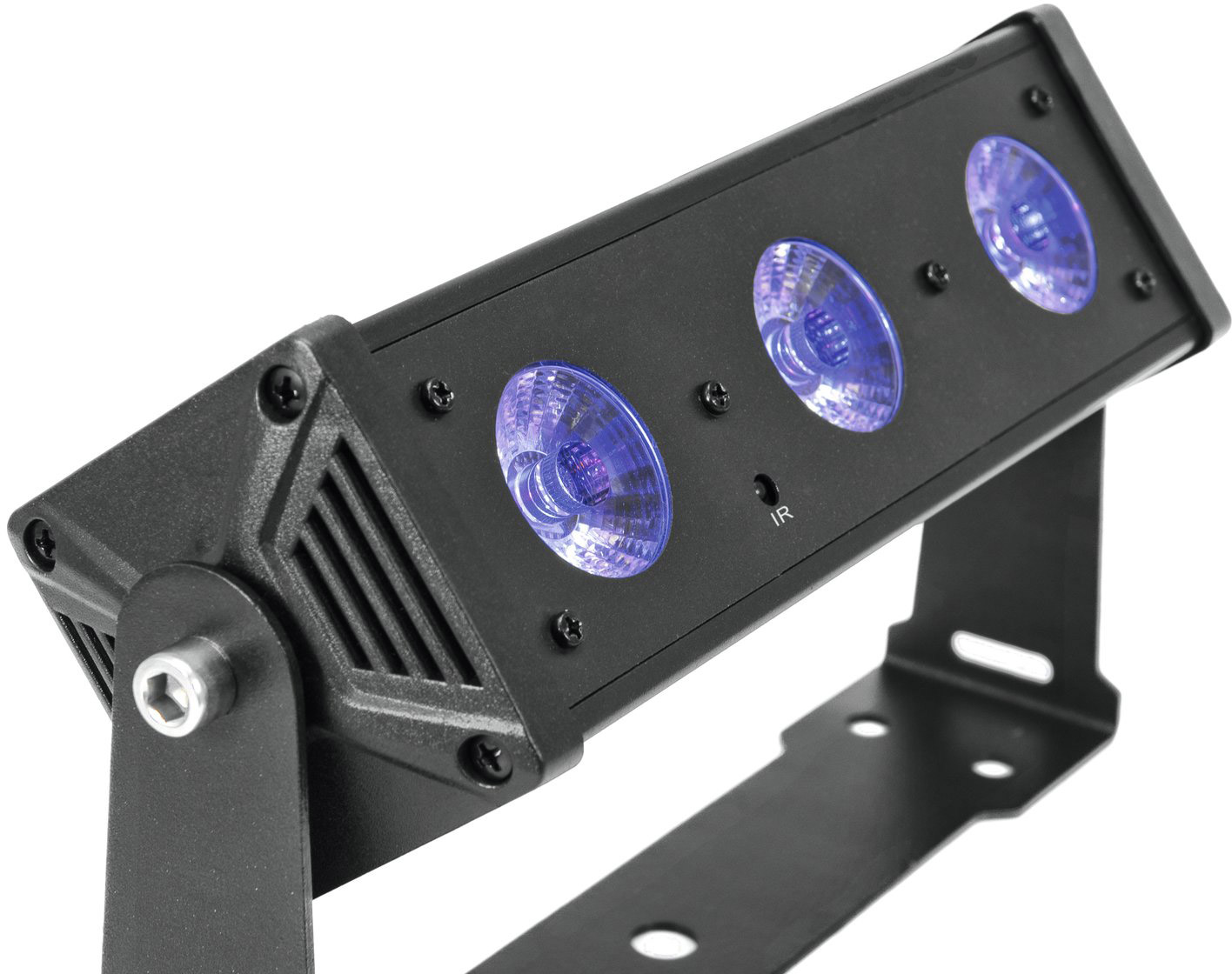

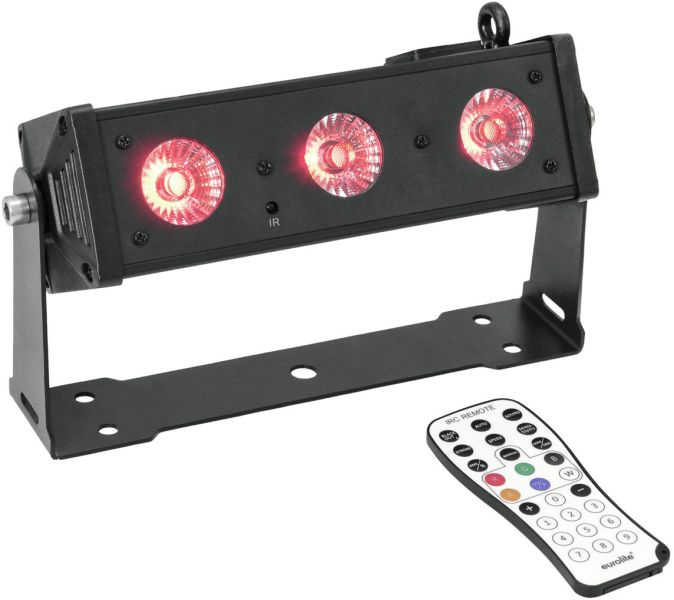

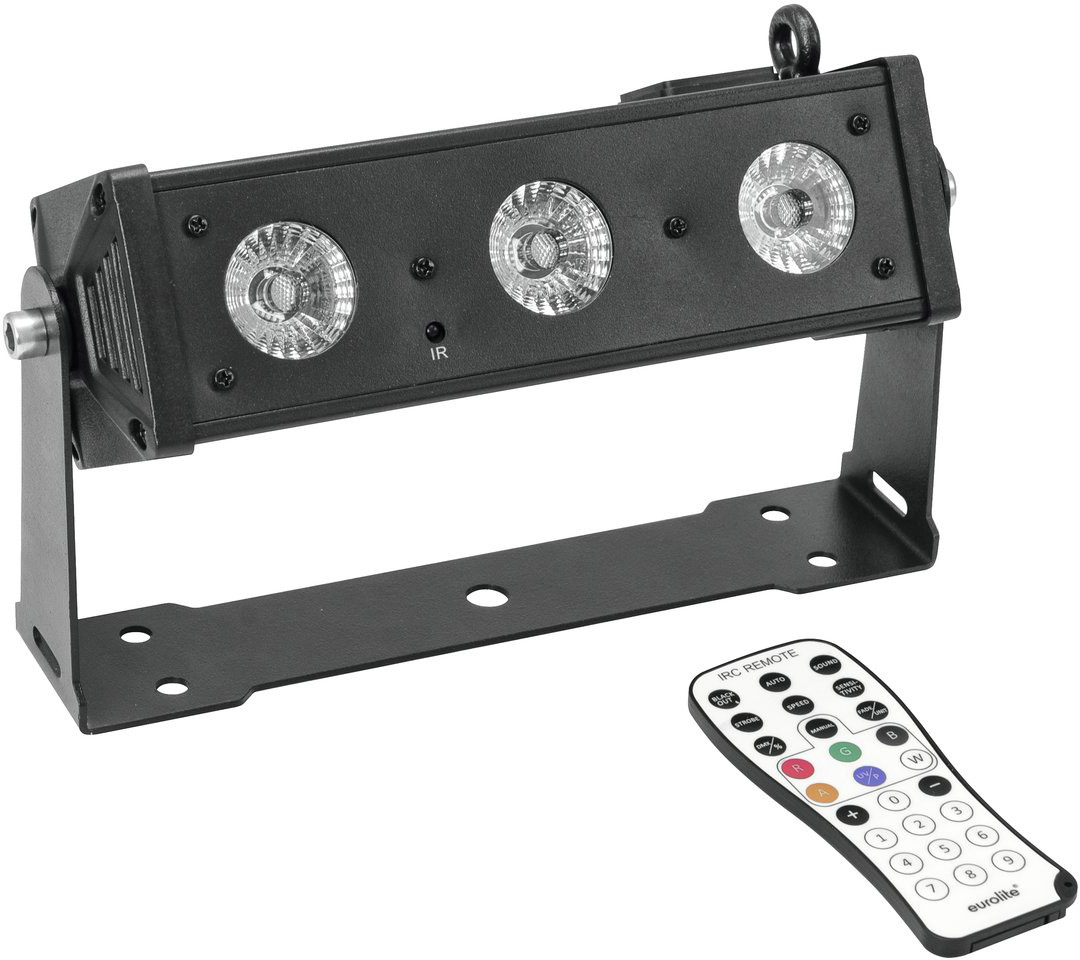

Compact (26 cm) bar with 3 x 12 W 6in1 LED and RGBWA+UV color mixing 3 powerful LEDs 12 W... more
All information about the product:
"EUROLITE LED BAR-3 HCL Bar"
Compact (26 cm) bar with 3 x 12 W 6in1 LED and RGBWA+UV color mixing
- 3 powerful LEDs 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect; UV effect
- Integrated show programs
- Direct color selection for 19 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function
- Flicker-free
- With a beam angle of 20°
- With Mounting bracket
- 4 digit 7-segment LED display
- Preprogrammed in EASY SHOW 3; EASY SHOW 2; Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
- Silent operation
Package contents
- 1 x light effect, 1 x power cord, 1 x remote control, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 12 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

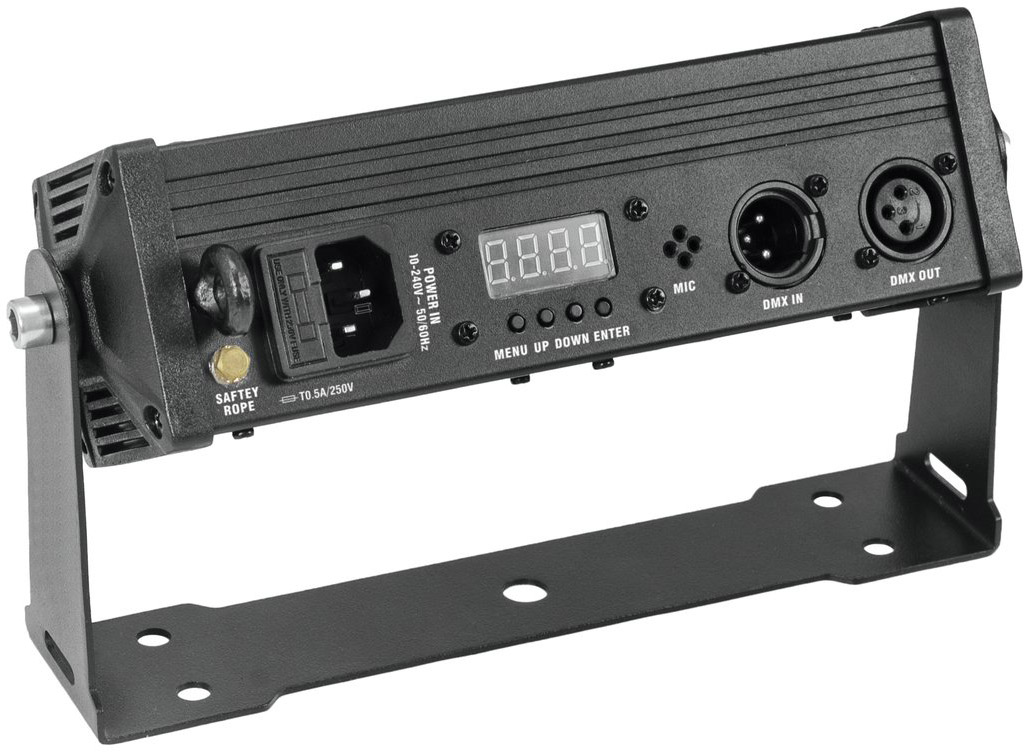

| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Fuse: | 5 x 20 mm, T 0,5 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 3 x 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 2; 3; 4; 6; 10 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function |
| Preprogrammed in: | EASY SHOW 3; EASY SHOW 2; Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 20° |
| Beam angle (1/2 peak): | 20° |
| Beam angle (1/10 peak): | 40° |
| Wavelength: | Ultra violet (UV) 400 nm |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Aluminum casting; metal; Plastic hard |
| Dimensions: | Length: 26,5 cm Depth: 8,7 cm Height: 12,9 cm |
| Weight: | 1,13 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 1,2 m |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø11mm; 4 x Ø8mm; 2 x Ø5mm |
| Material: | Metal, 2 mm |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
