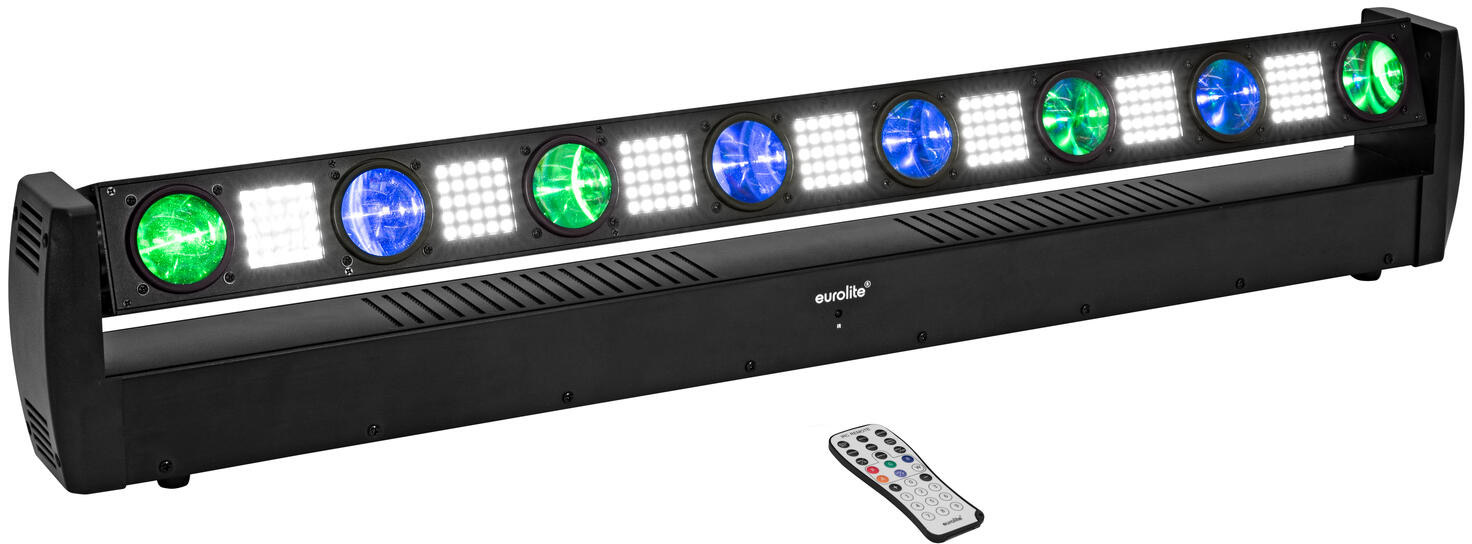

EUROLITE LED BAR-8 Swing QCL bar
€399.00 *
Availability:
Currently not available
Currently not available
Item number: 120037045
EAN: 4026397711417
MPN: 51930385
Tiltable LED light effect bar with 8 beams and strobe effect Strobe effect; uplight effect;... more
All information about the product:
"EUROLITE LED BAR-8 Swing QCL bar"
Tiltable LED light effect bar with 8 beams and strobe effect
- Strobe effect; uplight effect; multi beam effect
- Vertical inclination angle adjustable
- Direct color selection for 18 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; IR remote control; DMX; QuickDMX via USB (optional); Master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone
- 4 digit 7-segment LED display
- Dimmer electronic; color fade; color change; color blend adjustable; color selection
- 5 integrated show programs
- Preprogrammed in Colorchief; Light Captain

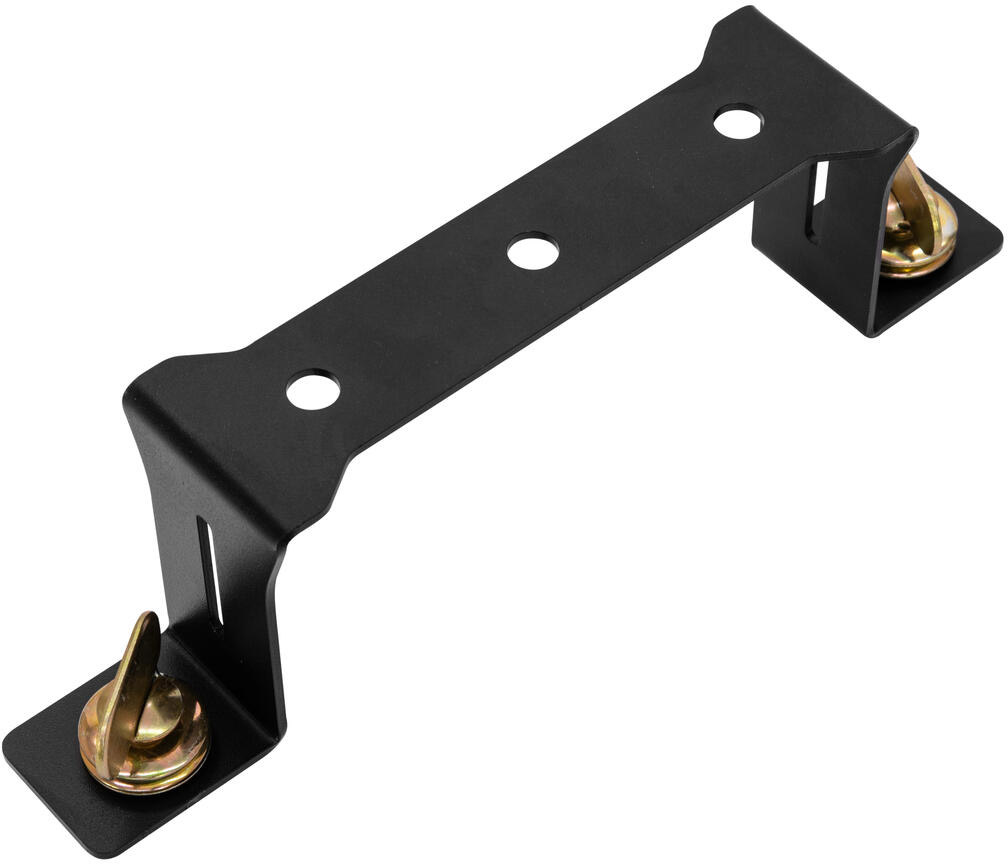

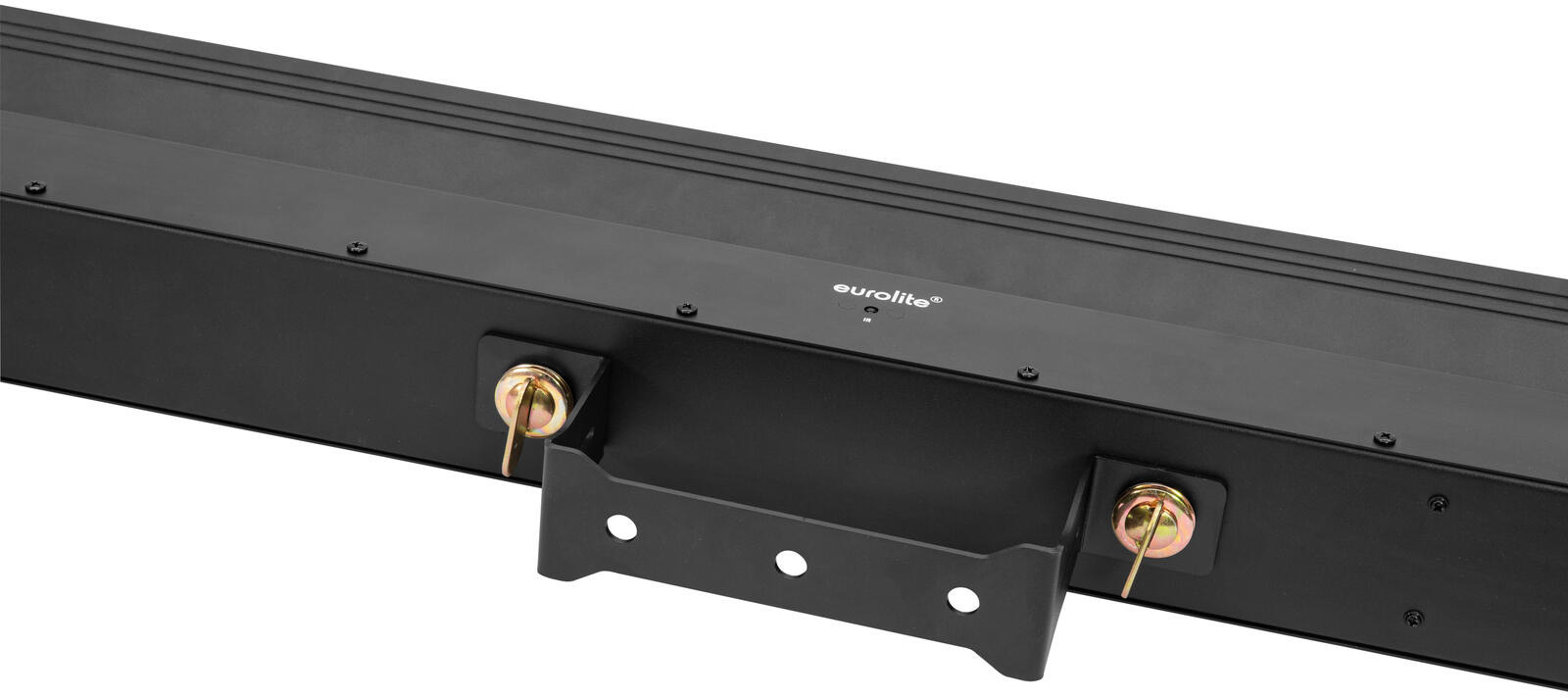

- With Mounting bracket
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; Stage; mobile djs / entertainer; Rental
- Very quiet working noise
- Application possibility: Standing; suspended
spotlight
- 8 powerful LEDs 8 W high-power 4in1 QCL RGBW
8 segments controlled separately - With a beam angle of 1°
strobes
- 175 powerful LEDs 0,2 W SMD 5050 cold white (CW)
7 segments controlled separately - With a beam angle of 120°
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 80 W |
IP classification: | IP20 |
Protection class: | Protection class I |
Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output: | P-Con (gray), mounting version |
Fuse: | 5 x 20 mm, T 1 A Fuse replaceable |
Max. TILT movement: | 215° Positioning |
Flash rate: | 0 - 20 Hz |
DMX channels: | 8; 12; 23; 27; 49 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Passive convection cooling |
Control: | Stand-alone; IR remote control; DMX; QuickDMX via USB (optional); Master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone |
Preprogrammed in: | Colorchief; Light Captain |
Housing color: | Black |
Attachment system: | Mounting bracket |
Display type: | 4 digit 7-segment LED display |
USB port: | Typ A |
Dimensions: | Length: 1 m Depth: 10,7 cm Height: 25,1 cm |
Weight: | 7,30 kg |
Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
Photobiological safety: | Risk Group 0 |
Spotlight | |
LED: | 8 x 8 W high-power 4in1 QCL RGBW |
Beam angle: | 1° |
Beam angle (1/2 peak): | 1° multicolor |
Strobes | |
LED: | 175 x 0,2 W SMD 5050 cold white (CW) |
Beam angle: | 120° |
Beam angle (1/2 peak): | 120° |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
