ADJ Encore LB15 IP
€999.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250802755
EAN: 0810087370190
The LB15 IP is part of ADJ’s Lime Par Series of LED wash fixtures utilizing high output 4-in-1... more
All information about the product:
"ADJ Encore LB15 IP"

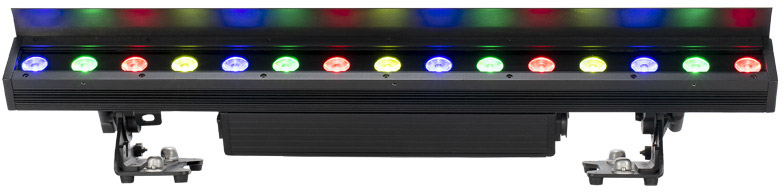

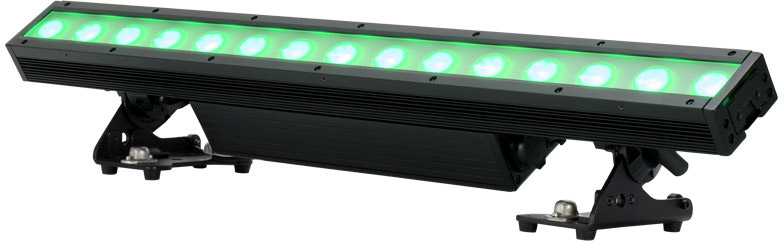

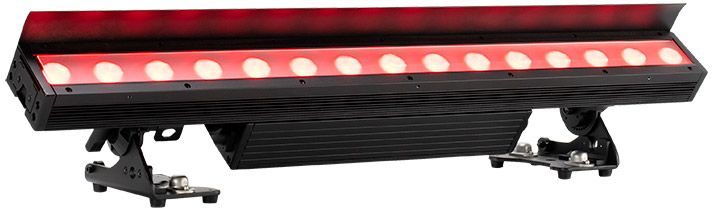

The LB15 IP is part of ADJ’s Lime Par Series of LED wash fixtures utilizing high output 4-in-1 color mixing LEDs that each include individually controllable red, green, blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of color options achieved through mixing the four primary colors at varying levels of intensity. These include white light with a variable color temperature of 2700K to 7000K, which can be easily selected using either linear control or one of six preset macros. Inclusion of the Lime LED element boosts both CRI and perceived brightness as well as filling in gaps in the color spectrum. 16-Bit fine control over the four primary LED elements allows for a huge variety of color possibilities, while 64 built-in macros facilitate easy selection of popular options. The LB15 IP features 15 LEDs, with an equally spaced linear arrangement, which can each be controlled independently to allow for the creation of pixel-mapped effects.

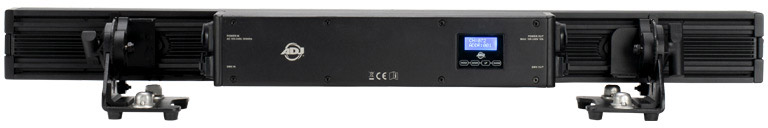

With a robust metal construction, the LB15 IP is designed for use in professional entertainment lighting environments. It has an IP65 rating, which means that it is sealed to prevent the ingress of liquid, snow, dust, and sand. This makes it suitable for temporary outdoor use as well as for indoor applications where the fixture may be subject to liquid spillage or come into contact with excessive dust or dirt. It is supplied with two variably-angled brackets – one on each side – that can be used to stand the fixture directly on the floor or (with the attachment of the included Omega brackets) hang it from a truss or lighting rail. The unit is also supplied with a detachable glare shield and features locking power input and output sockets, allowing multiple fixtures to be connected to a single power outlet.
Source:
- 15 x 20-Watt Quad RGBL LED's (4-IN-1: Red, Green, Blue & Lime)
Photometric Data:
- Beam angle: 12.4° (24° with attached diffusion filter)
- CRI: 89.3
- CRI R9: 69
- Lumens: 5982
- Linear Color Temperature Control (2700K to 7000K)
- Preset Color Temperatures (2700K, 3200K, 4000K, 5600K, 6500K and 7000K)
Effects:
- Individual Pixel Controllable
- 16-Bit Fine Color Control (Red, Green, Blue & Lime)
- 64 built-in Color Macros
Control/Connections:

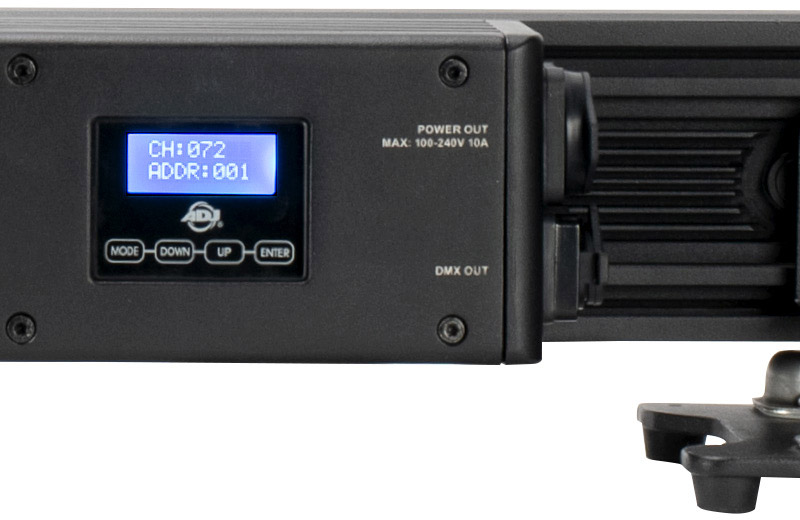

- 4-button, DMX digital display on rear panel
- 5 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
- Supports RDM (Remote Device Management)
- With Wired Digital Communication Network
- 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
- Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
- Flicker Free operation (No flickering on camera)
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- 10 DMX Modes: 4, 7, 8, 13, 16, 60, 63, 72 & 120 channel
- Adjustable fan modes
- WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)
Construction:
- IP65
- All metal construction

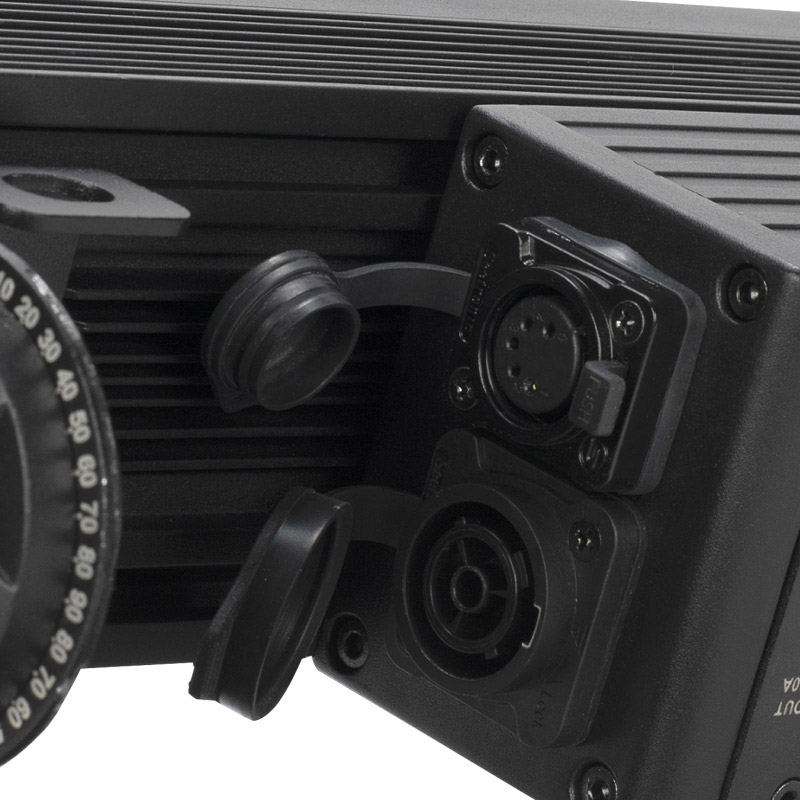

- IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
- Locking, outdoor IN/Out Power connectors
- Data linkable via 5-pin DMX connections
- Includes glare shield
Electrical/Thermal:
- Multi-voltage operation: AC 100-240V, 47/63Hz
- Daisy chain: 5 @ 120V, 10 @ 220V
- Max power: 198W
Dimension/Weight:
- Dimensions (LxWxH) 5.99” x 36.1” x 8.33” / 152x914.9x211.55mm
- Weight: 19.5 lbs. / 8.85 kg.
Approvals/Ratings:
- cETLus Pending
- IP65
Further links
We will be happy to advise you!
You can reach us:
Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
LTT-InfoCenter
More than 47,000 products
Shipping free* from €40
Fast delivery
3-year LTT guarantee
Purchase on account: Buy safely!
Downloads for the product:
"ADJ Encore LB15 IP"
Document type | File size | |
Operating instructions
(2.59 MB)
|
2.59 MB | |
Data sheet
(1.83 MB)
|
1.83 MB | |
Information about the product
(0.22 MB)
|
0.22 MB |
