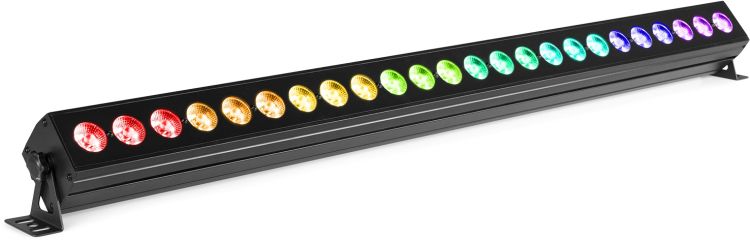

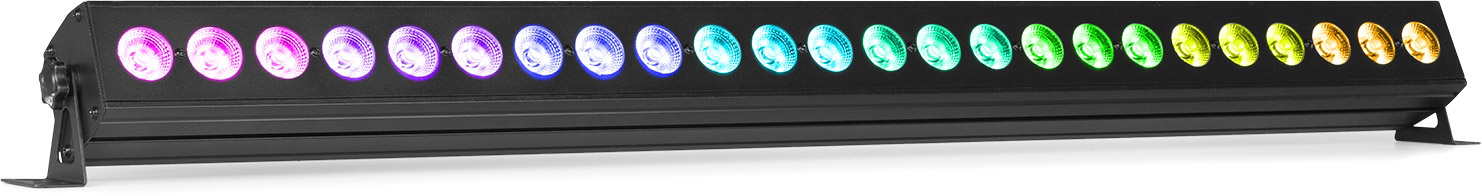

beamZ LCB246 LED BAR 24x6W RGBAW-UV

The LCB246 is a LED bar equipped with 24x 6W pieces RGBAW-UV LEDs. The LEDs are divided into 8 individually controllable sections of 3 LEDs each. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBAW-UV mode. The extra power output enables you to simply link the power of multiple units together into a single socket.

• 24x 6W 6-in-1 LEDs
• RGBAW-UV colour mixing
• 8 separate controllable sections
• Pre-programmed shows
• 17 auto mode programs
• Sound activated
• 8, 11, 20, 36 or 74 DMX channels
• DMX and Stand-alone mode
• Master/slave function
• DMX in/output via 3-pin XLR
• Control panel with LED display
• Aluminium housing
• Powerconnector in/output

Technical data:

• Supplied features: Master/Slave mode
• Light source: 6-in-1 LED
• LED colours: Red, Green, Blue, Amber, White, Ultra Violet
• LED power : 6W
• Quantity of LEDs: 24
• Beam angle: 20
• Field angle: 33
• Illuminance: 5.675 lx @ 1m
• Flash rate per second: 1 - 20Hz
• DMX channels: 8, 11, 20, 36, 74
• DMX connector: 3-pin XLR
• Modes: Automatic programs, DMX, Manual, Master/Slave
• Daisy chain: Yes (max. 8 bars)
• IP rating: IP20
• Cooling: Temperature controlled fan
• Display: LED
• Power plug: Power-connector
• Power consumption: 1.70 - 0.90A
• Power supply: 100-240VAC 50/60Hz
• Dimensions (L x W x H): 1010 x 75 x 76mm
• Weight: 3.6500 kg
• Accessories: Mounting bracket, Power cable
