beamZ LCB366 Hybrid LED Panel Pixel Control

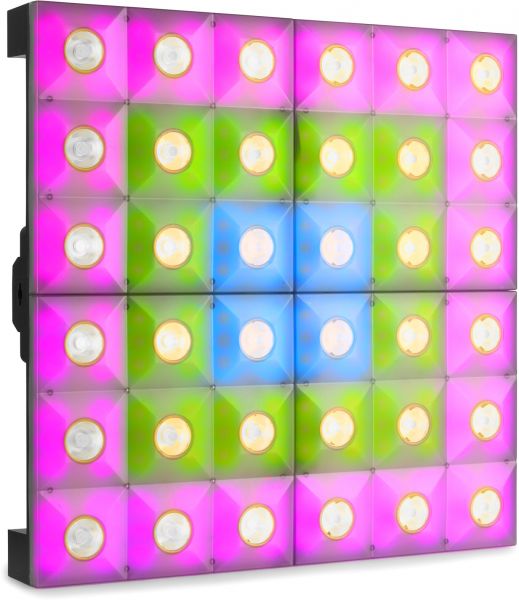

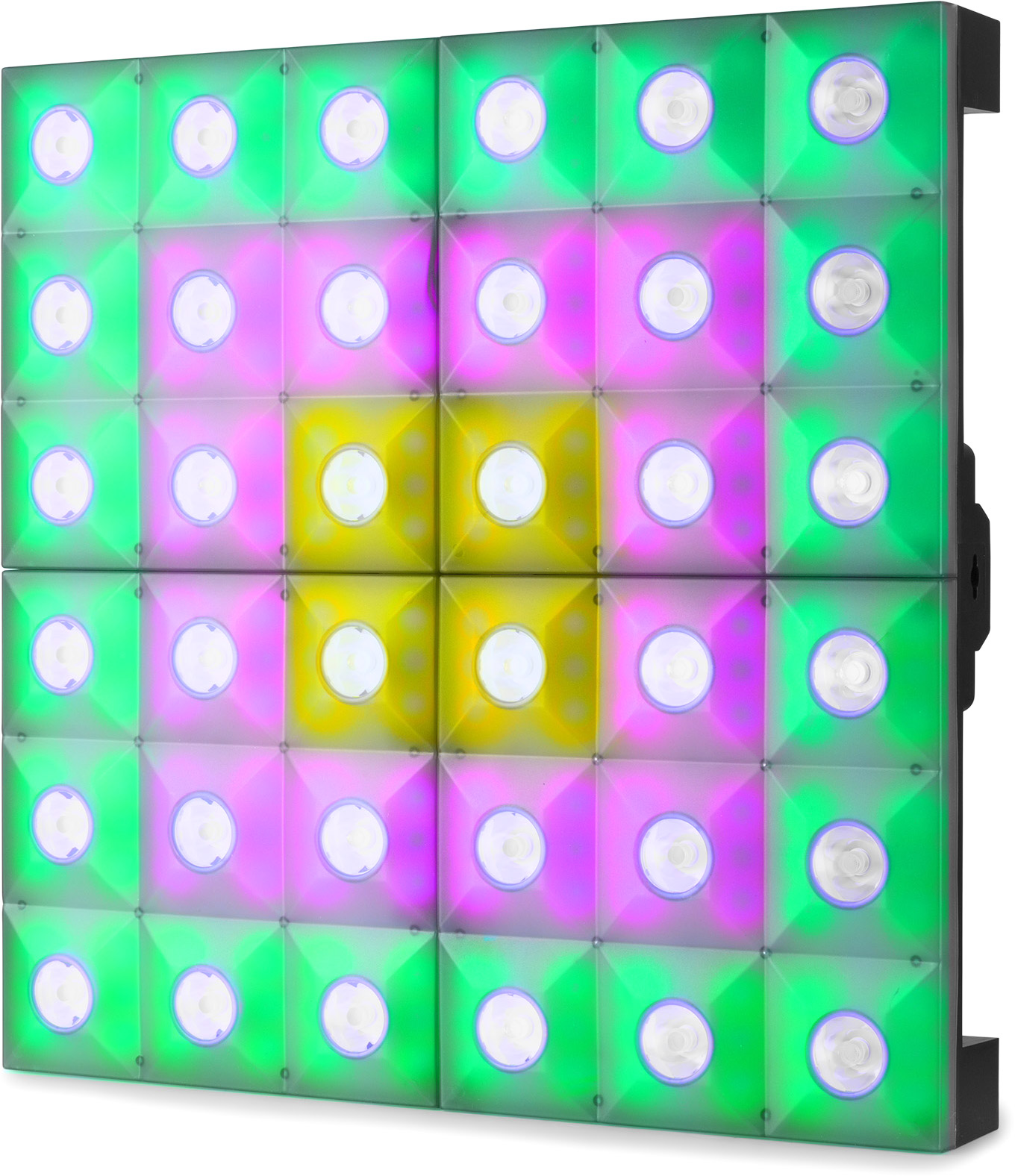

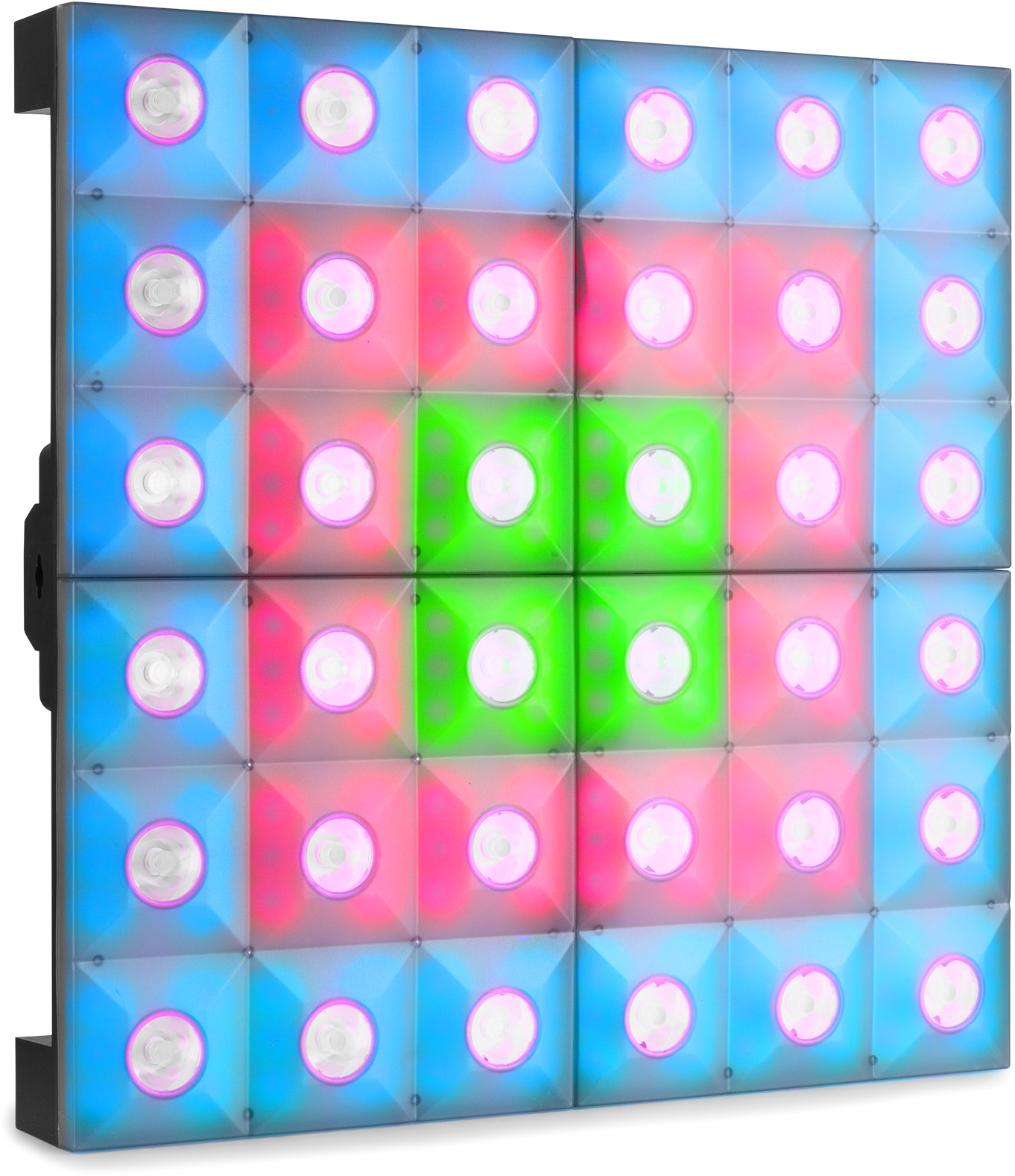

The LCB388 is a hybrid LED panel equipped with 36x 3W Warm White LEDs and 216x SMD RGB LEDs for spectacular backlight effect. The LEDs can be programmed in single pixels for stunning chase effects. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated. It’s also possible to create your own mixture of colours in RGB mode (for background light). The extra power connector output enables you to simply link the power of multiple units together into a single socket. It’s also equipped with a rigging system for a quick and easy way to build a LED wall.

• 36x 3W Warm White LEDs for sharp 5° beams
• 216x SMD RGB LEDs (backlight)
• Single pixel control
• RDM/DMX protocols

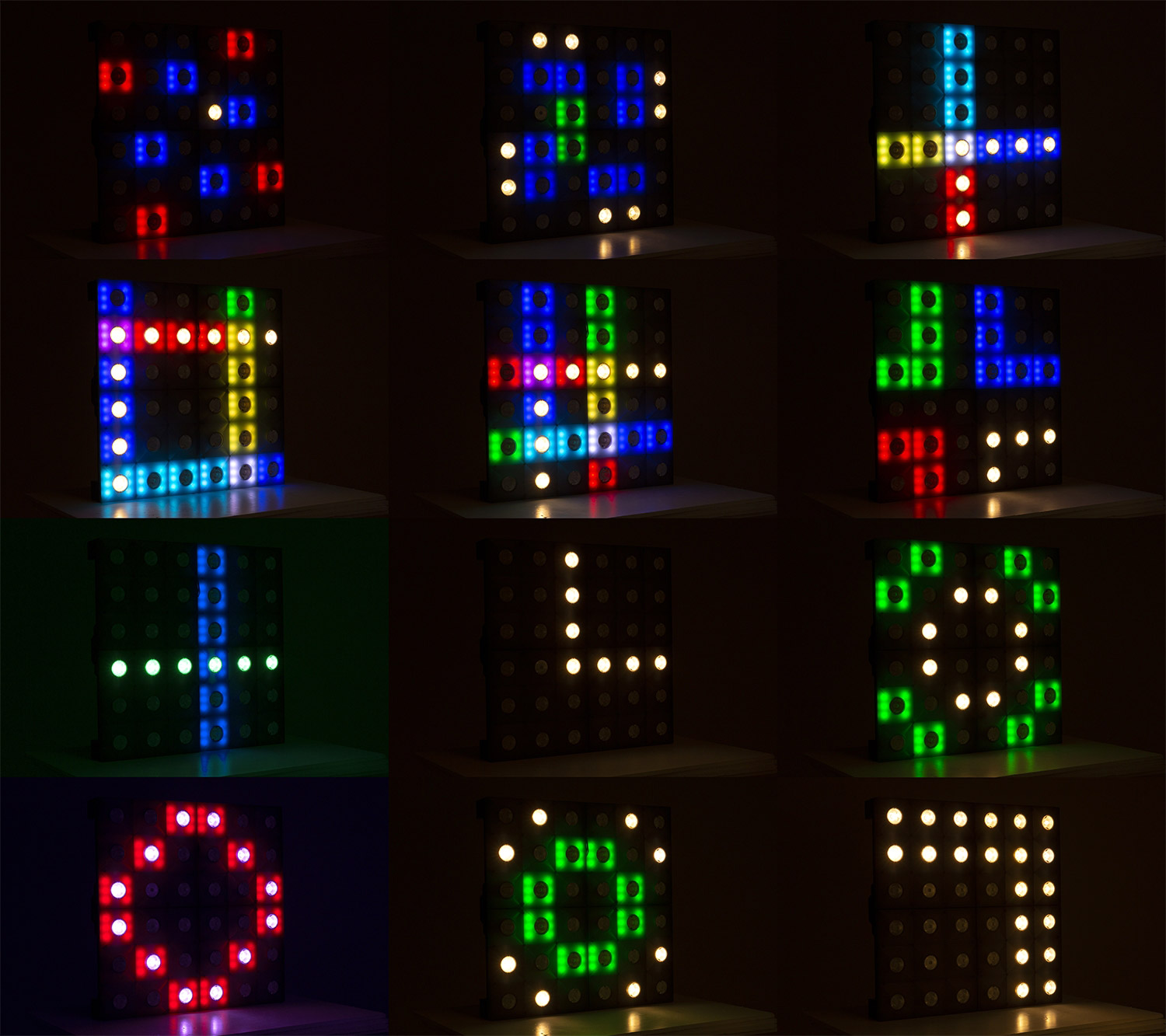

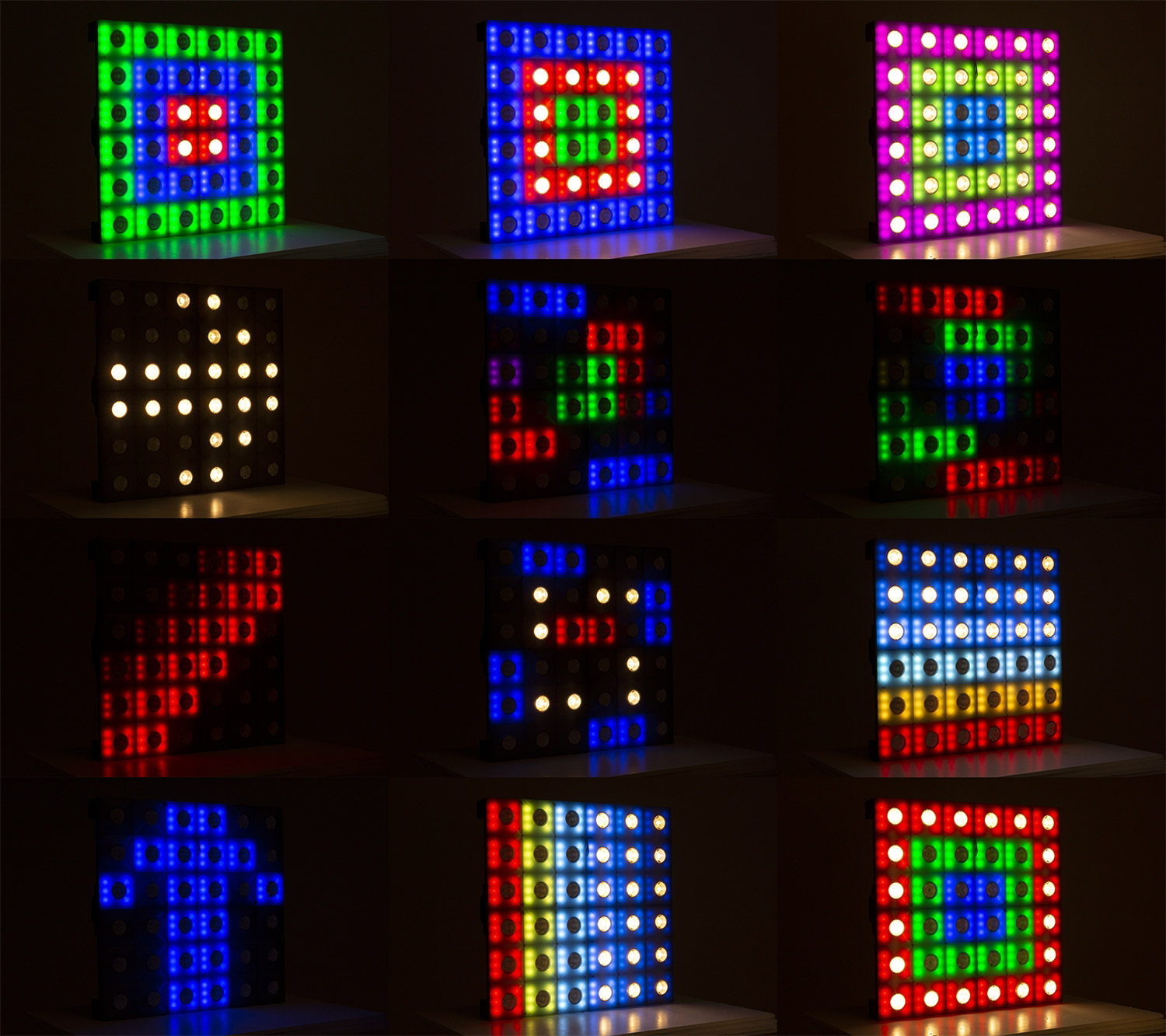

• Built-in programs
• Silent operation, natural convection cooling system.

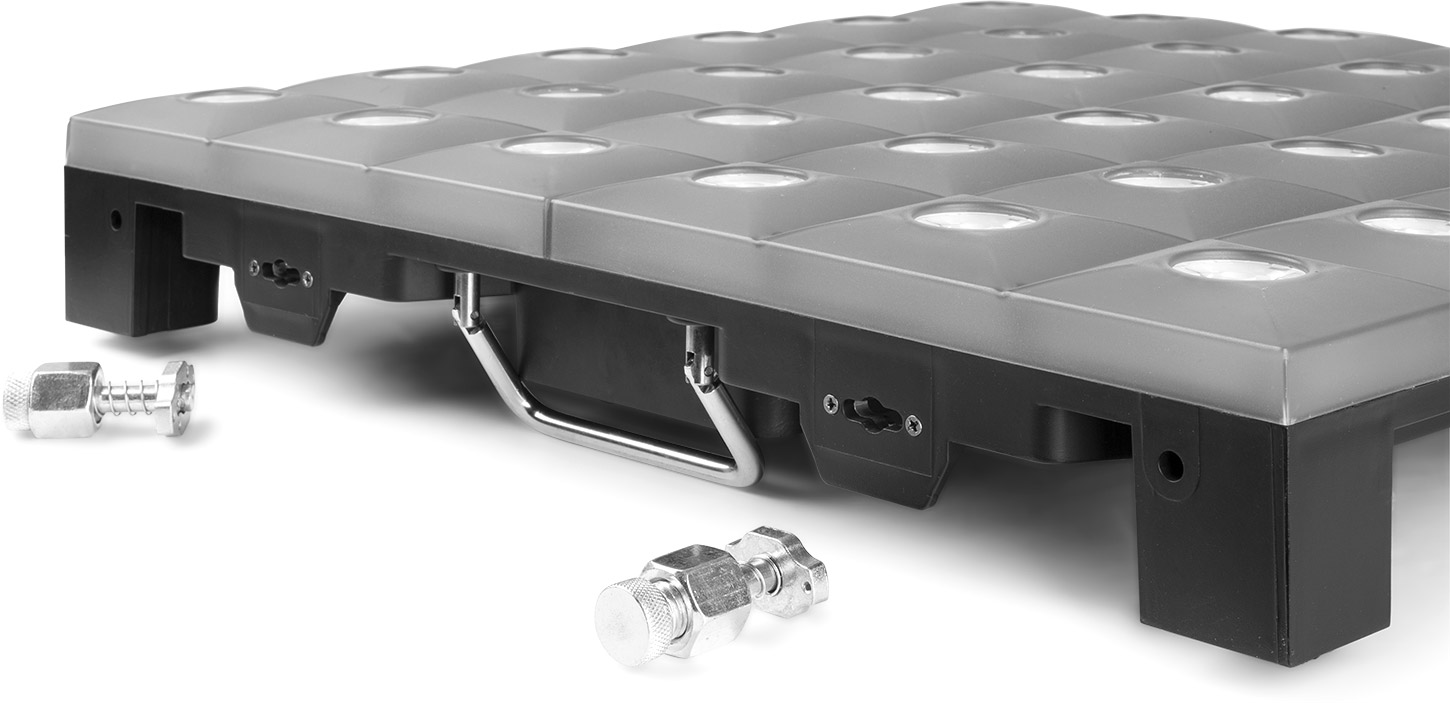

• Linking multiple panels together with quick locks
• o-LED colour display
• Electronic Dimming: 0 - 100%

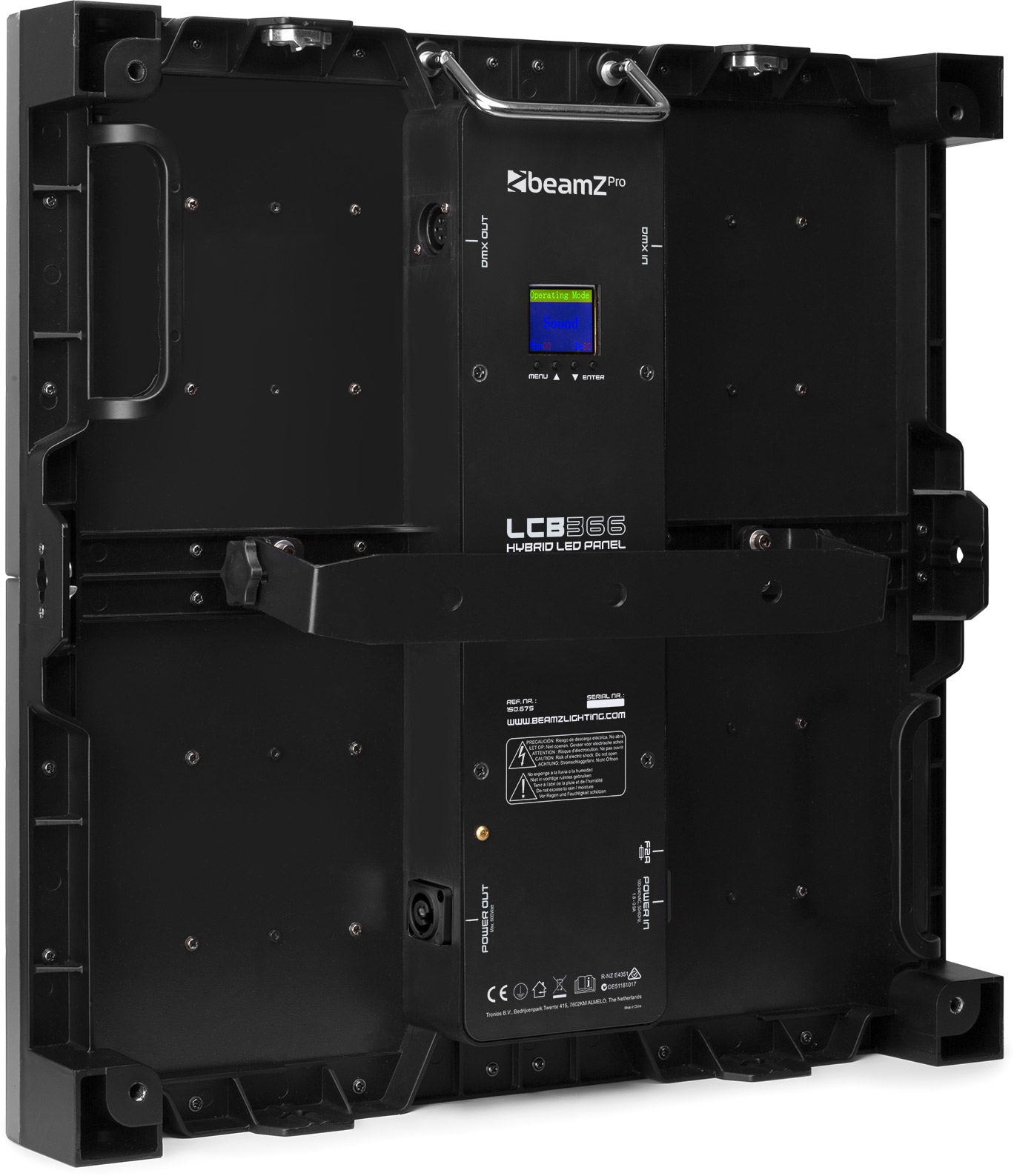

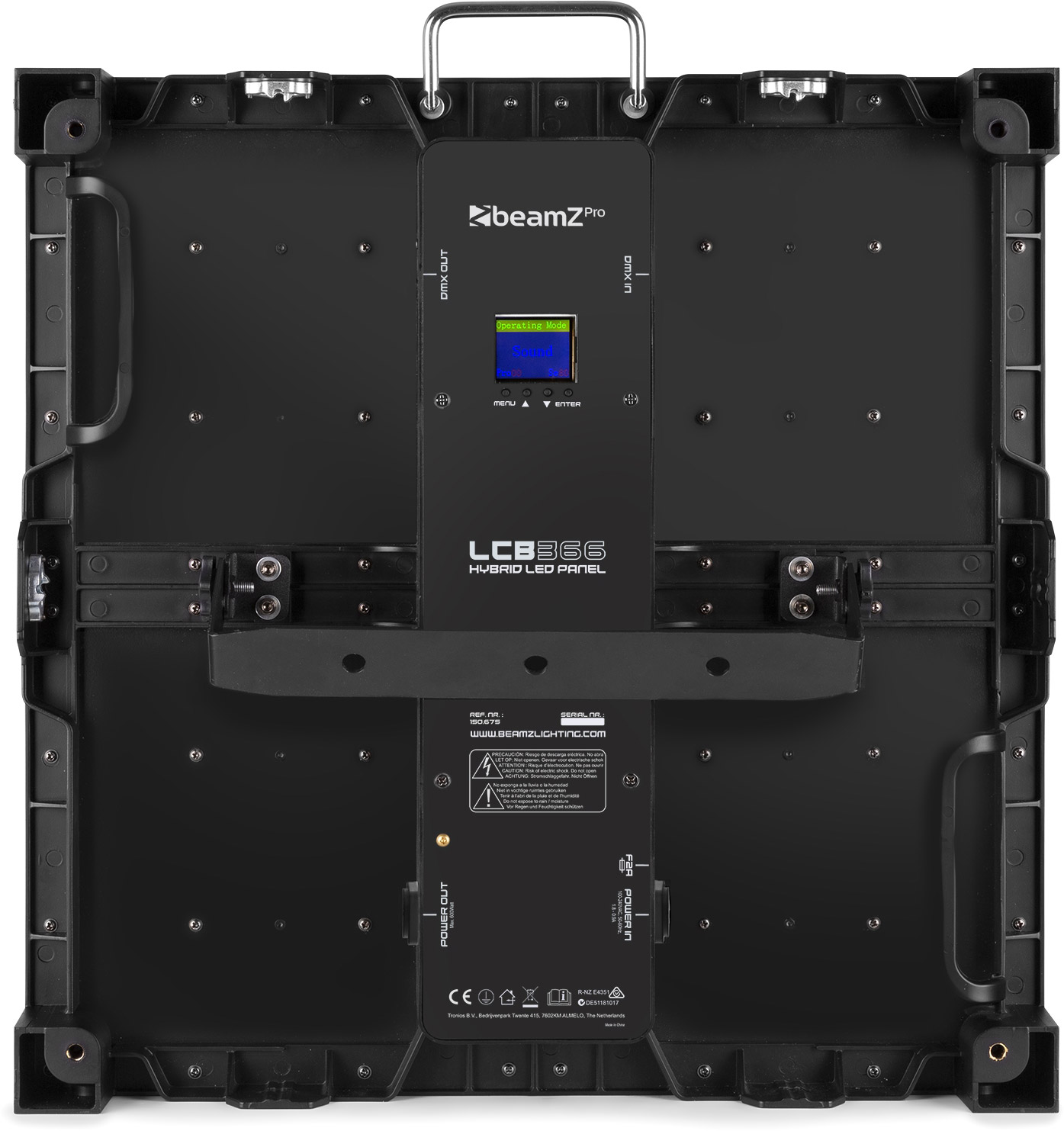

• Power Connector TR input/output

• Light source: Single colour LED, 3-in-1 LED
• LED colours: Red, Green, Blue, Warm White
• LED power : 3
• Quantity of LEDs: 36
• LED power: Backlight: SMD
• Quantity of backlight LEDs: 216
• Beam angle: 5
• Field angle: 10
• Illuminance: 15000 lx @ 1m
• Flash rate per second: 0 - 20Hz
• DMX channels: 8, 144
• DMX connector: 3-pin XLR
• Modes: Automatic programs, DMX, Manual, Master/Slave
• Cooling: Convection
• Display: oLed
• Power Plug: Power-connector
• Power consumption: 1.8 - 0.9A
• Power supply: 110-250VAC 50/60Hz
• Dimensions (L x W x H): 500 x 500 x 80mm
• Weight: 6.7000
• Accessories: Mounting bracket, Power cable
