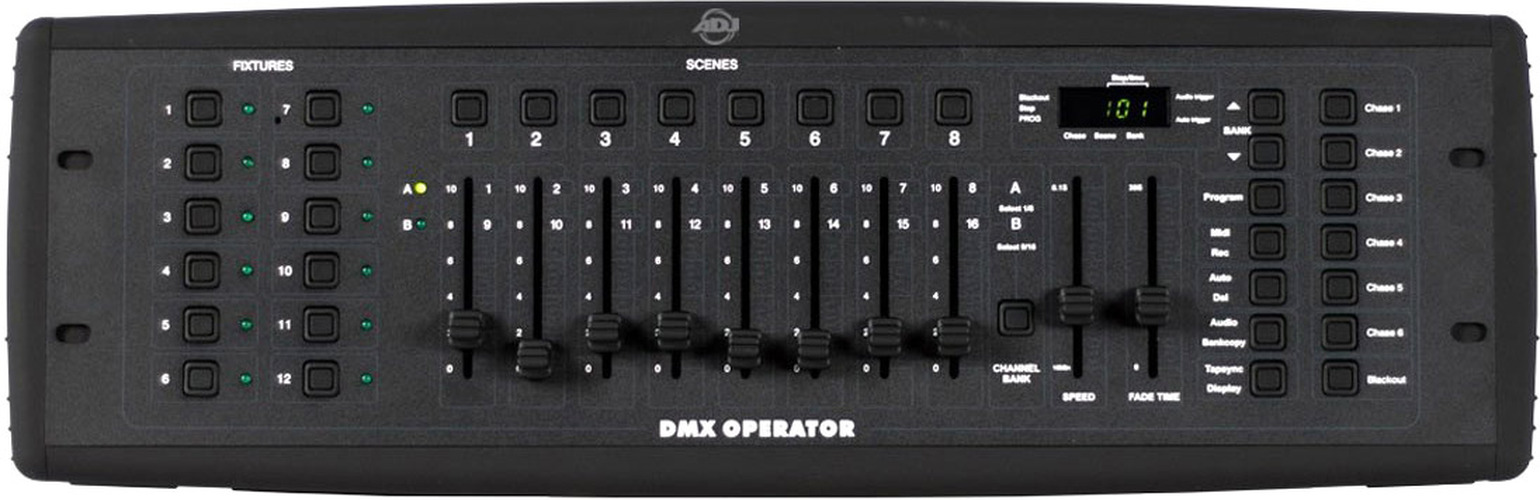

ADJ DMX Operator 1

• Reliable DMX Controller
• Programmable Up To 240 Scenes
• 192 DMX Channels
• 12 Individual Fixture Channels
• 8 Dimmer Faders
• Easy To Use
• MIDI Controllable

Specifications

• An affordable solution for controlling DMX products
• Control up to192 DMX channels
• Programmable up to 240 scenes
• 12 individual fixture channels - Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture
• Fixtures with less than 16 DMX channels may be combined on 1 DMX scanner button
• Record up to 6 programmable chases with fade time and speeds
• 8 individual faders provide easy programmability for Intelligent Lighting or Dimmer Packs
• MIDI controllable
• DMX-512, 3-pin XLR signal
• Built-in Microphone
• Remote control: Blackout controlled by MIDI input signal
• Blind function - override chases on the fly
• Use in conjunction with the ELP-DMX20 or the ELD-DMX20
• Polarity switch to accommodate different types of cable requirements
• Power input: DC 9V-12V, 220 mA min. power supply included
• Dimensions: 5.25" x 19" x 2.5" (133 x 483 x 64 mm) 19 in. rack mount - 3 rack spaces
• Weight: 5 lbs (2.3 kgs)
• Voltage: 120V/220V
