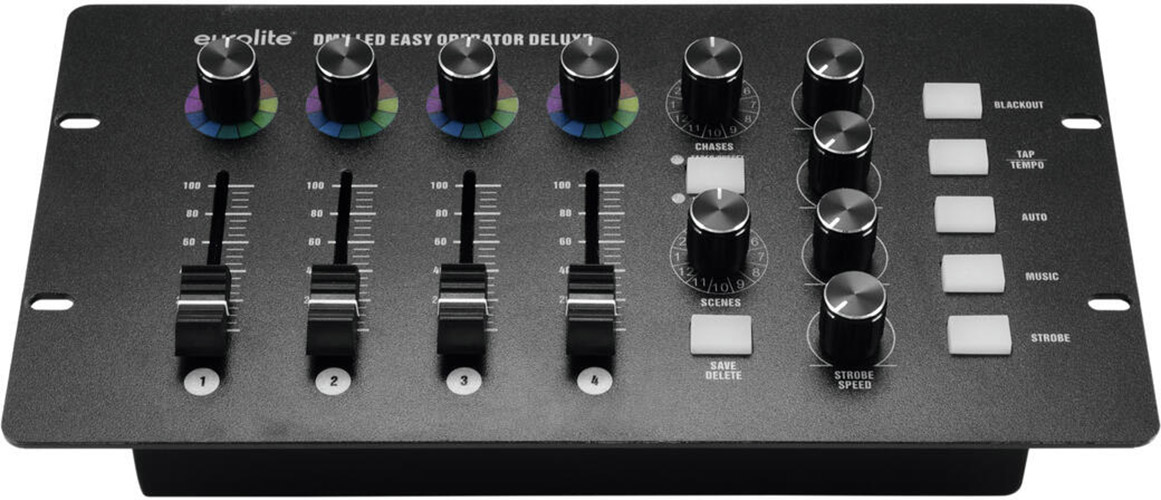

EUROLITE DMX LED EASY Operator Deluxe
€89.90 *
Availability:
Currently not available.
Expected to be available again in 5 weeks.
Expected to be available again in 5 weeks.
Currently not available
Item number: 120029835
EAN: 4026397622546
MPN: 70064574
Controller for 4 colored LED spotlights or one KLS set with 4 segments DMX controller for... more
All information about the product:
"EUROLITE DMX LED EASY Operator Deluxe"
Controller for 4 colored LED spotlights or one KLS set with 4 segments
- DMX controller for standard LED spotlights
- Easy operation
- 4 LED spotlights or 1 KLS set with 4 fixtures can be controlled
- DMX channels for red, green, blue, amber, white, UV, strobe and master

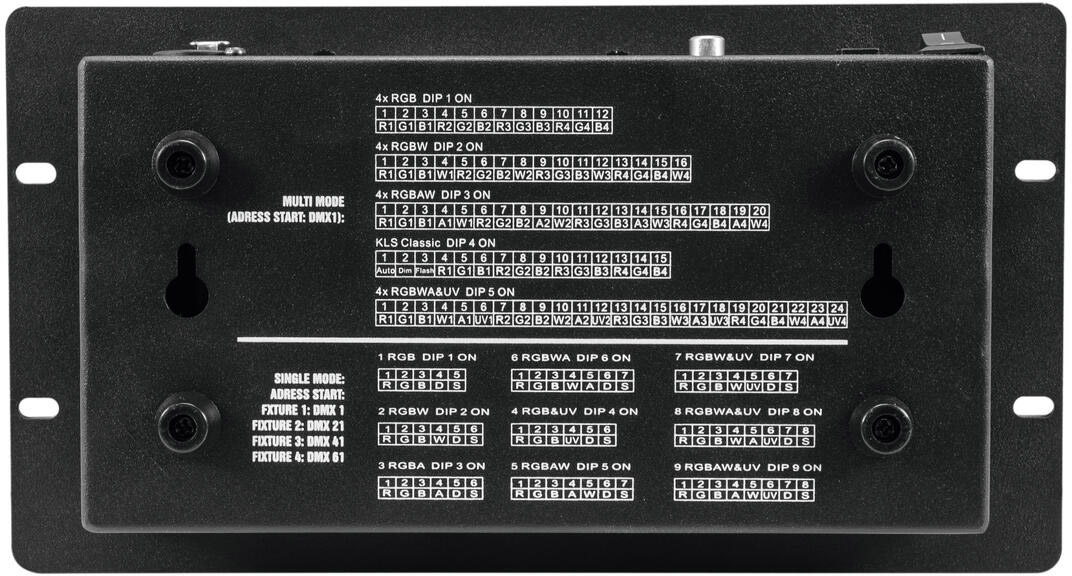

- 9 different modes for the DMX channel sequence selectable
- 12 integrated preset programs and 12 user-definable programs (each with up to 12 scenes)
- Auto mode or sound control
- 4 color controls with 12 colors each
- 4 brightness controls
- Controls for overall brightness, running speed, fade and strobe speed
- Function buttons for Blackout, TAP/Tempo, Auto, Music and Strobe
- Compact desktop console
- Can transmit up to 24 DMX channels
- Controlling by DMX; Sound to light via Microphone; Sound to light via RCA (f) mounting version
- Desktop console housing
| Power supply: | 100-240 V AC, 50/60 Hz 9 V DC 300 mA |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Protection class: | Class III |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| DMX channels: | Output 24 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Sound to light via Microphone; Sound to light via RCA (f) mounting version |
| Housing color: | Black |
| Color: | Black |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 26 cm Depth: 14 cm Height: 6,5 cm |
| Weight: | 1,26 kg |
