EUROLITE DMX Power Splitter 4x4 3-pin XLR
€149.00 *
Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120034385
EAN: 4026397688702
MPN: 70064806
The 4-fold splitter is designed for reliable distribution of DMX512 signals and operation voltage... more
All information about the product:
"EUROLITE DMX Power Splitter 4x4 3-pin XLR"
The 4-fold splitter is designed for reliable distribution of DMX512 signals and operation voltage (max. 16 A). The unit features one DMX input and four DMX outputs with status indicators as well as a feed-through terminal for connection to an additional splitter. The mains connectors are designed as P-Con sockets. The splitter supports RDM for bidirectional communication over the DMX line and is suitable for mounting in an equipment rack.
1 in/4 out power and DMX splitter with RDM support for rack mounting
- 1 P-Con input to 4 outputs, max. 16 A
- 1 DMX input to 4 outputs
- 1 DMX feed-through output
- Switchable RDM filter mode
- Switchable termination resistor
- Input and outputs galvanically isolated
- Each DMX output with independent driver and status indicator
- Control via RDM
- (19") 48.3 cm rack installation 1 U
Package contents

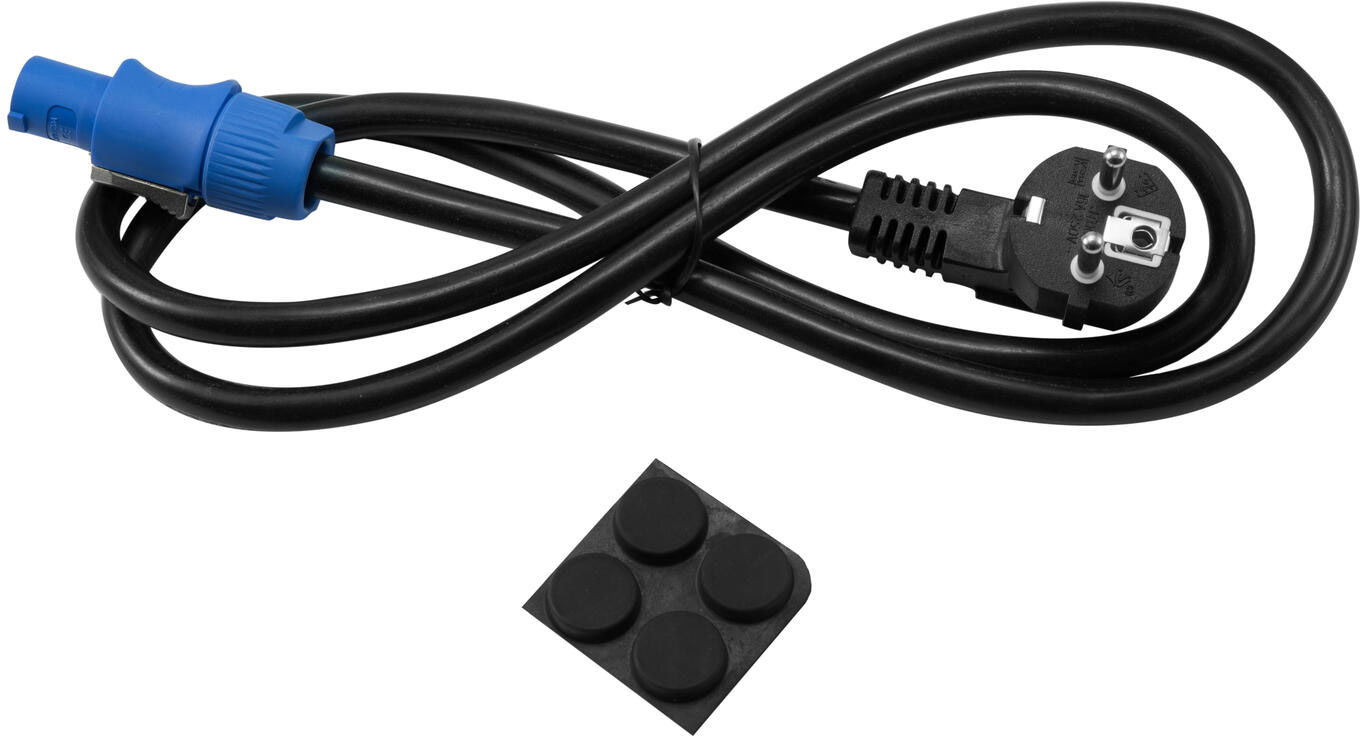

- 1 x device, 1 x user manual, 1 x power cord
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 5 W |
| Protection class: | Protection class I |
| Output current: | Max. 4 x 4 A per channal |
| Power connection: | Via P-Con (blue), mounting version |
| Power output: | 4 x P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 1 A Fuse replaceable |
| DMX input: | 1 x 3-pin XLR (M) |
| DMX output: | 4 x 3-pin XLR (F) |
| Control: | RDM |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm Depth: 13,8 cm Height: 4,3 cm |
| Weight: | 2,56 kg |
