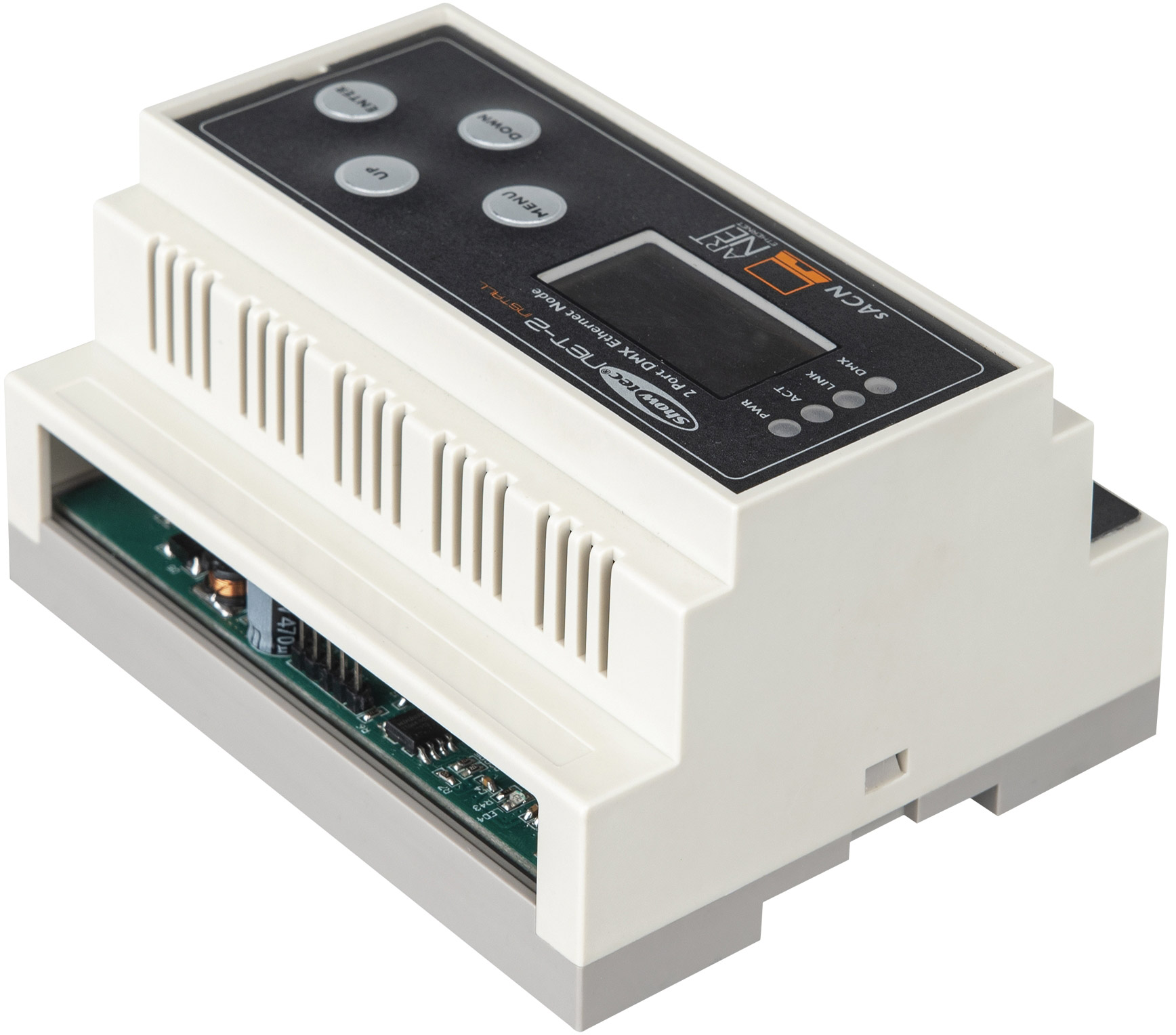

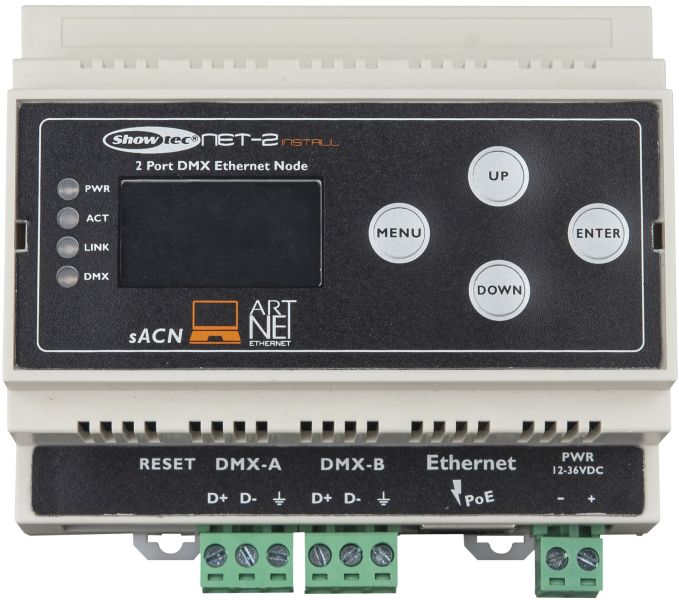

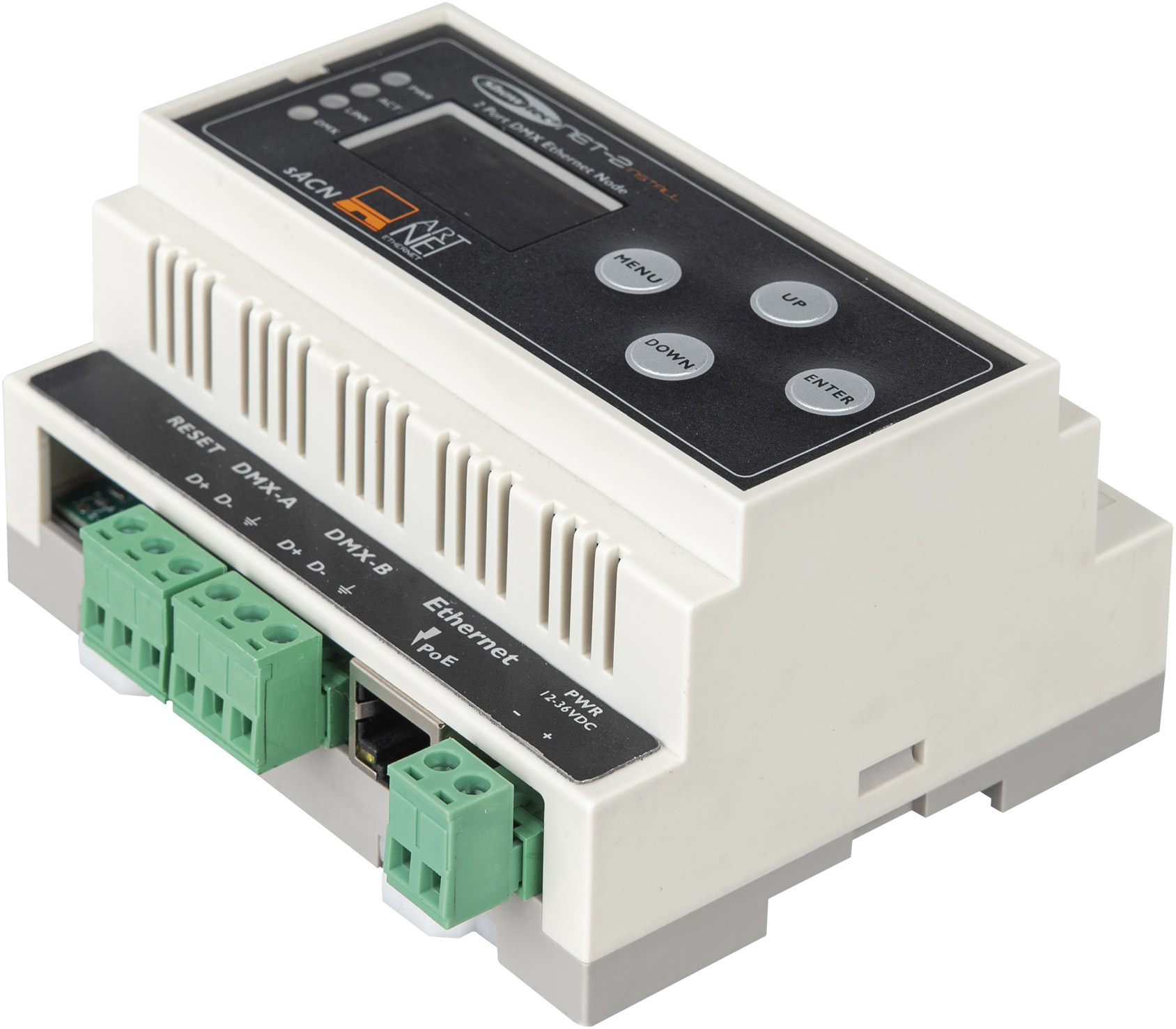

Showtec NET-2 Install DIN Rail

The Showtec NET-2 Install is the ideal compact fixed-installation node for you. All connections are easy connectable with the plug-in Phoenix terminals, and both bi-directional DMX ports are optically isolated to prevent any interference from getting hold of your signal. Power can be supplied via PoE or on the wide range DC power input. A maximum of 1024 channels can be transported over a single CAT5. All settings can be done by the easy-to-use menu on the graphic display and buttons on the front or via the remote web interface which can be accessed within the network. Default login account: Admin, password: Admin. The din-rail mounted NET-2 converts Art-Net or sACN to DMX512 and back, and is ideal for network system integration projects.

Configuration examples:
- Art-Net to 2x DMX output
- 2x DMX input to Art-Net
- Clone 1 DMX inputs to 1x DMX output and Art-Net
- HTP/LTP Merge 2x Art-Net to DMX output
- HTP/LTP Merge DMX input and Art-Net to DMX outputTechnical data:

Power Supply:	12-36 VDC
Power over Ethernet (PoE):	Yes
Power Consumption:	6 W
Power Connector in:	Phoenix
DMX Connector:	Phoenix In/Out
DMX Connector in:	Phoenix
DMX Connector out:	Phoenix
Data Connector in:	RJ45
Length (mm):	106 mm
Width (mm):	87 mm
Height (mm):	58 mm
Weight:	0.18 kg
Housing:	Plastic
Colour:	Grey
DIN Rail Spacing:	35 mm
Control Mode:	Art-Net / DMX / TCP IPv4
DMX Channels:	1024
Protocols:	Art-Net / DMX / sACN / TCP-IPv4
Display:	OLED
Universes:	2
