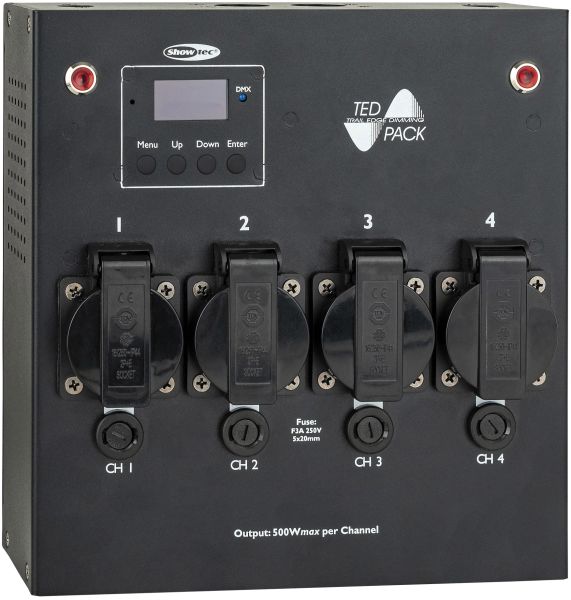

Showtec TED Pack CEE 7/5 4-Channel Dimmer Pack - FR/BE outputs

€339.00 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120626210
EAN: 8717748547248
CEE 7/5 output connectors (FR/BE) Leading and trailing edge dimming 4 dimmer curves for... more
All information about the product:
"Showtec TED Pack CEE 7/5 4-Channel Dimmer Pack - FR/BE outputs"

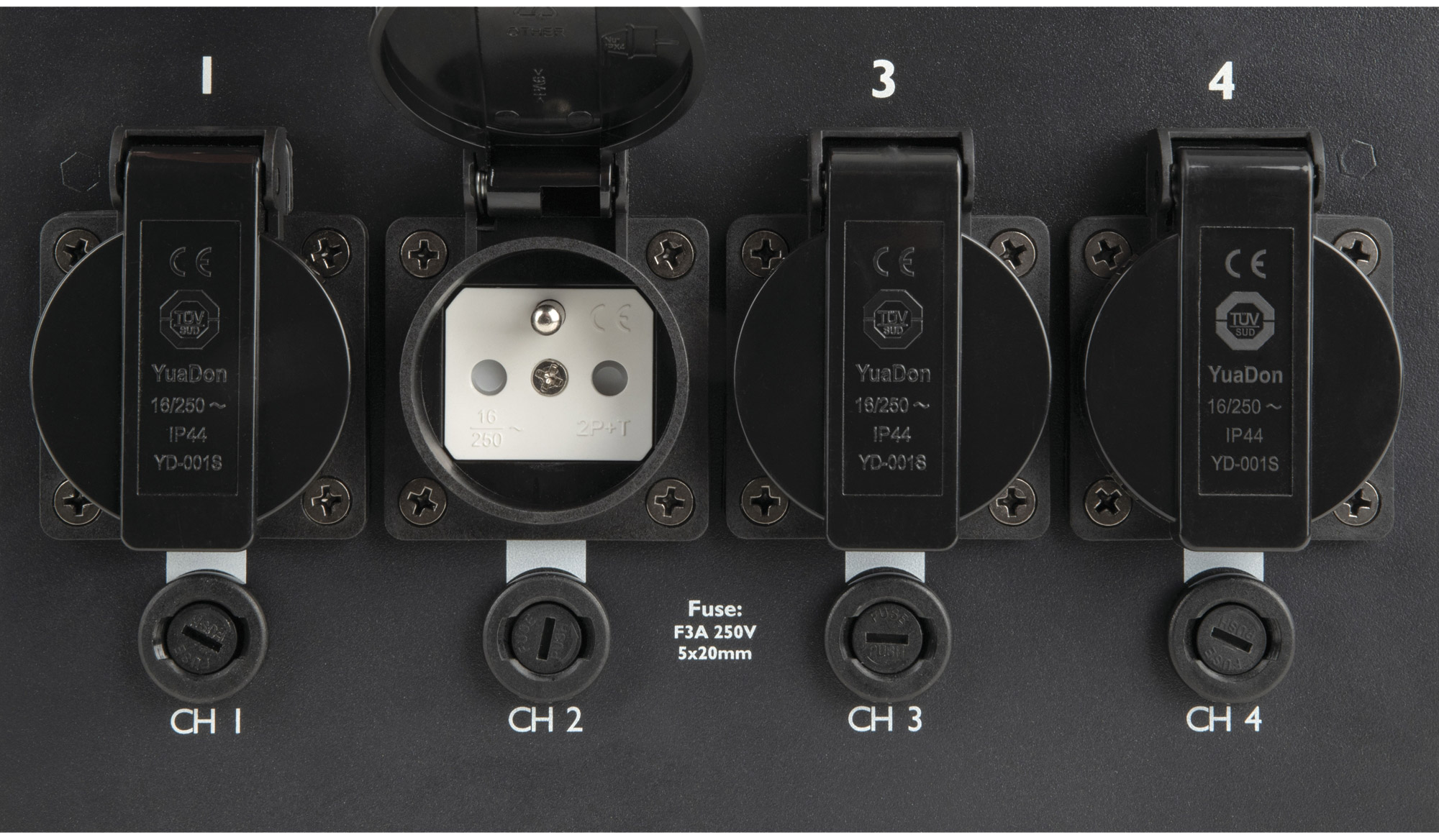

  • CEE 7/5 output connectors (FR/BE)
  • Leading and trailing edge dimming
  • 4 dimmer curves for conventional and LED lights
  • Special Effects mode with safety channel
  • Mounting holes on top and backside
The Showtec TED Pack CEE 7/5 is a 2000 W leading and trailing edge 4-channel dimmer for indoor use with dim, switch and FX modes. The output is independent of the connected load and can be used with LEDs and incandescent lights up to 2 A per channel. Its channels can be linked or controlled individually.

The TED Pack CEE 7/5 uses MOSFETs to dim the output and can be switched between leading edge and trailing edge dimming. The Special FX mode offers a safety channel that prevents unintentional activation which can be helpful for controlling shooters, canons, drops, et cetera. The unit can be controlled manually and via DMX. The included Quicklock bracket clicks on easily from the back or the top.Technical data:
Control Mode:DMX / Local Control / Manual
Protocols:DMX / RDM
DMX Channels:1 / 2 / 3 / 4 / 5
Power Supply:220V-240 VAC 50 Hz
Output Current per Channel:2 A

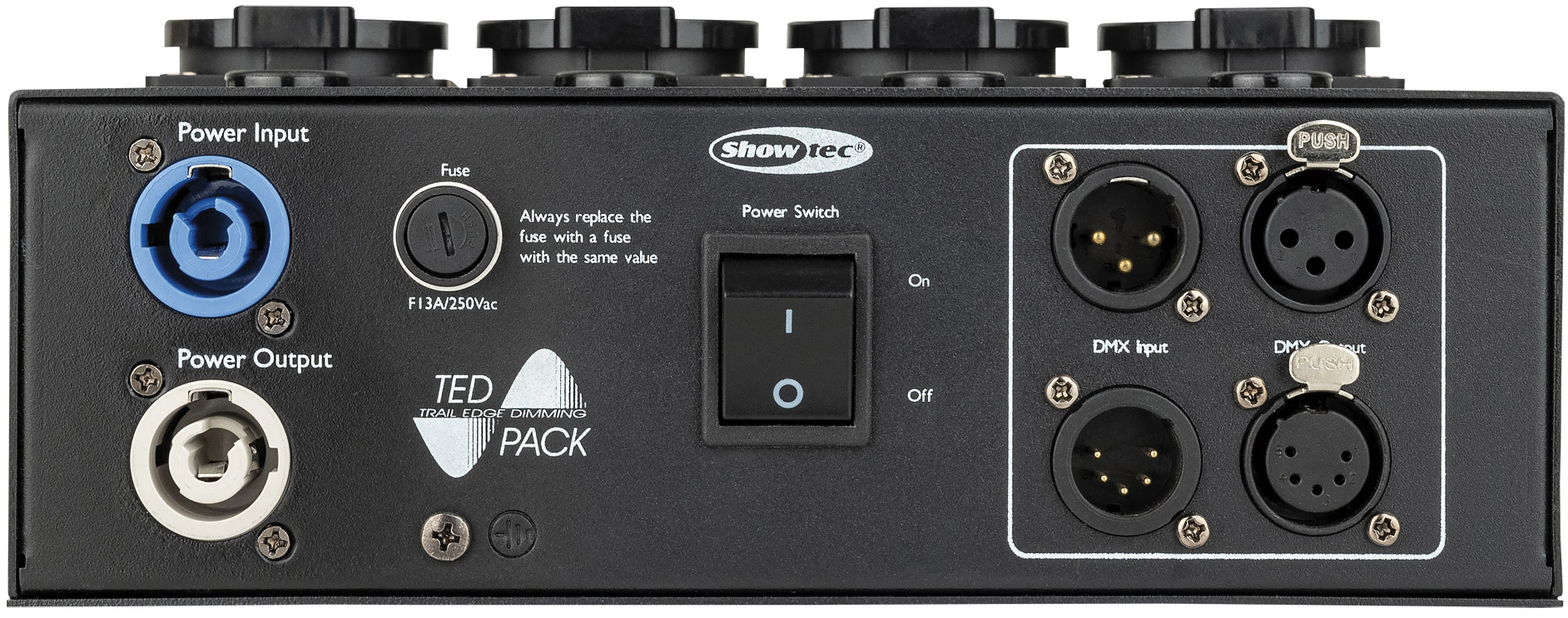

Power Connector In:Power Pro Blue
Power Connector Out:Schuko Socket
DMX Connector In:XLR 3P / XLR 5P
DMX Connector Out:XLR 3P / XLR 5P
Length (mm):240 mm
Width (mm):230 mm
Height (mm):92 mm
Weight:2.7 kg
IP Rating:IP20 (indoor use only)
Housing:Metal
Colour:Black
