Laserworld EL-200RGB Showlaser

Warning: This product contains a Class 3R or higher laser according to the classification according to DIN EN 60825-1: 2014. The provisions for the operation of laser systems of the respective class shall be complied with.


The Laserworld EL-200RGB is a RGB laser system with a total output power of up to 200 mW.

The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532 nm and the royal-blue laser module with a wavelenght of 445 nm ensure beautiful colors and brightness. The beams have good specifications with diameter of about 3 mm and a beam divergence of about 2 mrad and the projector offers high-speed stepper motors with 2-5kpps as well as a scan angle of up to 30°. About 50 preset basic patterns, like layers, tunnels, fences, waves etc. can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be adjusted.

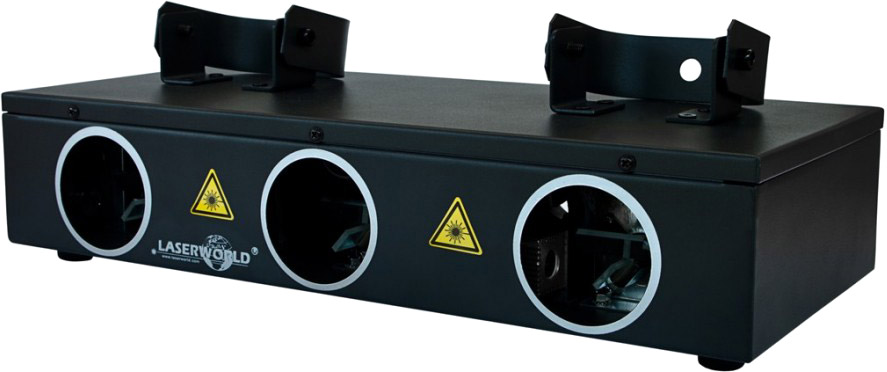

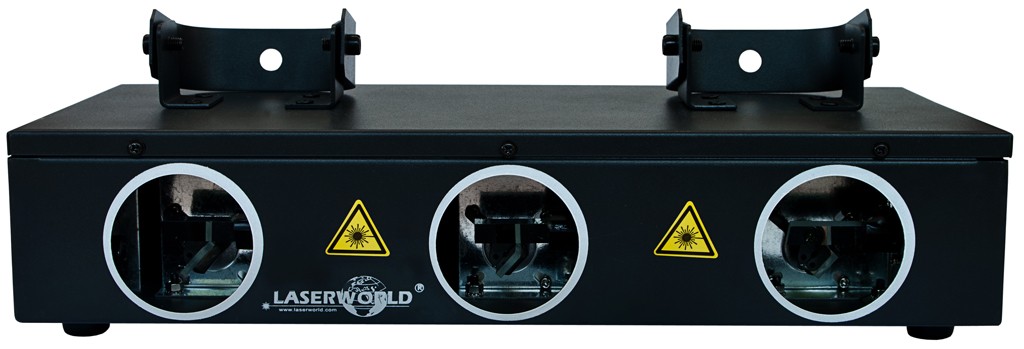

There is an on-off switch at the rear side of this device.The triple laser aperture provides extra intense red, green and blue beam effects.

The Laserworld EL-200RGB is a good solution for first-time users and mobile use and it is often used in bars, small clubs, at private parties or for home use. With ultra bright 445 nm royal blue!


Additional Information

Total Power typical:
200 mW

Guaranteed power:
145 mW

Power Red:
60 mW / 650 nm

Power Green:
25 mW / 532 nm

Power Blue:
60 mW / 445 nm

Beam Specifications:
ca. 3 mm / 2 mrad

Laser Sources:
Diode, DPSS Laser

Laser Class:
3B

Operation Modes:
Stand-Alone, Sound-to-Light, DMX

Scanner:
high-speed stepper motors, up to 2-5 kpps

Scan Angle max.:
30°

Basic Patterns:
ca. 50 (layers, tunnels, fences, waves, etc.)

Accessories:
power cable, manual, interlock, key

Power Supply:
85V - 250 V AC

Power Consumption:
60 W

Dimensions:
175/395/85 mm

Weight:
3.9 kg
