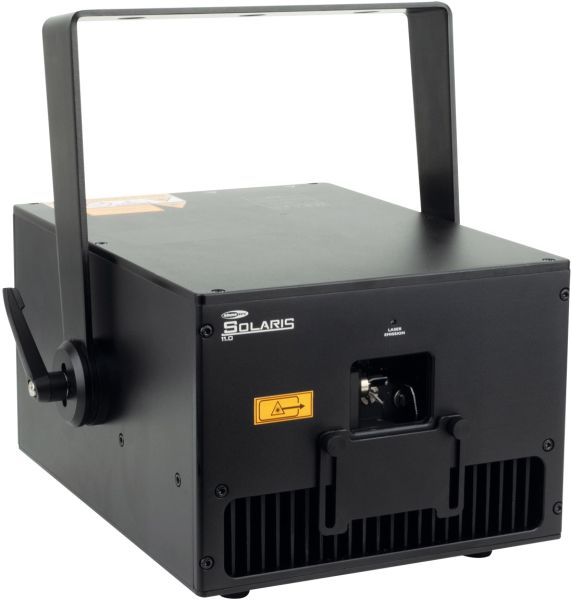

Showtec Solaris 11.0 High-power RGB Laser with Pangolin FB4

The Showtec Solaris laser effects are highly accurate and powerful full-colour laser effect units, intended for a professional spectrum of applications. They offer exceptionally accurate control of their laser beam. Analogue intensity control ensures the best possible reproduction of the full-colour spectrum, allowing you to create formidable colours. In combination with the low divergence of the laser and the high scanning speeds, this results in razor-sharp images and beam contours in any colour.

The Solaris laser effects are fully protected against failures and comply with all necessary safety precautions. The units that are equipped with the Pangolin FB4 module unlock the full capabilities of the award-winning QuickShow software. With this specialised piece of software, creating a professional show is easy. It allows you to control your laser(s) via your PC through a full network setup. The Solaris laser effects offer you a professional piece of equipment, suitable for larger venues and professional shows.

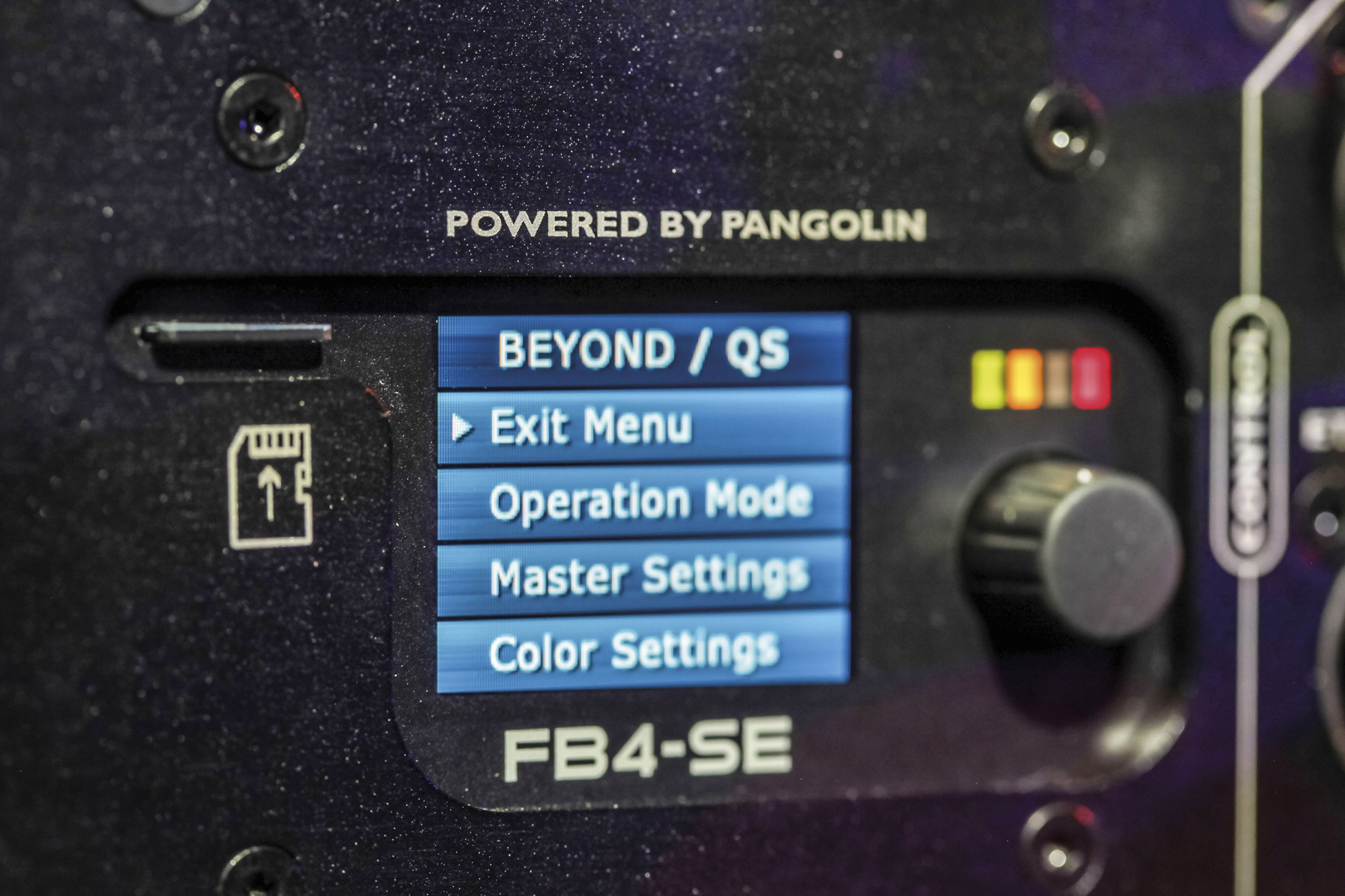

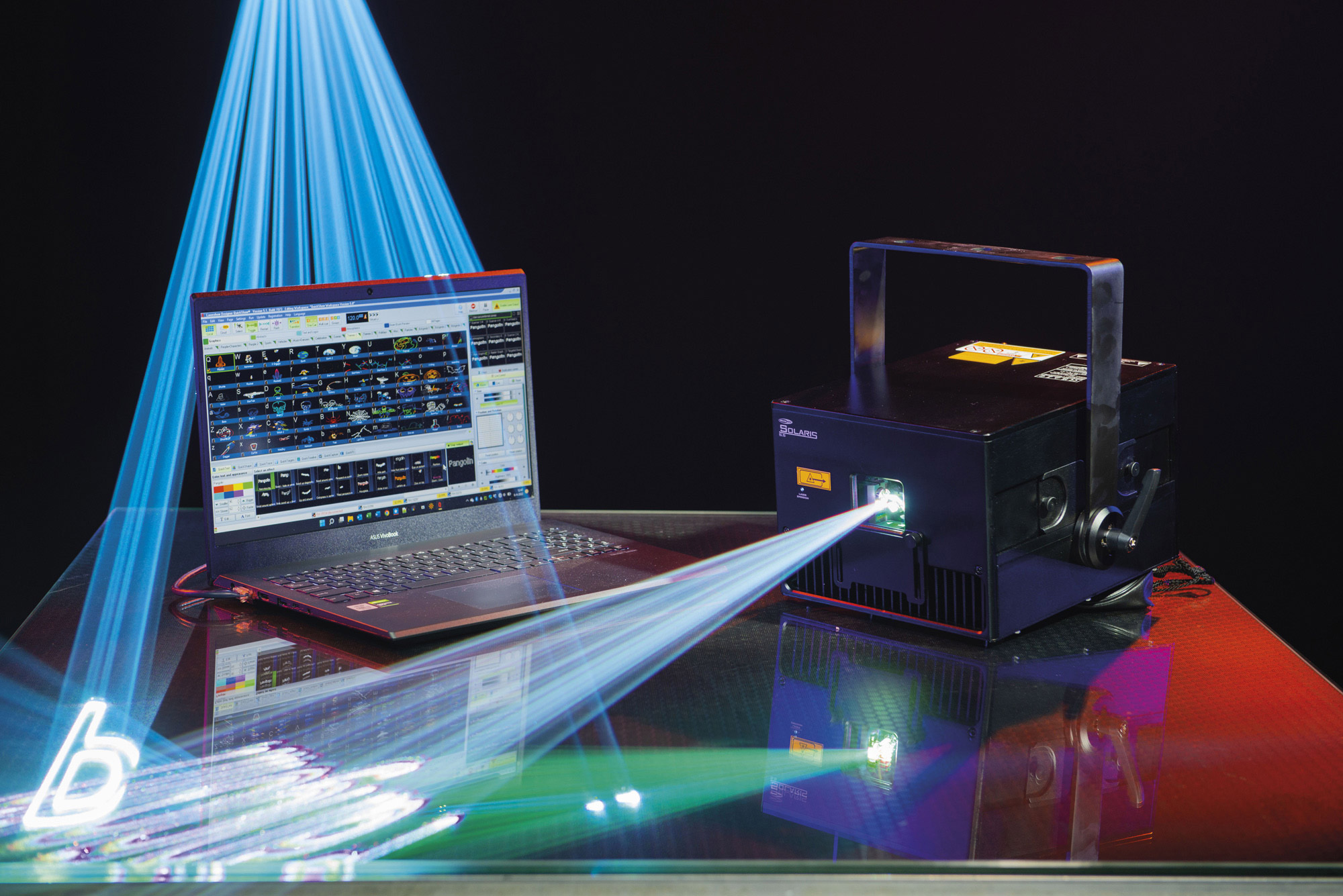

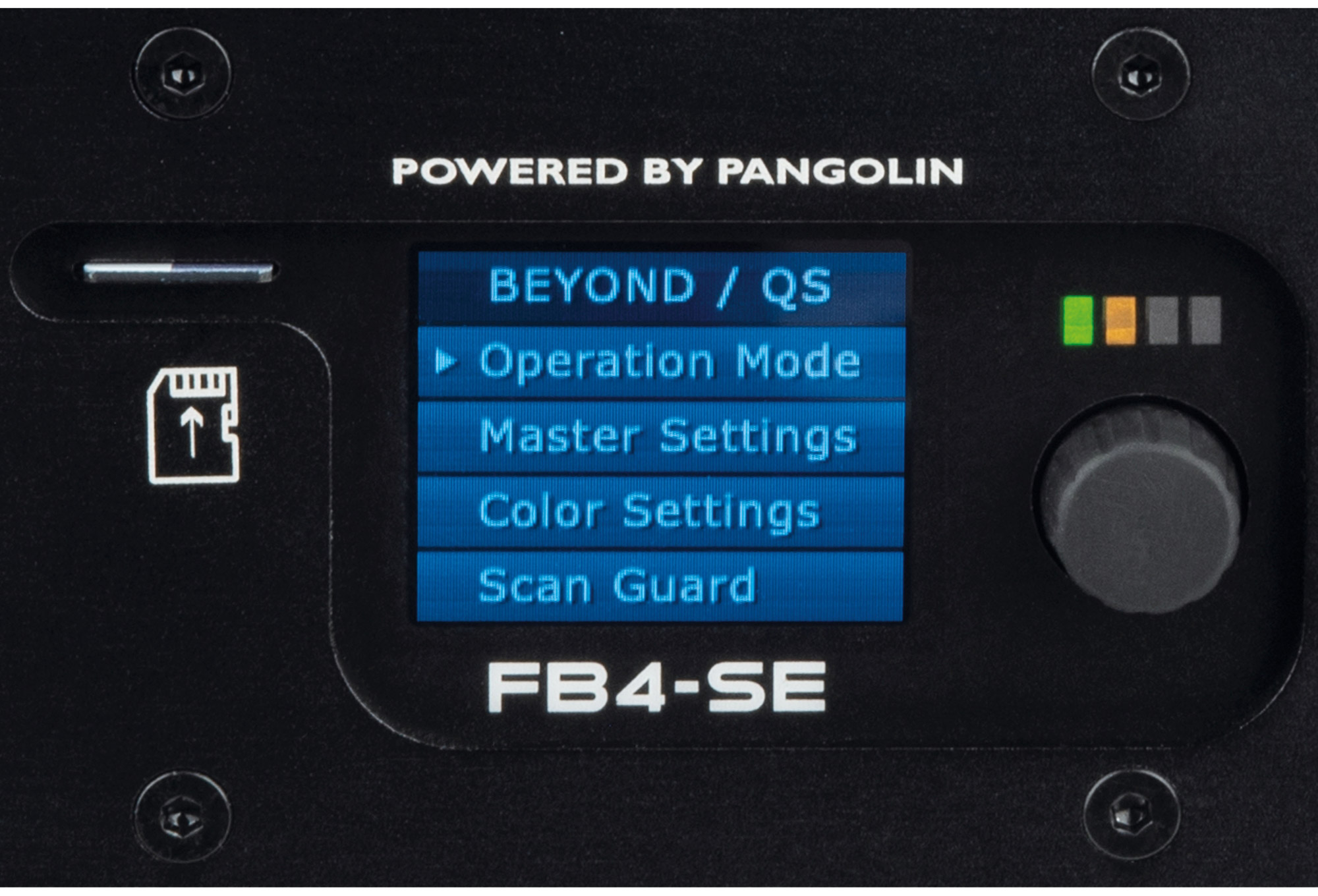

The Solaris 11.0 is a very powerful 11,000-mW RGB laser projector with built-in Pangolin FB4 control module, intended for use in large venues. The FB4 module unlocks the award-winning QuickShow software, which means you can use this professional software completely free of charge. This opens up extensive possibilities for professional laser show control. It allows you to run your laser shows in a full network setup, controlled by the QuickShow software on your PC. You can also control it through your lighting console by Art-Net or ILDA, and it features an SD card interface for saving automatic, stand-alone playback.

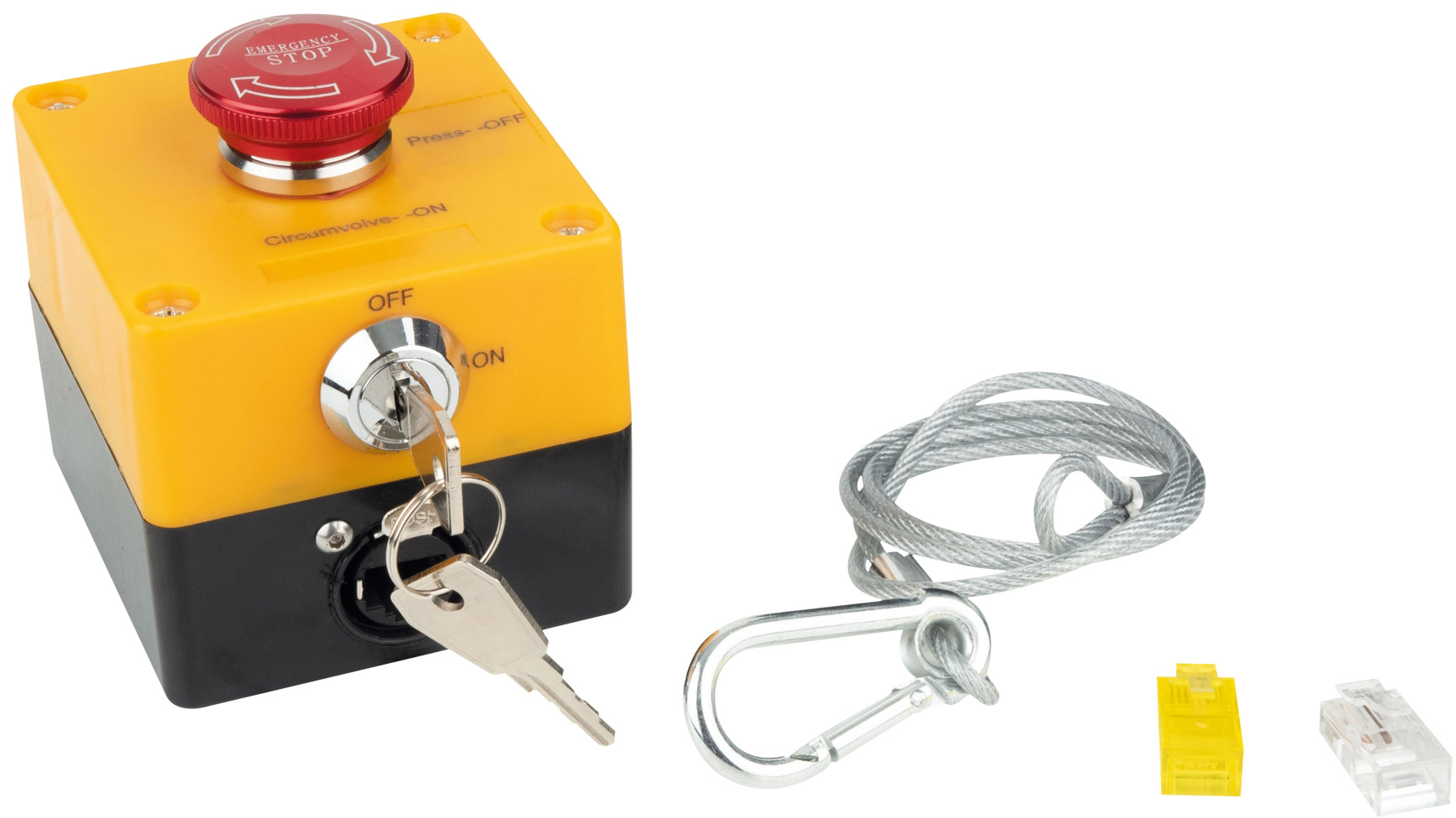

By using linear analogue dimming modulation, the Solaris 11.0 can generate the full spectrum of colours. Its very precise and high-quality construction ensure perfect matching of the RGB beams and distortion-free images. Its wide 45° beam angle allows for large projection areas. It comes with all the necessary safety measures, like scanning system overload protection, a keyed interlock system, scan-fail safety, aperture masking plate, emergency stop system, and a keyed remote.Technical data:

Laser Power:	11000 mW
Laser Source:	Diode
Laser Modulation:	Analog
Laser Class:	4
Laser Colour:	Red / Green / Blue
Control Mode:	Art-Net / DMX / ILDA / SD Card
Power Supply:	100-240 VAC 50-60 Hz
Power Consumption:	350 W
Power Connector in:	powerCON TRUE1
Power Connector out:	powerCON TRUE1

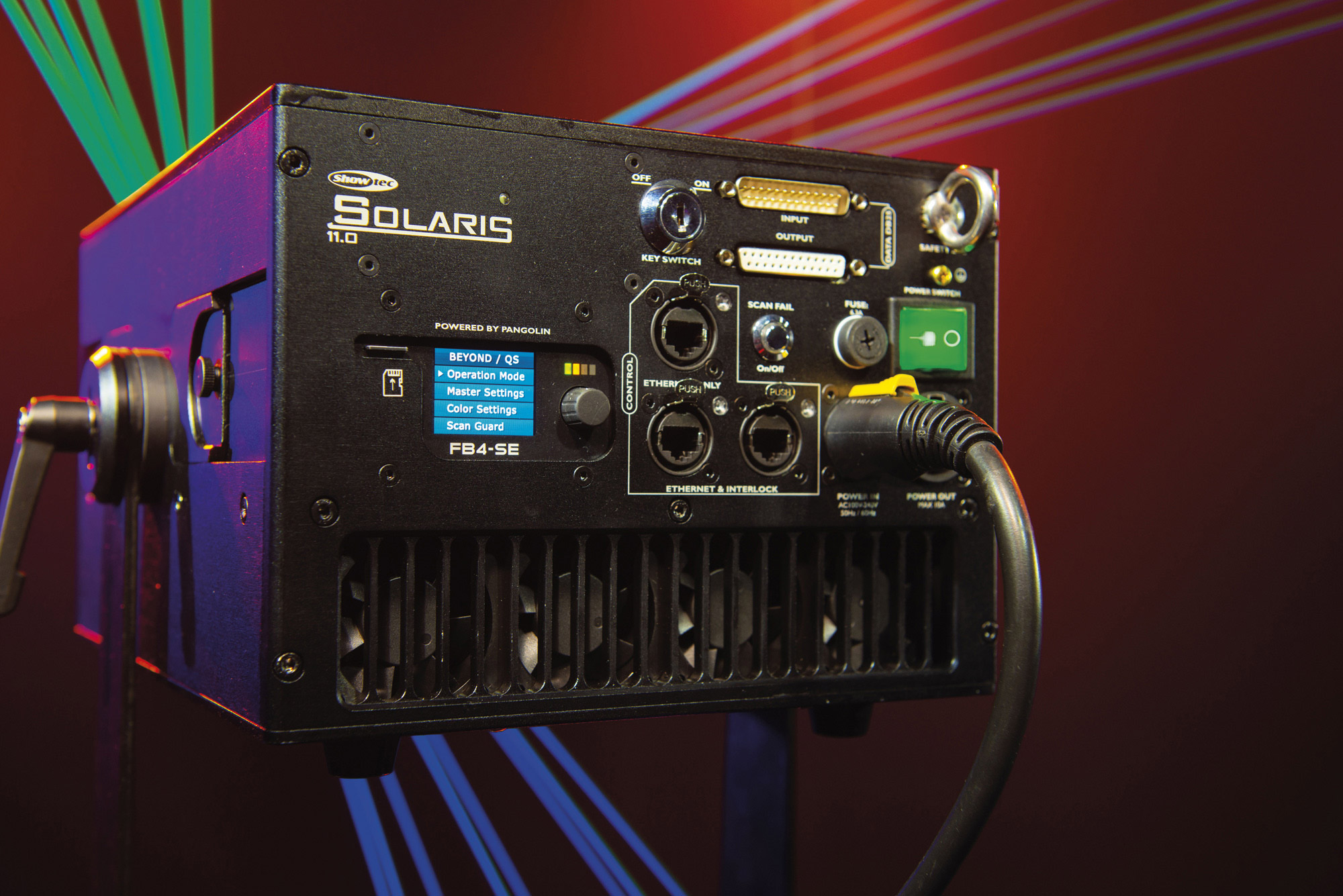

Data Connector:	ILDA DB25 / RJ45 In/Out
Height (mm):	169 mm
Width (mm):	235 mm
Depth (mm):	349 mm
Weight:	12.5 kg
IP Rating:	IP20 (indoor use only)
Housing:	Aluminium
Colour:	Black
Laser Scanner:	35 kpps
Reference Standard:	CE
