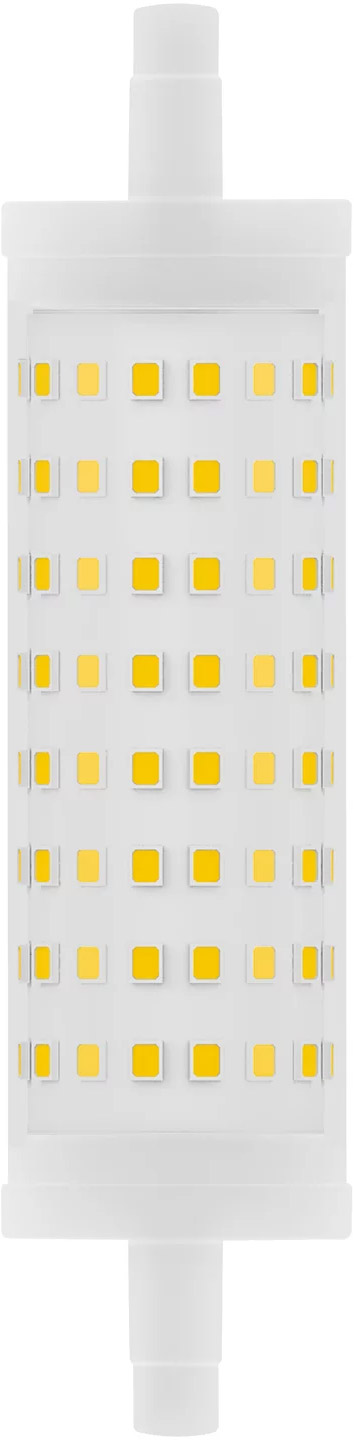

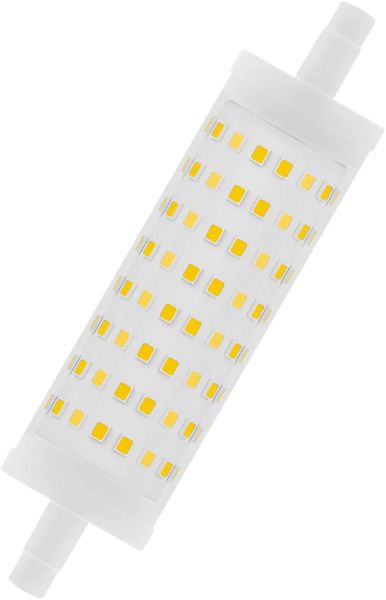

Ledvance LINE R7S 125 P 15W 827 R7s

€11.25 * €12.43 * (9.49% Saved)

incl. tax, plus shipping costs

Express delivery possible

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 101408675

EAN: 4099854048647

MPN: 4099854048647

Product advantages Fits in most R7s luminaires due to non-centered base Good all... more

Back to the overview

All information about the product:

"Ledvance LINE R7S 125 P 15W 827 R7s"

Product advantages

Fits in most R7s luminaires due to non-centered base
Good all around light emission
Long service life of up to 15,000 h
Lower heat generation (compared to the standard reference product)
Four years warranty

Technical data
Electrical data
Nominal power	15 W
Rated power	15.00 W
Rated voltage	220...240 V
Power consumption of the conventional Lamp	125 W
Rated current	95 mA
Current type	Alternating current (AC)
Inrush current	6.33 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. No. Lamps on circuit breaker 10 A (B)	34
Max. No. Lamps on circuit breaker 16 A (B)	40
Harmonic content	< 175 %
Mains power factor ?	0,70

Photometric data
Luminous flux	2000 lm
Nominal useful luminous flux 90	2000 lm
Luminous efficiency	133 lm/W
Luminous flux maintenance at the end of the rated service life	0.70
Light color (designation)	Warm white
Color temperature	2700 K
Color rendering index Ra	80
Light color	827
Standard deviation of the color balance	=6 sdcm
Rated LLMF at 6,000 h	0.80
Flicker measurand (Pst LM)	=1
Measured variable for stroboscopic effects (SVM)	=0.4

Lighting data
Radiation angle	300 °
Warm-up time (60 %)	' 0.50 s
Start time	< 0.5 s

Dimensions & Weight
Total length	118.00 mm
Diameter	28,00 mm
Maximum diameter	28 mm
Product weight	95,00 g

Temperatures & Operating Conditions
Ambient temperature range	-20...+40 °C
Maximum temperature at measuring point tc	91 °C

Lifetime
Nominal life	15000 h¹⁾
Number of switching cycles	100000
Luminous flux maintenance at the end of maintenance	0.70
Rated lamp survival factor at 6,000 h	= 0.90

Additional product data
Socket (standard designation)	R7s
Mercury content of the lamp	0.0 mg
Mercury-free	Yes
Design / Construction	clear
Product note	All technical parameters apply to the whole lamp, Due to the complex manufacturing process of light emitting diodes, the given typical values of LED technical parameters represent only purely statistical quantities, which do not necessarily correspond to the actual technical parameters of each individual product, which may differ from the typical value.

Possible applications
Dimmable	No

Certificates & Standards
Energy efficiency class	E¹⁾
Energy consumption	15.00 kWh/1000h
Protection class	IP20
Standards	CE, EAC
Photobiological risk group according to EN62778	RG1

Country specific information
Order number	LED LINE118 125

LOGISTICAL DATA
Storage temperature range	-20...+80 °C

Data according to the regulation on energy consumption labeling EU 2019/2015
Lighting technology used	LED
Unfocused or focused light	NDLS
Mains voltage / Not directly connected to the mains voltage	MLS
Light source socket (or other el. interface)	R7s
Networked light source (CLS)	No
Color tunable light source	No
Cover	No
Light source with high luminance	No
Glare shield	No
Similar color temperature	SINGLE_VALUE
Power consumption in standby mode	0.00
Power consumption in networked standby mode	0 W
Indication whether equivalent power consumption	Yes
Length	118.00 mm
Height	28.00 mm
Wide	28.00 mm
Color value fraction x	0,458
Color value fraction y	0,410
R9 color rendering index value	1
Half angle equivalent	SPHERE_360
Service life factor	0,90
Displacement factor	0.70
LED light source replaces a fluorescent light source	No
EPREL ID	1368313
Model number	AC45786
