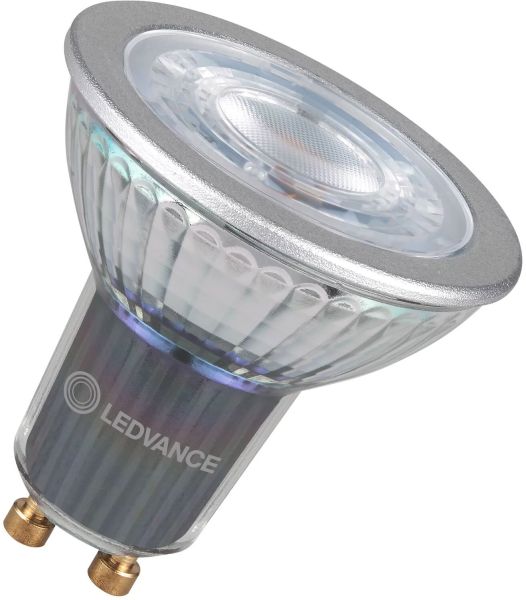

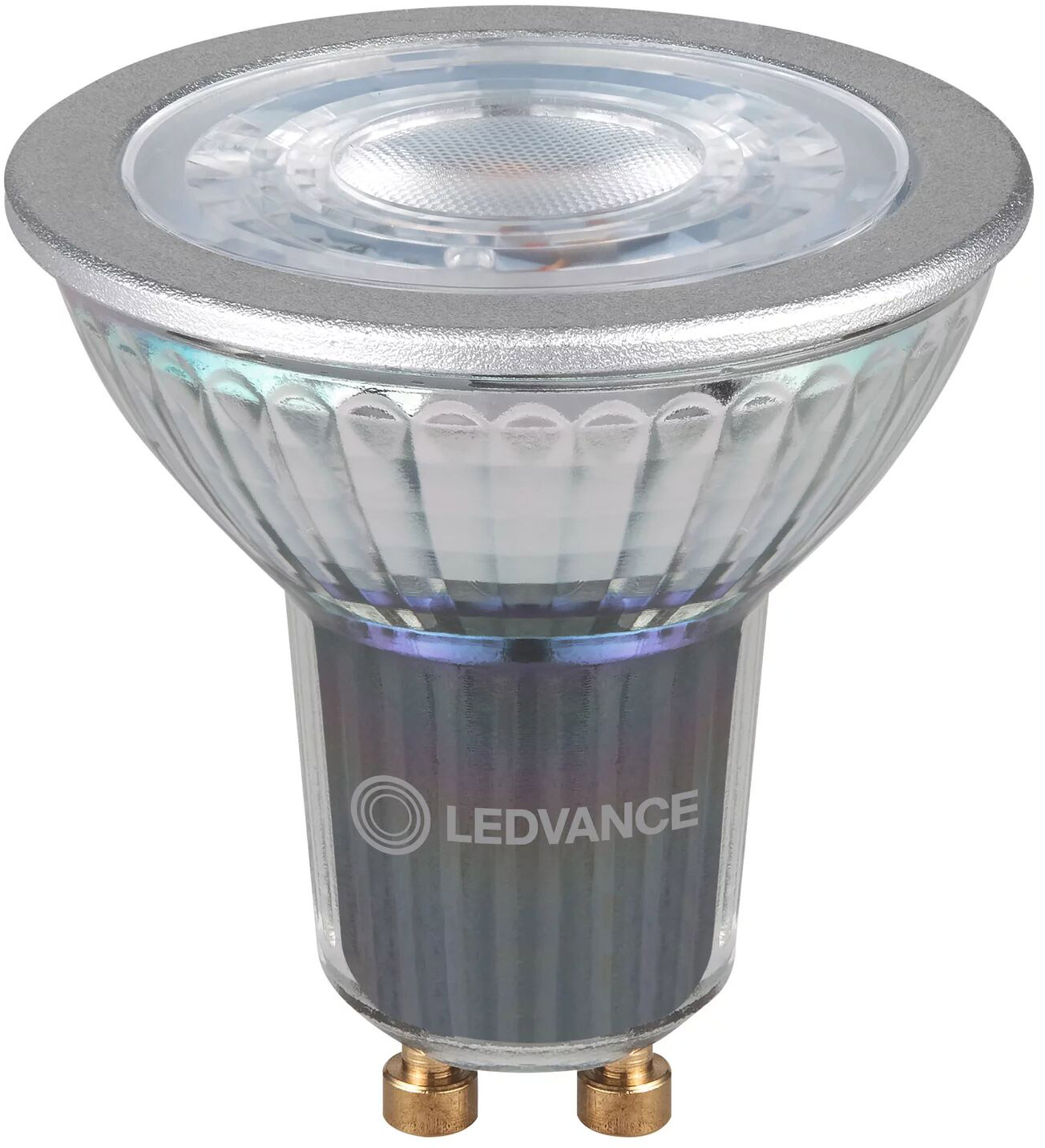

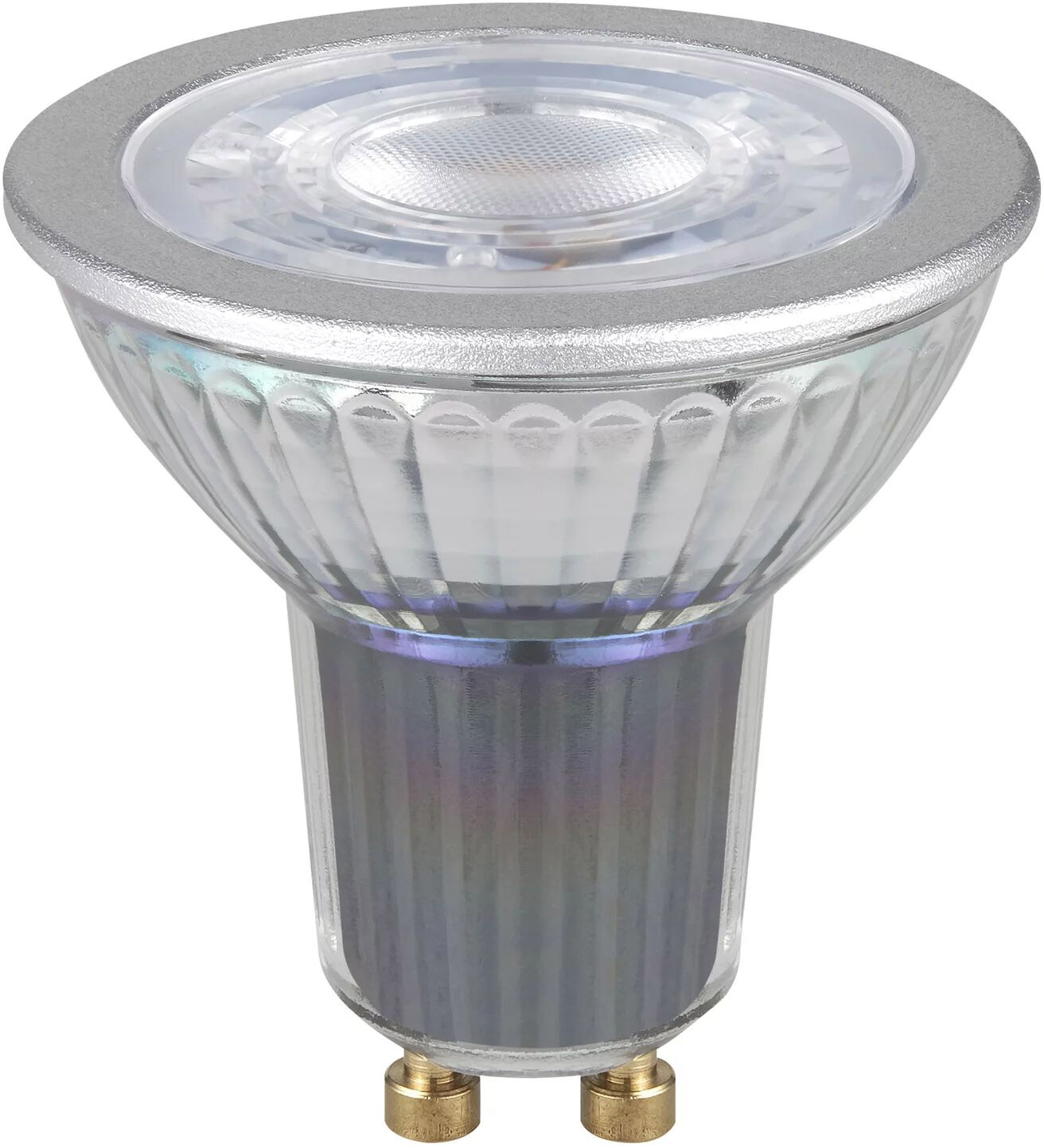

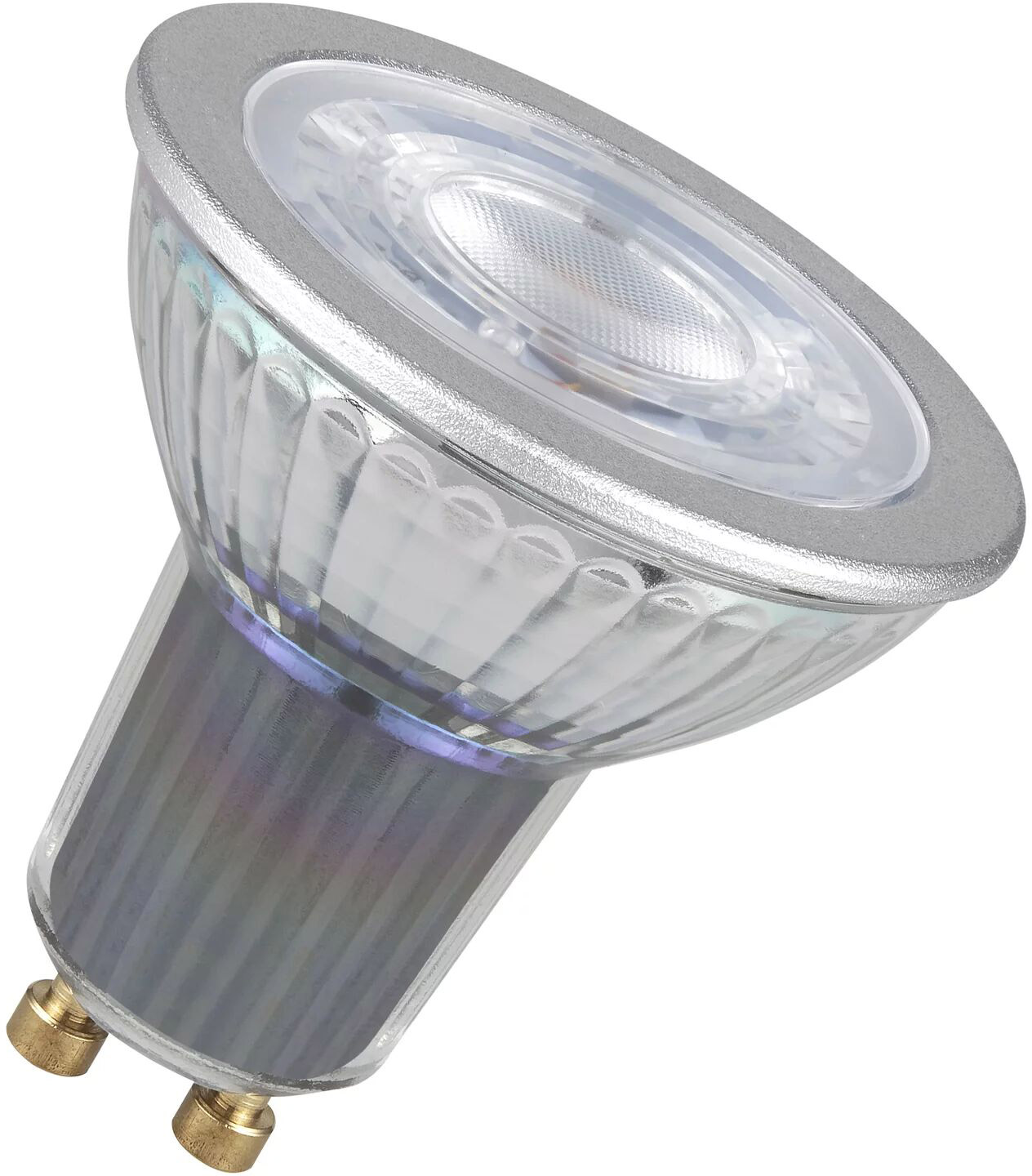

Ledvance LED PAR16 DIM S 9.5W 940 GU10
€9.27 *
incl. tax,
plus shipping costs
Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 101408750
EAN: 4099854070839
Product advantages
Simple, quick and safe lamp replacement without rewiring... more
All information about the product:
"Ledvance LED PAR16 DIM S 9.5W 940 GU10"
Product advantages
- Simple, quick and safe lamp replacement without rewiring
- Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
- Low maintenance due to long service life
- No near-UV and IR components in the light beam
- Stepless dimming
- Very high dimmer compatibility, see also www.ledvance.de/dim
- Instant 100 % light, no warm-up time
Technical data |
|
| Electrical data | |
| Rated power | 9,5 W |
| Rated power | 9.50 W |
| Nominal voltage | 220...240 V |
| Operating mode | Mains voltage |
| Power consumption of the conventional lamp | 80 W |
| Rated current | 52 mA |
| Type of current | Alternating current (AC) |
| Inrush current | 1,3 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. No. lamps on automatic fuse 10 A (B) | 102 |
| Max. No. lamps on automatic fuse 16 A (B) | 163 |
| Grid power factor ? | 0,70 |
| Photometric data | |
| Luminous intensity | 840 cd |
| Luminous flux | 575 lm |
| Nominal luminous flux 90° | 575 lm |
| Luminous efficacy | 60 lm/W |
| Luminous flux maintenance at the end of the rated service life | 0.70 |
| Light color (designation) | Cold white |
| Color temperature | 4000 K |
| Color rendering index Ra | 97 |
| Light color | 940 |
| Standard deviation of the color match | =3 sdcm |
| Rated peak luminous intensity | 840 cd |
| Rated LLMF at 6,000 h | 0.80 |
| Flicker measured variable (Pst LM) | 0.2 |
| Measured variable for stroboscopic effects (SVM) | 0.4 |
| Photometric data | |
| Beam angle | 36 ° |
| Warm-up time (60 %) | ' 0.50 s |
| Start time | < 0.5 s |
| Dimensions & weight | |
| Total length | 52.00 mm |
| Diameter | 50.00 mm |
| Maximum diameter | 50 mm |
| Product weight | 58,00 g |
| Temperatures & operating conditions | |
| Ambient temperature range | -20...+40 °C |
| Maximum temperature at measuring point tc | 105 °C |
| Service life | |
| Service life L70/B50 at 25 °C | 40000 h |
| Number of switching cycles | 100000 |
| Luminous flux maintenance at the end of maintenance | 0.70 |
| Rated lamp survival factor at 6,000 h | = 0.90 |
| Additional product data | |
| Base (standard designation) | GU10 |
| Mercury content of the lamp | 0.0 mg |
| Mercury-free | Yes |
| Note on the product | All technical parameters apply to the entire lamp. Due to the complex manufacturing process of light-emitting diodes, the typical values given for the technical LED parameters are purely statistical values that do not necessarily correspond to the actual technical parameters of each individual product, which may deviate from the typical value. |
| Possible applications | |
| Dimmable | Yes1) |
| Certificates & Standards | |
| Energy efficiency class | G1) |
| Energy consumption | 10.00 kWh/1000h |
| Protection class | IP20 |
| Standards | CE, EAC |
| Photobiological risk group according to EN62778 | RG1 |
| Country-specific information | |
| Order number | LED PAR168036 D |
| Data in accordance with the EU Energy Labelling Regulation 2019/2015 | |
| Lighting technology used | LED |
| Unfocused or focused light | DLS |
| Mains voltage / Not directly connected to the mains voltage | MLS |
| Socket of the light source (or other electrical interface) | GU10 |
| Networked light source (CLS) | No |
| Color-adjustable light source | No |
| Cover | No |
| Light source with high luminance | No |
| Anti-glare shield | No |
| Similar color temperature | SINGLE_VALUE |
| Power consumption in standby mode | 0 W |
| Power consumption in networked standby mode | 0 W |
| Indication of whether equivalent power consumption | Yes |
| Length | 52.00 mm |
| Height | 50.00 mm |
| Width | 50.00 mm |
| Color value component x | 0.379 |
| Color value component y | 0.369 |
| Value of the R9 color rendering index | 55 |
| Half-value angle correspondence | NARROW_CONE_90 |
| Service life factor | 0.9 |
| Displacement factor | 0.70 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 522992 |
| Model number | AC32729 |
