Designed for applications where size really matters, the ADJ Lighting Encore Profile Mini WW is... more

Back to the overview

All information about the product:

"ADJ Encore Profile Mini WW"

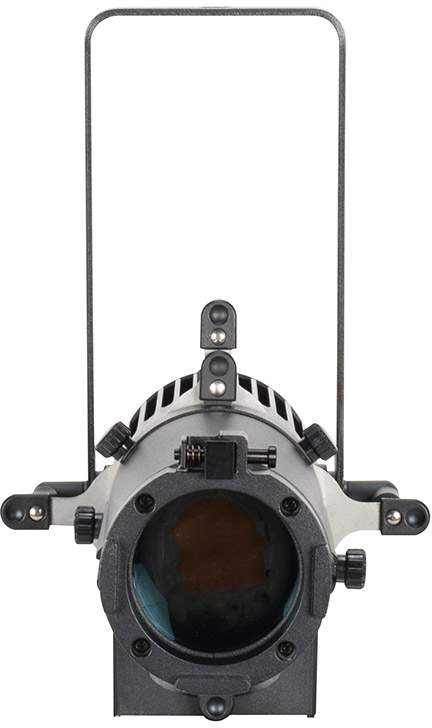

Designed for applications where size really matters, the ADJ Lighting Encore Profile Mini WW is a compact and versatile LED-powered ellipsoidal luminaire. It utilizes a potent 40W warm white LED engine with a 50,000-hour average life expectancy and 3000K color temperature. Its light is focused through precision-engineered optics to deliver a crystal-clear 900 Lumen output with an even field and extremely high CRI of >98.

Two compatible lens options are available (sold separately), which can be used to adapt the fixture depending on the beam angle required. Both lenses offer manual zoom, with the EP Mini Lens 1530 option offering a variable beam angle of 15° - 30° and the EP Mini Lens 2550 version providing wider options of 25° - 50°. The fixture can also be used to project GOBO patterns and is supplied with a holder for standard “E” size GOBOs (GOBOs sold separately).

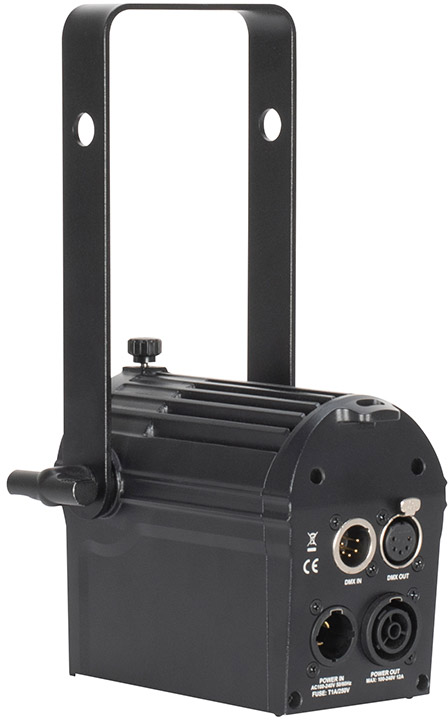

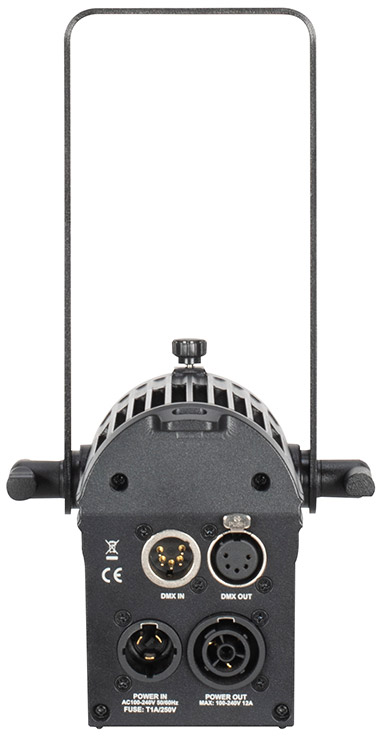

The Encore Profile Mini WW offers digital dimming with variable curves and a selection of dimming modes as well as variable speed strobing. It also supports adjustable refresh rates so that flicker can be avoided for filming applications. A convenient OLED menu display on the rear panel provides access to an intuitive menu interface for DMX addressing and configuration of the unit’s adjustable operating parameters and it is supplied with a variable angle hanging bracket that locks securely into place using a pair of large thumb tightening screws.

Technical data:

Source:

40W Warm White LED Engine
50,000 Hour Average LED Life* *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data:

>98CRI 900 Total Lumens
3000K Color Temperature

Effects:

Electronic Strobe and Dimming
Variable Dimming Curves and Dimming Modes

Gobos:

Supports “E” Size
GOBO Holder is included
GOBOs are sold separately

Control:

(3) DMX Channel Modes (1 / 3 / 4)
Adjustable Refresh Rates (900-1500, 25,000 Hz)
4 Button Control Panel
OLED Menu Display
RDM (Remote Device Management)

Connections:

Locking 5pin XLR Connector In/Out
Locking Power Connector In/Out

Dimensions & Weight:

Length: 153mm (Without lens)
Width: 144mm
Height: 273mm
Weight: 1.65 kg

Electrical & Thermal:

Convection Cooled
AC 100-240V - 50/60Hz
45.7W Max Power Consumption @ 230V
Power Linking: 53pcs Max @230V
Minimum and Maximum Ambient Temperatures: -10° to 45°C

Approvals & Ratings:

CE | cETLus (Pending) | IP20

Included items:

(1) Locking Power Cable

Accessories:

EP Mini Lens 1530 (15° - 30° Manual Zoom Lens)
EP Mini Lens 2550 (25° - 50° Manual Zoom Lens)
