Matrix spotlight with RGB/WW LEDs, Pixel control & macros for sequences, letters and numbers... more

All information about the product:

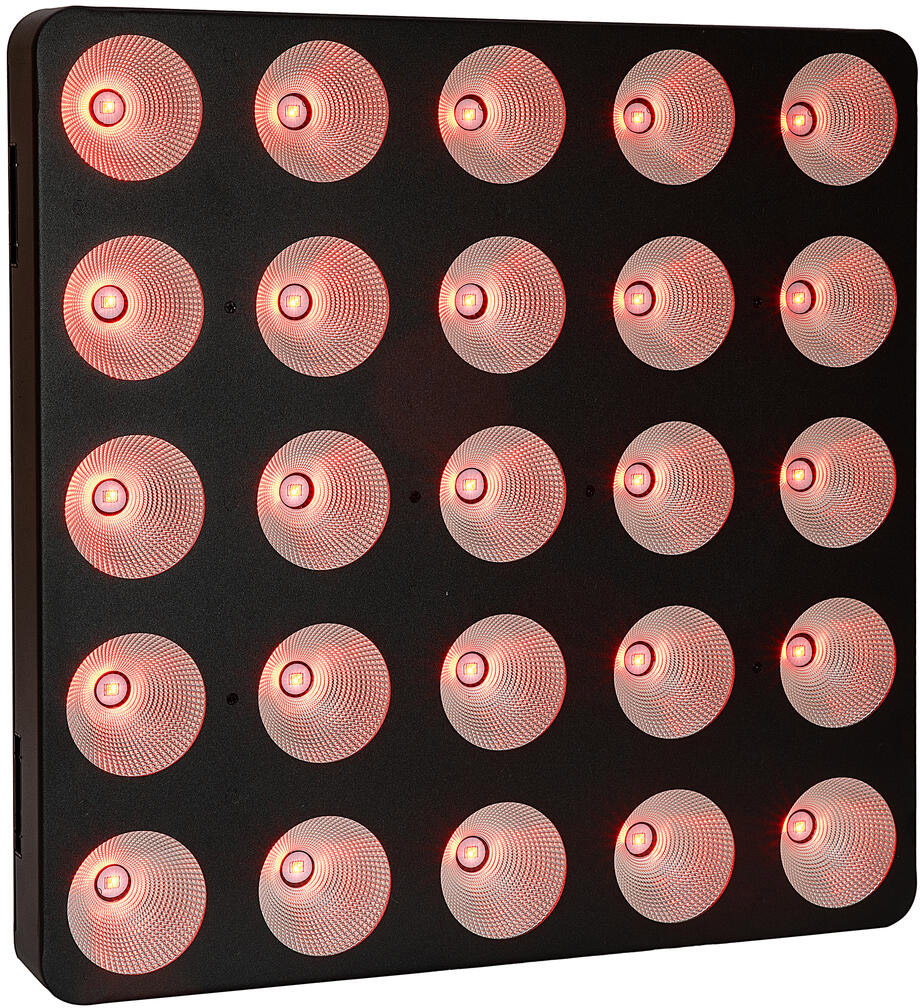

"EUROLITE LED Pixel Matrix Panel 5x5 RGB/WW"

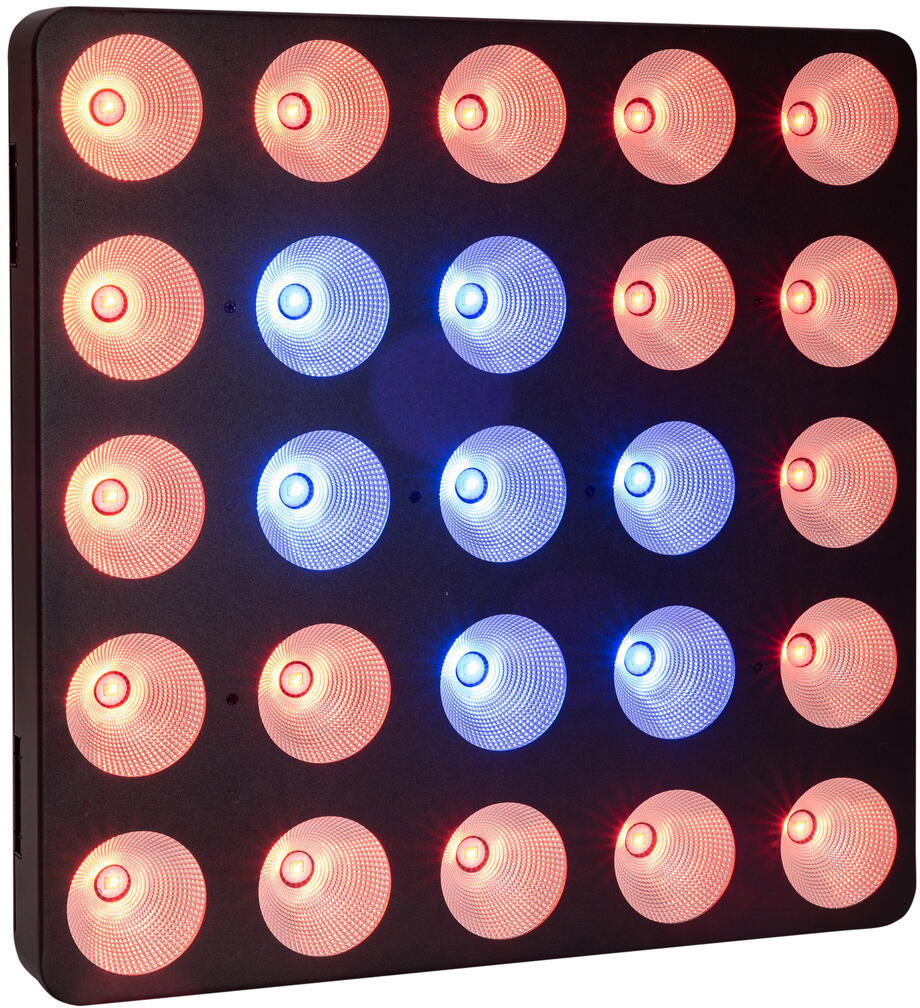

Matrix spotlight with RGB/WW LEDs, Pixel control & macros for sequences, letters and numbers

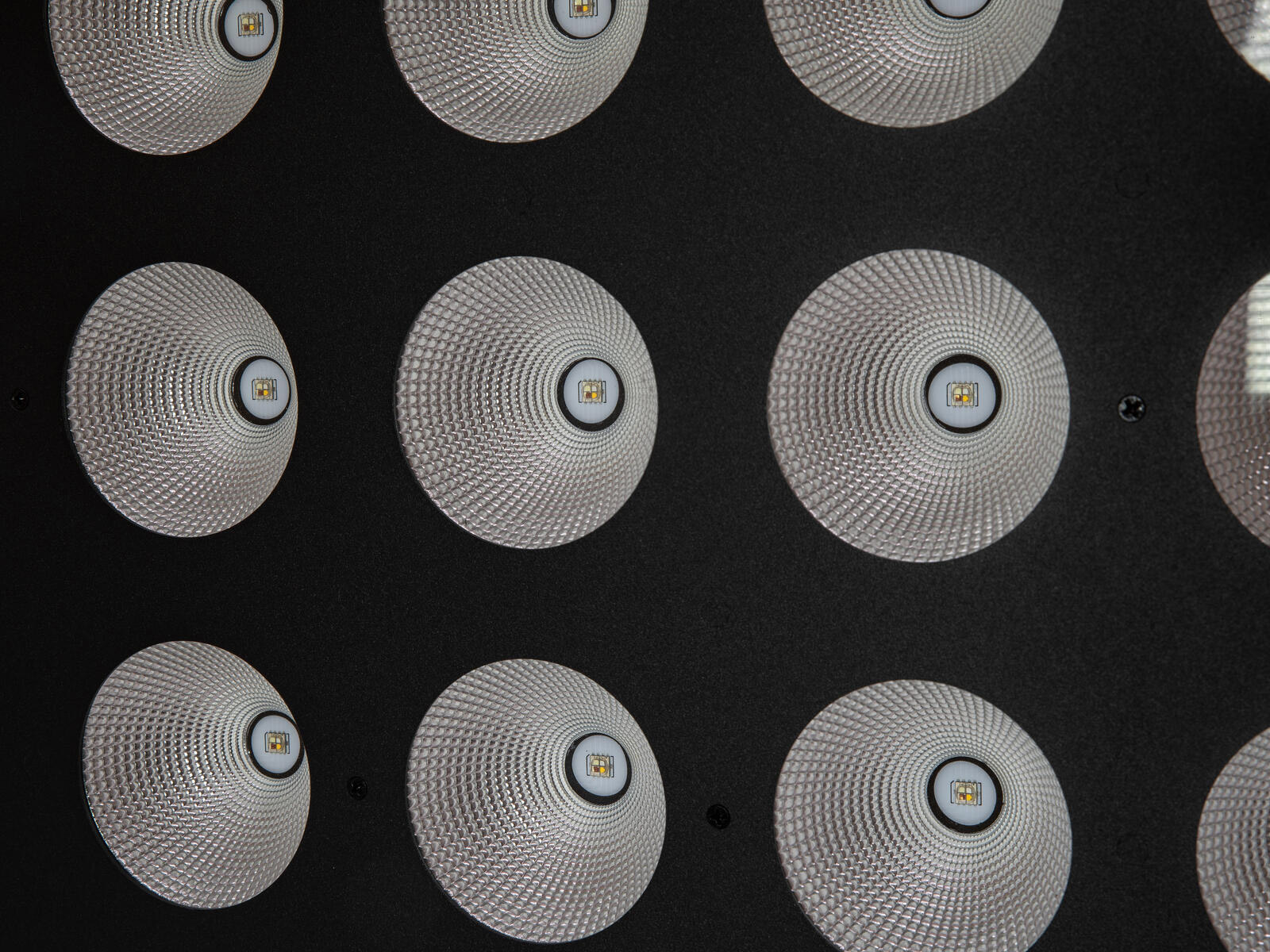

25 powerful LEDs 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
LEDs controlled separately

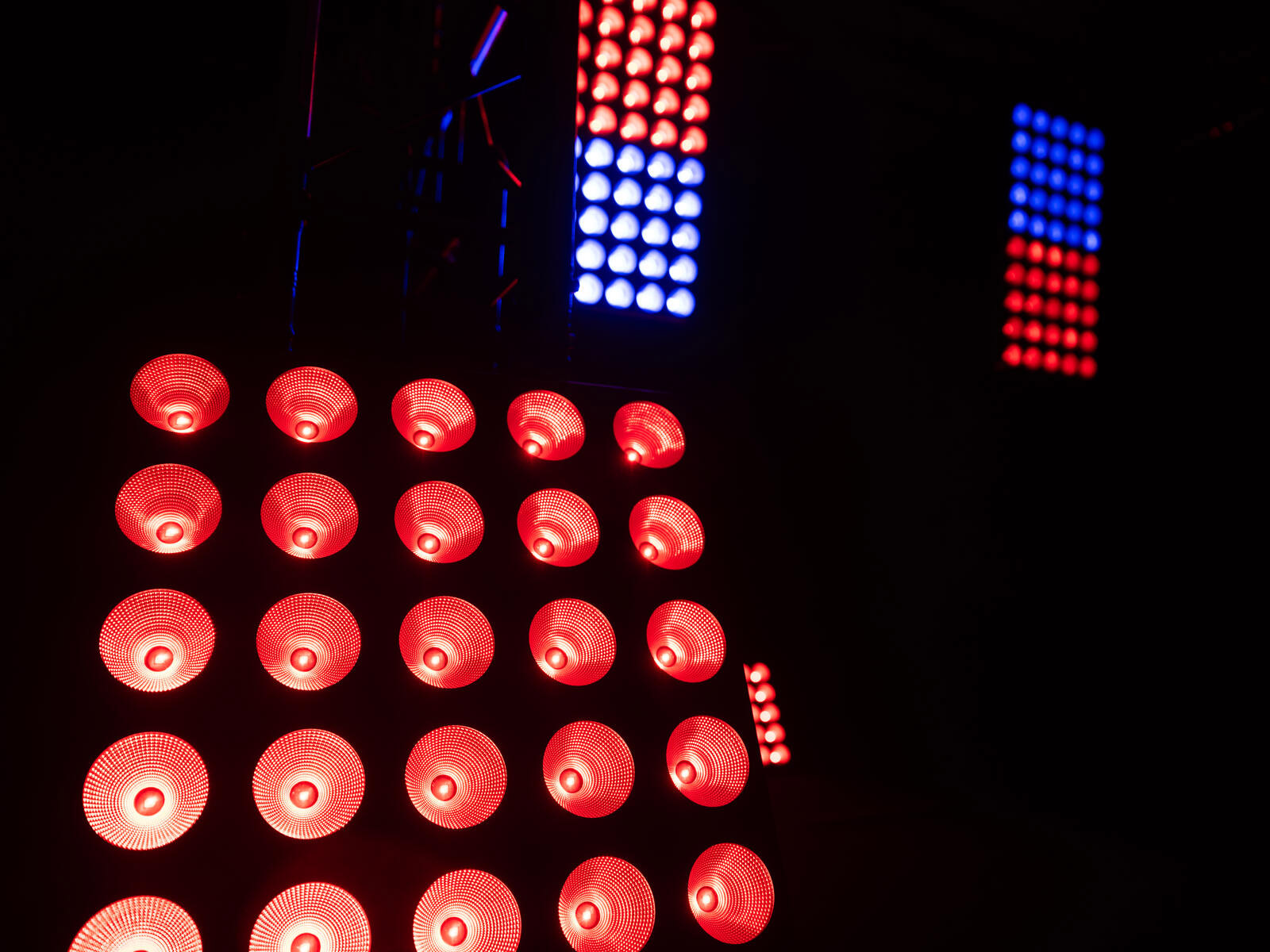

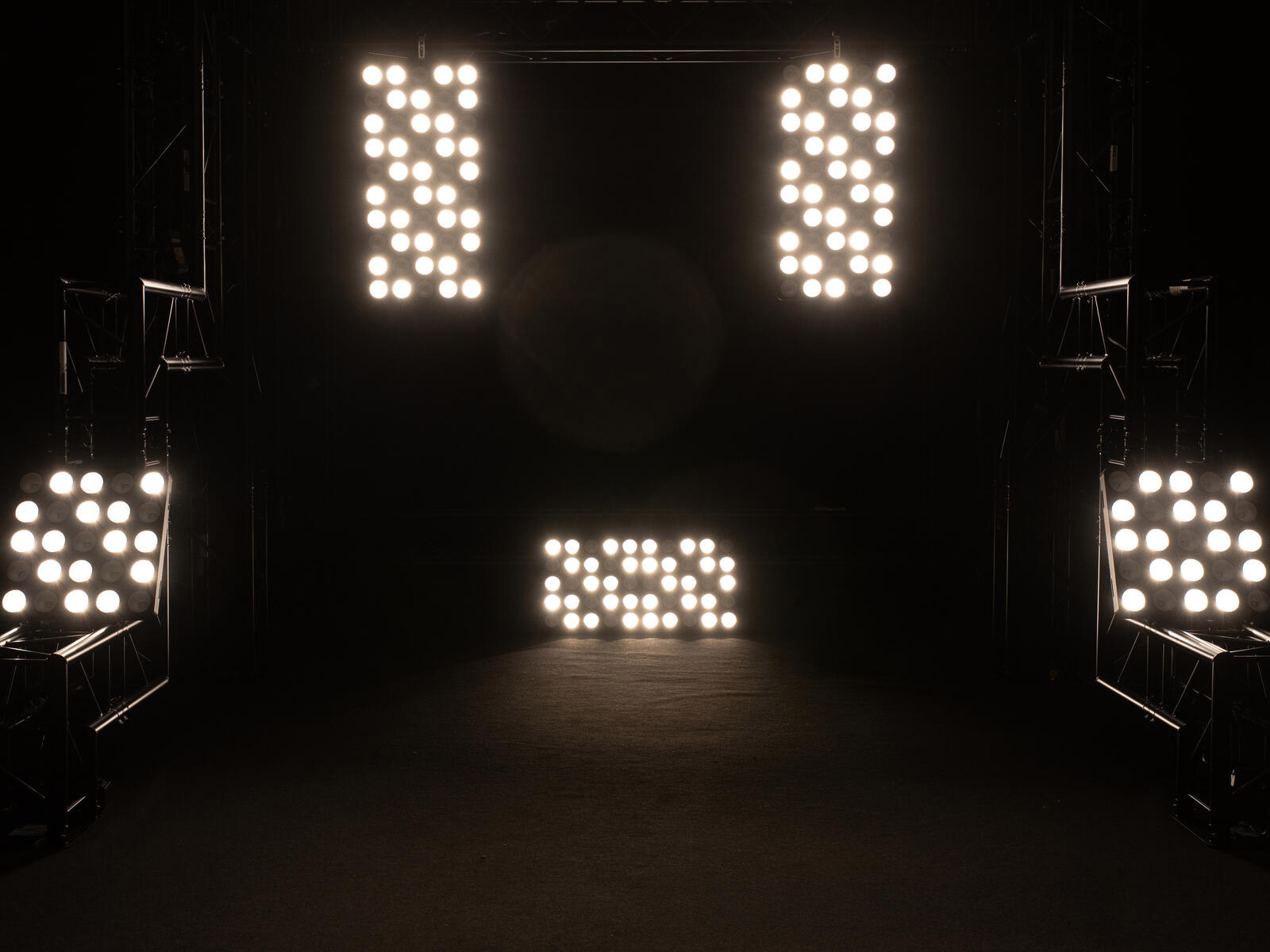

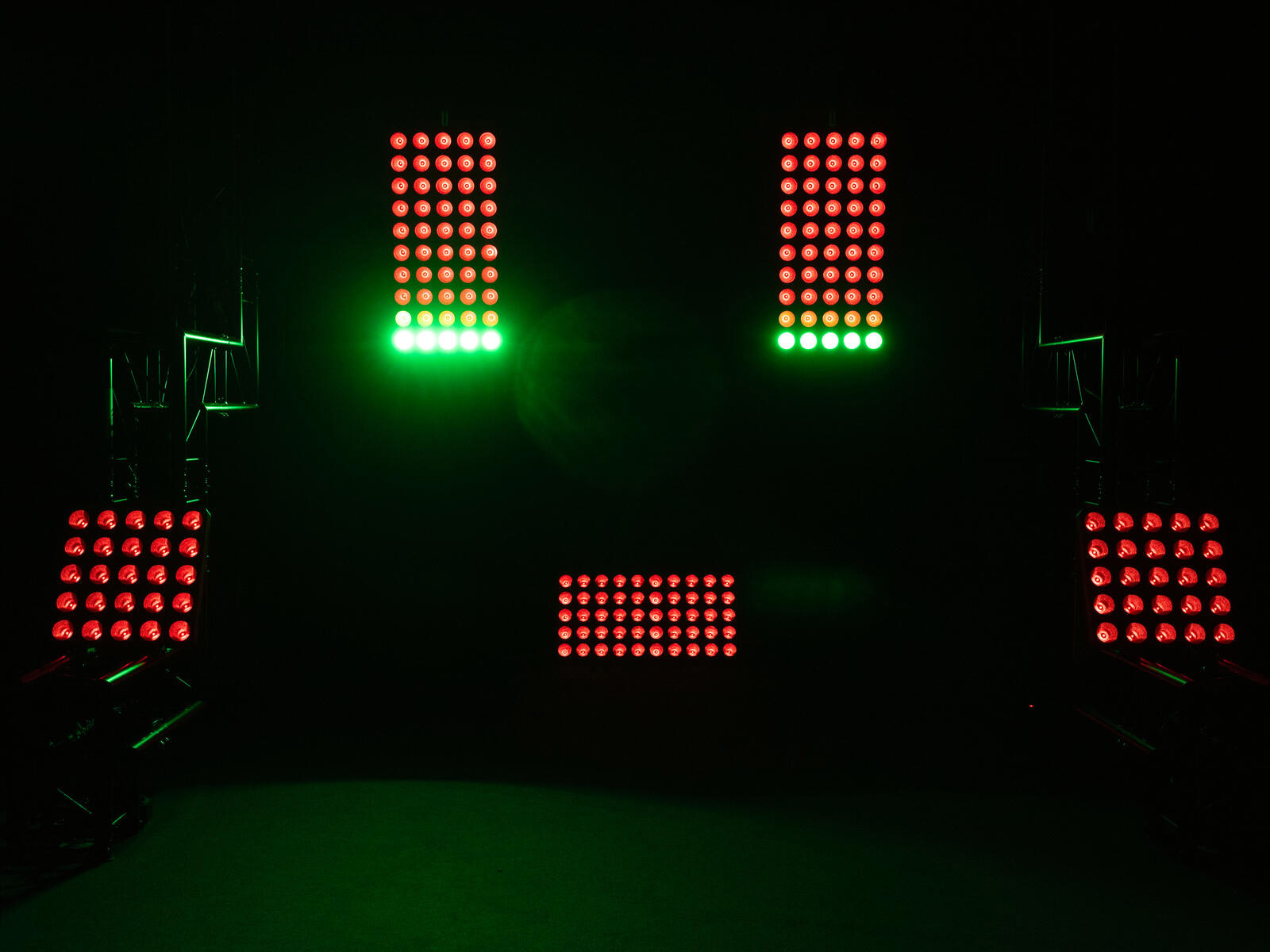

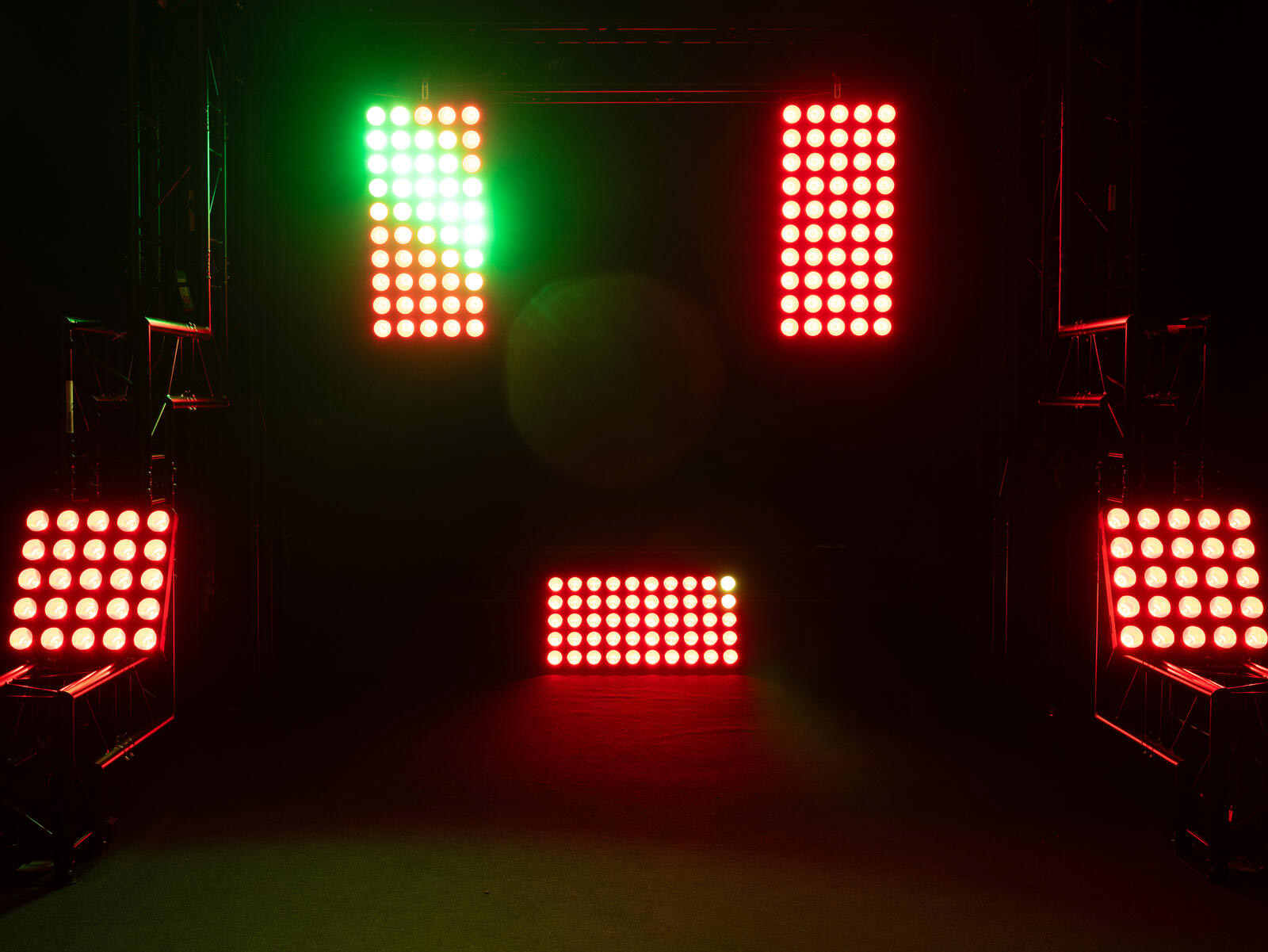

Create sensational light effect surfaces by connecting several devices

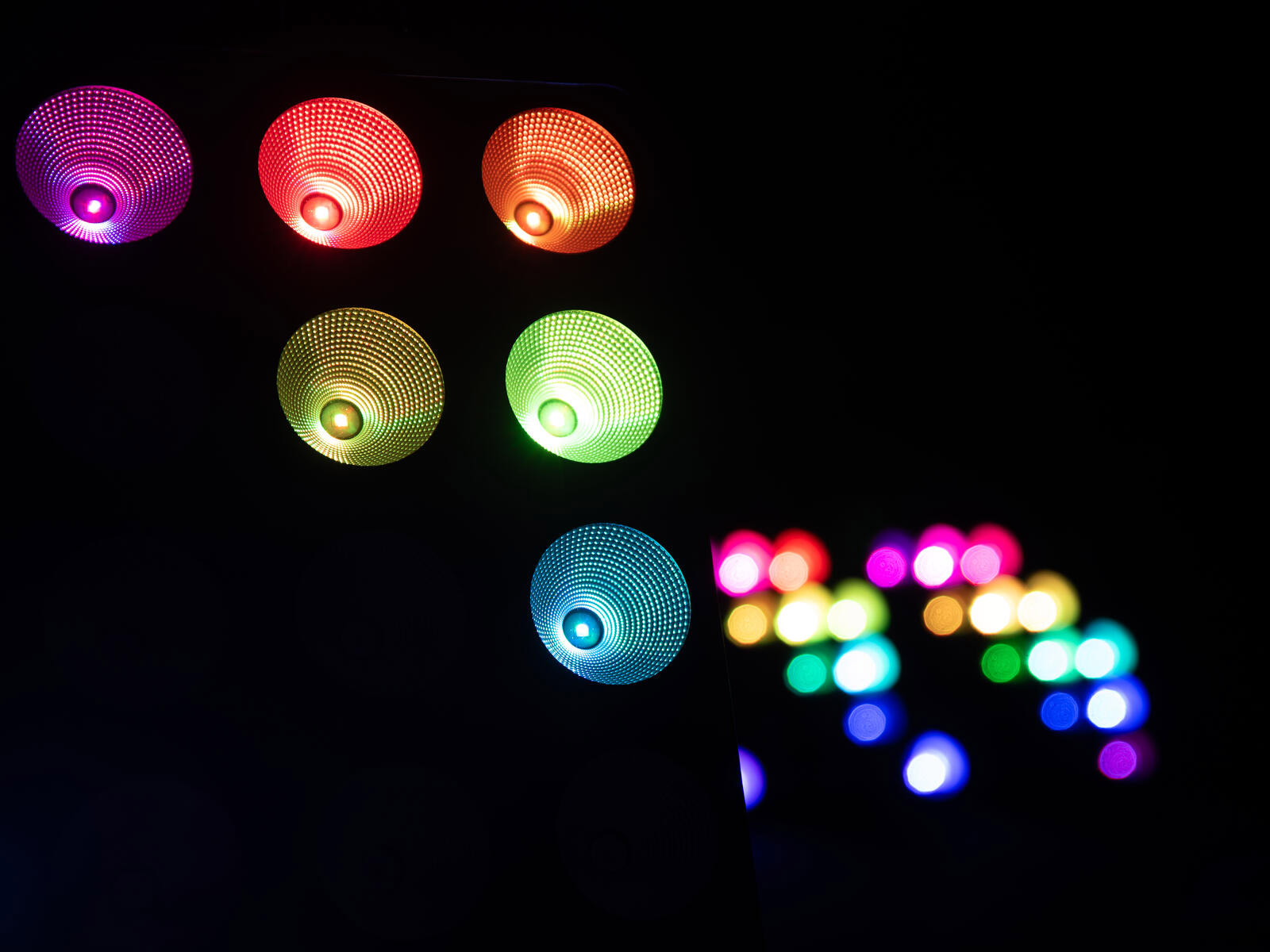

Color change; color fade; foreground color adjustable; background color adjustable; color macros adjustable; Dimmer electronic
Blinder effect; matrix effect; strobe effect
9 integrated show programs
The device is cooled by temperature-controlled fan
Control via DMX; stand-alone; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; sound to light; master/slave function
Flicker-free
DMX fail mode (hold; blackout)
With a beam angle of 45°
With mounting bracket
Multicolor LCD display
Mains input and output for power linking up to 8 units
For application areas such as: Wedding/gala/events; mobile use; stage; rental
Very quiet working noise
Application possibility: Standing; suspended; on stand
Preprogrammed in Light Captain

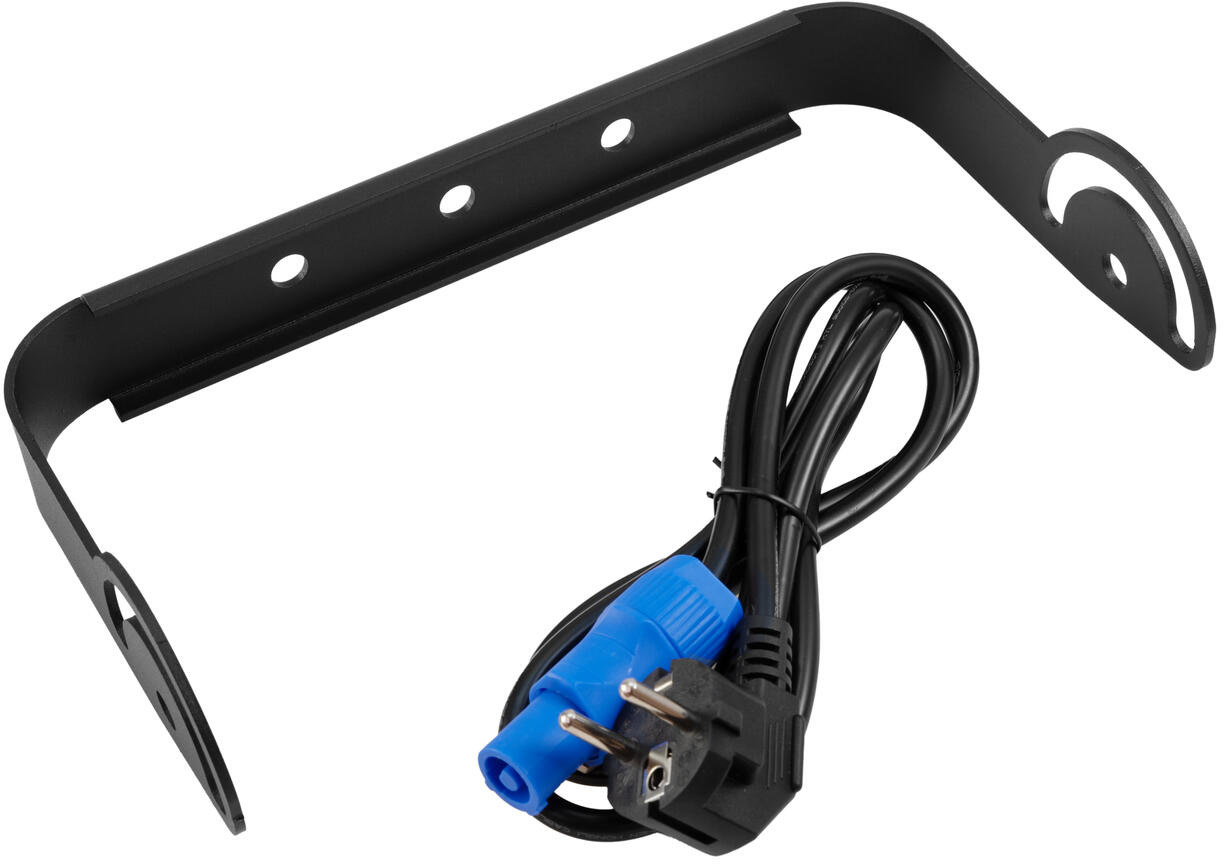

Package contents

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	115 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version
Cable construction:	3 x 1,0 mm² H05VV-F
Cable length:	1,45 m
Power output:	1 x P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A fuse replaceable
Lamp type:	LED lamp
LED type:	25 x 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
DMX channels:	4; 10; 15; 100; 102
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Network connection:	Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version
Cooling:	Temperature-controlled fan
Control:	DMX; stand-alone; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; sound to light; master/slave function
Preprogrammed in:	Light Captain
Projection:	Flicker-free
DMX fail mode:	Hold; blackout
Beam angle:	45°
Beam angle (1/2 peak):	45°
Beam angle (1/10 peak):	82°
Housing color:	Black
Attachment system:	Mounting bracket

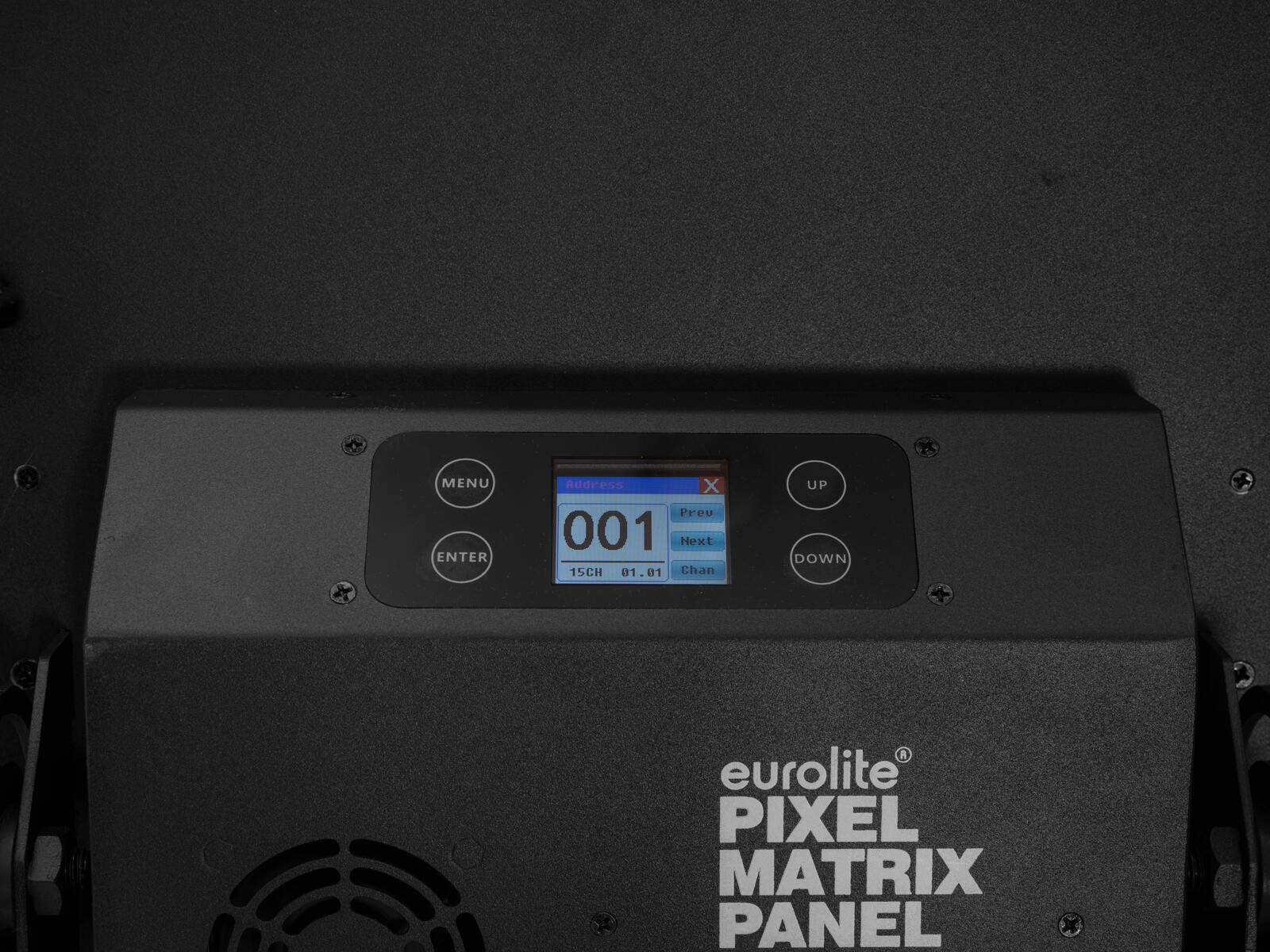

Display type:	Multicolor LCD display
USB port:	Type A
Diameter mounting holes:	3 x Ø10mm
Material:	Metal
Dimensions:	Width: 45,0 cm Depth: 10,6 cm Height: 45,0 cm
Weight:	9,00 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
