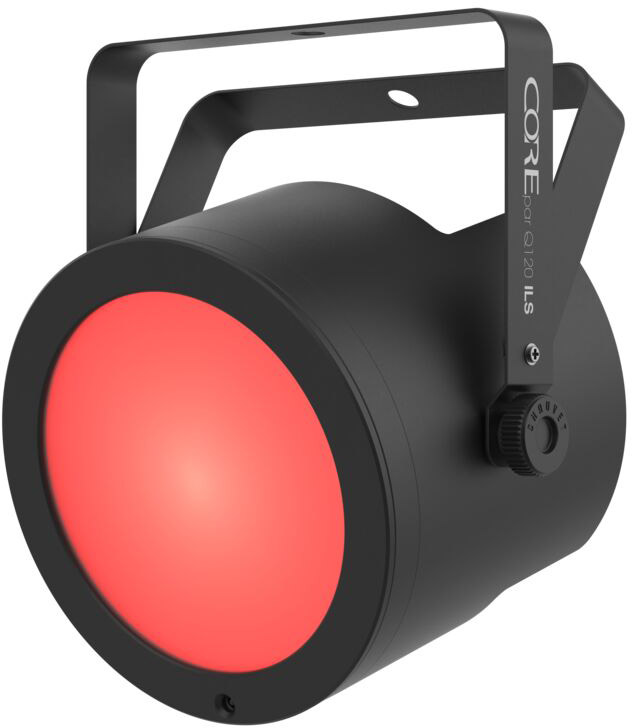

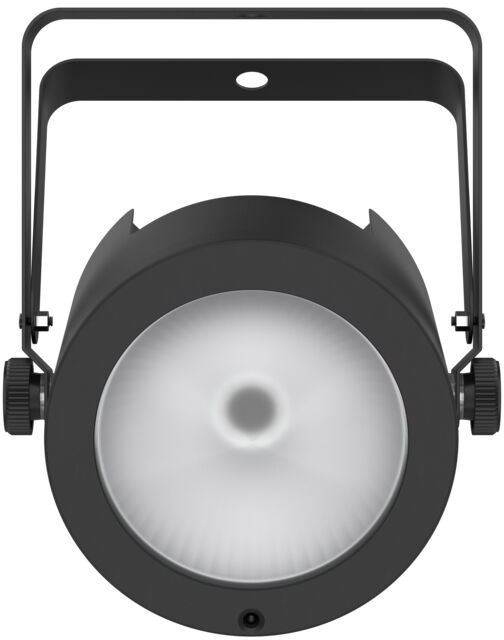

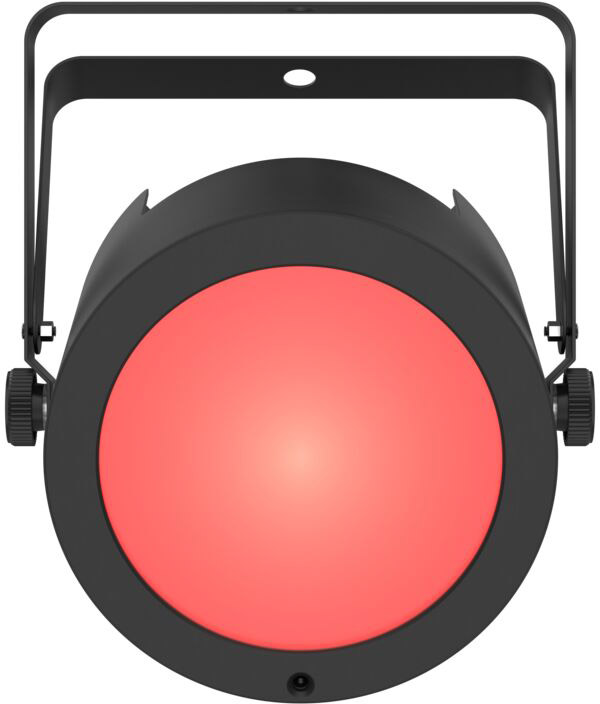

Chauvet DJ COREpar Q120 ILS

COREpar Q120 ILS

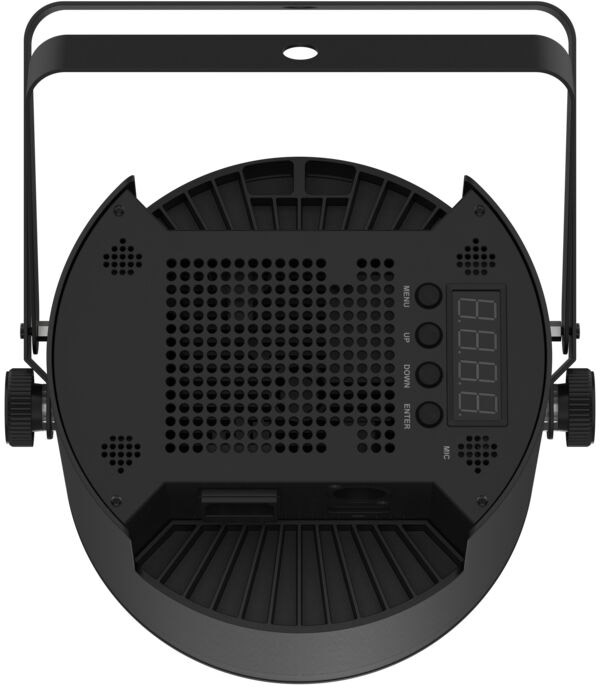

The COREpar Q120 ILS is a 120-watt quad-color LED with four colors (RGBW) and COB (chip-on-board) that produces a full spectrum of light with unsurpassed color mixing. The robust housing withstands the rigors of transportation from gig to gig. The low-profile housing design hugs the floor and features power and DMX connectors on the side of the fixture for easy connections. Powerful features of the COREpar Q120 include ILS compatibility, which makes creating coordinated light shows with different types of fixtures as easy as ABC. D-Fi USB compatibility is also on board for wireless master/slave or DMX control. The included magnetic Fresnel lens provides the flexibility to switch from an extremely wide to a narrow beam in seconds, allowing for flicker-free video recording. With the built-in LED display, you can create individual colors and achieve smooth LED fading with the built-in dimming curves.

Highlights

• COB LED (chip-on-board) generates a complete light spectrum with unsurpassed color mixing
• ILS compatibility for use in the ILS system
• D-Fi USB compatibility for wireless master/slave or DMX control
• The included magnetic Fresnel lens offers the flexibility to switch from an extremely wide to a narrow beam of light in a matter of seconds
• The robust housing withstands the rigors of transportation
• The flat housing design hugs the floor and has power and DMX connections on the side of the device
• Flicker-free video recording with high-frequency LED dimming
• Saves time when laying cables and extension cables by connecting several devices together
• Easy control of static colors and automated programs with the optionally available IRC-6 remote control
• The included magnetic Fresnel lens offers the flexibility to switch from an extremely wide to a narrow beam of light in a matter of seconds
• Smooth fading of the LEDs with integrated dimming curves
• Easy transportation in the optionally available CHS-40 VIP Gear Bag

Specifications

• DMX channels: 4 or 9
• DMX connections: 3-pin XLR
• Light source: 1 COB LED (four-color RGBW) 120 W, (6.9 A), 50,000 hours life expectancy
• Strobe rate: 0 to 29 Hz
• Beam angle:
  (without lens): 56°
  (with lens): 20°
• Field angle:
  (without lens): 100°
  (with lens): 30°
• Illuminance:
  (without lens) : 868 lux @ 2 m
  (with lens) : 4,639 lux @ 2 m
• Power linking: 6 units @ 120 V; 10 units @ 230 V
• Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and electricity:
  100 W, 1.3 A @ 120 V, 60 Hz
  94 W, 0.7 A @ 230 V, 50 Hz
• Weight: 2.1 kg
• Size: 225 x 188 x 228 mm
• Approvals: CE, RoHS, UKCA
• Color temperature range: 2700 K - 6000 K
• Cable length: 1.5 m
• Mounting hole for bracket: 13 mm

Included in the scope of delivery

• Headlight
• Power cable
• Magnetic lens
• Quick guide
