EUROLITE Set 4x LED 4C-7 Silent Slim Spot + USB QuickDMX + Case

€1,072.58 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120033880
EAN: 4026397690996
MPN: 20000856
EUROLITE LED 4C-7 Silent Slim Spot Silent 4in1 LED spotlight with RGBW color mixture Flat... more
All information about the product:
"EUROLITE Set 4x LED 4C-7 Silent Slim Spot + USB QuickDMX + Case"

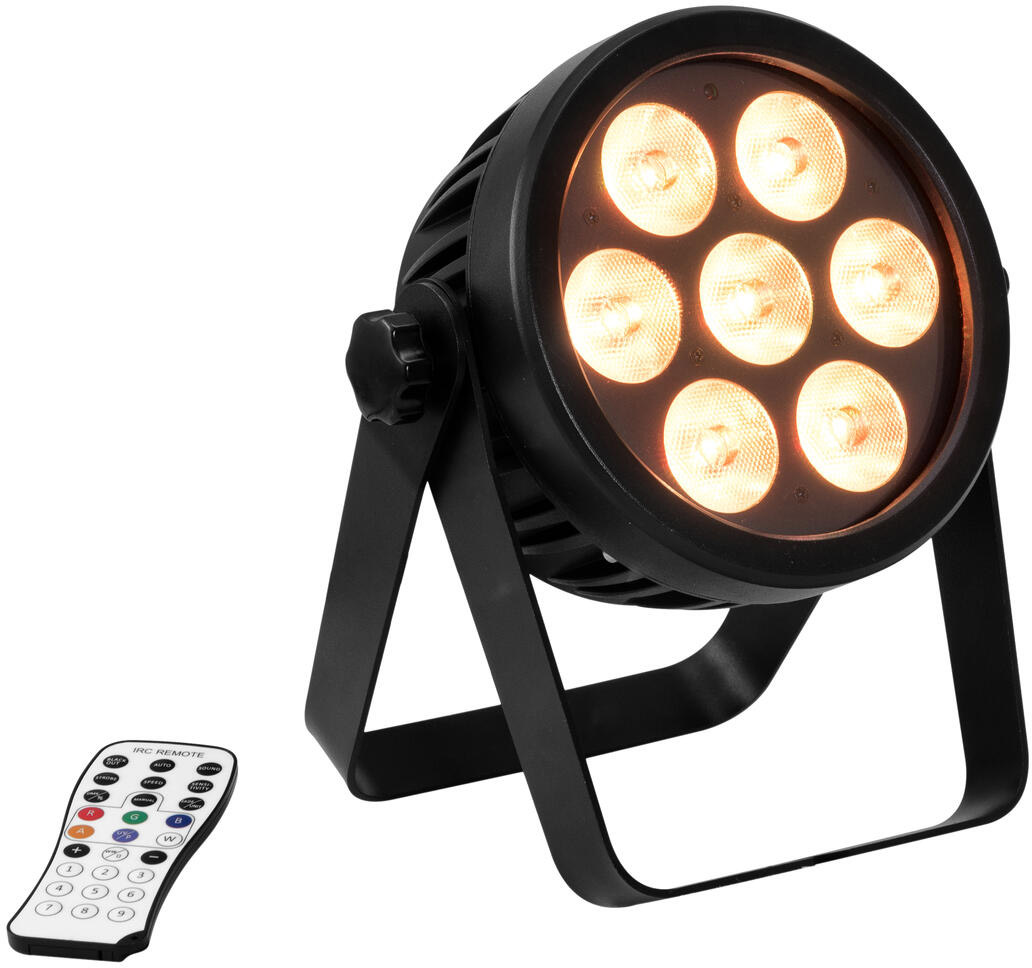

EUROLITE LED 4C-7 Silent Slim Spot
Silent 4in1 LED spotlight with RGBW color mixture
- Flat version requires minimal space when mounting
- 7 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
- 9 integrated show programs
- Direct color selection for 19 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; IR remote control; DMX; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function
- With a beam angle of 16°
- With double bracket
- 4 digit 7-segment LED display
- Color blend stepless; Dimmer electronic
- Strobe effect
- Silent operation
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; Light´J; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery

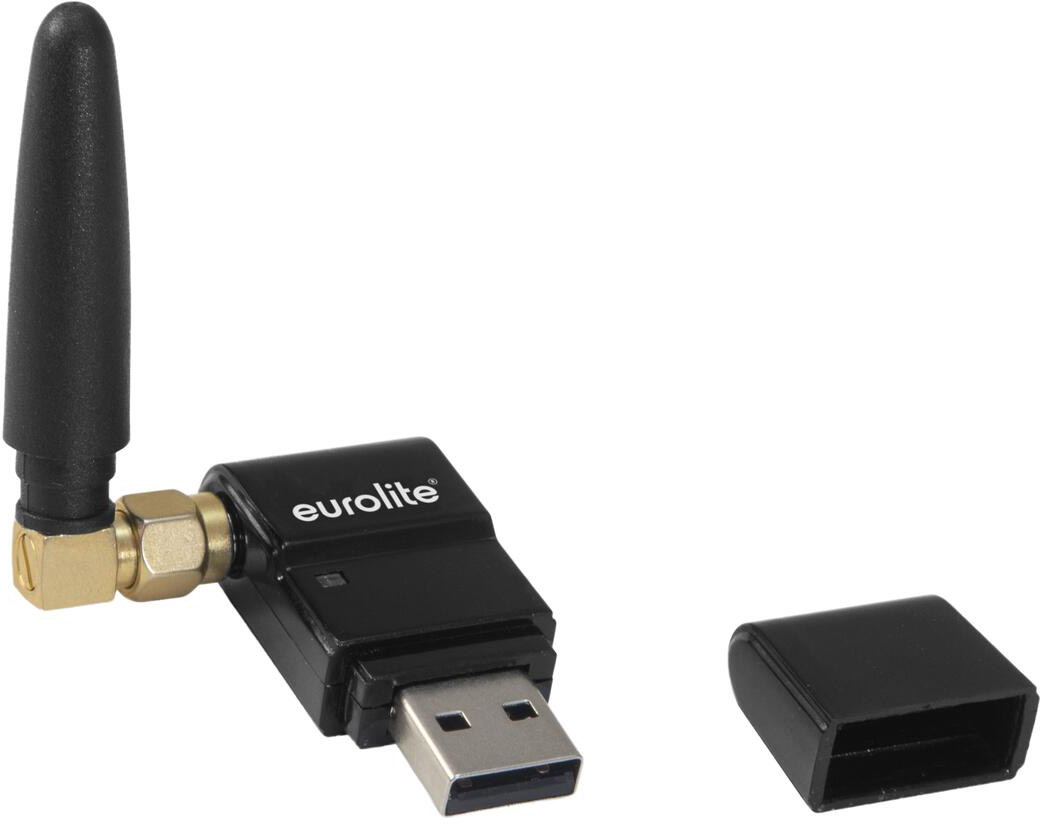

EUROLITE QuickDMX USB Wireless Transmitter/Receiver
Wireless miniature DMX transceiver 2.4 GHz, phantom powered
- User-friendly USB plug with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via DMX; QuickDMX; plug and play
- Operating range up to 400m with line-of-sight
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity

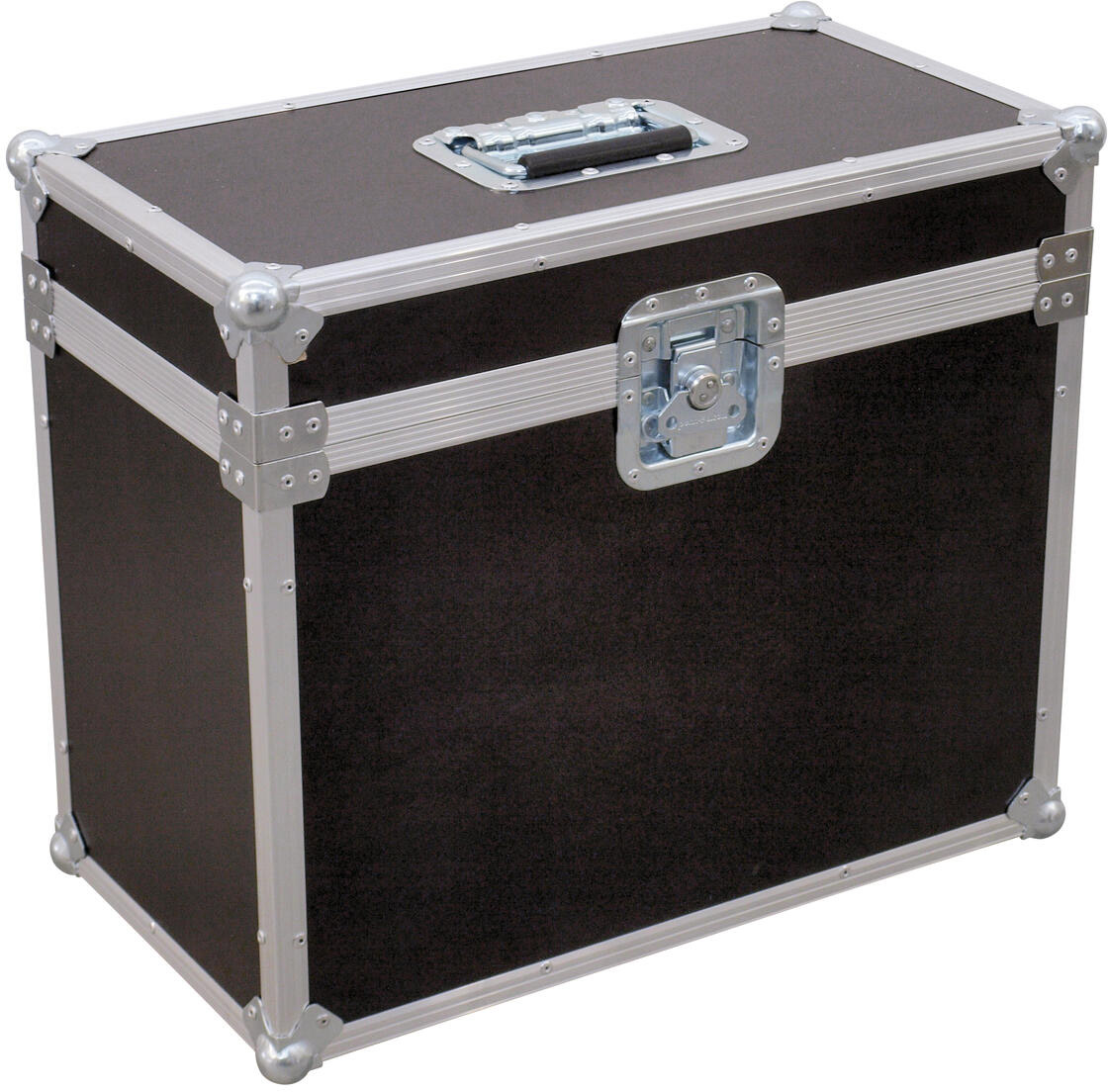

ROADINGER Flightcase 4x SLS Size M
PRO flightcase for 4 x SLS spotlight
- Individually adjustable and removable dividers for universal use
- With 4 Device compartments
- High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
- Interior with foam padding
- Aluminum profile frames 30mm with rounded edges
- Hinged, chromium plated case handle
- 2 chrome tip-over locks
- 1 high-quality butterfly lock
- Branded hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
Weight: | 18,11 kg |
EUROLITE LED 4C-7 Silent Slim Spot | |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 40 W |
IP classification: | IP20 |
Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output: | 1 x P-Con (gray), mounting version |
Lamp type: | LED lamp |
LED: | 7 x 8 W high-power 4in1 QCL RGBW (homogenous color mix) |
Flash rate: | 1 - 20 Hz |
DMX channels: | 3; 4; 5; 6; 9 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | Passive convection cooling |
Control: | Stand-alone; IR remote control; DMX; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function |
Preprogrammed in: | LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; Light´J; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
Beam angle: | 16° |
Beam angle (1/2 peak): | 16° |
Beam angle (1/10 peak): | 35° |
Housing color: | Black |
Attachment system: | Double bracket |
Display type: | 4 digit 7-segment LED display |
Dimensions: | Width: 24,5 cm Depth: 11 cm Height: 25,5 cm |
Weight: | 2,60 kg |
Noise classification: | Class 0 (no noise at all) |
Photobiological safety: | Risk Group 0 |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
EUROLITE QuickDMX USB Wireless Transmitter/Receiver | |
Power supply: | 5 V DC |
IP classification: | IP20 |
Power connection: | Mains input via USB A (M) connectable version |
DMX channels: | Input 512 Output 512 |
DMX output: | 1 x USB, type A |
Control: | DMX; QuickDMX; plug and play |
Carrier frequency: | 2,4 GHz |
Modulation: | GFSK |
Parallel mode: | Max. 6 transmitter |
Range: | Range up to 400m with line-of-sight |
Color: | Black |
Dimensions: | Width: 8,6 cm Depth: 4 cm Height: 1,1 cm |
Weight: | 10 g |
ROADINGER Flightcase 4x SLS Size M | |
Maximum load: | 25 kg |
Aluminum profile frames: | 30 mm |
Case handles: | 1 pc/pcs |
Stop hinge: | 2 pc/pcs |
Lock: | Butterfly lock: 1 pc/pcs |
Use of brands: | Branded hardware |
Material: | Birch multiplex, 7 mm |
Color: | Dark brown, laminated |
Compartment dimensions: | 12 cm x 25 cm x 35,5 cm |
Inside dimensions: | 49,5 cm x 25 cm x 35,5 cm |
Dimensions: | Width: 52,5 cm Depth: 28,5 cm Height: 44,5 cm |
Weight: | 7,65 kg |
