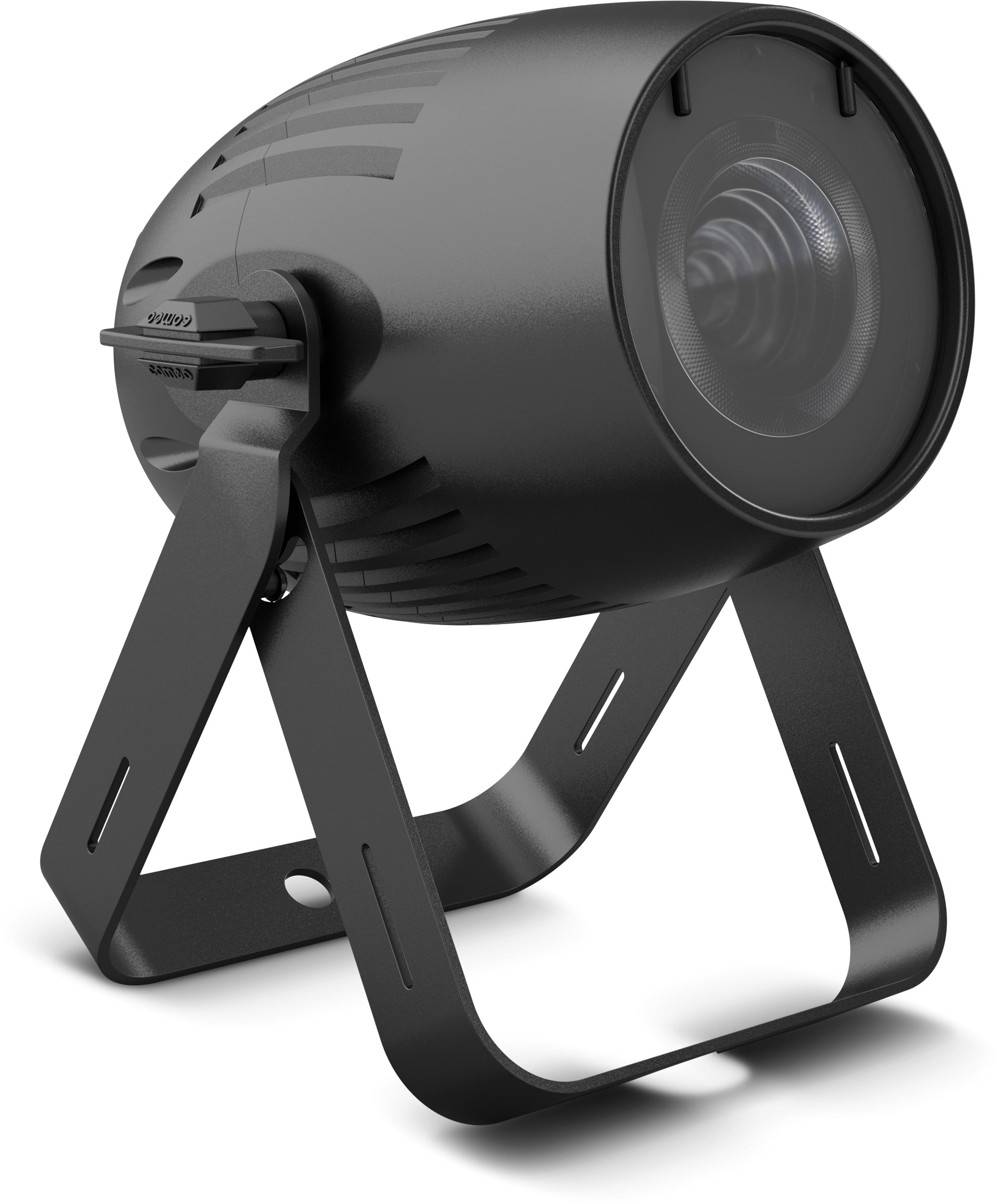

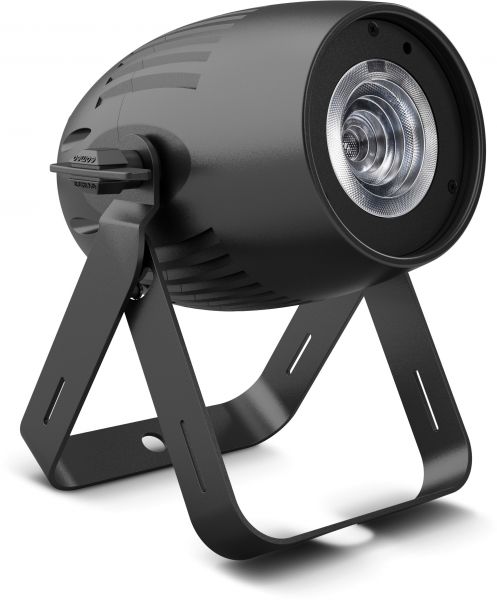

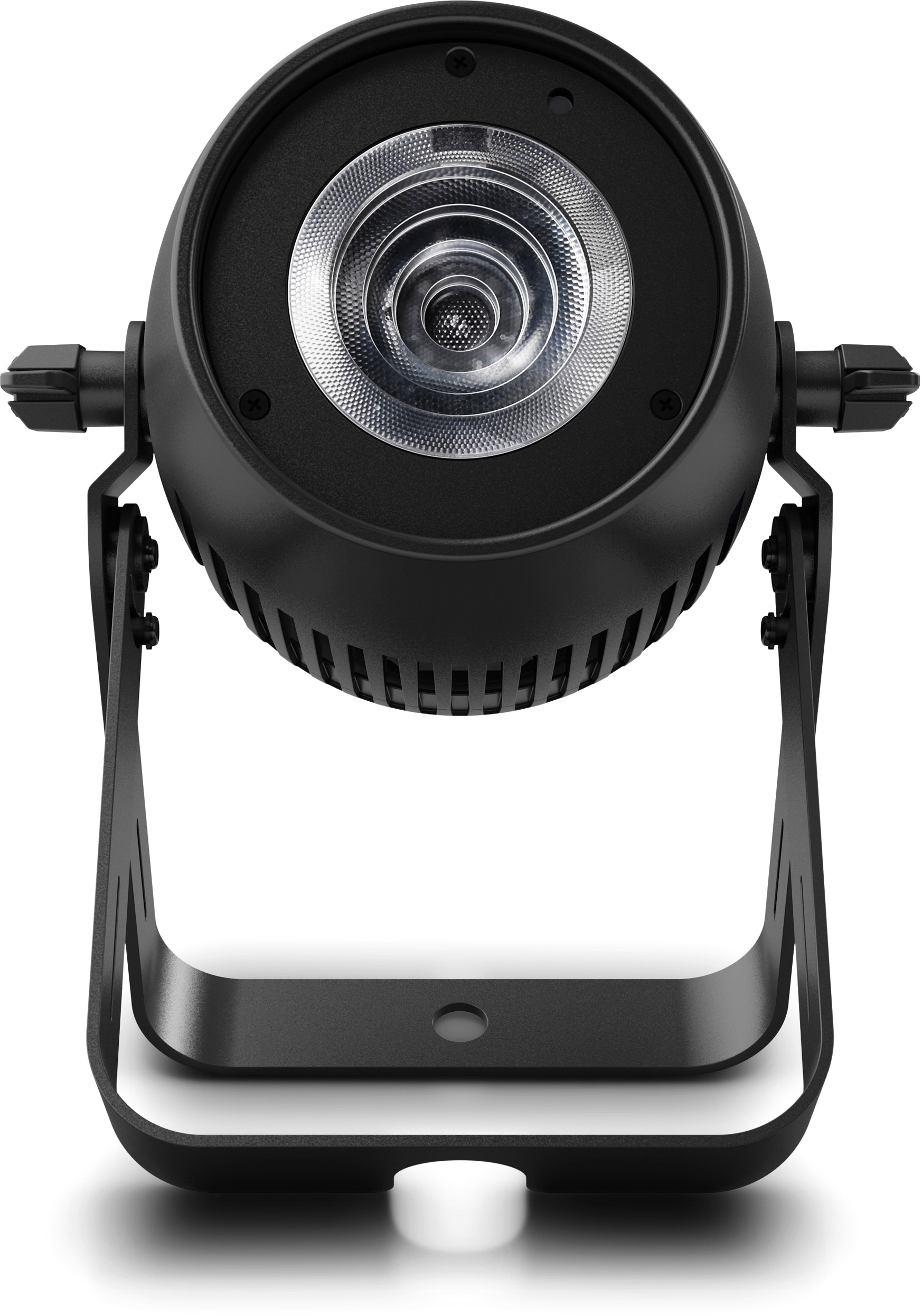

Cameo Q-SPOT 40 TW - Compact Spot with 40 W Tunable White LED Finished in Black
- Compact LED spot light with single 40W tunable white LED
- White temperature adjustable between 3,200 K and 6,800 K
- Custom lens with 4.5° beam spread for uniform light intensity
- Includes 2 replacement lenses for 10° or 25° beam angles
- RDM enabled
- 16-bit technology for ultra smooth dimming
- Flicker free, ideal for motion picture and TV applications
- 4 high resolution dimming curves with adjustable response
- DMX control, sound activation plus master, slave and standalone capability
- 4-button OLED display for easy configuration
- Convection cooling for noiseless performance
- Infrared remote control available as accessory
This compact Cameo Q-Spot is equipped with a powerful 40 watt tunable white LED that has a 50,000 hour life expectancy and lets you vary the white temperature from 3,200 to 6,800 K. This allows perfect adjustment from warm and soft to cool and ultra bright to cover all scenarios that require white light. The RDM enabled PAR light sports a custom lens for a tightly focussed 4.5° beam spread and comes with two replacement lenses offering versatility with a choice of 10° and 25° angles. Using 16- bit technology, the fixture provides ultra smooth dimming with selectable curves and response. Highly efficient convection cooling ensures silent operation, and the 3,600 Hz refresh rate and flicker-free performance make it ideal for motion picture and TV applications. .

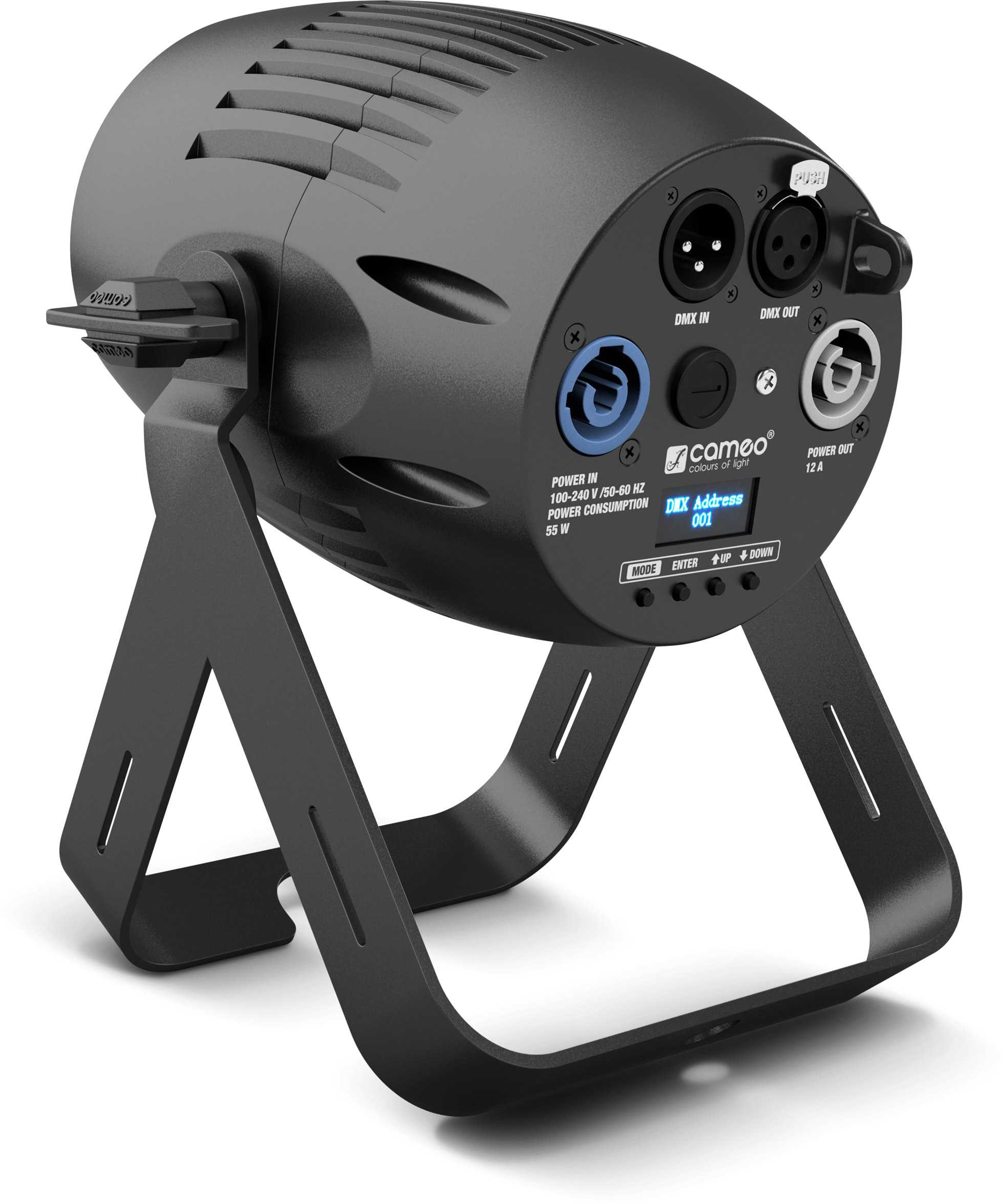

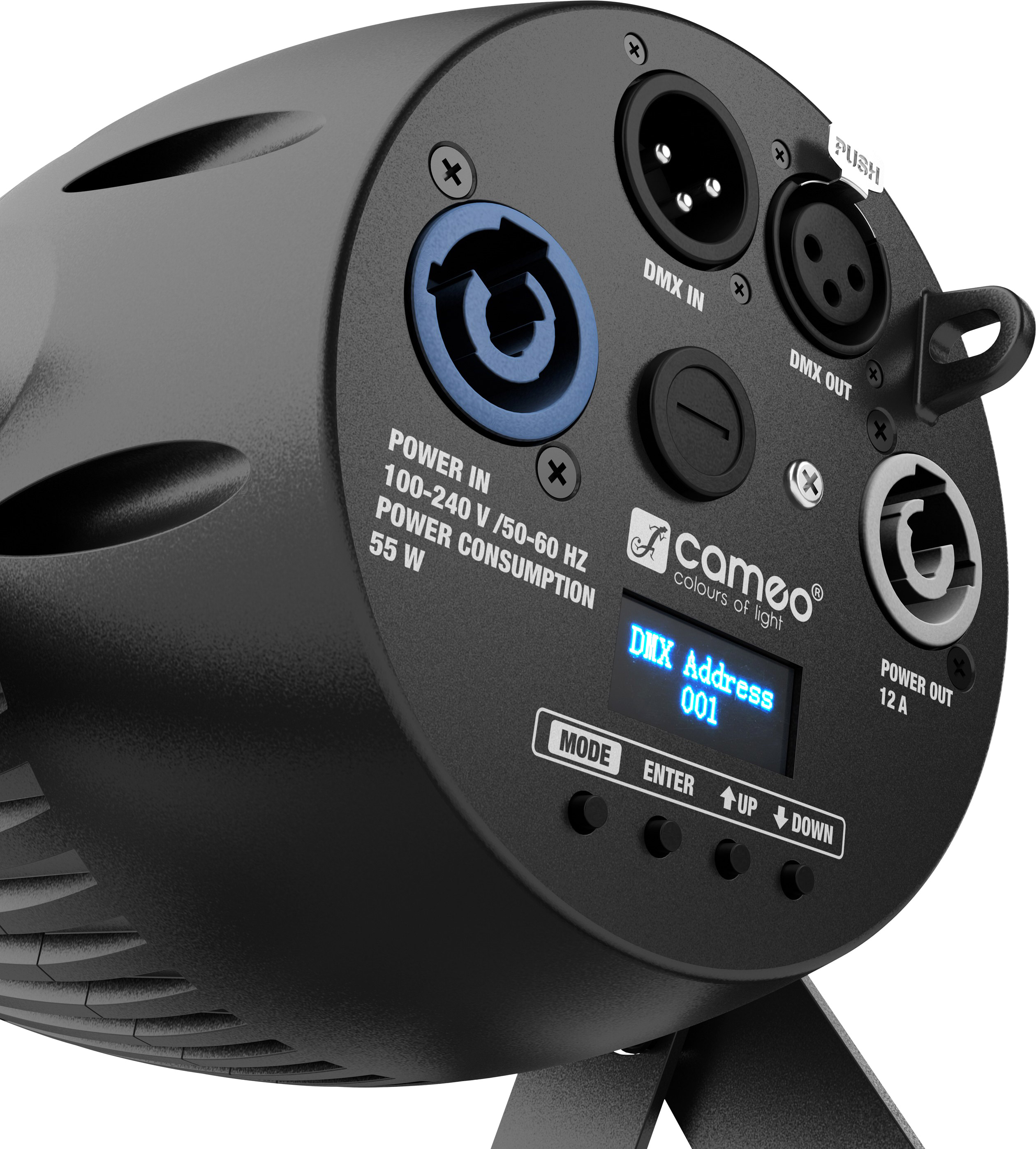

The tunable white Q-Spot 40 features 5 modes of DMX control, sound activation and master, slave and standalone capability. A convenient infrared remote control unit is available as accessory. The spotlight features a high-speed strobe function and a 4-button OLED display for easy configuration. The rugged all-metal housing provides 3-pin DMX inputs and outputs plus blue and grey Power Twist connectors for trouble-free daisy-chaining and power linking. The Q-Spot 40 TW is also available with a white housing (item no. CLQS40TWWH).
Technical data:Product type: | LED PAR Lighting |
Type: | Indoor |
Colour spectrum: | Warm White/Cold White |
Number of LEDs: | 1 |
Average LED lifetime: | 50,000 h |
Color temperature: | 3200 - 6800 K |
LED type: | 40 W |
Refresh rate: | 3600 Hz |
Dispersion: | 10 ° |
Dispersion: | 15 ° |
Dispersion: | 4.5 ° |
DMX input: | XLR 3-pin male |
DMX output: | XLR 3-pin female |
DMX mode: | 1-channel |
DMX mode: | 2-channel |
DMX mode: | 3-channel 1 |
DMX mode: | 3-channel 2 |
DMX mode: | 7-channel |
DMX Functions: | Cold-white dimmer |
DMX Functions: | Colour temperature correction |
DMX Functions: | Dimmer Curve |
DMX Functions: | master dimmer |
DMX Functions: | strobe |
DMX Functions: | Warm-white dimmer |
Strobe flash rate: | 1–20 Hz |
Standalone modes: | Master / Slave mode |
Standalone modes: | sound control |
Controls: | Enter |
Controls: | Mode |
Controls: | Value Down |
Controls: | Value Up |
Indicators: | OLED Display |
Operating voltage: | 100 V AC - 240 V AC, 50 - 60 Hz |
Power consumption: | 55 W |
Device connections quantity (110 V): | 5 |
Device connections quantity (240 V): | 5 |
Power connector: | Blue Power Twist, male |
Power supply connection: | Grey Power Twist, female |
Housing material: | Metal |
Cabinet colour: | Black |
Protection class IP: | IP20 |
Cooling: | Convection |
Illuminance: | 95400 lx @ 1m |
Luminous flux: | 1435 lm |
Width: | 220 mm |
Height: | 230 mm |
Length: | 220 mm |
Weight: | 2,75 kg |
