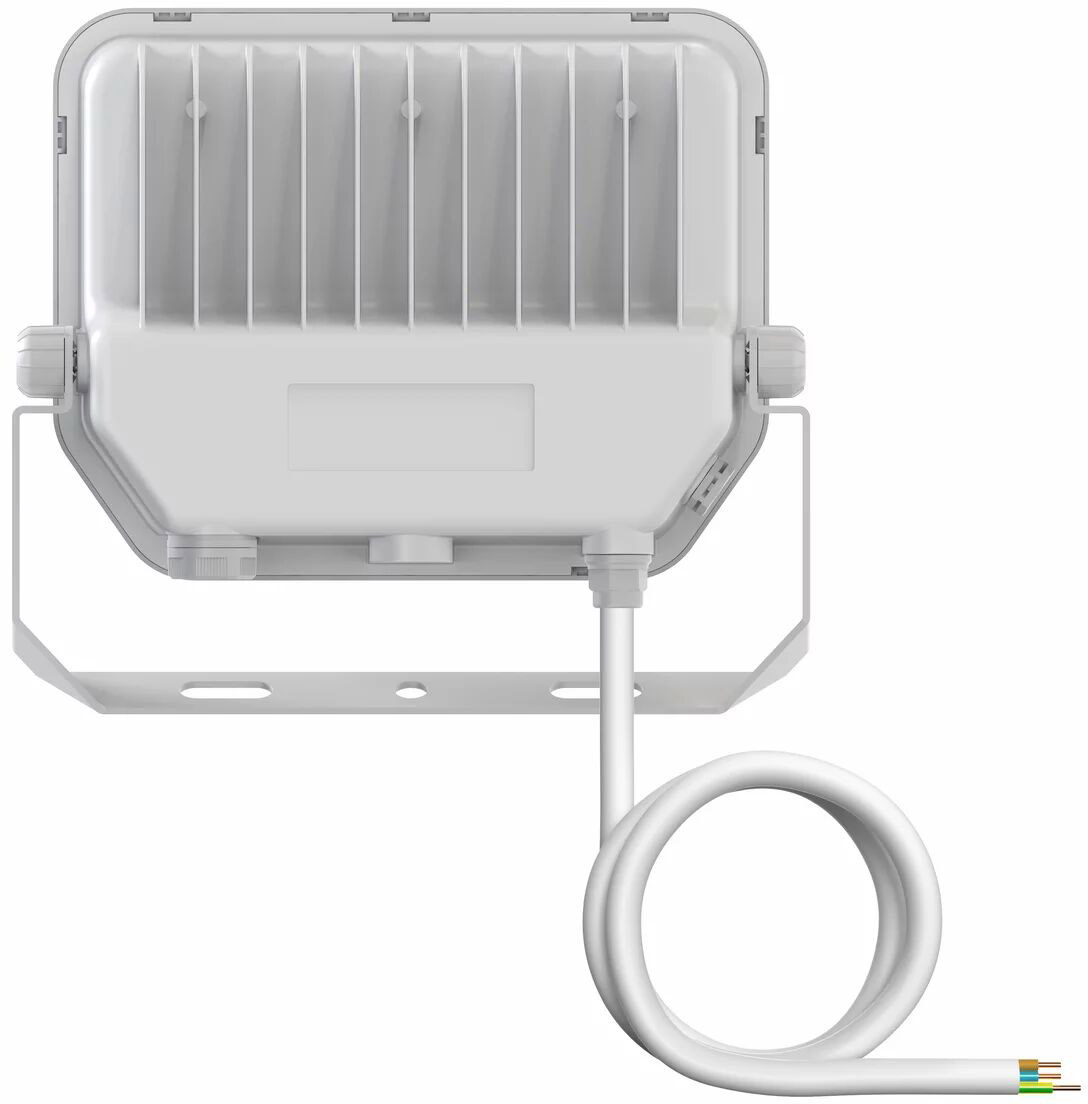

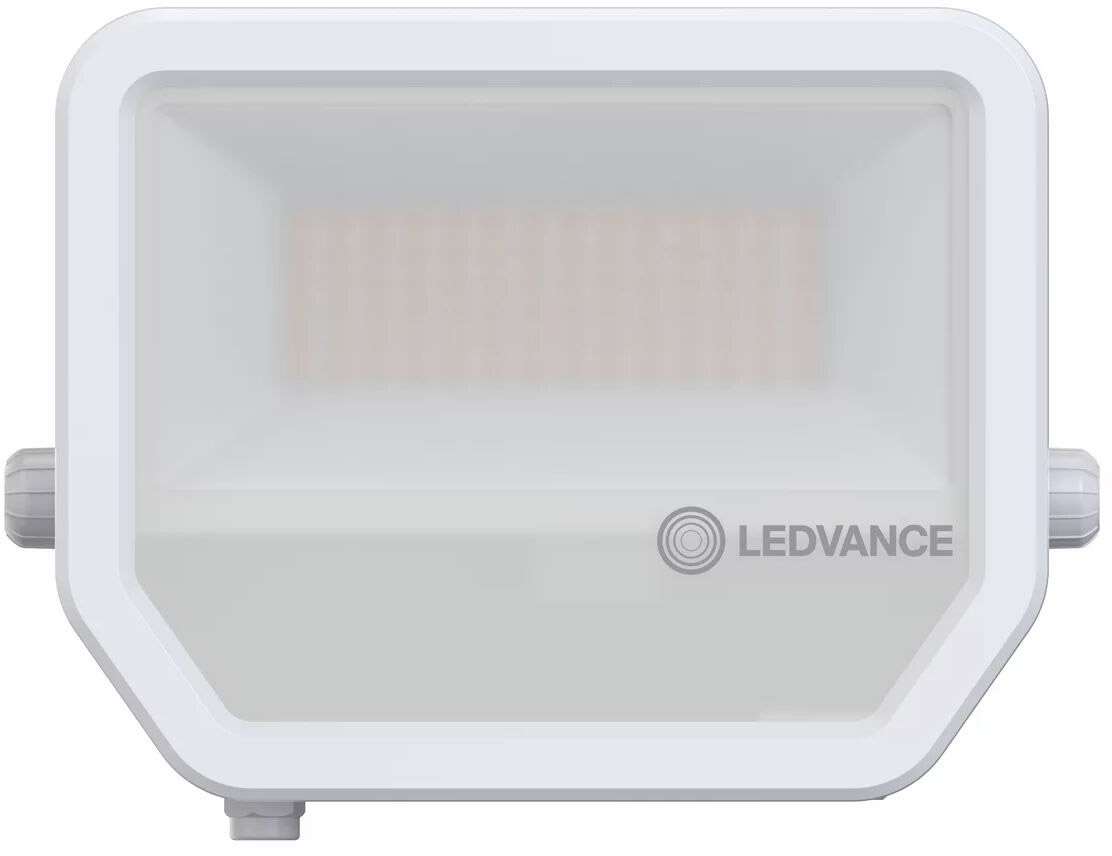

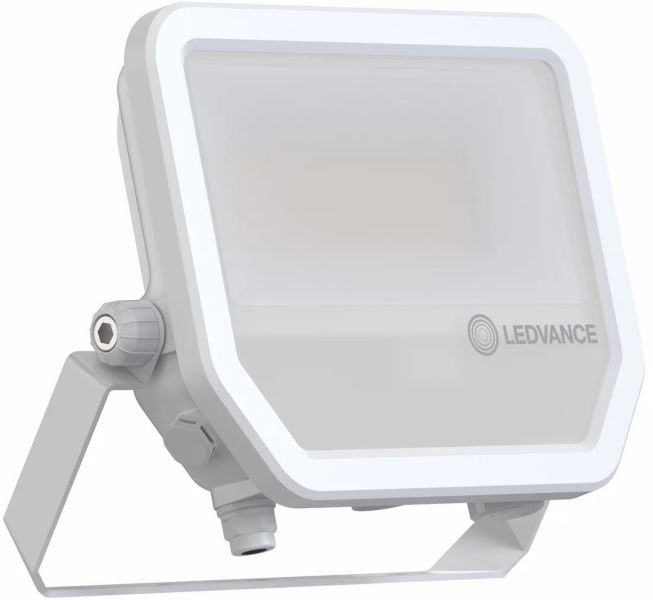

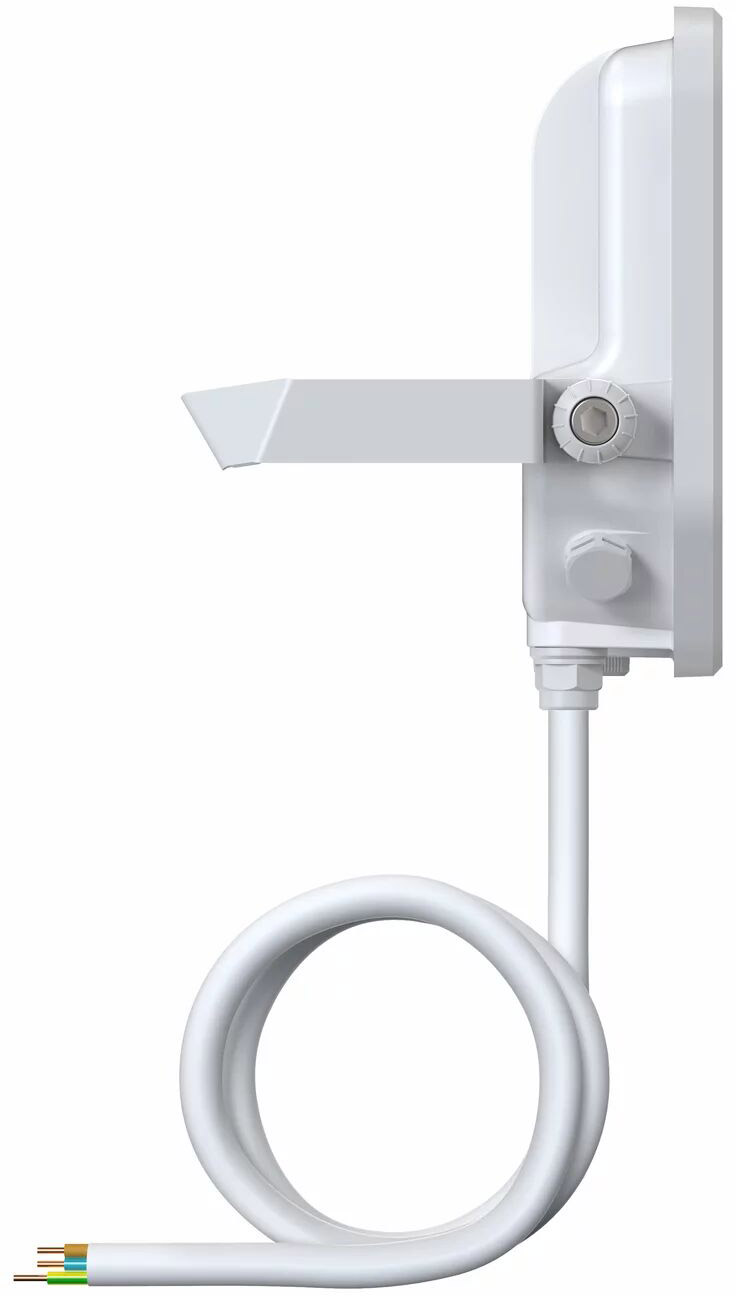

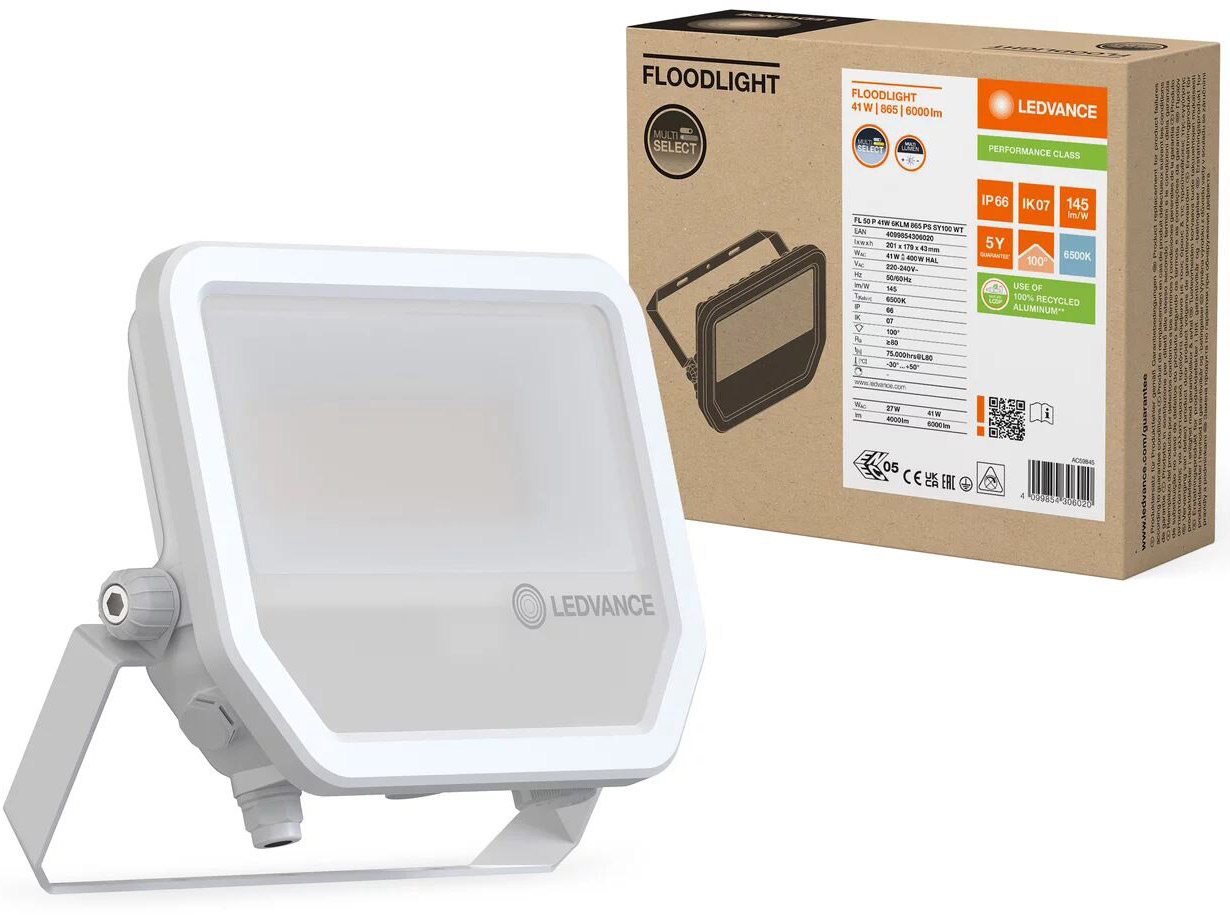

LEDVANCE FLOODLIGHT FL 50 P 41W 6KLM 865 PS SY100 WT

NEW

LEDVANCE FLOODLIGHT FL 50 P 41W 6KLM 865 PS SY100 WT

€31.90 *

incl. tax, plus shipping costs

Express delivery possible

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 100300685

EAN: 4099854306020

MPN: 306020

NEW

Product benefits Breather membrane to optimize air exchange, without compromising IP... more

Back to the overview

All information about the product:

"LEDVANCE FLOODLIGHT FL 50 P 41W 6KLM 865 PS SY100 WT"

Product benefits

Breather membrane to optimize air exchange, without compromising IP protection
Highly versatile due to selectable power steps (Multi Lumen) on the housing
Robust cable gland with integrated waterstop function
Safe and very uniform illumination, due to frosted and tempered glass diffuser
Bright, robust and durable
Energy savings of up to 90 % compared to halogen lamp floodlights
No upper light output ratio (ULOR 0%) when mounted at 0° tilt

Technical Data
Electrical data
Nominal wattage	41 W / 27 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	185/130 mA
Inrush current	14.85 A
Inrush current time T_h50	33.6 µs
Max. number of luminaires per miniature circuit breaker B16	50
Max. number of luminaires per miniature circuit breaker C10	40
Max. number of luminaires per miniature circuit breaker C16	64
Power factor ?	> 0.90
Total harmonic distortion	< 20 %
Protection class	I
Surge capability (L-N)	2 kV
Surge capability (L/N-Ground)	4 kV
Operating mode	Integrated LED driver

Photometrical data
Luminous flux	6000 lm / 4000 lm
Luminous efficacy	145 lm/W
Color temperature	6500 K
Light color (designation)	Cool Daylight
Color rendering index Ra	80
Standard deviation of color matching	5 sdcm
Stroboscope effect metric (SVM)	=0.9
Photobiological safety group acc. to EN62778	RG1
Photobiological safety group acc. to EN62471	RG1
Beam angle	100 ° x 100 °

Dimensions & Weight
Length	201.00 mm
Height	179.00 mm
Width	43.00 mm
Product weight	830.00 g
Cable length	1000 mm

Materials & Colors
Product color	White
Housing color	White
Body material	Aluminum
Cover material	Glass
Light emitting surface material	Glass
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting
Ambient temperature range	-30…+50 °C
Temperature range at storage	-40…+70 °C
Type of connection	Cable, 3-pole
Type of protection	IP66
Protection class IK (shock resistance)	IK07
Corrosion resistance class acc. to EN 12944	C4
Dimmable	No
Mounting type	Surface
Mounting location	Wall, Ceiling, Floor
Application environment	Outdoor
Adjustable	Yes
With light source	Yes

Lifespan
Lifespan L70/B50 at 25 °C	100000 h ¹⁾
Lifespan L80/B10 at 25 °C	75000 h ¹⁾
Lifespan L90/B10 at 25 °C	35000 h

Control gear
Output current	320 mA
ECG - Output ripple current	< 20 %

Certificates & Standards
Standards	CE, CB, ENEC, EAC, UKCA, EPD
Luminaire with limited surface temperature, "D sign"	Yes
Ball shot safe	No
EPD	LEDV-00031-V01.01-EN
Replaceable light source (EPREL)	Not replaceable

Additional product data
Added function	MULTI SELECT
BEG eligible	No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
