Showtec Pinspot Bar 4 WW
€475.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120623395
EAN: 8717748495150
Independent control Super lightweight Including magnetic beamshapers Including 5 m Power... more
All information about the product:
"Showtec Pinspot Bar 4 WW"
- Independent control
- Super lightweight
- Including magnetic beamshapers
- Including 5 m Power Pro Cable

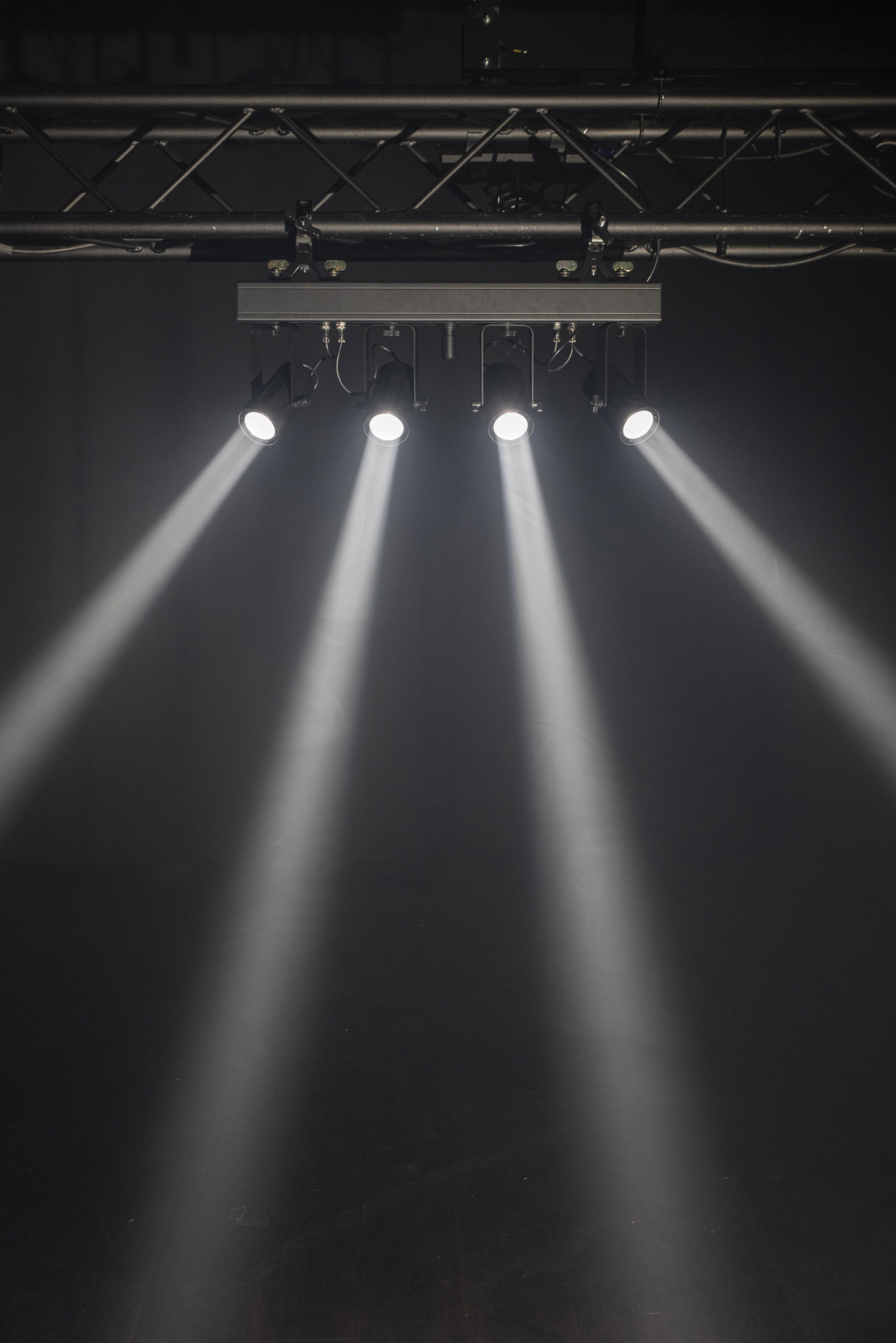

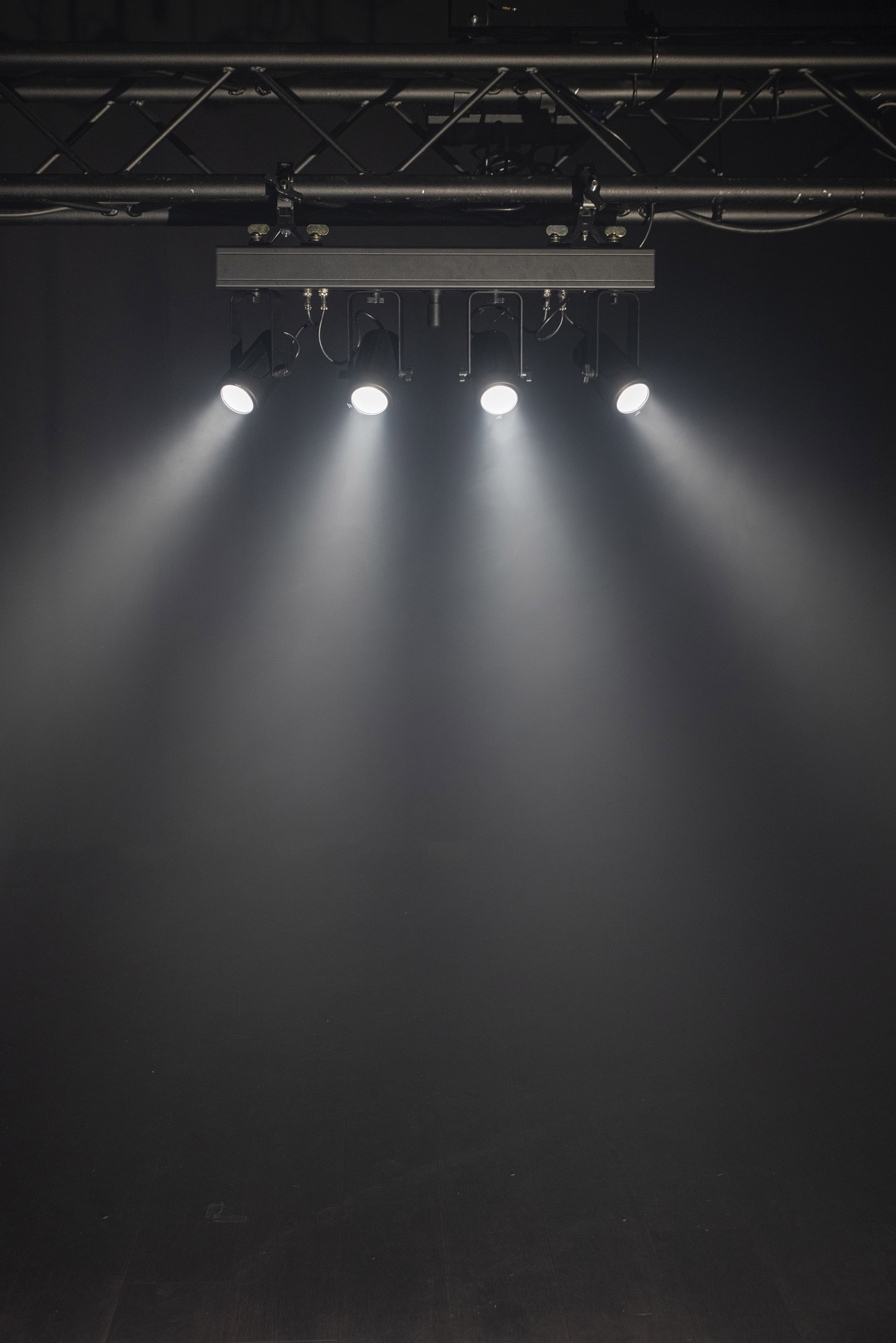

This superb bar produces a bright, narrow 4.5° beam or a 20° wash of warm white light (3000 K) output.

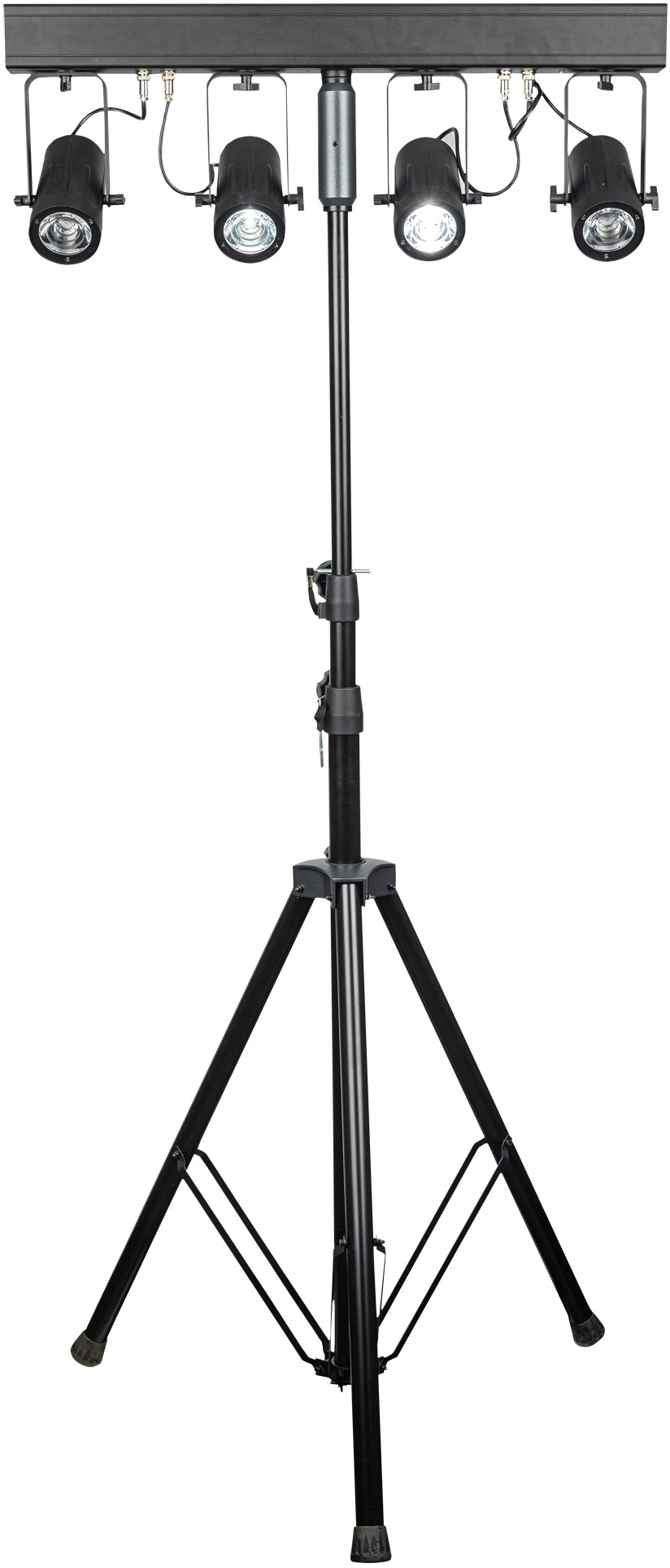

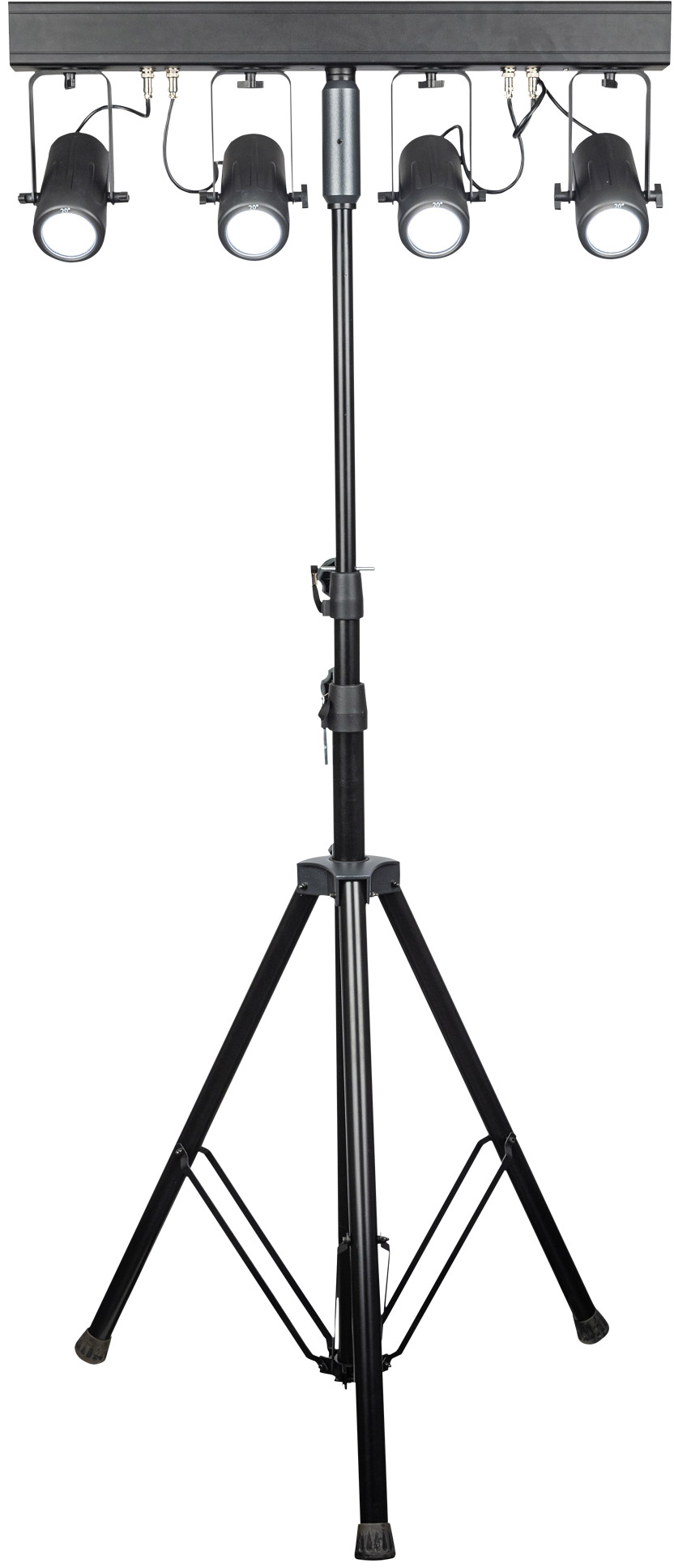

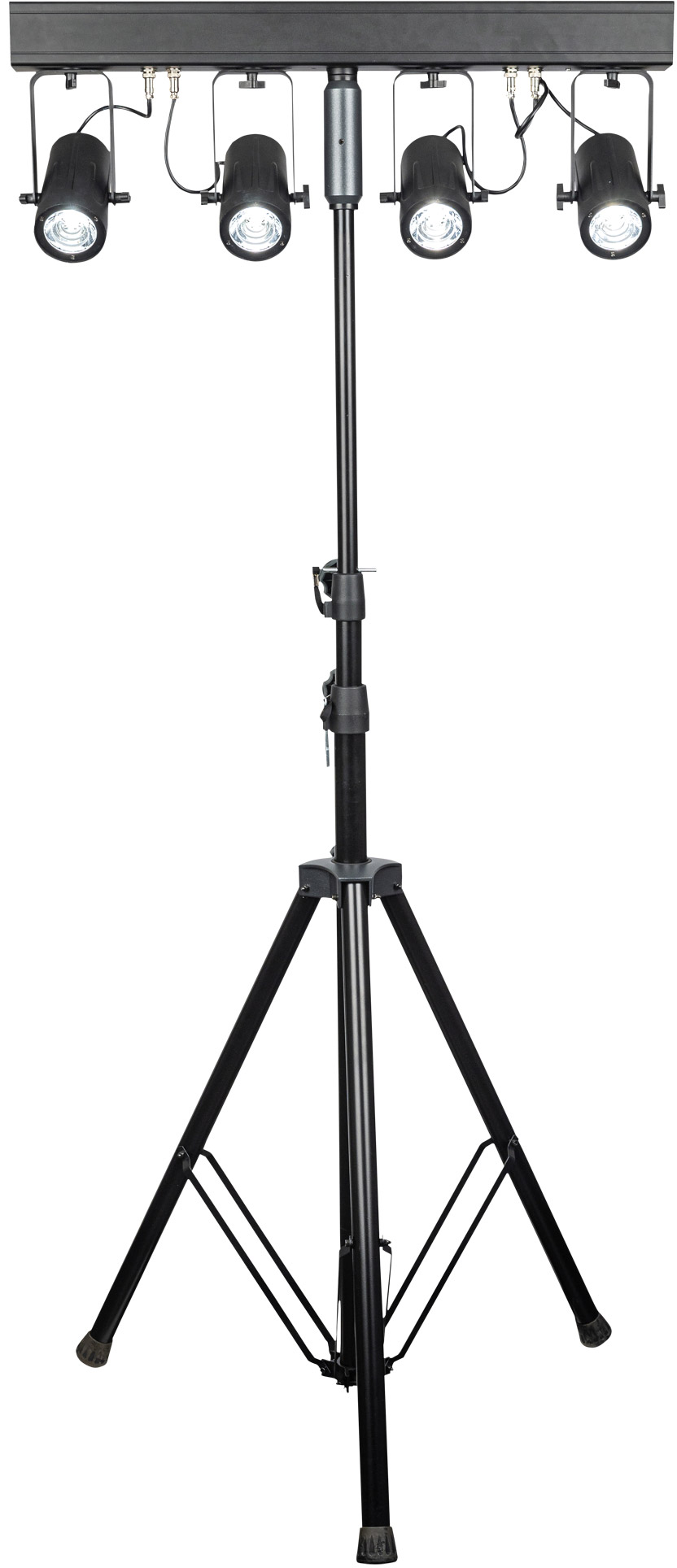

The T-bar can be placed on a stand with the included 28-mm spigot, or hanged on a truss with the included Quick-Lock brackets. Direct mounting of a clamp is also possible thanks to the M10 thread holes.
You can easily setup each individual spot with the onboard controls. Just connect the main power of the bar and you are ready to go.Technical data:
Light Source Type: | LED |
Light Source Quantity: | 4 |
Light Source Power: | 15 W |
LED Colour Type: | WW |
Control Mode: | Auto / DMX / Manual / Master Slave / Sound |
DMX Channels: | 1 / 2 / 4 / 6 / 7 / 10 |
Protocols: | DMX |
Power Supply: | 100-240 VAC 50-60 Hz |
Power Consumption: | 75 W |

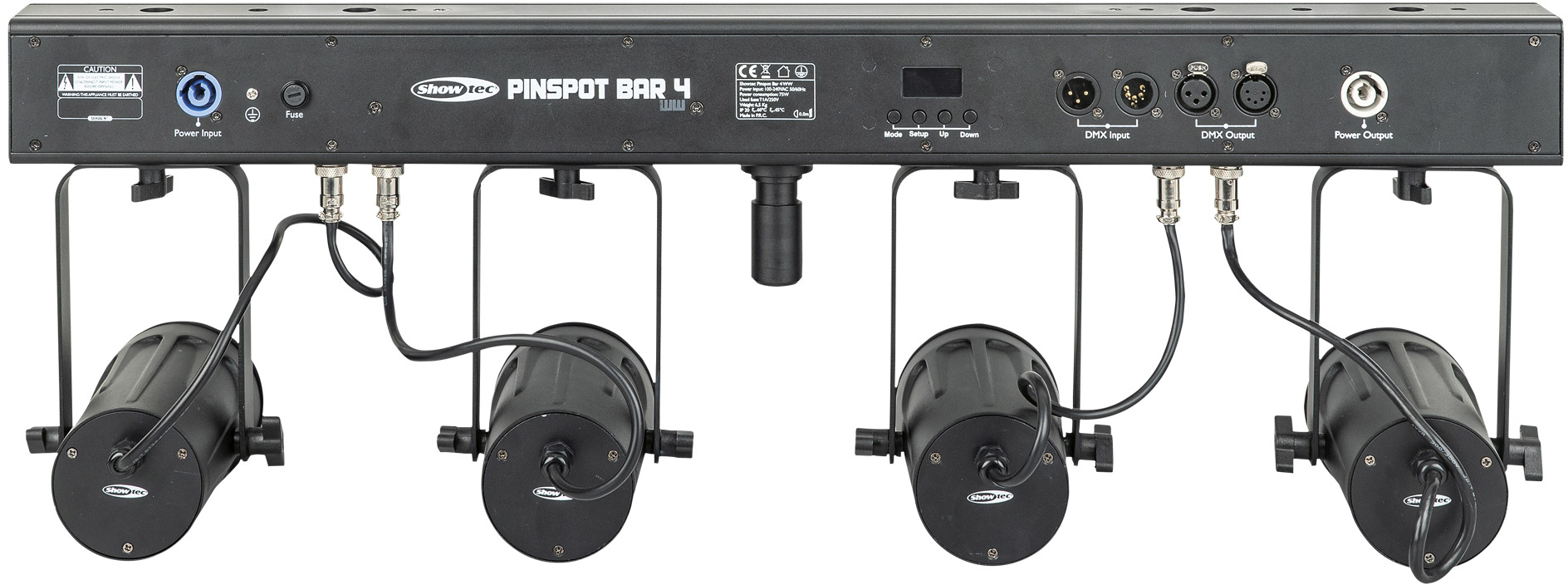

Power Connector in: | Pro Power Blue |
Power Connector out: | Pro Power Grey |
Height (mm): | 278 mm |
Width (mm): | 800 mm |
Depth (mm): | 177 mm |
Weight: | 6.5 kg |
IP Rating: | IP20 (indoor use only) |
Housing: | Aluminum die-cast |
Colour: | Black |
