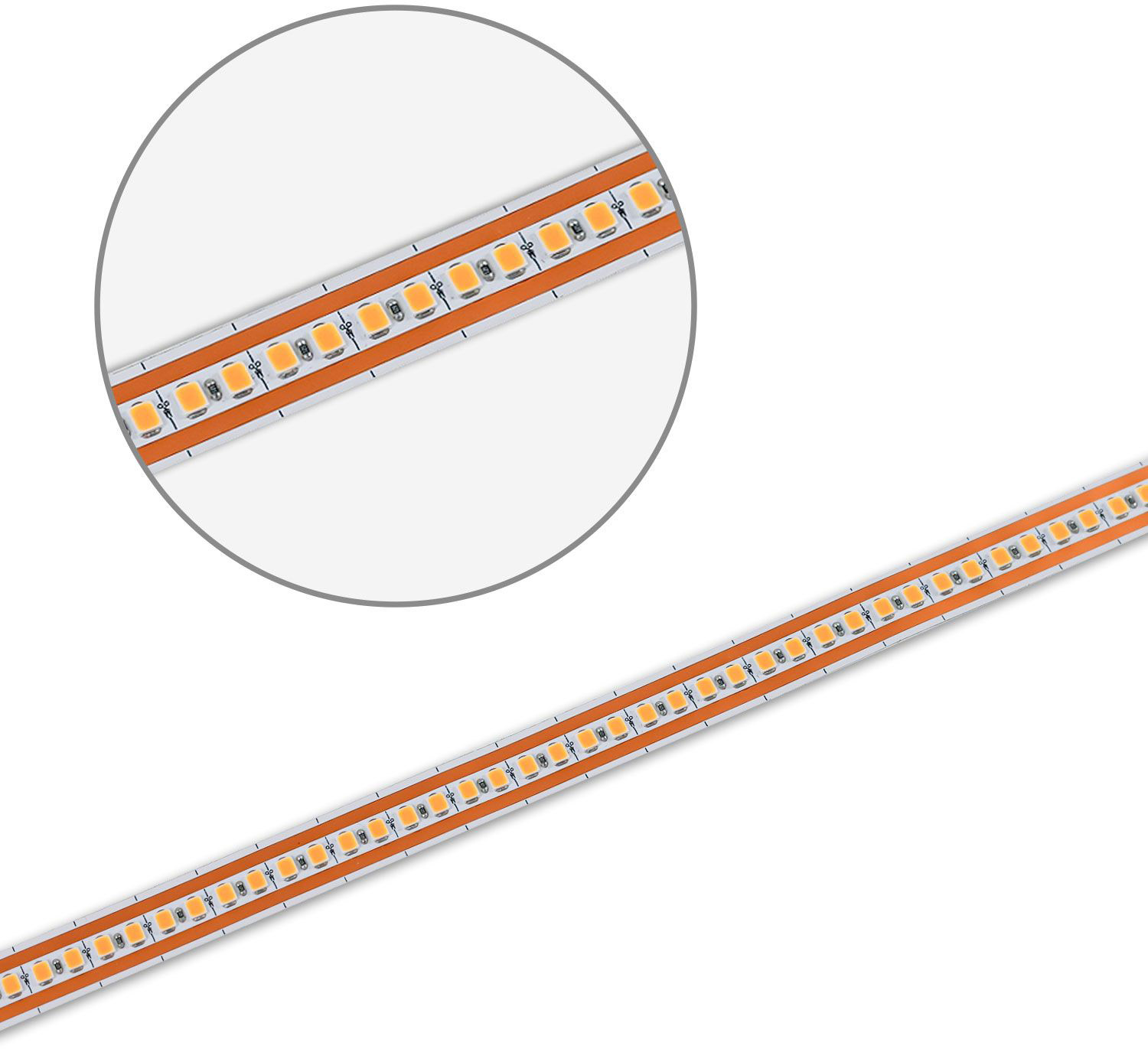

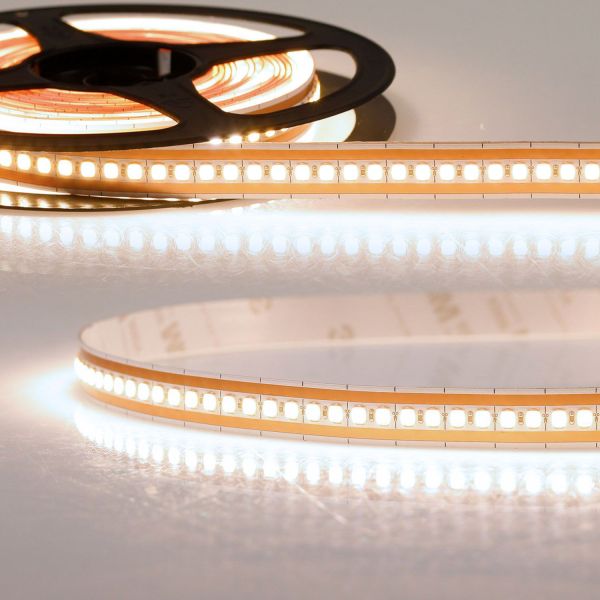

ISOLED LED FC940 flex stripe, 24V DC, 10W, IP20, 4000K, CRI90, 140lm/W, 5m roll, 200LED/m
NEW
€78.70 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111018290
EAN: 9009377165061
NEW
ISOLED LED FC940 flex stripe, 24V DC, 10W, IP20, 4000K, CRI90, 140lm/W, 5m roll, 200LED/m... more
All information about the product:
"ISOLED LED FC940 flex stripe, 24V DC, 10W, IP20, 4000K, CRI90, 140lm/W, 5m roll, 200LED/m"
ISOLED LED FC940 flex stripe, 24V DC, 10W, IP20, 4000K, CRI90, 140lm/W, 5m roll, 200LED/mTechnical data:

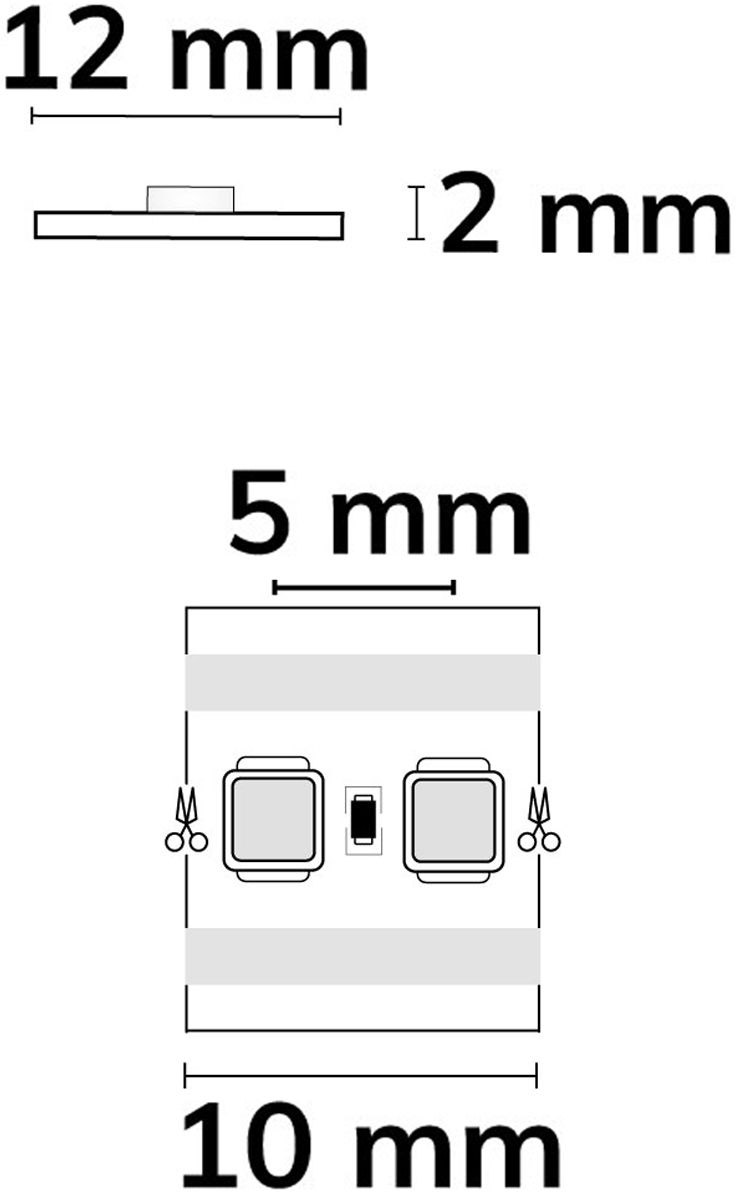

Length: | 5000 mm |
Width: | 12 mm |
Height: | 2 mm |
Net weight: | 75 g |
LED type: | SMD2835 |
Nominal voltage: | 24 V |
Nominal power: | 10 W |
Rated power: | 10 W |
Colour temperature: | 4000K |

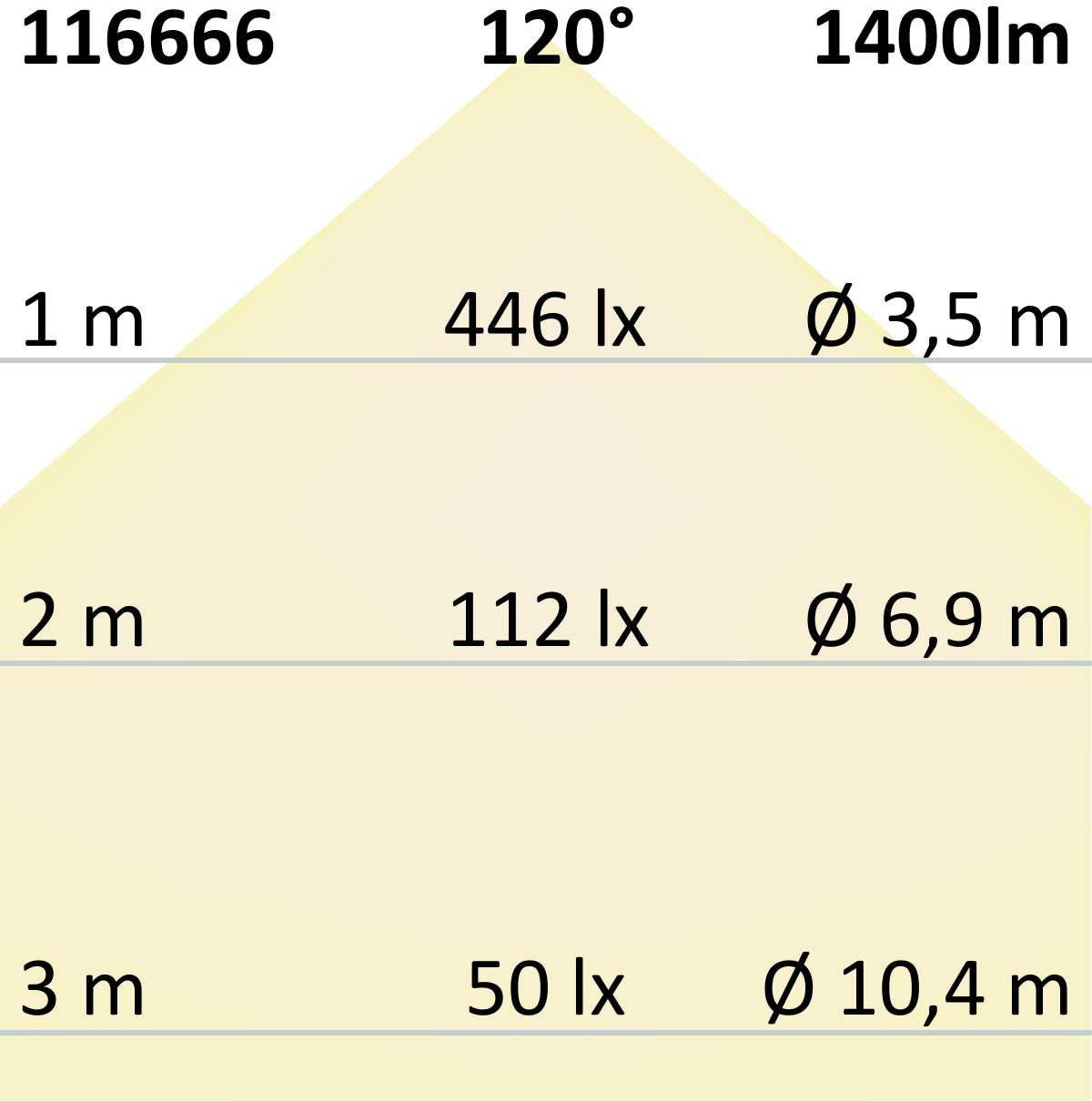

Beam angle: | 120° |
Luminous flux: | 1400 lm |
Light intensity: | 446 cd |
Colour rendering: | 90 CRI |
Lifetime: | 30000 h |
Protection class: | IP20 |
Energy efficiency class: | D |
Dimmable: | Yes Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
Material: | Copper |
Colour: | white |
Incl. illuminant: | No |
Special features: | Separation point: 10mm with 6 SMD each | Pitch (light point center-center): 5mm | 1 unit (roll) = 10m | max. flexible stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M9080A adhesive tape | Clean and degrease surface before application! Do not remove again! |
