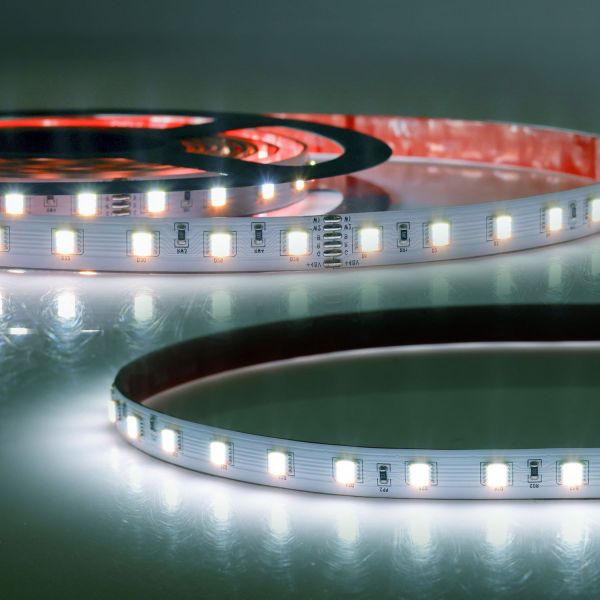

ISOLED LED SIL RGB+WW+KW CCT flex stripe, 48V DC, 17W, IP20, 5in1 chip, 10m roll, 60 LED/m

€212.92 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Currently not available.
Expected to be available again in 3 weeks.
Currently not available
Item number: 111016640
EAN: 9009377155291
ISOLED LED SIL RGB+WW+KW CCT flex stripe, 48V DC, 17W, IP20, 5in1 chip, 10m roll, 60 LED/m... more
All information about the product:
"ISOLED LED SIL RGB+WW+KW CCT flex stripe, 48V DC, 17W, IP20, 5in1 chip, 10m roll, 60 LED/m"
ISOLED LED SIL RGB+WW+KW CCT flex stripe, 48V DC, 17W, IP20, 5in1 chip, 10m roll, 60 LED/mTechnical data:
Length:10000 mm
Width:12 mm
Height:3 mm
Net weight:100 g
LED type:SMD5050 5in1
Nominal voltage:48 V
Nominal power:17 W
Rated power:17 W
Colour temperature:2300K - 6500K

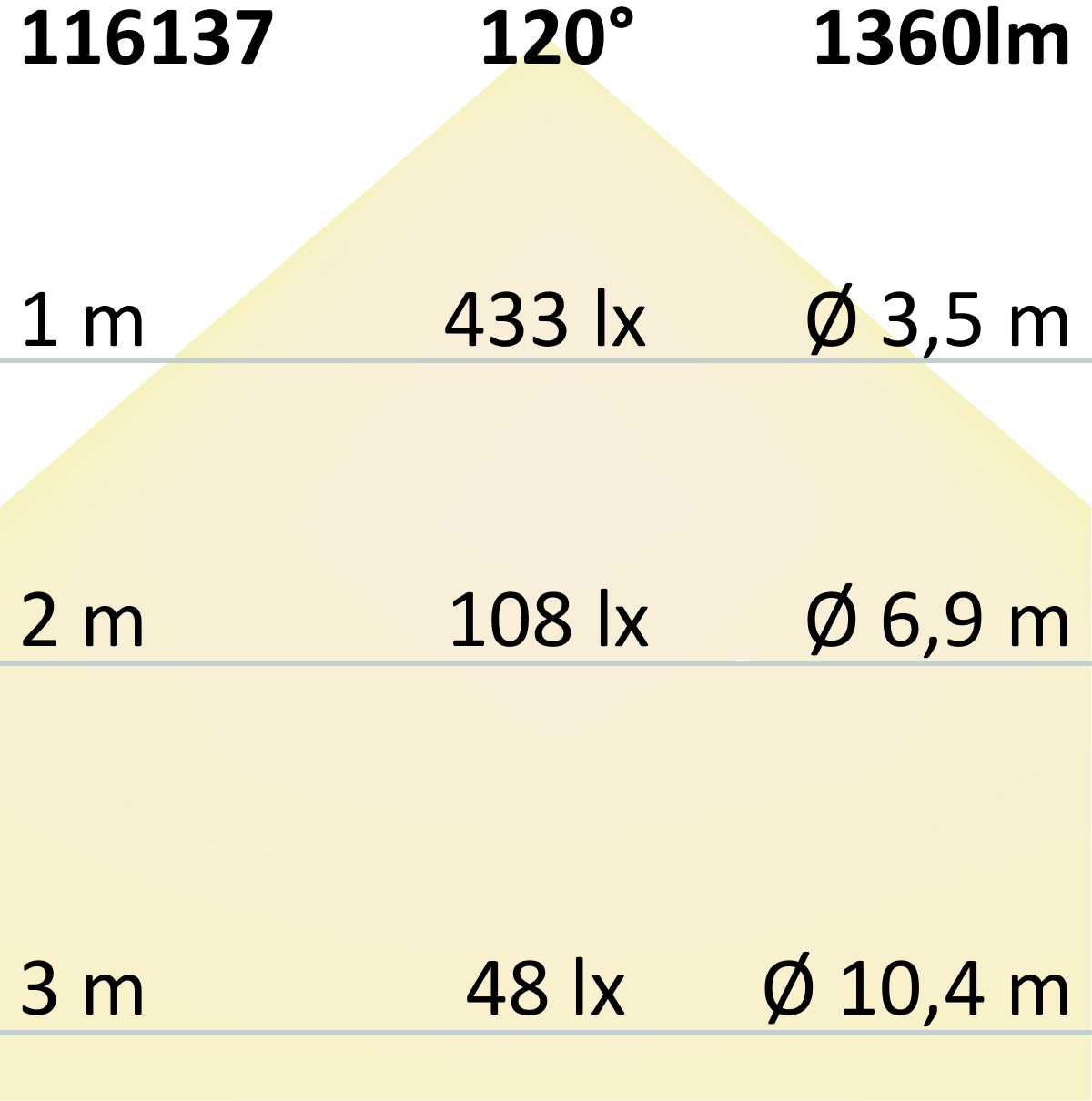

Beam angle:120°
Luminous flux:1360 lm
Light intensity:433 cd
Colour rendering:80 CRI
Lifetime:38000 h
Protection class:IP20
Energy efficiency class:F
Incl. illuminant:No
Special features:Separation point: 250mm with 15 SMD each | Pitch (light point center-center): 16,67mm | 1 unit (roll) = 5m | max. flex stripe length per feed: 10m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease substrate before sticking! Do not peel off again! | SPECIAL FEATURE: connection cable on both sides
