ISOLED LED HEQ960 flex stripe High Bright, 24V, 17W, IP20, cold white, 160 LED/m

€89.38 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Currently not available.
Expected to be available again in 2 weeks.
Currently not available
Item number: 111011490
EAN: 9009377093142
ISOLED LED HEQ960 flex stripe High Bright, 24V, 17W, IP20, cold white, 160 LED/m LED HEQ960... more
All information about the product:
"ISOLED LED HEQ960 flex stripe High Bright, 24V, 17W, IP20, cold white, 160 LED/m"
ISOLED LED HEQ960 flex stripe High Bright, 24V, 17W, IP20, cold white, 160 LED/m

LED HEQ960 flex stripe High Bright, dimmable, 163 lumen/watt, with high color rendering index, perfect to achieve the highest possible luminous efficacy

Technical data:
Length:5000 mm
Width:10 mm
Height:1 mm
Net weight:115 g
LED type:SMD2835
Nominal voltage:24 V
Nominal power:16 W
Rated power:17 W
Colour temperature:6000K

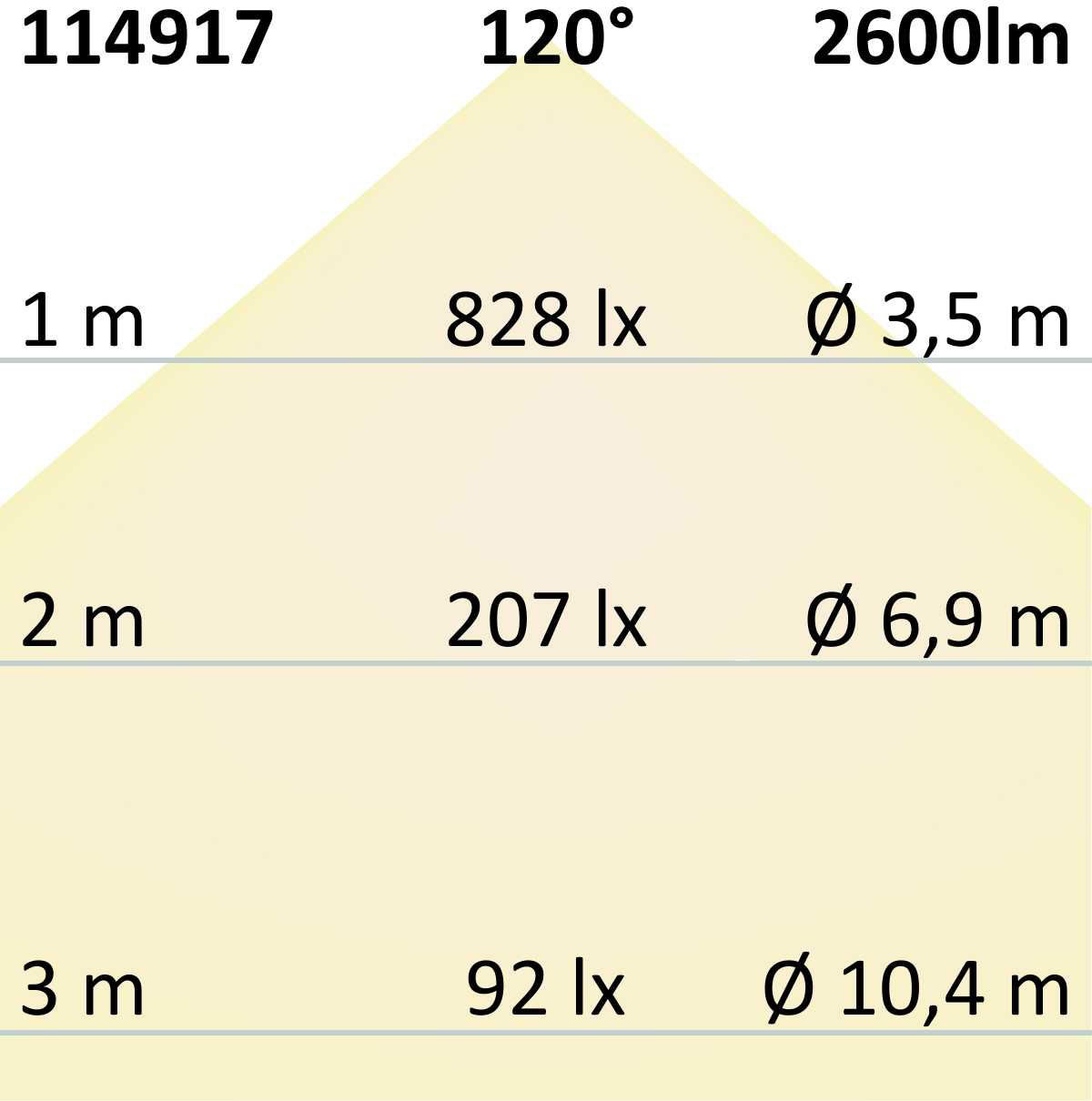

Beam angle:120°
Luminous flux:2600 lm
Light intensity:828 cd
Colour rendering:93 CRI
Lifetime:52000 h
Switching cycles:100000
Protection class:IP20
Energy efficiency class:C
Incl. illuminant:No
Special features:Separation point: 50mm with 8 SMD each | Pitch (chip centre-to-centre): 6,25mm | 1 roll = 5m | max. flex stripe length per feed: 5m | length tolerance + thermal expansion: 1% | incl. 3M 9080A adhesive tape | clean and degrease substrate before sticking! Do not peel off! | cooling compound required: min. 75 gr/m
