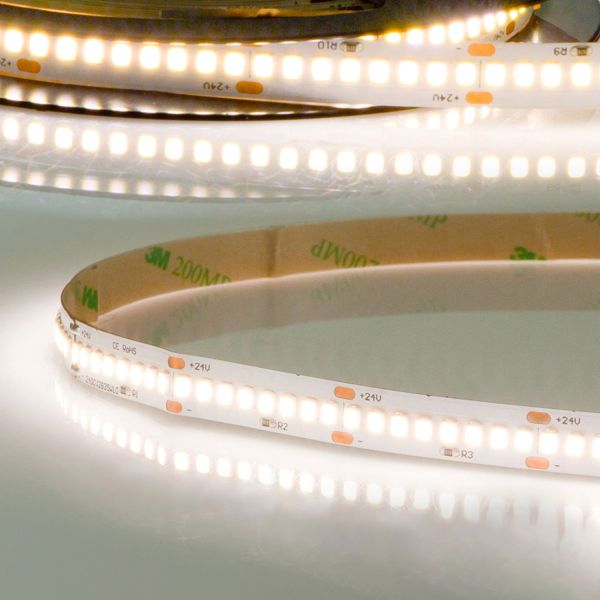

ISOLED LED HEQ930 flex stripe High Bright, 24V, 22W, IP20, 3000K

€102.34 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111008015
EAN: 9009377074783
LED HEQ930 flex stripe High Bright, 24V, 22W, IP20, 3000K Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED HEQ930 flex stripe High Bright, 24V, 22W, IP20, 3000K"

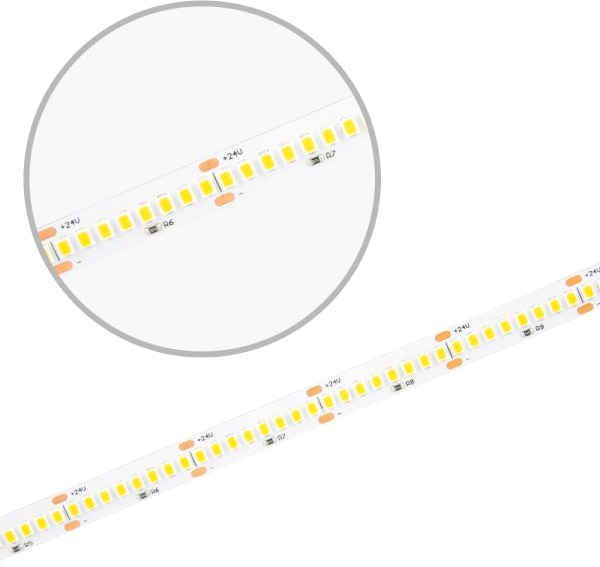

LED HEQ930 flex stripe High Bright, 24V, 22W, IP20, 3000K

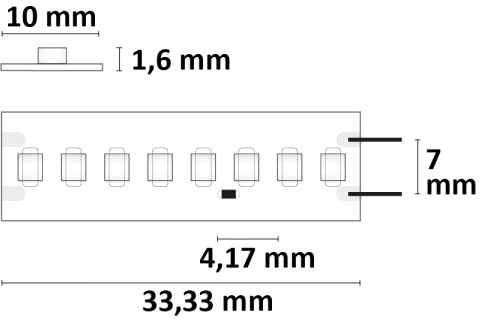

Length:5000mm
Width:10mm
Height:2mm
Net weight:115g
LED type:1200xSMD2835
Nominal voltage:24V DC
Rated power:22W

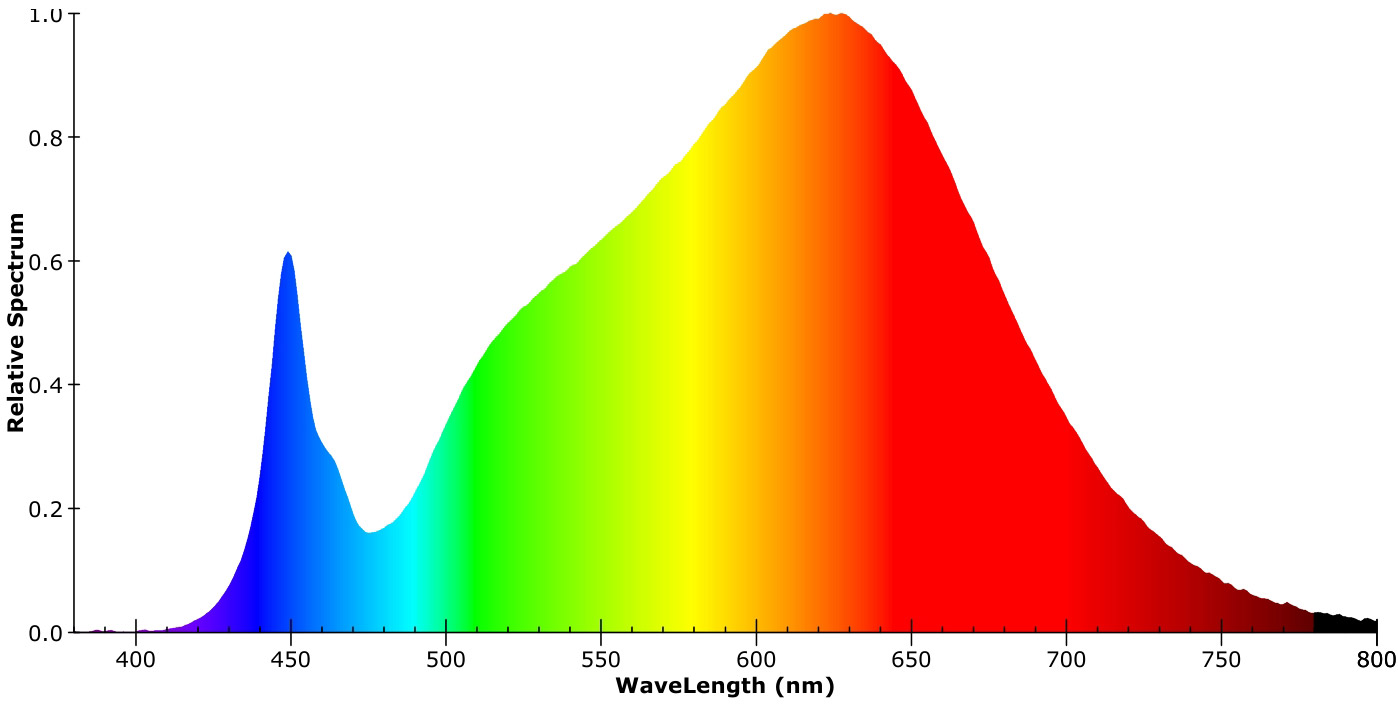

Colour temperature:3000K

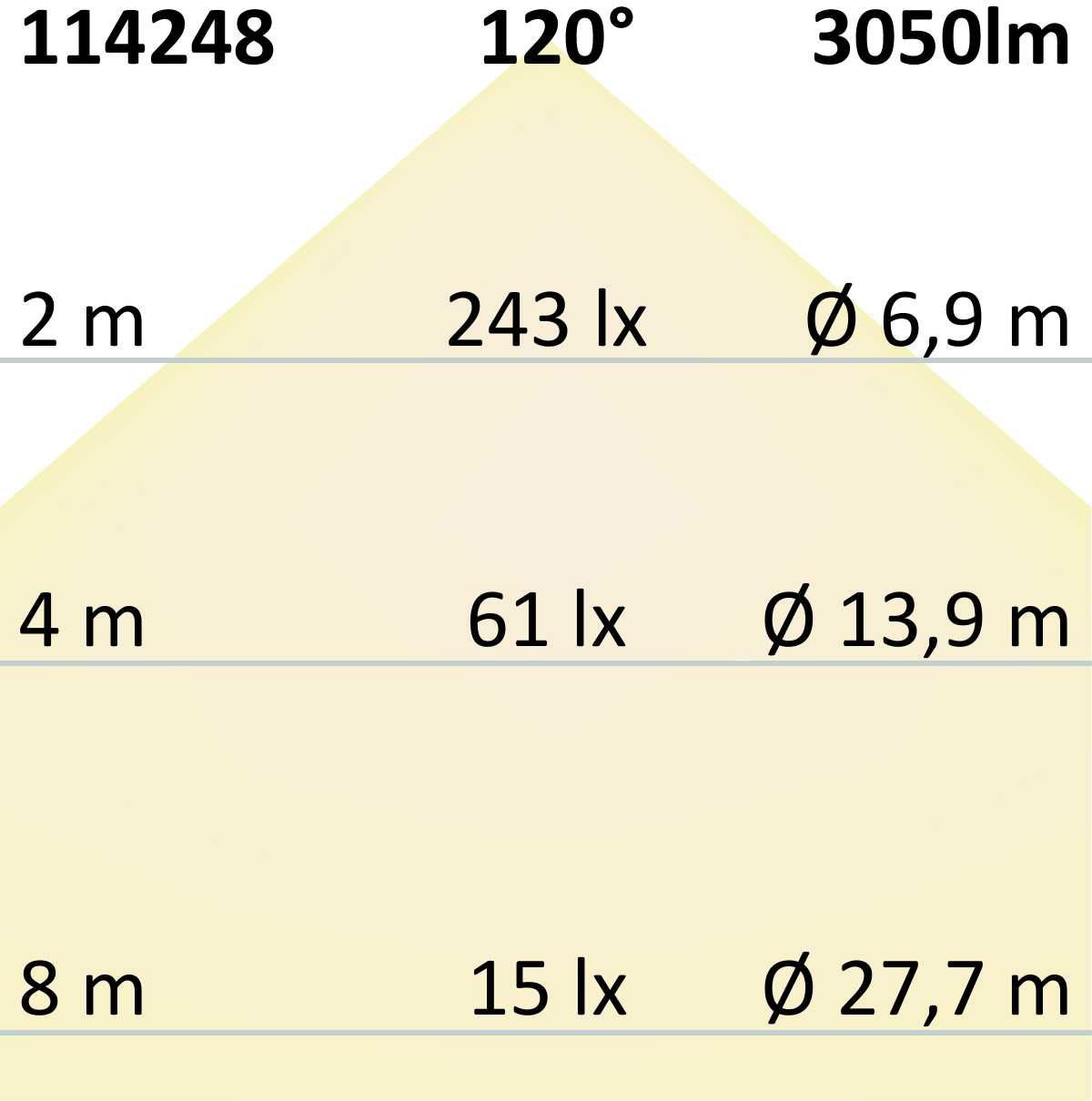

Beam angle:120°
Colour rendering:> 93 CRI
Lifetime:30000h
Switching cycles:100000
Protection class:IP20
Energy efficiency class:A++
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white
Incl. illuminant:No
Special features:Separation point: 33.3mm | Pitch (chip center-center): 4.16mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 3m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile with a mass of at least 140gr/m required!
