ISOLED LED SIL RGB+CW flex stripe, 24V, 19W, IP20, 4 in 1 chip

€86.47 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111002460
EAN: 9009377039164
LED SIL RGB+CW flex stripe, 24V, 19W, IP20, 4 in 1 chip Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED SIL RGB+CW flex stripe, 24V, 19W, IP20, 4 in 1 chip"

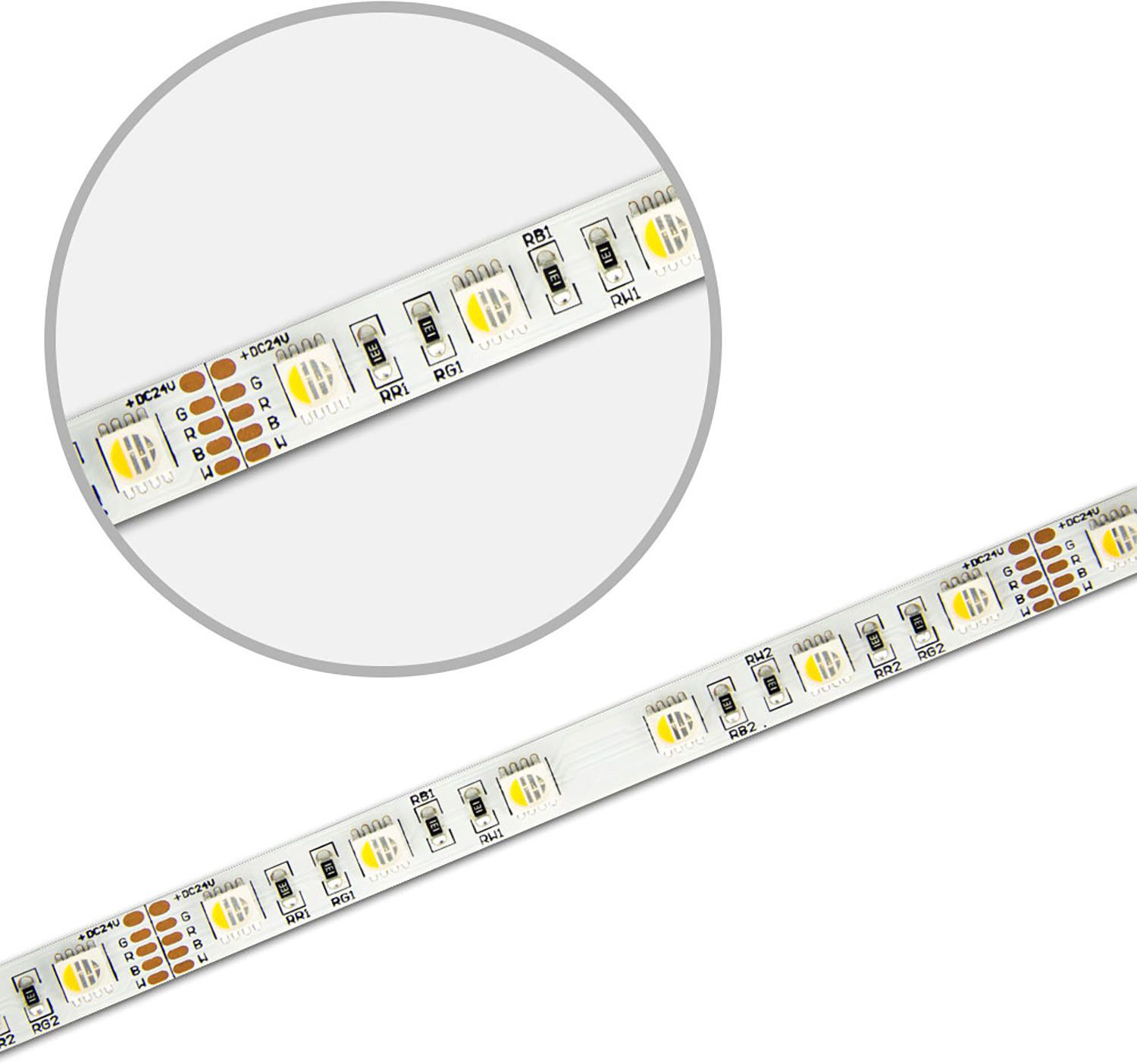

LED SIL RGB+CW flex stripe, 24V, 19W, IP20, 4 in 1 chip
Length:5000mm
Width:10mm
Height:3mm
Net weight:122g
LED type:300xSMD5050 4in1
Nominal voltage:24V DC
Rated power:19 W/m
Colour temperature:RGB+6200K

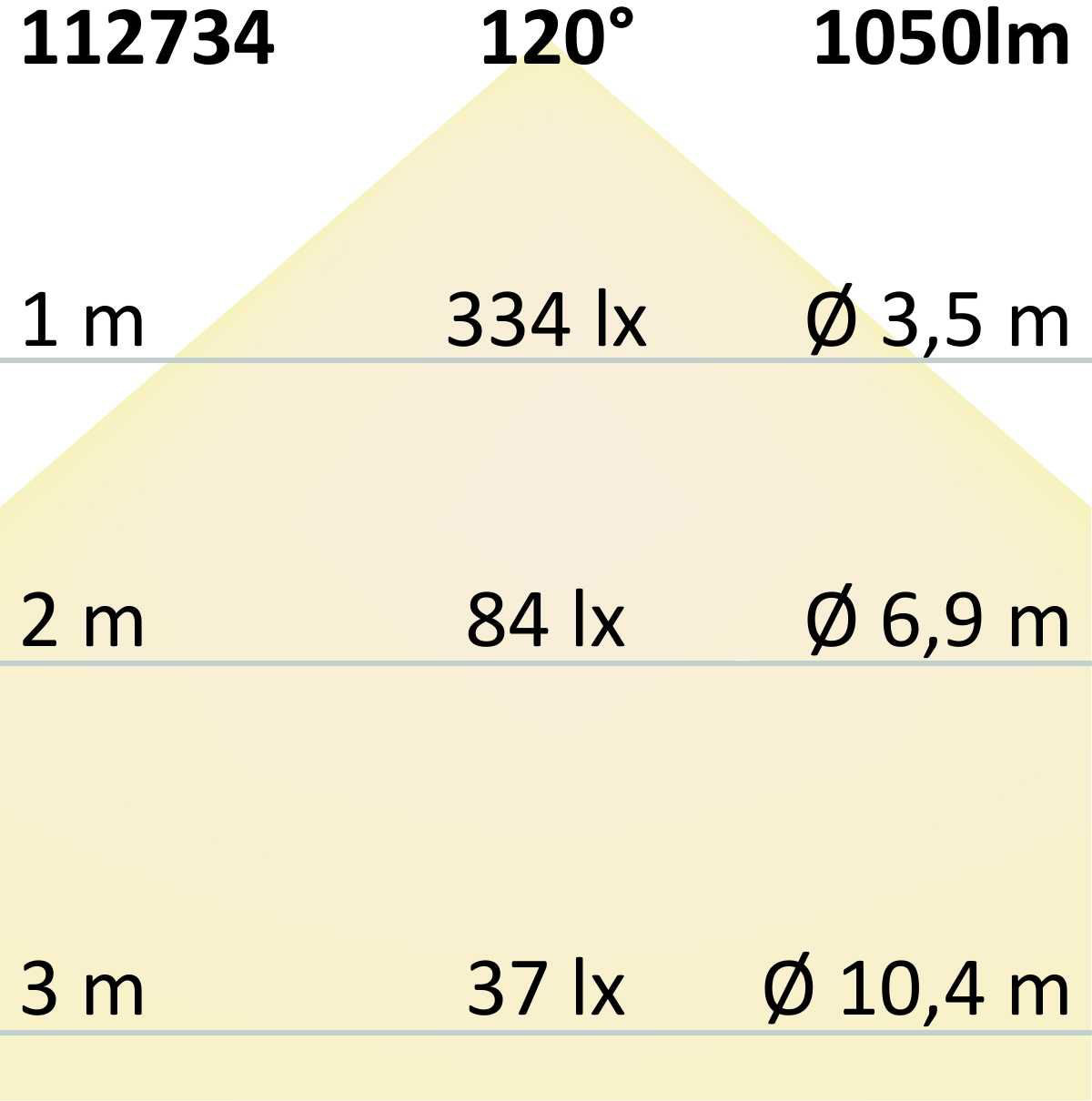

Beam angle:120°
Light intensity:1305cd
Colour rendering:> 86 CRI
Lifetime:25000h
Switching cycles:30000
Protection class:IP20
Energy efficiency class:A
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white
Incl. illuminant:No
Special features:Separation point: 100mm | Pitch (chip center-center): 16.66mm | 1 roll= 5m | Length Tolerance 1% | max. flex belt length per feed-in: 4m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required!
