ISOLED LED SIL830/860 flex stripe, 24V, 9.6W, IP20, dynamic white

€71.32 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Currently not available.
Expected to be available again in 3 months.
Currently not available
Item number: 111002240
EAN: 9009377036774
LED SIL830/860 flex stripe, 24V, 9.6W, IP20, dynamic white Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED SIL830/860 flex stripe, 24V, 9.6W, IP20, dynamic white"
LED SIL830/860 flex stripe, 24V, 9.6W, IP20, dynamic white
Length:5000mm
Width:10mm
Height:3mm
Net weight:98g
LED type:300xSMD3527 (2in1)
Nominal voltage:24V DC
Rated power:9,6 W/m
Colour temperature:3000-6000K

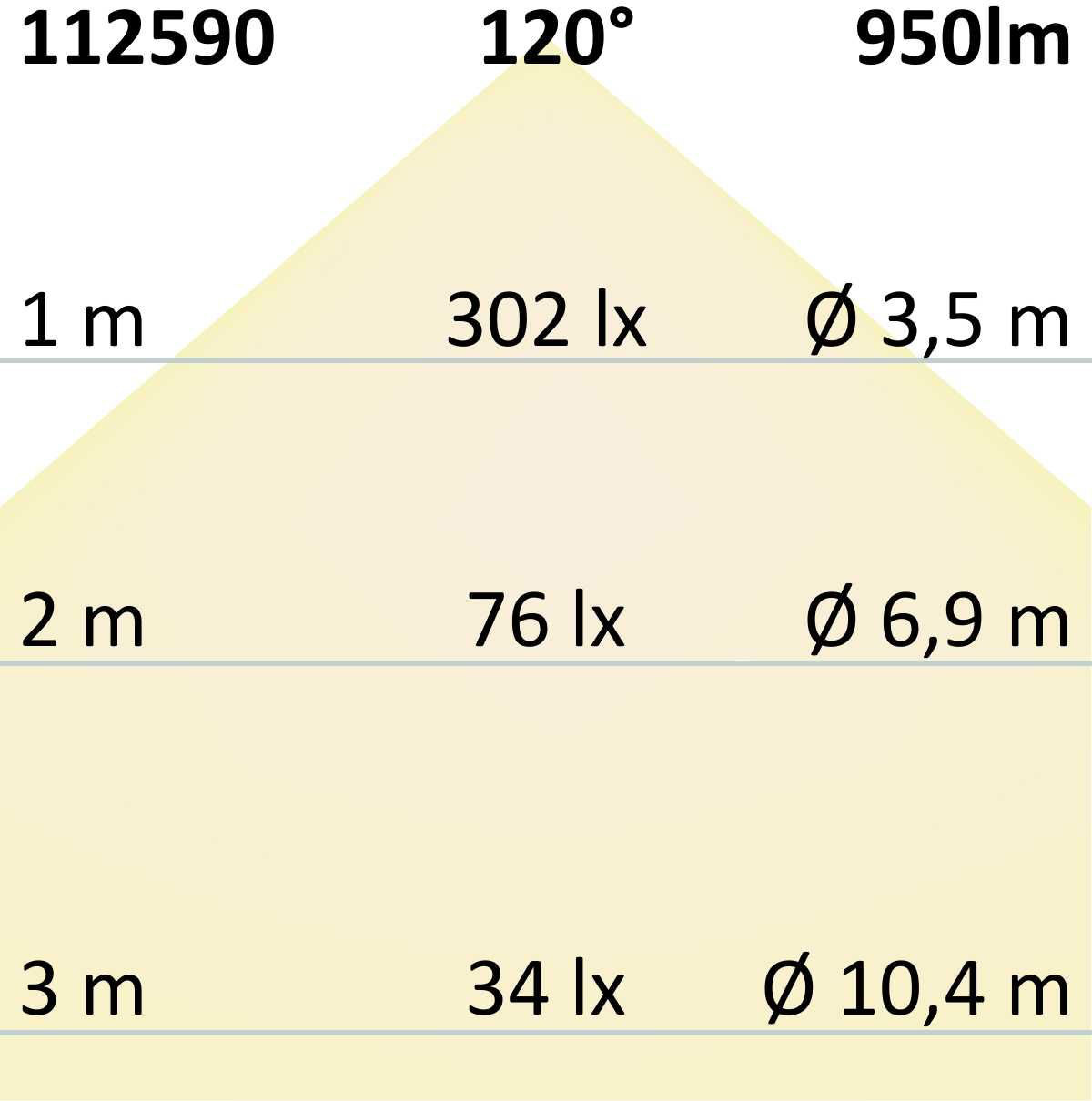

Beam angle:120°
Light intensity:1512cd
Colour rendering:> 85 CRI
Lifetime:25000h
Switching cycles:30000
Protection class:IP20
Energy efficiency class:A+
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white
Incl. illuminant:No
Special features:Separation point: 100mm | Pitch (chip center-center): 16.66mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 10m | Clean and degrease the substrate before gluing! Do not replace it again!
Further links
We will be happy to advise you!
You can reach us:
Mon-Fri: 08:00 am – 05:00 pm
You can find answers to frequently asked questions here: LTT-InfoCenter
Including buyer protection
Verified identity
Protection of personal data
Learn more about us! Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads for the product:
"ISOLED LED SIL830/860 flex stripe, 24V, 9.6W, IP20, dynamic white"
Document type File size
EPREL-Product data sheet
(0.22 MB)
0.22 MB
