ISOLED LED SIL825 flex stripe, 24V, 4.8W, IP20, warm white
€27.69 *
incl. tax,
plus shipping costs
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111001100
EAN: 9009377023354
LED SIL825 flex stripe, 24V, 4.8W, IP20, warm white Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED SIL825 flex stripe, 24V, 4.8W, IP20, warm white"
LED SIL825 flex stripe, 24V, 4.8W, IP20, warm white
Length: | 5000mm |
Width: | 10mm |
Height: | 3mm |
Net weight: | 98g |
LED type: | 300xSMD3528 |
Nominal voltage: | 24V DC |
Rated power: | 4,8 W/m |

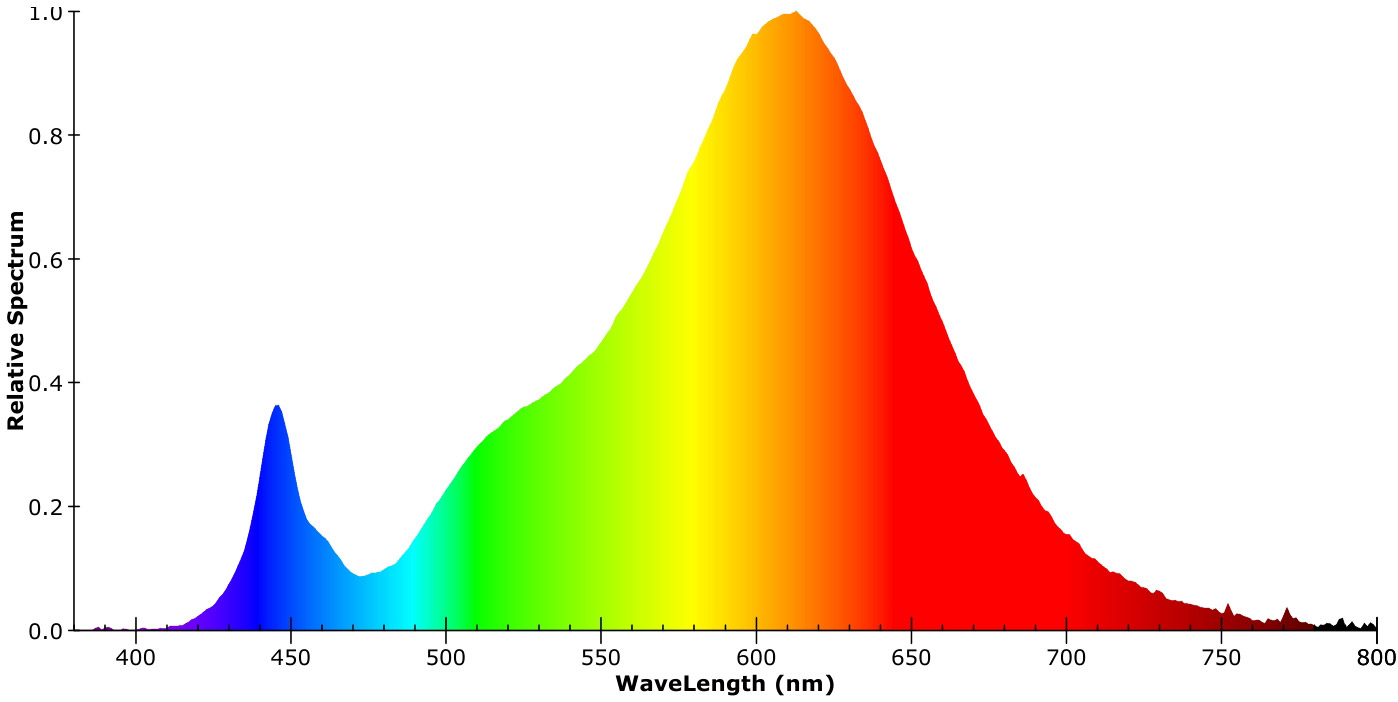

Colour temperature: | 2500K |

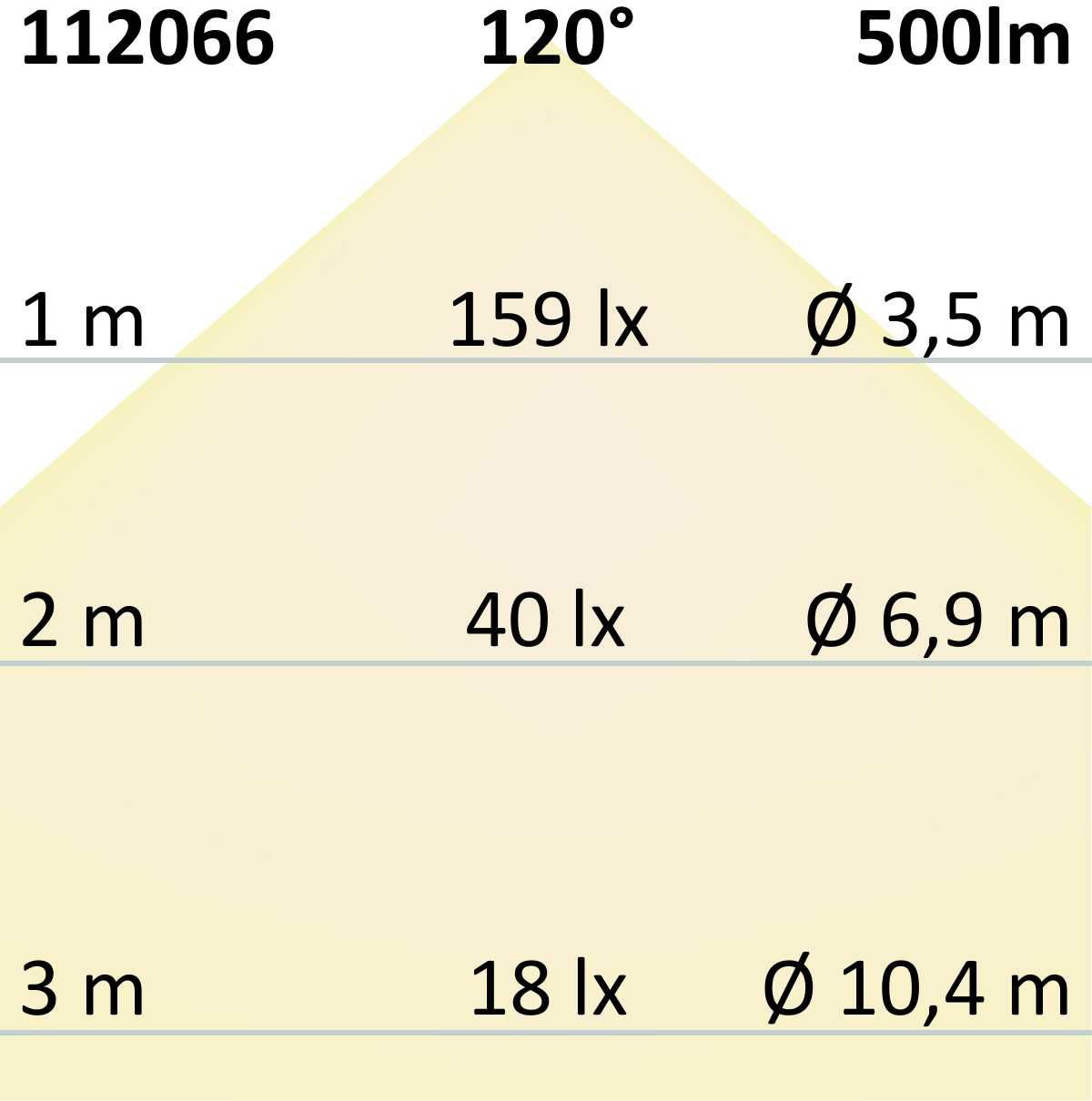

Beam angle: | 120° |
Light intensity: | 538cd |
Colour rendering: | > 80 CRI |
Lifetime: | 25000h |
Switching cycles: | 30000 |
Protection class: | IP20 |
Energy efficiency class: | A++ |
Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
Material: | PCB copper/white |
Incl. illuminant: | No |
Special features: | Separation point: 100mm | Pitch (chip center-center): 16.66mm | 1 roll= 5m | Length Tolerance 1% | max. flex belt length per feed-in: 10m | Clean and degrease the substrate before gluing! Do not replace it again! |
