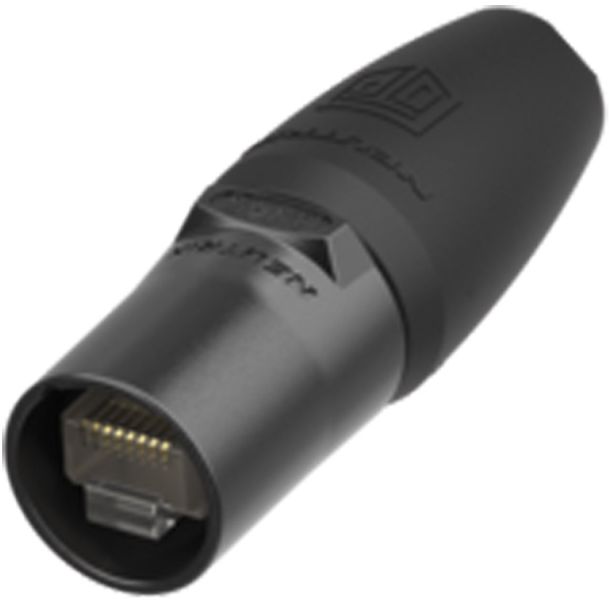

Neutrik NE8MXR-B-TOP - Neutrik etherCON® housing | retractable
- The retractable housing enables compatibility with standard RJ-45 plugs without the risk of losing the housing
- Protection class IP65 with closed protective cap (SCMX-TOP) or in plugged condition with Neutrik etherCON® TOP sockets
- Corrision-resistant coating and materials
- Accepts the most common RJ-45 plugs (see list under Downloads)
- Robust die-cast housing and unique collet strain relief for harsh environmental conditions
- UV-resistant F2 certified materials
- Flame-resistant V0 plug halogenfree materials to protect people and the environment - no toxic or corrosive gases are released
- Designed to prevent breakage of the fragile components of standard RJ-45 plugs
- Enables the assembly of non-pre-assembled conventional RJ-45 cables
The latest innovation in Ethernet connectivity expands the Neutrik etherCON® TOP portfolio. Designed to withstand the harshest outdoor conditions, this connector combines durability with versatility, ensuring reliabe performance in any environment and application.

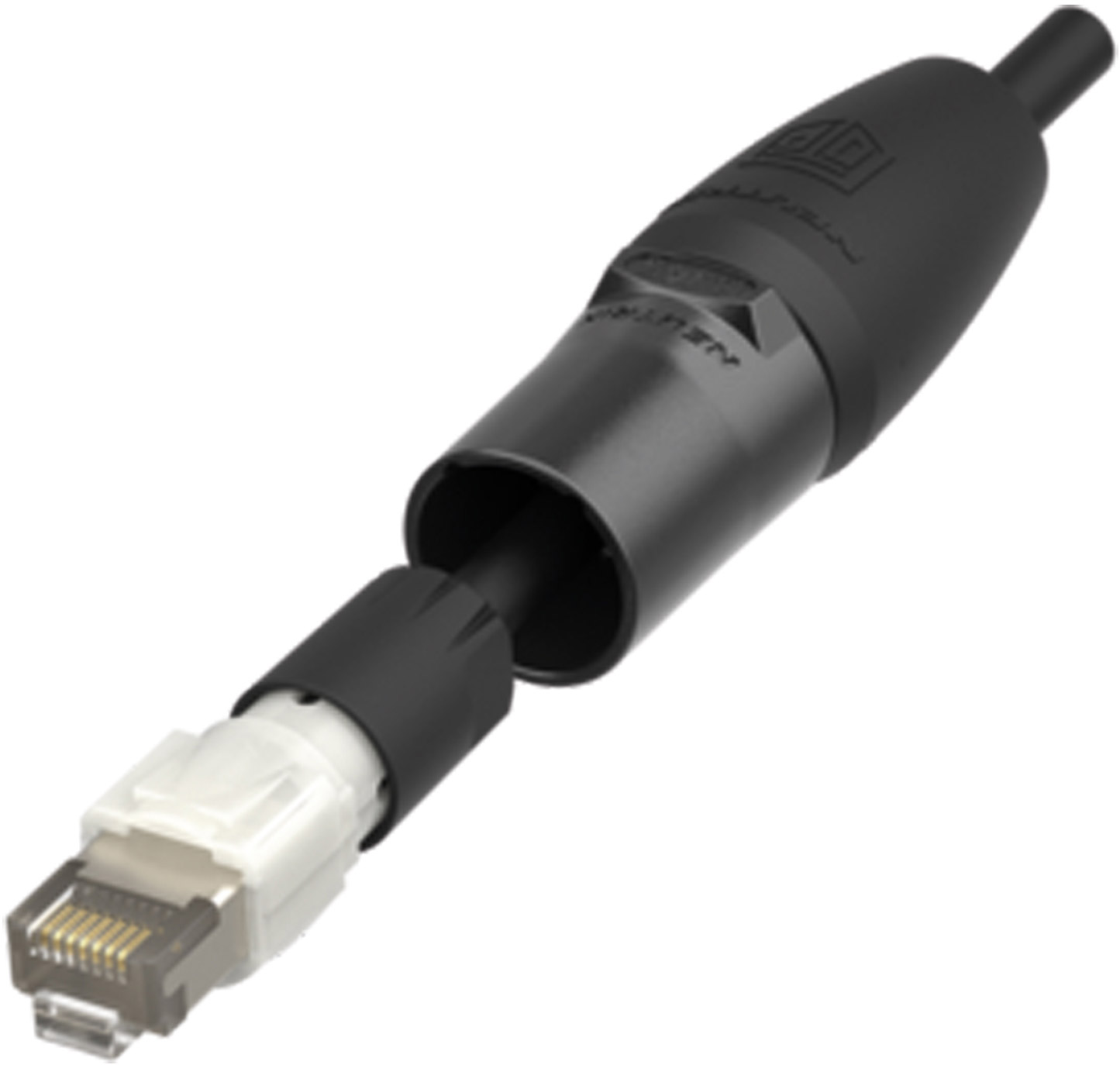

The unique design of the TOP (True Outdoor Protection) connector allows the housing to be fully retractable for the first time, ensuring compatibilty with standard RJ-45 sockets. This feature allows for flexible and universal use in various applications and eliminates the risk and frustration of lost housings.
Please note that the RJ-45 carrier cable connector does not include an RJ-45 plug, it is intended for use with non-preterminated cables only.
Attention: Not compatible with Cat.6 sockets: NE8FDY-C6 & NE8FDY-C6-B
Technical data:General| Plug type: | RJ-45 with housing |
| CAT standard: | Cat.6a |
| Chassis material: | Zinc cast |
| Suitable cable diameter: | 5.5 - 8 mm |
| Protection class: | IP65 |
| Inflammability (UL 94): | V-0 |
| Length: | 63.1 mm |
| Diameter: | 22 mm |
| Weight: | 42 g |
