EUROLITE Set DMX Move Bigfoot + Case

€429.99 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 120027730

A full-fledged DMX light controller in a foot bar, with FX generator including PRO flightcase... more

All information about the product:

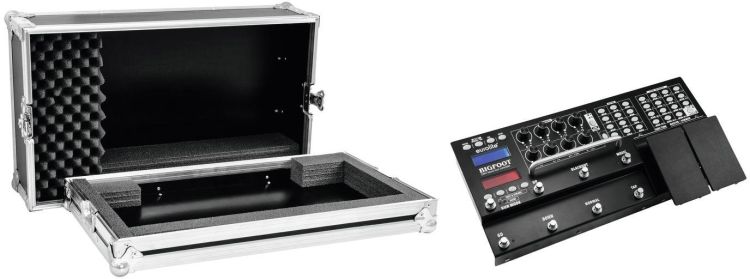

"EUROLITE Set DMX Move Bigfoot + Case"

A full-fledged DMX light controller in a foot bar, with FX generator including PRO flightcase

EUROLITE DMX Move Bigfoot Foot Controller 192

A full-fledged DMX light controller in a foot bar, with FX generator

Fully programmable DMX foot controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
192 DMX channels can be assigned and inverted as desired to 16 control channels (softpatch)
For 12 fixtures with max. 16 control channels each
USB port for storing program data
Quick programming thanks to the integrated FX generator with movement patterns and color effects
Several effects can be used simultaneously
Programs can be freely named
Simply preselect the desired program and trigger it with GO
Sound control via audio signal or TAP button
Convenient control of dimmer, fade time and other functions by foot
8 encoders on 2 levels for adjusting DMX values
Blackout function
Firmware update via USB
Rugged metal housing
Programmable 15 sequencens each with 100 scenes
Can transmit up to 192 DMX channels
Control via DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version
Monochrome LCD display
Non-slip pedal housing

Package contents

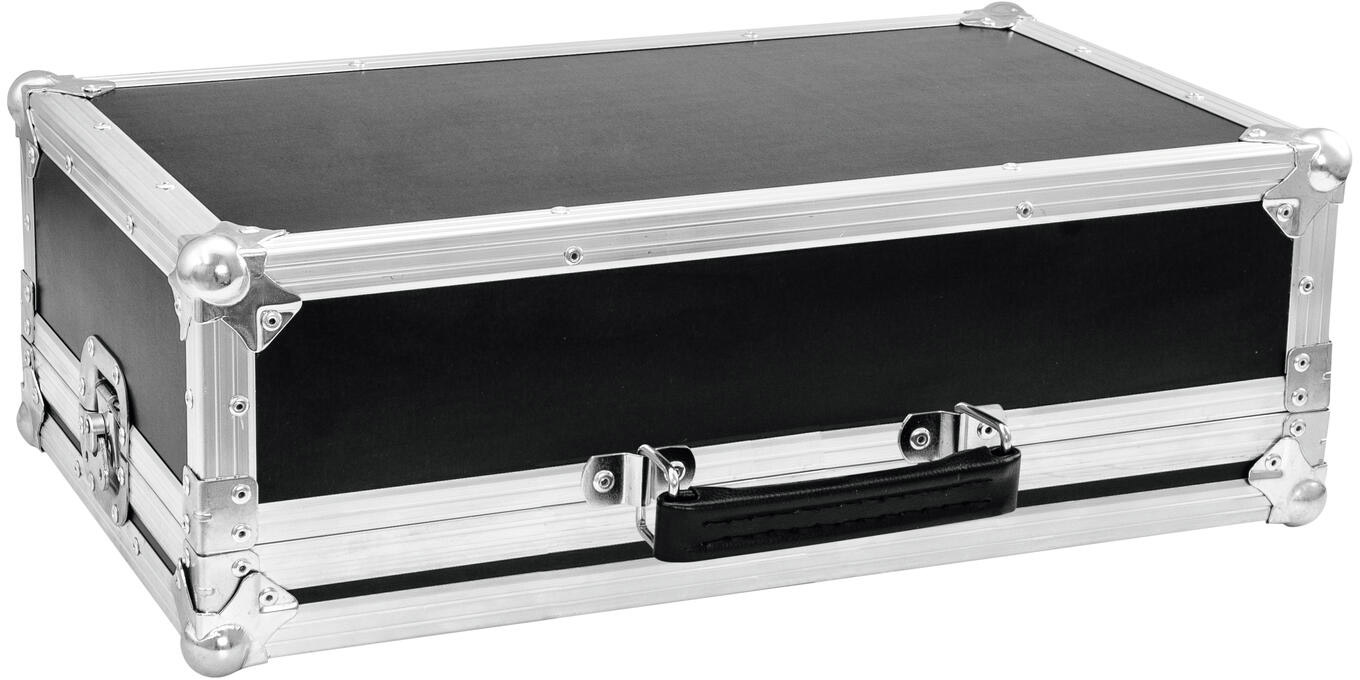

ROADINGER Flightcase DMX Move Bigfoot

PRO flightcase for 1 x DMX Move Bigfoot

With 1 Device compartment
High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
Aluminum profile frames 25mm with rounded edges
Rugged carrying handle
1 high-quality butterfly lock
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"

Weight:	8,57 kg
EUROLITE DMX Move Bigfoot Foot Controller 192
Power supply:	100-240 V AC, 50/60 Hz 9 V DC 800 mA
Power consumption:	10 W
IP classification:	IP20
Protection class:	Protection class III
Power connection:	Mains input via 2-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided)
Programs:	Programmable 15 Sequences Each with 100 Scenes
DMX channels:	Output 192
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version
Housing color:	Black
Display type:	Monochrome LCD display
Available storage media:	USB devices (FAT 32)
USB port:	Typ A
Color:	Black
Housing design:	Non-slip pedal housing
Dimensions:	Width: 45 cm Depth: 24 cm Height: 10 cm
Weight:	4,52 kg
ROADINGER Flightcase DMX Move Bigfoot
Maximum load:	25 kg
Aluminum profile frames:	25 mm
Carrying handle:	1 pc/pcs
Lock:	Butterfly lock: 1 pc/pcs
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Device compartment:	45 cm x 19,5 cm x 40 cm
Dimensions:	Width: 42 cm Depth: 32 cm Height: 17,5 cm
Weight:	4,05 kg
