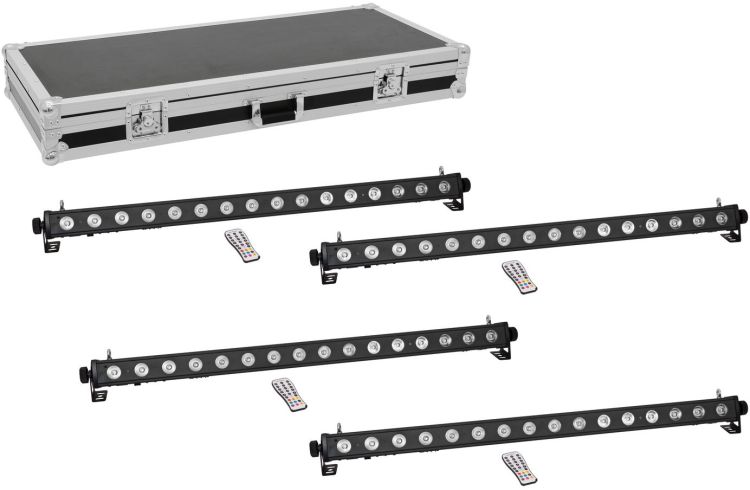

EUROLITE Set 4x LED PIX-16 QCL Bar + Case

EUROLITE Set 4x LED PIX-16 QCL Leiste + Case

€899.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 120036690

EAN: 4026397728422

EUROLITE LED PIX-16 QCL Bar LED light effect bar with 16 x 4 W RGBW LED (4in1), incl. IR remote... more

Back to the overview

All information about the product:

"EUROLITE Set 4x LED PIX-16 QCL Bar + Case"

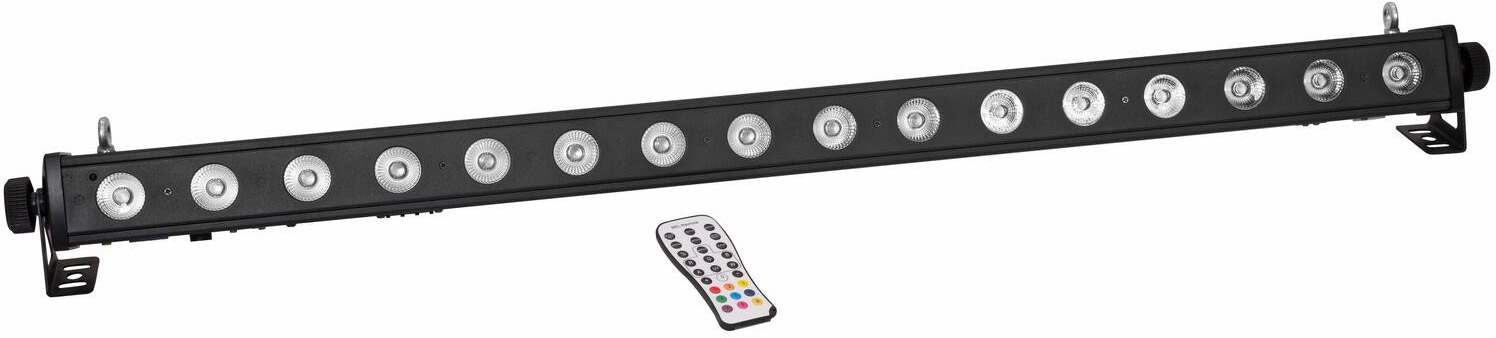

EUROLITE LED PIX-16 QCL Bar

LED light effect bar with 16 x 4 W RGBW LED (4in1), incl. IR remote control

16 powerful LEDs 4 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
Strobe effect
21 integrated show programs
Direct color selection for 15 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; IR remote control
Preprogrammed in Light´J; Light Captain
Flicker-free
With a beam angle of 15°
With Mounting bracket
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units

Package contents

1 x bar, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 2 x mounting bracket, 2 x screw, 2 x washer

ROADINGER Flightcase EC-B252 4x LED BAR-252 RGB

Practical flightcase for 4 x LED BAR-252 RGB

High-quality workmanship with birch multiplex 7 mm, black, laminated
Interior with foam padding
Aluminum profile frames 30mm with rounded edges
Rugged carrying handle
3 chrome tip-over locks
2 high-quality butterfly locks
For further information about this product, please refer to the Data Sheet under "Downloads"

Weight:	22,98 kg
EUROLITE LED PIX-16 QCL Bar
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	70 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:	P-Con (gray), mounting version
Fuse:	F 1 A Fuse replaceable
Lamp type:	LED lamp
LED:	16 x 4 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
DMX channels:	3; 4; 11; 21-1; 21-2; 64
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; IR remote control
Preprogrammed in:	Light´J; Light Captain
Beam angle:	15°
Beam angle (1/2 peak):	15°
Beam angle (1/10 peak):	30°
Housing color:	Black
Attachment system:	2x Mounting bracket
Display type:	4 digit 7-segment LED display
Dimensions:	Length: 1,08 m Width: 6,5 cm Height: 8,5 cm
Weight:	2,39 kg
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase EC-B252 4x LED BAR-252 RGB
Maximum load:	25 kg
Aluminum profile frames:	30 mm
Carrying handle:	1 pc/pcs
Stop hinge:	3 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Material:	Birch multiplex, 7 mm
Color:	Black, laminated; dark brown, laminated
Inside dimensions:	1,08 m x 44 cm x 7,5 cm
Device compartment:	1,08 m x 6,5 cm x 7,5 cm
Dimensions:	Width: 1,17 m Depth: 48 cm Height: 17 cm
Weight:	10,90 kg
