EUROLITE Set 2x LED TMH-X4 Moving-Head Wash Zoom wh + Case

EUROLITE Set 2x LED TMH-X4 Moving-Head Wash Zoom ws + Case

€1,899.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 120036110

EAN: 4026397716382

EUROLITE LED TMH-X4 Moving Head Wash Zoom wh Washlight with 19 intense 15 W LEDs (4in1),... more

Back to the overview

All information about the product:

"EUROLITE Set 2x LED TMH-X4 Moving-Head Wash Zoom wh + Case"

EUROLITE LED TMH-X4 Moving Head Wash Zoom wh

Washlight with 19 intense 15 W LEDs (4in1), motorized zoom and white housing

19 powerful LEDs 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
3 segments separate controlling
Positioning within 630° PAN and 270° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Zoom motor-driven
Integrated show programs
The device is cooled by temperature-controlled fan at the Head; cooling fan at the Base
Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 1° - 40°
Multicolor LCD display
Color blend stepless; color change adjustable; Dimmer electronic
Strobe effect
Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
Mains input and output for power linking up to 8 units

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket

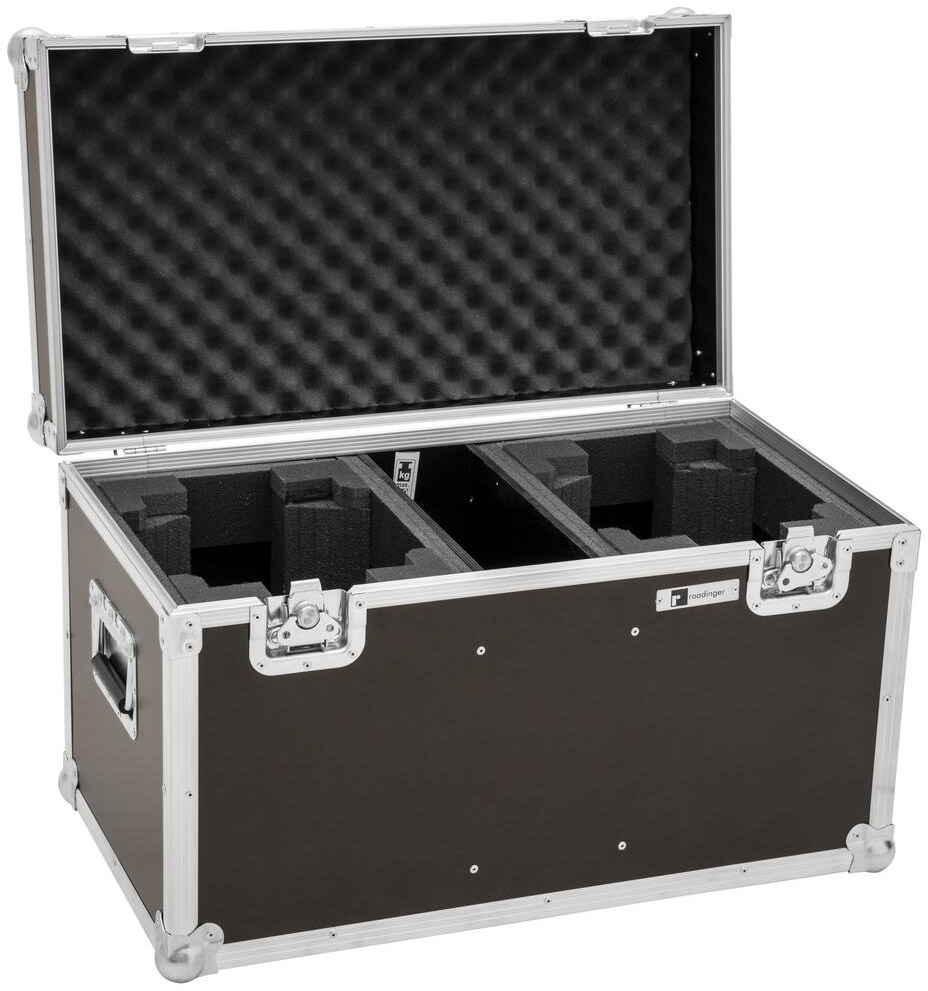

ROADINGER Flightcase 2x LED TMH-X4

PRO flightcase for 2x LED TMH-X4

For optimal security
With accessory compartment
High-quality workmanship with birch multiplex 7 mm, black, laminated
Interior with foam padding
Aluminum profile frames 30mm with rounded edges
2 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
Branded hardware
For further information about this product, please refer to the Data Sheet under "Downloads"

Weight:	29,44 kg
EUROLITE LED TMH-X4 Moving Head Wash Zoom wh
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	225 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A Fuse replaceable
Lamp type:	LED lamp
LED:	19 x 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:	270° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:	630° Exact positioning (16 bit resolution) Auto position correction (feedback)
Equipment:	Zoom motor-driven
DMX channels:	16; 24
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan at the Head Cooling fan at the Base
Control:	Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
Beam angle:	1° - 40°
Beam angle (1/2 peak):	1 - 25°
Beam angle (1/10 peak):	8 - 40°
Illuminance in Lux (lx):	Narrow red (R) 3m: 2779 lx, 6m: 763 lx Narrow green (G) 3m: 7893 lx, 6m: 1841 lx Narrow blue (B) 3m: 1468 lx, 6m: 390 lx Narrow cold white (CW) 3m: 9558 lx, 6m: 2468 lx Narrow all 3m: 19553 lx, 6m: 5001 lx Wide red (R) 3m: 272 lx, 6m: 73 lx Wide green (G) 3m: 583 lx, 6m: 160 lx Wide blue (B) 3m: 117 lx, 6m: 34 lx Wide cold white (CW) 3m: 740 lx, 6m: 211 lx Wide all 3m: 1568 lx, 6m: 439 lx
Housing color:	White
Display type:	Multicolor LCD display
Dimensions:	Width: 30,5 cm Depth: 20,0 cm Height: 40,0 cm
Weight:	8,62 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 2x LED TMH-X4
Maximum load:	50 kg
Aluminum profile frames:	30 mm
Case handles:	2 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm; birch multiplex
Color:	Black, laminated; dark brown, laminated
Inside dimensions:	58 cm x 33,5 cm
Device compartment:	24 cm x 23 cm x 33,5 cm
Middle compartment:	10 cm x
Dimensions:	Width: 72 cm Depth: 46 cm Height: 41 cm
Weight:	12,20 kg
