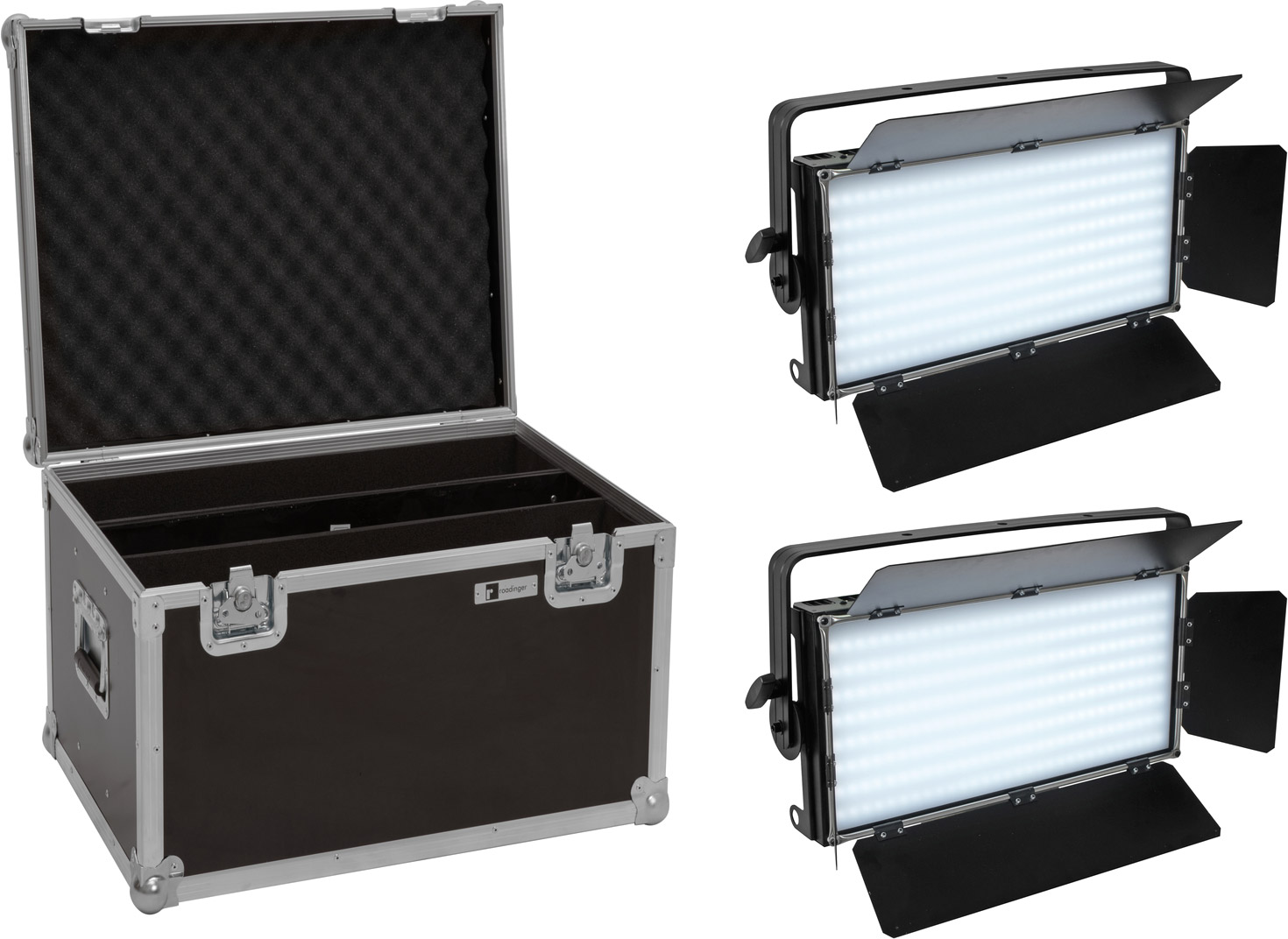

EUROLITE Set 2x LED PLL-480 QCL Panel + Case

€1,699.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 120035595

EAN: 4026397694598

EUROLITE LED PLL-480 QCL Panel DMX-controlled surface light with 480 4in1 RGBW LEDs 480... more

Back to the overview

All information about the product:

"EUROLITE Set 2x LED PLL-480 QCL Panel + Case"

EUROLITE LED PLL-480 QCL Panel

DMX-controlled surface light with 480 4in1 RGBW LEDs

480 powerful LEDs SMD 5050 4in1 QCL RGBW (homogenous color mix)
frost filter provides a soft, homogeneous light
4 barn doors to avoid blinding the audience and for protection during transport
Silent operation
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; pulse-width modulation variable
Strobe effect
The device is cooled by passive convection cooling
Control via DMX; stand-alone; Master/slave function
Flicker-free
With a beam angle of 120°
With Mounting bracket
LCD display
Slim, rugged metal housing
Stand or truss installation
For application areas such as: Video and photography; Stage
Preprogrammed in Light´J; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
Rugged carrying handle
Mains input and output for power linking up to 8 units

Package contents

1 x spotlight, 1 x user manual, 1 x power cord, 1 x plug (male)

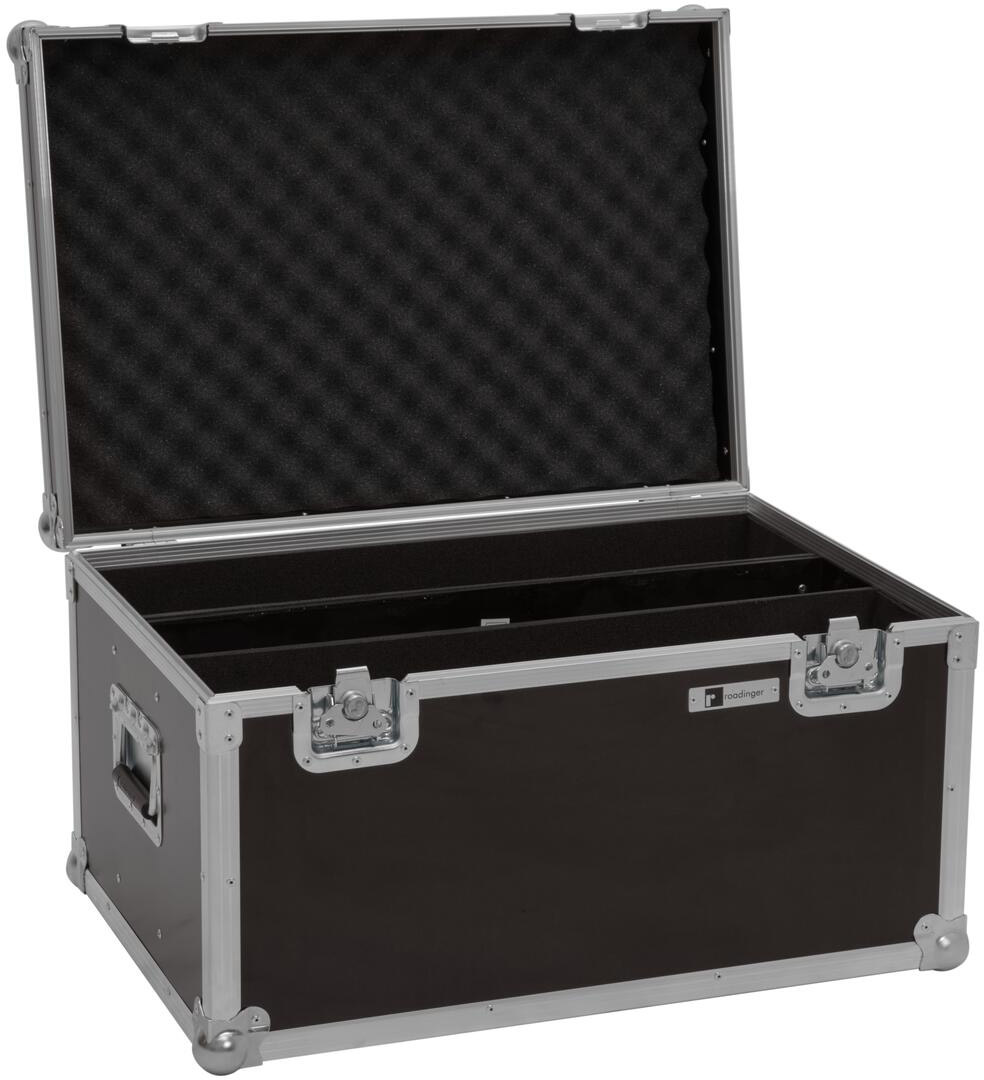

ROADINGER Flightcase 2x LED PLL-480

High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Branded hardware

Weight:	37,50 kg
EUROLITE LED PLL-480 QCL Panel
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	205 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Lamp type:	LED lamp
LED:	480 x SMD 5050 4in1 QCL RGBW (homogenous color mix)
DMX channels:	6; 4
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	DMX; stand-alone; Master/slave function
Preprogrammed in:	Light´J; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
Beam angle:	120°
Beam angle (1/2 peak):	120°
Illuminance in Lux (lx):	Red (R) 1m: 438 lx, 3m: 61 lx, 6m: 18 lx Green (G) 1m: 633 lx, 3m: 88 lx, 6m: 25 lx Blue (B) 1m: 209 lx, 3m: 29 lx, 6m: 8 lx Cold white (CW) 1m: 2130 lx, 3m: 296 lx, 6m: 87 lx All 1m: 2696 lx, 3m: 380 lx, 6m: 112 lx
Lamp life:	50000 h
Luminous flux:	17103 lm
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	LCD display
Carrying handle:	1 pc/pcs
Dimensions:	Width: 64 cm Depth: 13 cm Height: 33,5 cm
Weight:	12,60 kg
Noise classification:	Class 0 (no noise at all)
Energy efficiency class (A - G):	F
ROADINGER Flightcase 2x LED PLL-480
Maximum load:	50 kg
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Inside dimensions:	64 cm x 38,5 cm x 29 cm
Device compartment:	64 cm x 14 cm x 29 cm
Accessory compartment:	64 cm x 10,5 cm x 29 cm
Dimensions:	Length: 70 cm Width: 47 cm Height: 39 cm
Weight:	12,30 kg
