EUROLITE Set 4x LED BAR-12 QCL RGB+UV Bar + Case
€749.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120031725
EAN: 4026397671032
MPN: 20000664
4x light effect bar (1 m) with RGB+UV color mixing including flightcase EUROLITE LED BAR-12 QCL... more
All information about the product:
"EUROLITE Set 4x LED BAR-12 QCL RGB+UV Bar + Case"
4x light effect bar (1 m) with RGB+UV color mixing including flightcase

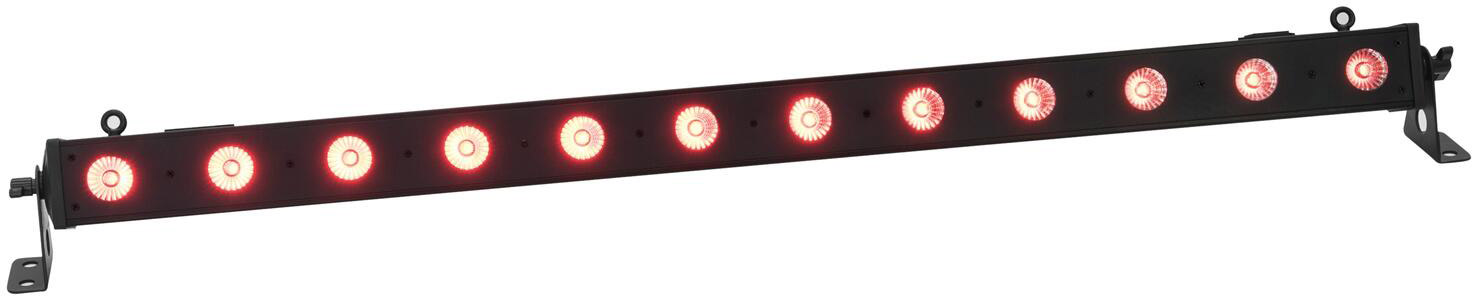

EUROLITE LED BAR-12 QCL RGB+UV Bar
Light effect bar (1 m) with RGB+UV color mixing
- 12 powerful LEDs 4 W high-power 4in1 QCL RGB/UV (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect; UV effect
- Integrated show programs
- Direct color selection for 20 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 20°
- With Mounting bracket
- 4 digit 7-segment LED display
- Silent operation
- Preprogrammed in LED PC-Control 512; EASY SHOW 2; Light Captain; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x bar, 1 x user manual, 1 x power cord, 2 x mounting bracket, 2 x screw, 2 x washer

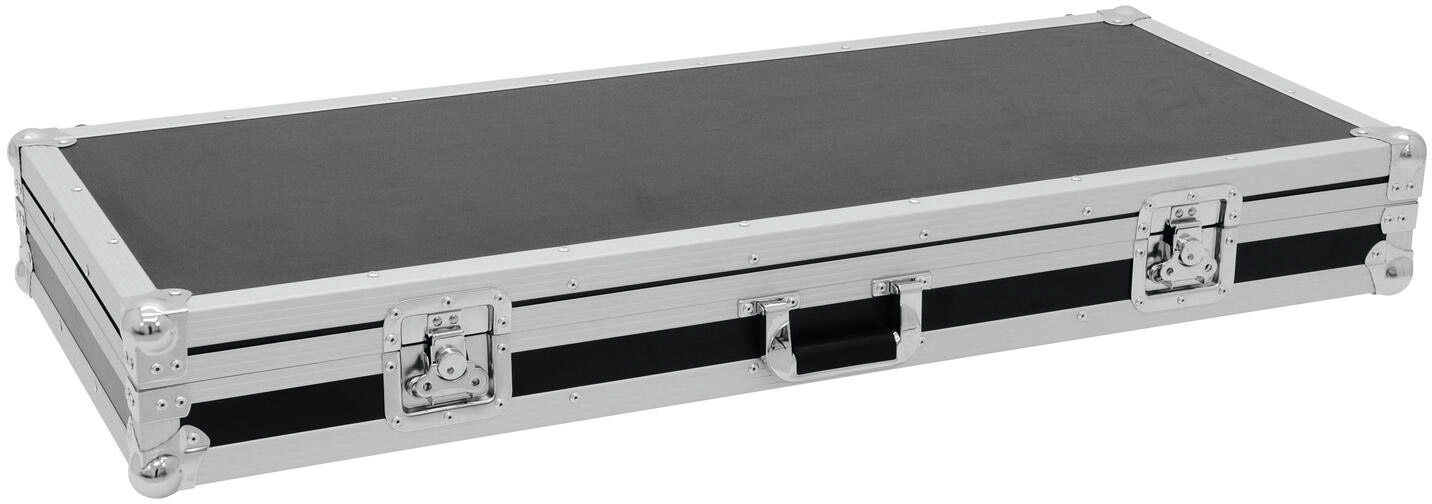

ROADINGER Flightcase EC-B252 4x LED BAR-252 RGB
Practical flightcase for 4 x LED BAR-252 RGB
- High-quality workmanship with birch multiplex 7 mm, black, laminated
- Interior with foam padding
- Aluminum profile frames 30mm with rounded edges
- Rugged carrying handle
- 3 chrome tip-over locks
- 2 high-quality butterfly locks
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Weight: | 22,30 kg |
| EUROLITE LED BAR-12 QCL RGB+UV Bar | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 25 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Lamp type: | LED lamp |
| LED: | 12 x 4 W high-power 4in1 QCL RGB/UV (homogenous color mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 2; 4; 5; 6; 9 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | LED PC-Control 512; EASY SHOW 2; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 20° |
| Beam angle (1/2 peak): | 20° |
| Beam angle (1/10 peak): | 33° |
| Wavelength: | Ultra violet (UV) 399 nm |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Aluminum; metal |
| Dimensions: | Length: 1,07 m Depth: 6,5 cm Height: 10,3 cm |
| Weight: | 2,85 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | 1,2 m |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø20mm; 1 x Ø11mm; 2 x Ø7mm |
| Material: | Metal, 2 mm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase EC-B252 4x LED BAR-252 RGB | |
| Maximum load: | 25 kg |
| Aluminum profile frames: | 30 mm |
| Carrying handle: | 1 pc/pcs |
| Stop hinge: | 3 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs |
| Material: | Birch multiplex, 7 mm |
| Color: | Black, laminated; dark brown, laminated |
| Inside dimensions: | 1,08 m x 44 cm x 7,5 cm |
| Device compartment: | 1,08 m x 6,5 cm x 7,5 cm |
| Dimensions: | Width: 1,17 m Depth: 48 cm Height: 17 cm |
| Weight: | 10,90 kg |
